Early Fault Detection for Rolling Bearings Based on One-dimensional Structure Graph Entropy

doi:10.3969/j.issn.1004-132X.2026.03.014

Abstract

Abstract:

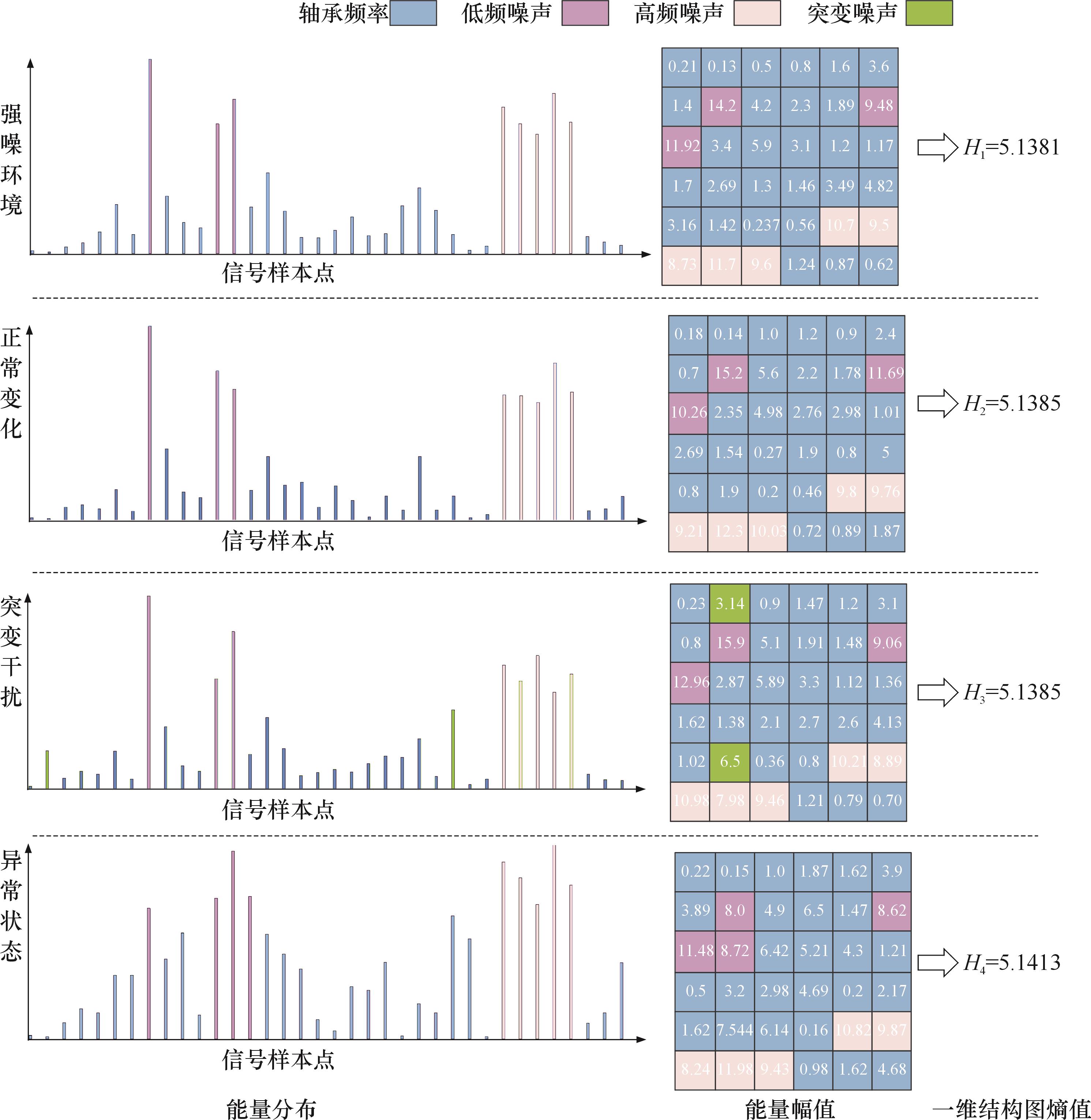

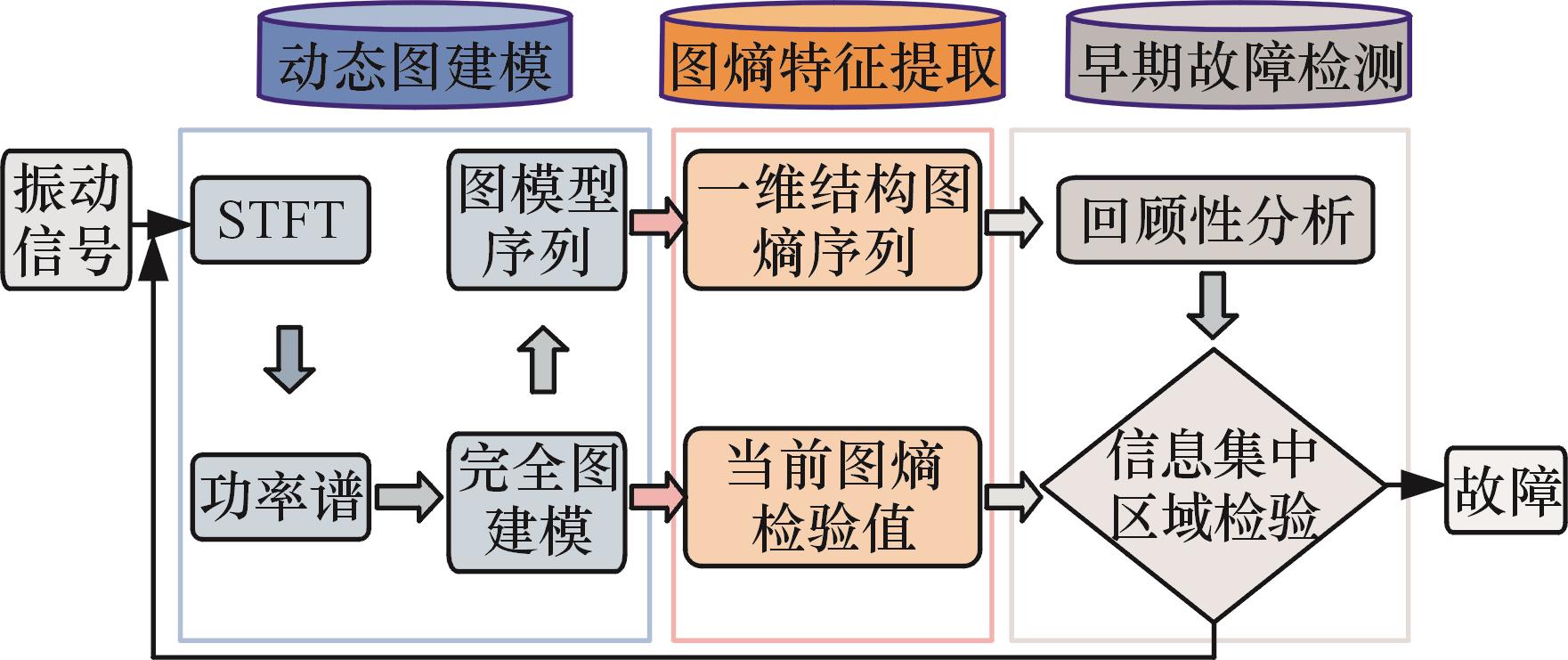

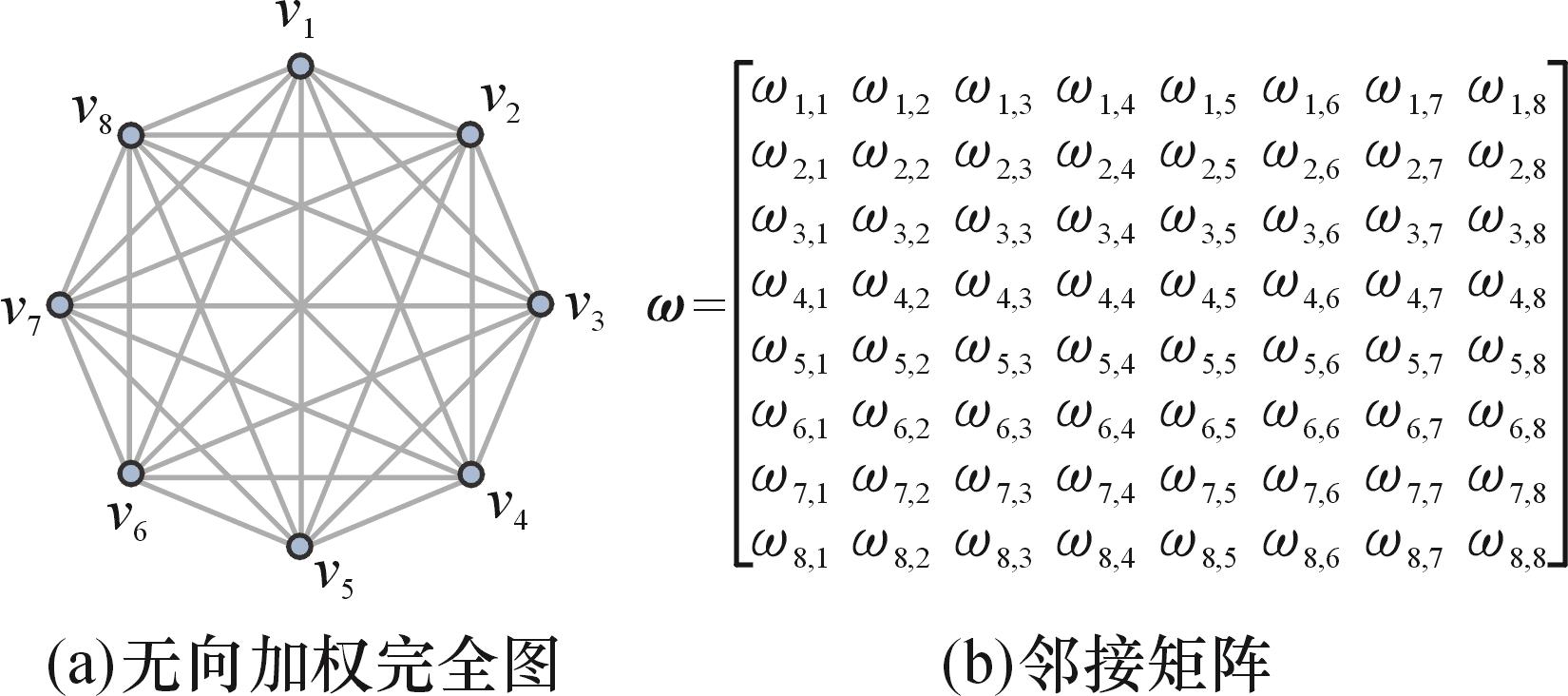

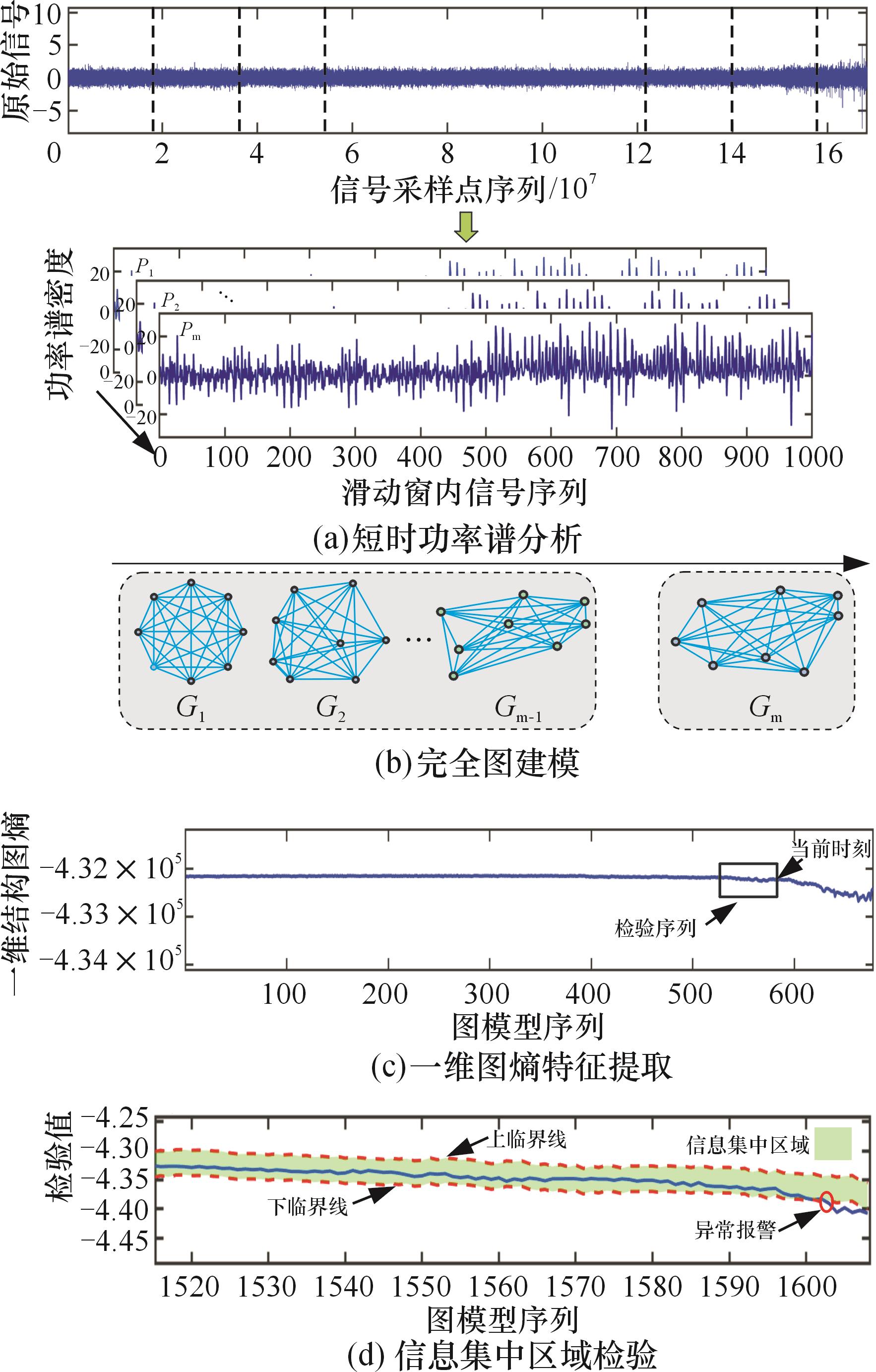

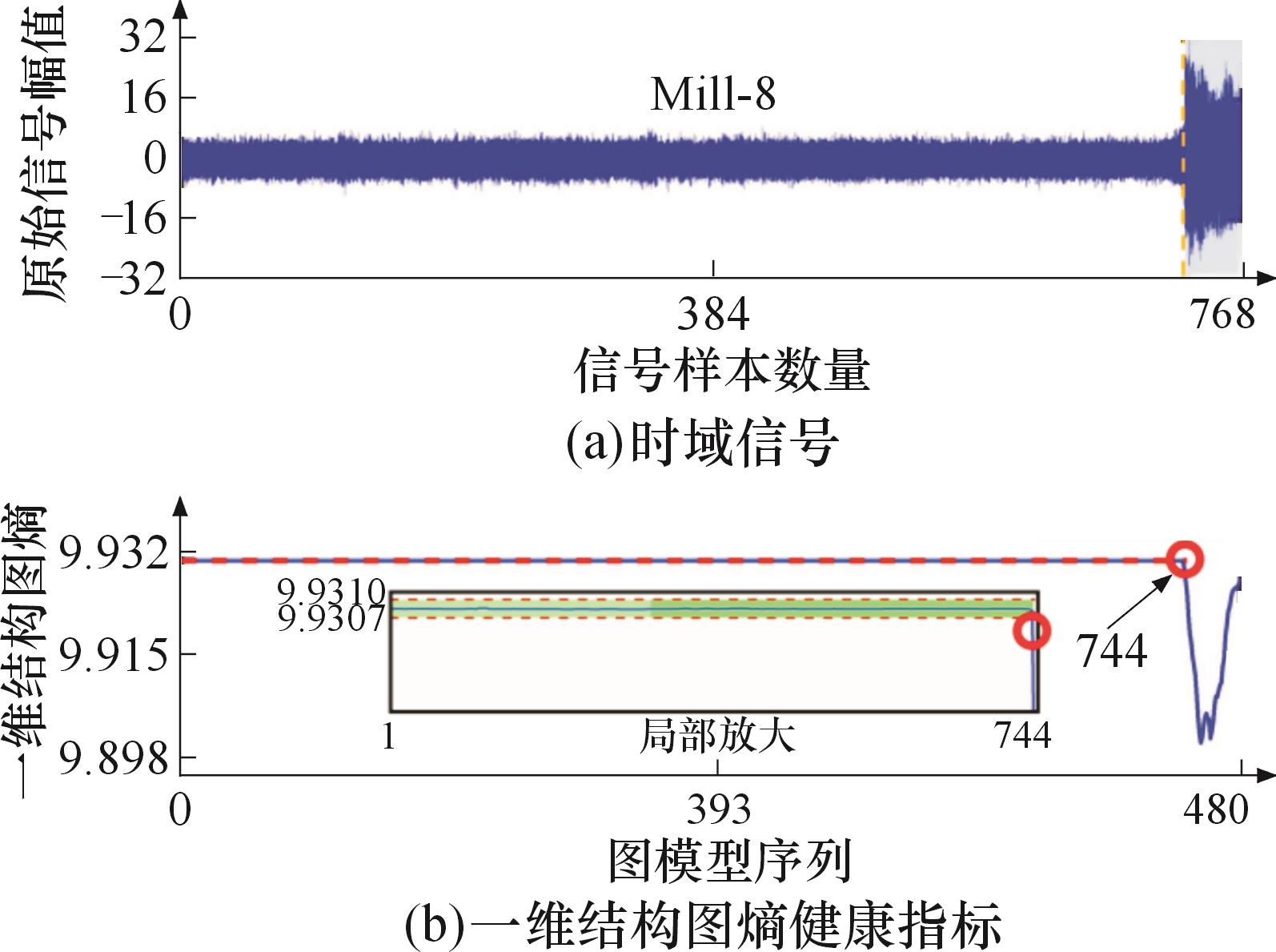

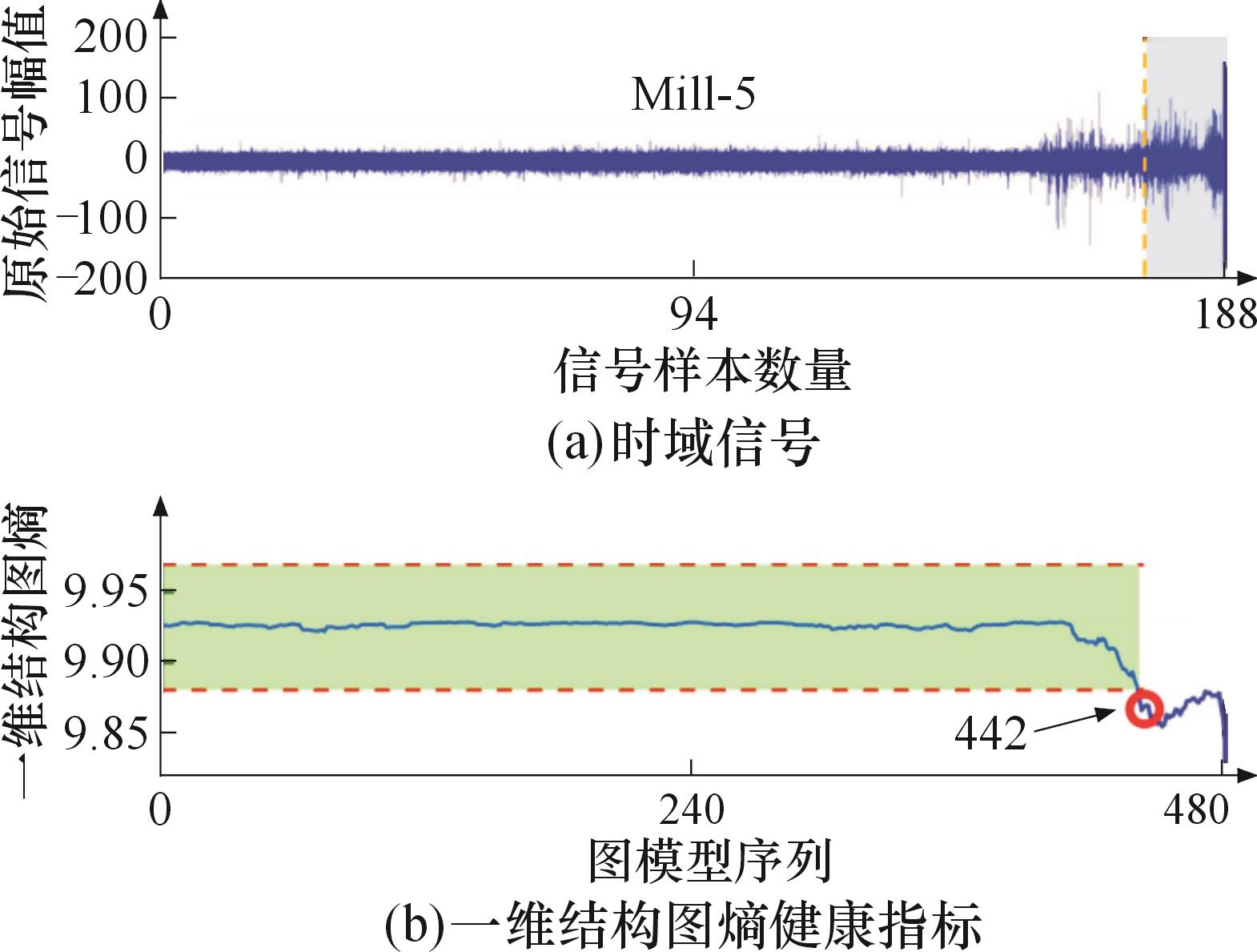

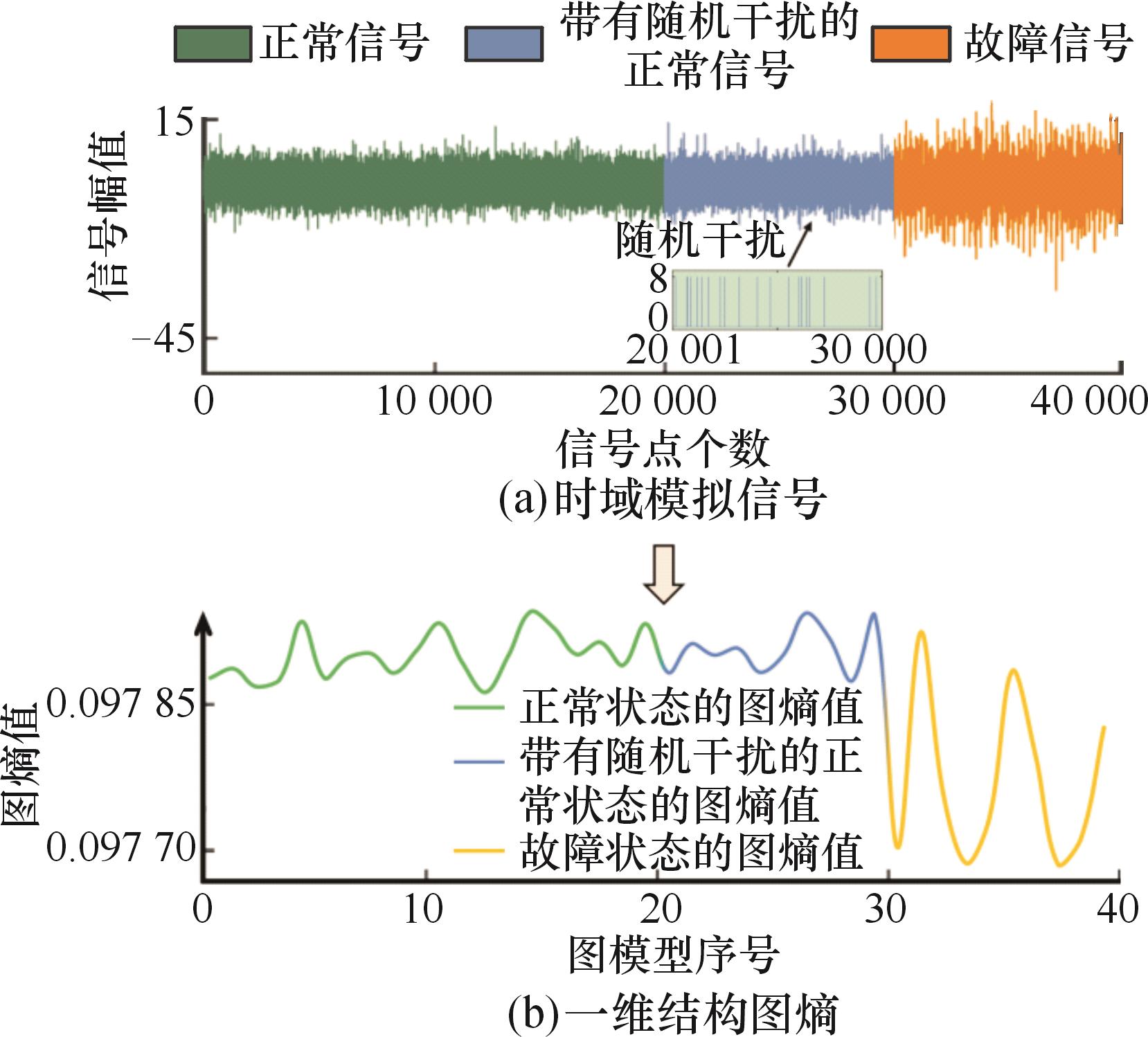

To address the challenges of accurately identifying early faults in rolling bearings， a fault detection method was proposed based on one-dimensional structural graph entropy. A graph model was developed to transform time-series data into spatial structures， enabling effective extraction of bearing condition features. A complete graph model of signal short-time power spectrum was construtured， and the complexity changing rules of time-frequency energy distribution were captured. Leveraging the ability of entropy to describe signal nonlinearity， a one-dimensional structural graph entropy measure was defined to quantify the variations in complexity of model structure， whose mean value served as health indicator for assessing the condition of the bearings. Theoretical explanations and numerical analyses demonstrated the discriminative mechanism of health indicators regarding operating states. Additionally， an adaptive detection method was developed based on the characteristics of this health indicator. The method was experimentally validated on XJTU-SY， IMS， PHM， and pulp mill datasets. Results show that the method may accurately identify fault conditions without any parametric adjustments. When compared with methods such as mean square value， synchronized pseudo-velocity corrected mean square value， variance， and kurtosis， the proposed health indicator shows superior robustness and trend-tracking performance.

Key words: rolling bearing, early fault detection, graph model, one-dimensional structure graph entropy

摘要：

针对滚动轴承早期故障难以准确识别问题，提出了一种基于一维结构图熵的故障检测方法。设计了一种将时间序列重构为空间结构的图模型，能够有效提取轴承状态特征。通过对信号短时功率谱进行完全图建模，获取了时频能量分布复杂性变化特性。利用熵对信号非线性描述的优点，定义一维结构图熵度量模型结构的复杂性变化，并将其均值作为健康指标来评估轴承健康状态。理论解释和数值化分析了健康指标对运行状态的区分机制，并根据特点设计了自适应检测方法。该方法分别在XJTU-SY、IMS、PHM数据集以及纸浆工厂数据集上进行实验验证，结果显示该方法无需任何参数调整即可准确识别故障状态。与均方值、同步伪速度校正均方值、方差、峰度等方法相比，所述健康指标具有更好的鲁棒性和趋势性。

关键词: 滚动轴承, 早期故障检测, 图模型, 一维结构图熵

CLC Number:

TH133.33

LI Ke, WANG Mengjun, YUAN Maojun, ZHANG Hongshuo, YUAN Keyan, LU Guoliang. Early Fault Detection for Rolling Bearings Based on One-dimensional Structure Graph Entropy[J]. China Mechanical Engineering, 2026, 37(3): 645-655.

李科, 王梦君, 袁茂军, 张宏硕, 袁科研, 卢国梁. 基于一维结构图熵的滚动轴承早期故障检测[J]. 中国机械工程, 2026, 37(3): 645-655.

Figures/Tables 22

References 34

[1]	郑近德，陈焱，童靳于，等. 精细广义复合多元多尺度反向散布熵及其在滚动轴承故障诊断中的应用［J］. 中国机械工程， 2023， 34（11）： 1315-1325.
	ZHENG Jinde， CHEN Yan， TONG Jinyu， et al. RGCMvMRDE and Its Applications in Rolling Bearing Fault Diagnosis［J］. China Mechanical Engineering， 2023， 34（11）： 1315-1325.
[2]	ZHOU Haoxuan， HUANG Xin， WEN Guangrui， et al. Construction of Health Indicators for Condition Monitoring of Rotating Machinery： a Review of the Research［J］. Expert Systems with Applications， 2022， 203： 117297.
[3]	LUO Jianqing， WEN Guangrui， LEI Zihao， et al. Weak Signal Enhancement for Rolling Bearing Fault Diagnosis Based on Adaptive Optimized VMD and SR under Strong Noise Background［J］. Measurement Science and Technology， 2023， 34（6）： 064001.
[4]	LIU Yongbin， HE Bing， LIU Fang， et al. Feature Fusion Using Kernel Joint Approximate Diagonalization of Eigen-matrices for Rolling Bearing Fault Identification［J］. Journal of Sound and Vibration， 2016， 385： 389-401.
[5]	MIAO Yonghao， ZHAO Ming， LIN Jing. Improvement of Kurtosis-guided-grams via Gini Index for Bearing Fault Feature Identification［J］. Measurement Science and Technology， 2017， 28（12）： 125001.
[6]	郭俊超，甄冬，孟召宗，等. 基于WAEEMD和MSB的滚动轴承故障特征提取［J］. 中国机械工程， 2021， 32（15）： 1793-1800.
	GUO Junchao， ZHEN Dong， MENG Zhaozong， et al. Feature Extraction of Rolling Bearings Based on WAEEMD and MSB［J］. China Mechanical Engineering， 2021， 32（15）： 1793-1800.
[7]	SUN Yongjian， LI Shaohui， WANG Xiaohong. Bearing Fault Diagnosis Based on EMD and Improved Chebyshev Distance in SDP Image［J］. Measurement， 2021， 176： 109100.
[8]	袁静，姚泽，胡雯玥，等. 滚动轴承复合故障的时频能量聚集谱诊断方法［J］. 振动与冲击， 2023， 42（2）： 285-292.
	YUAN Jing， YAO Ze， HU Wenyue， et al. Time-Frequency Energy Aggregation Spectrum Diagnosis Method for Compound Faults of Rolling Bearings［J］. Journal of Vibration and Shock， 2023， 42（2）： 285-292.
[9]	谢锋云，刘慧，胡旺，等. 基于自适应TQWT与小波包奇异谱熵的滚动轴承早期故障诊断［J］. 铁道科学与工程学报， 2023， 20（2）： 714-722.
	XIE Fengyun， LIU Hui， HU Wang， et al. Early Fault Diagnosis of Rolling Bearing Based on Adaptive TQWT and Wavelet Packet Singular Spectral Entropy［J］. Journal of Railway Science and Engineering， 2023， 20（2）： 714-722.
[10]	李志农，刘跃凡，胡志峰，等. 经验小波变换-同步提取及其在滚动轴承故障诊断中的应用［J］. 振动工程学报， 2021， 34（6）： 1284-1292.
	LI Zhinong， LIU Yuefan， HU Zhifeng， et al. Empirical Wavelet Transform-synchroextracting Transform and Its Applications in Fault Diagnosis of Rolling Bearing［J］. Journal of Vibration Engineering， 2021， 34（6）： 1284-1292.
[11]	刘一龙，李心远，陈银萍，等. 基于峭度曲面极大值的电机轴承保持架故障诊断方法［J］. 机械工程学报， 2024， 60（15）： 89-99.
	LIU Yilong， LI Xinyuan， CHEN Yinping， et al. A Motor Bearing Cage Fault Diagnosis Method Based on Local Maximum of Kurtosis Surface［J］. Journal of Mechanical Engineering， 2024， 60（15）： 89-99.
[12]	SAHU P K， RAI R N. Fault Diagnosis of Rolling Bearing Based on an Improved Denoising Technique Using Complete Ensemble Empirical Mode Decomposition and Adaptive Thresholding Method［J］. Journal of Vibration Engineering & Technologies， 2023， 11（2）： 513-535.
[13]	LI Ke， ZHANG Hongshuo， LU Guoliang. Graph Entropy-based Early Change Detection in Dynamical Bearing Degradation Process［J］. IEEE Internet of Things Journal， 2024， 11（13）： 23186-23195.
[14]	SUN Weifang， ZHOU Yuqing， CAO Xincheng， et al. A Two-stage Method for Bearing Fault Detection Using Graph Similarity Evaluation［J］. Measurement， 2020， 165： 108138.
[15]	WANG Teng， LIU Zheng， LU Guoliang， et al. Temporal-Spatio Graph Based Spectrum Analysis for Bearing Fault Detection and Diagnosis［J］. IEEE Transactions on Industrial Electronics， 2021， 68（3）： 2598-2607.
[16]	王好将，于德介，高艺源. 滚动轴承故障诊断的最优加权路图GFT冲击提取方法［J］. 振动工程学报， 2020， 33（3）： 604-613.
	WANG Haojiang， YU Dejie， GAO Yiyuan. Impulse Extraction by Optimal Weighted Path GFT Method for Roller Bearing Fault Diagnosis［J］. Journal of Vibration Engineering， 2020， 33（3）： 604-613.
[17]	陈芒，于德介，高艺源. 基于可视图图谱幅值熵的滚动轴承故障诊断方法［J］. 振动与冲击， 2021， 40（4）： 23-29.
	CHEN Mang， YU Dejie， GAO Yiyuan. Fault Diagnosis of Rolling Bearings Based on Graph Spectrum Amplitude Entropy of Visibility Graph［J］. Journal of Vibration and Shock， 2021， 40（4）： 23-29.
[18]	GUO Jianchun， SI Zetian， LIU Yi， et al. Dynamic Time Warping Using Graph Similarity Guided Symplectic Geometry Mode Decomposition to Detect Bearing Faults［J］. Reliability Engineering & System Safety， 2022， 224： 108533.
[19]	LI Angsheng， PAN Yicheng. Structural Information and Dynamical Complexity of Networks［J］. IEEE Transactions on Information Theory， 2016， 62（6）： 3290-3339.
[20]	NOMAN K， LI Yongbo， WANG Shun. Continuous Health Monitoring of Rolling Element Bearing Based on Nonlinear Oscillatory Sample Entropy［J］. IEEE Transactions on Instrumentation and Measurement， 2022， 71： 3518014.
[21]	丁嘉鑫，王振亚，姚立纲，等. 广义复合多尺度加权排列熵与参数优化支持向量机的滚动轴承故障诊断［J］. 中国机械工程， 2021， 32（2）： 147-155.
	DING Jiaxin， WANG Zhenya， YAO Ligang， et al. Rolling Bearing Fault Diagnosis Based on GCMWPE and Parameter Optimization SVM［J］. China Mechanical Engineering， 2021， 32（2）： 147-155.
[22]	WANG Yuting， WANG Dong. Investigations on Sample Entropy and Fuzzy Entropy for Machine Condition Monitoring： Revisited［J］. Measurement Science and Technology， 2023， 34（12）： 125104.
[23]	WANG Shun， LI Yongbo， NOMAN K， et al. Cumulative Spectrum Distribution Entropy for Rotating Machinery Fault Diagnosis［J］. Mechanical Systems and Signal Processing， 2024， 206： 110905.
[24]	TAO Hongfeng， WANG Peng， CHEN Yiyang， et al. An Unsupervised Fault Diagnosis Method for Rolling Bearing Using STFT and Generative Neural Networks［J］. Journal of the Franklin Institute， 2020， 357（11）： 7286-7307.
[25]	雷亚国，韩天宇，王彪，等. XJTU-SY滚动轴承加速寿命试验数据集解读［J］. 机械工程学报， 2019， 55（16）： 1-6.
	LEI Yaguo， HAN Tianyu， WANG Biao， et al. XJTU-SY Rolling Element Bearing Accelerated Life Test Datasets： a Tutorial［J］. Journal of Mechanical Engineering， 2019， 55（16）： 1-6.
[26]	GOUSSEAU W， ANTONI J， GIRARDIN F， et al. Analysis of the Rolling Element Bearing Data Set of the Center for Intelligent Maintenance Systems of the University of Cincinnati［C］∥13th International Conference on Conaition Monitoring and Machinery Failave Prevention Techndogies （CM2016）.Paris， 2016：hal-01715193.
[27]	LUNDSTRÖM A， O'NILS M， LUNDSTRÖM A， et al. Factory-based Vibration Data for Bearing-fault Detection［J］. Data， 2023， 8（7）： 115.
[28]	NECTOUX P， GOURIVEAU R， MEDJAHER K， et al. PRONOSTIA： an Experimental Platform for Bearings Accelerated Degradation Tests［C］∥ IEEE International Conference on Prognostics and Health Management. Denver， 2012： 1-8.
[29]	YANG Qichao， TANG Baoping， DENG Lei， et al. Adaptive Early Initial Degradation Point Detection and Outlier Correction for Bearings［J］. Computers in Industry， 2025， 164： 104166.
[30]	LEI Yaguo， LI Naipeng， GUO Liang， et al. Machinery Health Prognostics： a Systematic Review from Data Acquisition to RUL Prediction［J］. Mechanical Systems and Signal Processing， 2018， 104： 799-834.
[31]	MCPHAIL C， MAIER H R， KWAKKEL J H， et al. Robustness Metrics： How Are they Calculated， When Should They Be Used and Why Do They Give Different Results？［J］. Earth’s Future， 2018， 6（2）： 169-191.
[32]	YE Xinlai， LI Guoyan， MENG Linghui， et al. Dynamic Health Index Extraction for Incipient Bearing Degradation Detection［J］. ISA Transactions， 2022， 128（Pt B）： 535-549.
[33]	LIU Keying， MAO Wentao， SHI Huadong， et al. A New Unsupervised Online Early Fault Detection Framework of Rolling Bearings Based on Granular Feature Forecasting［J］. IEEE Access， 2021， 9： 159684-159698.
[34]	Mingzhu LYU， LIU Shixun， CHEN Changzheng. A New Feature Extraction Technique for Early Degeneration Detection of Rolling Bearings［J］. IEEE Access， 2022， 10： 23659-23676.

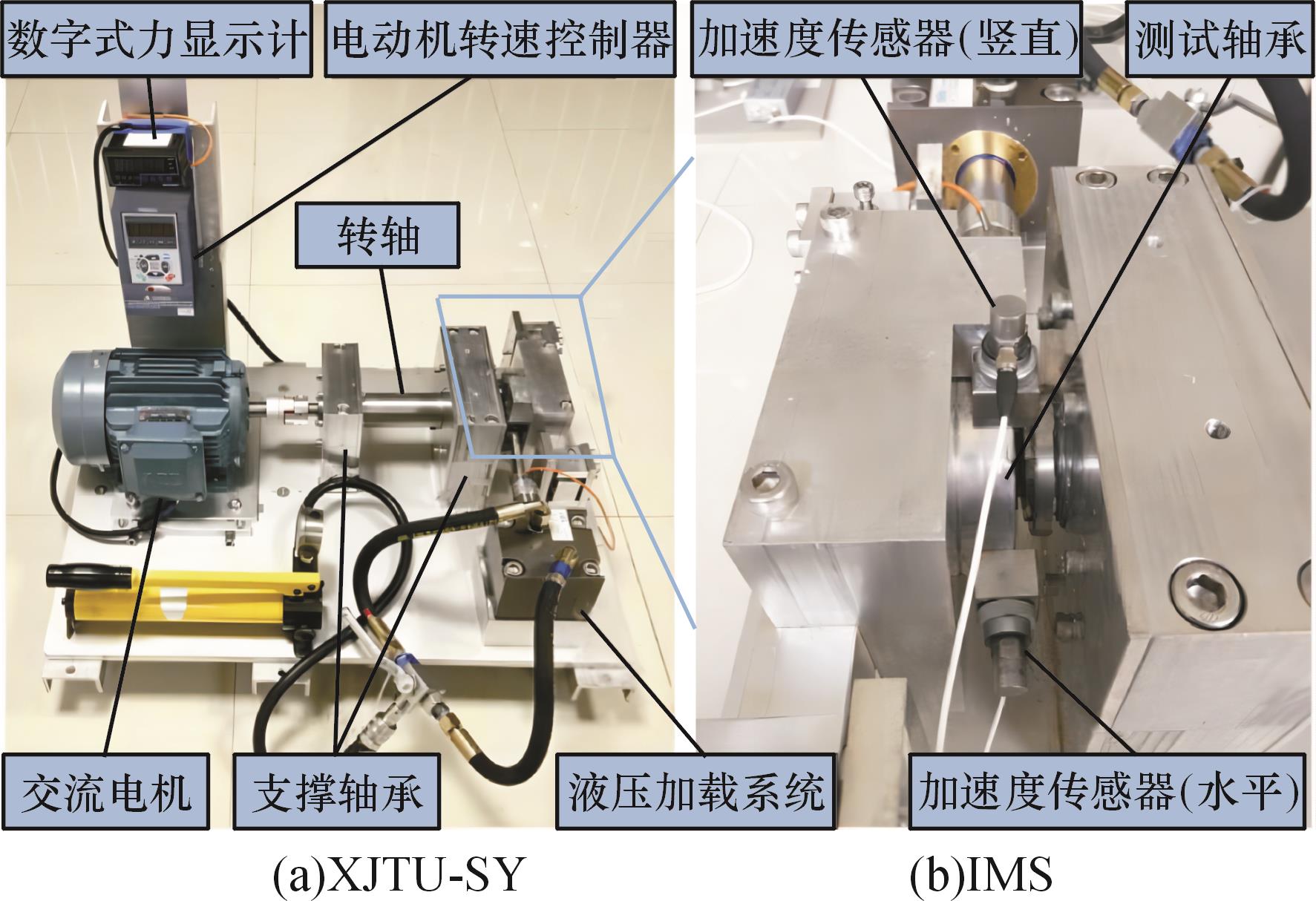

数据集名称	数据名称	工况	失效位置	样本数量
XJTU-SY	Bearing1-1	转速2100 r/min径向力12 kN	外圈	123
	Bearing1-2		外圈	161
	Bearing1-3		外圈	158
	Bearing1-4		保持架	122
	Bearing1-5		内圈、外圈	52
	Bearing2-1	转速2250 r/min径向力11 kN	内圈	491
	Bearing2-2		外圈	161
	Bearing2-3		保持架	533
	Bearing2-4		外圈	42
	Bearing2-5		外圈	339
	Bearing3-1	转速2400 r/min径向力10 kN	外圈	2538
	Bearing3-2		内圈、外圈、滚动体、保持架	2496
	Bearing3-3		内圈	371
	Bearing3-4		内圈	1515
	Bearing3-5		外圈	114
IMS	Dataset 1	转速2000 r/min 径向力26.67 kN	轴承3内圈；轴承4滚动体	2156
	Dataset 2		轴承1外圈	948
	Dataset 3		轴承3外圈	6324

数据集名称	数据名称	工况	失效位置	样本数量
XJTU-SY	Bearing1-1	转速2100 r/min径向力12 kN	外圈	123
	Bearing1-2		外圈	161
	Bearing1-3		外圈	158
	Bearing1-4		保持架	122
	Bearing1-5		内圈、外圈	52
	Bearing2-1	转速2250 r/min径向力11 kN	内圈	491
	Bearing2-2		外圈	161
	Bearing2-3		保持架	533
	Bearing2-4		外圈	42
	Bearing2-5		外圈	339
	Bearing3-1	转速2400 r/min径向力10 kN	外圈	2538
	Bearing3-2		内圈、外圈、滚动体、保持架	2496
	Bearing3-3		内圈	371
	Bearing3-4		内圈	1515
	Bearing3-5		外圈	114
IMS	Dataset 1	转速2000 r/min 径向力26.67 kN	轴承3内圈；轴承4滚动体	2156
	Dataset 2		轴承1外圈	948
	Dataset 3		轴承3外圈	6324

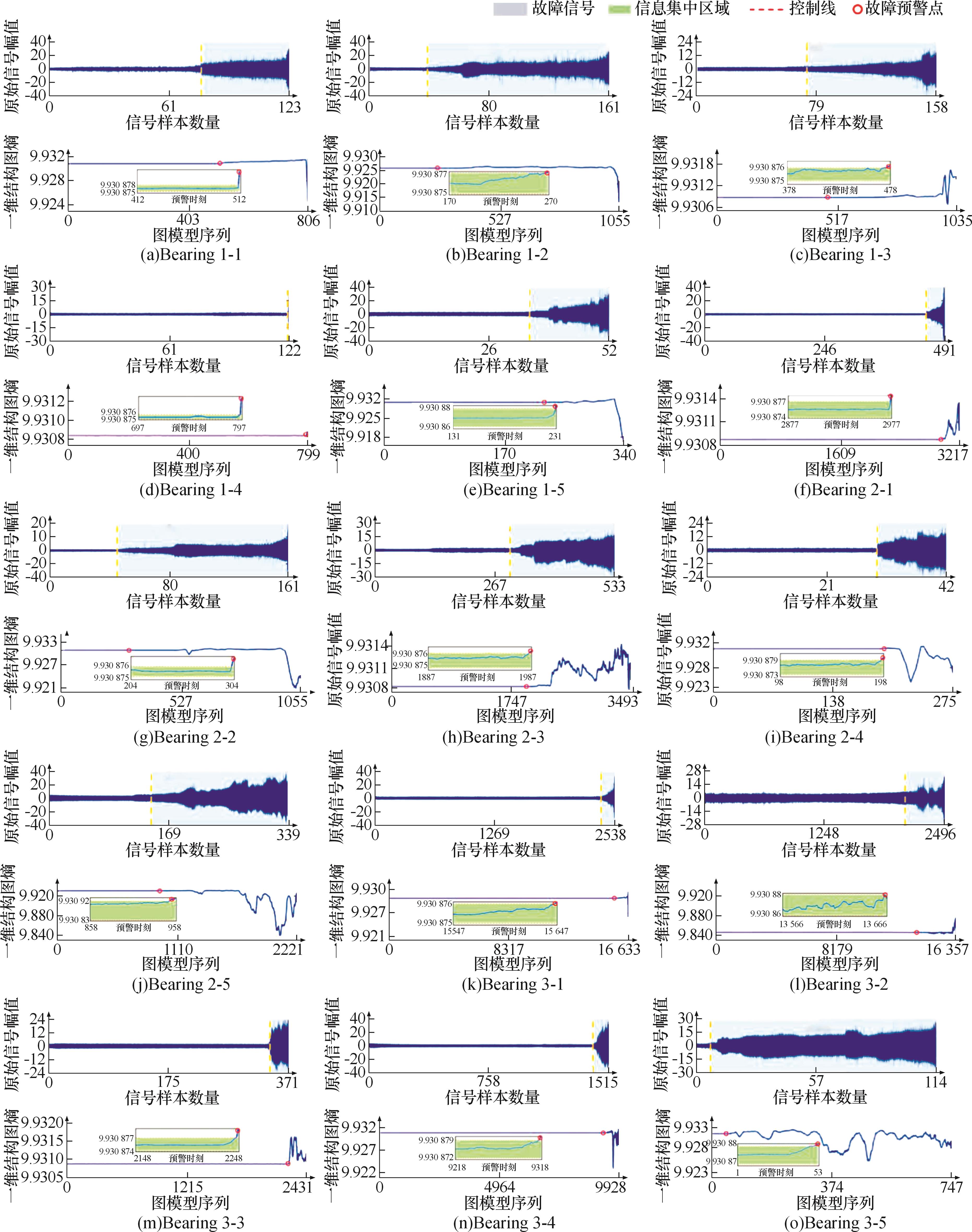

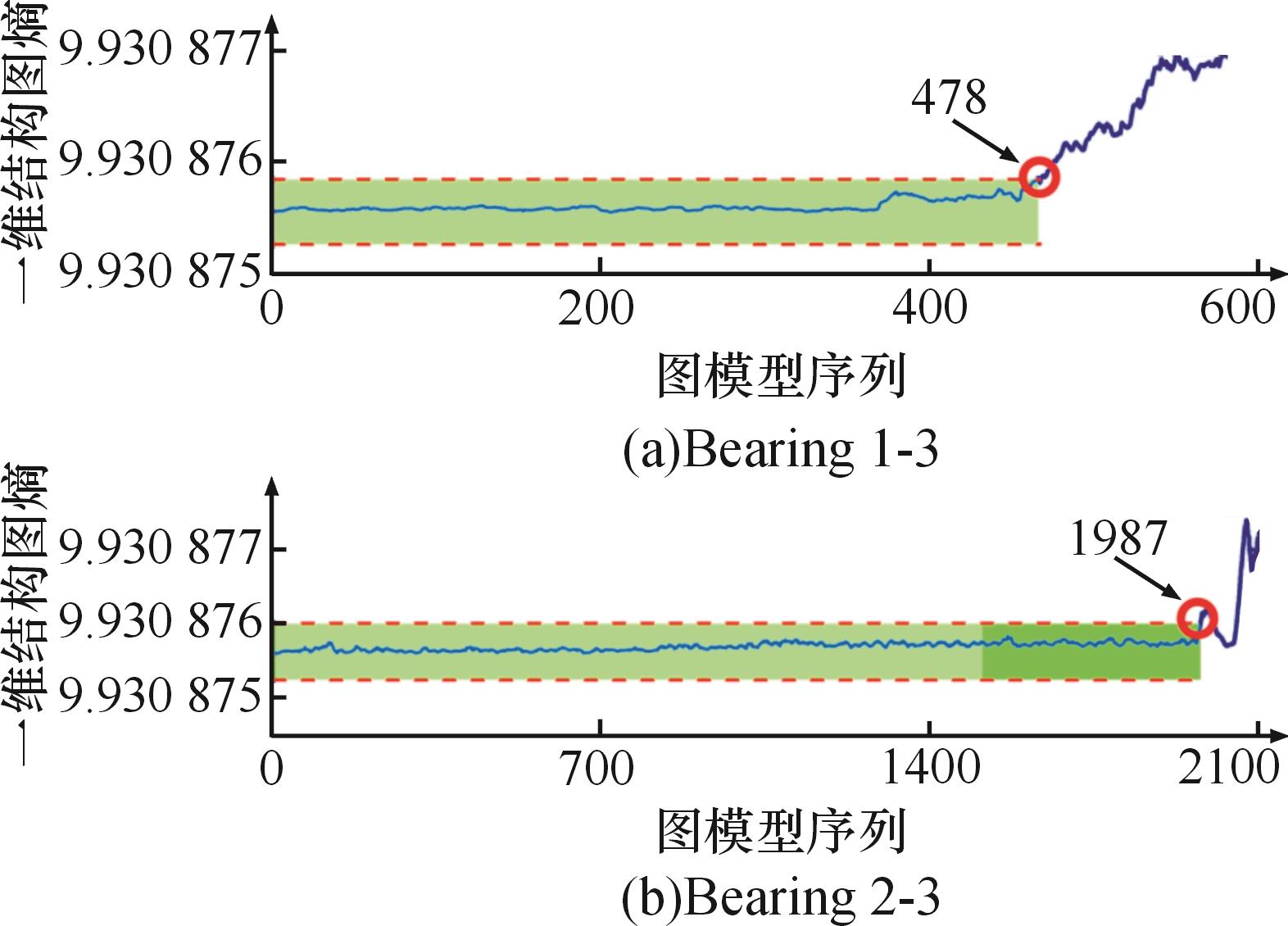

数据名称	故障预警窗位置	故障样本序号	故障时间/s
Bearing 1-1	512	79	4842
Bearing 1-2	270	42	2574
Bearing 1-3	478	73	4474
Bearing 1-4	797	122	7477
Bearing 1-5	231	36	2207
Bearing 2-1	2977	455	27 883
Bearing 2-2	304	47	2881
Bearing 2-3	1987	304	18 630
Bearing 2-4	198	31	1890
Bearing 2-5	958	147	9009
Bearing 3-1	15 647	2388	146 337
Bearing 3-2	16 357	2086	127 831
Bearing 3-3	2248	344	21 081
Bearing 3-4	9318	1422	87 141
Bearing 3-5	53	9	552

数据名称	故障预警窗位置	故障样本序号	故障时间/s
Bearing 1-1	512	79	4842
Bearing 1-2	270	42	2574
Bearing 1-3	478	73	4474
Bearing 1-4	797	122	7477
Bearing 1-5	231	36	2207
Bearing 2-1	2977	455	27 883
Bearing 2-2	304	47	2881
Bearing 2-3	1987	304	18 630
Bearing 2-4	198	31	1890
Bearing 2-5	958	147	9009
Bearing 3-1	15 647	2388	146 337
Bearing 3-2	16 357	2086	127 831
Bearing 3-3	2248	344	21 081
Bearing 3-4	9318	1422	87 141
Bearing 3-5	53	9	552

数据名称	故障预警窗位置	故障样本序号	故障时间/min

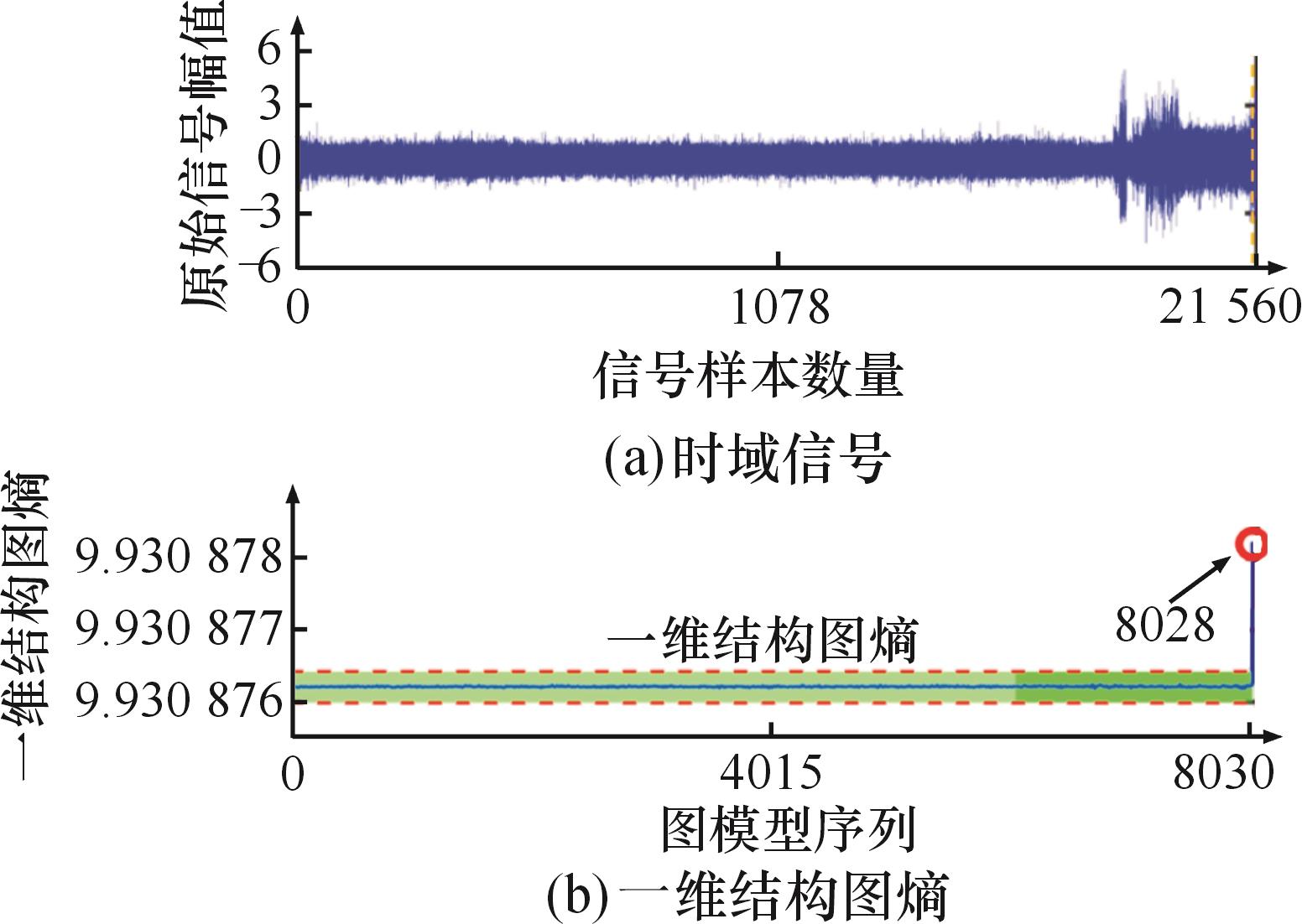

Dataset 1	8028	2155	21 550

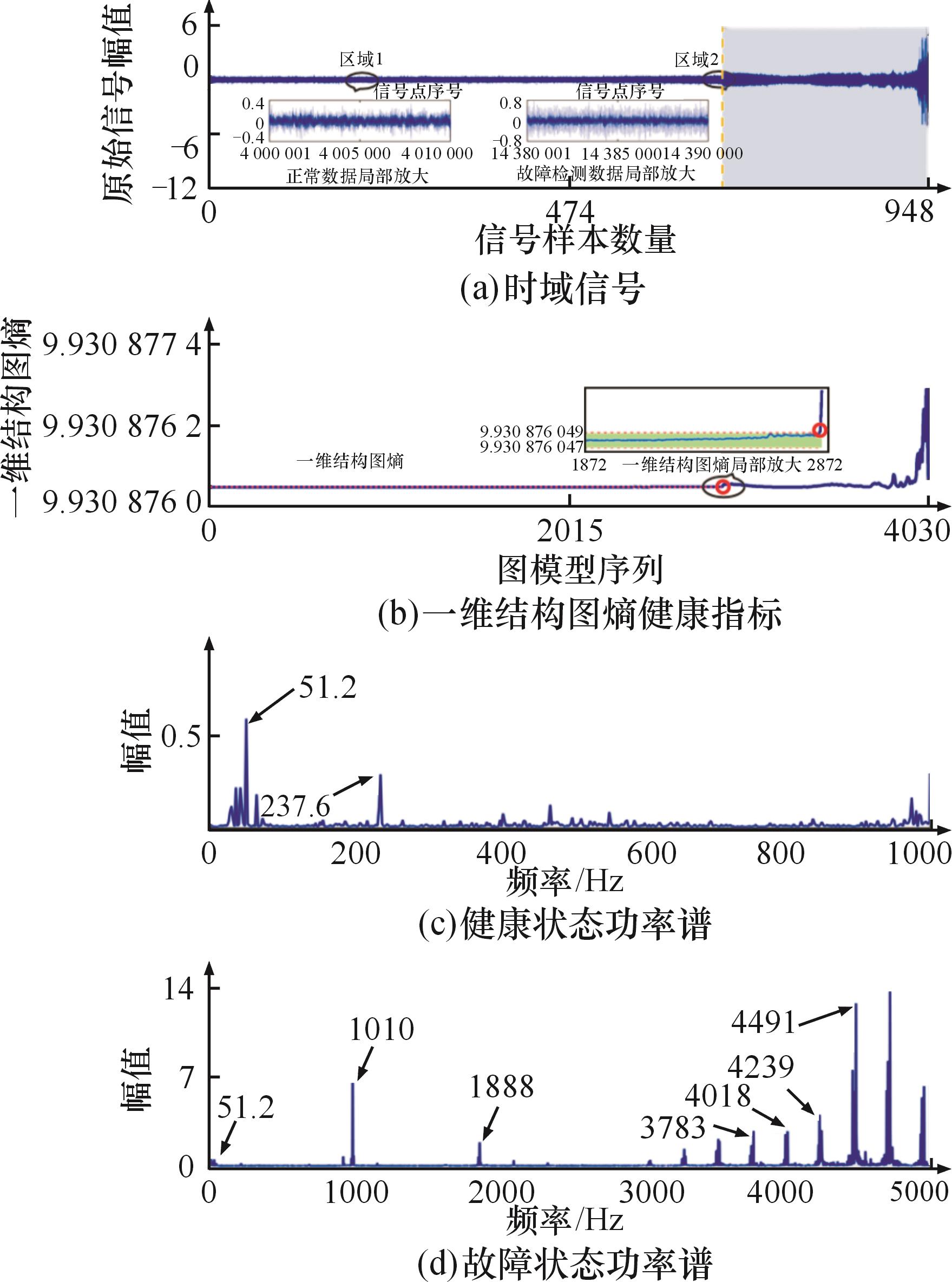

Dataset 2	2872	439	4390

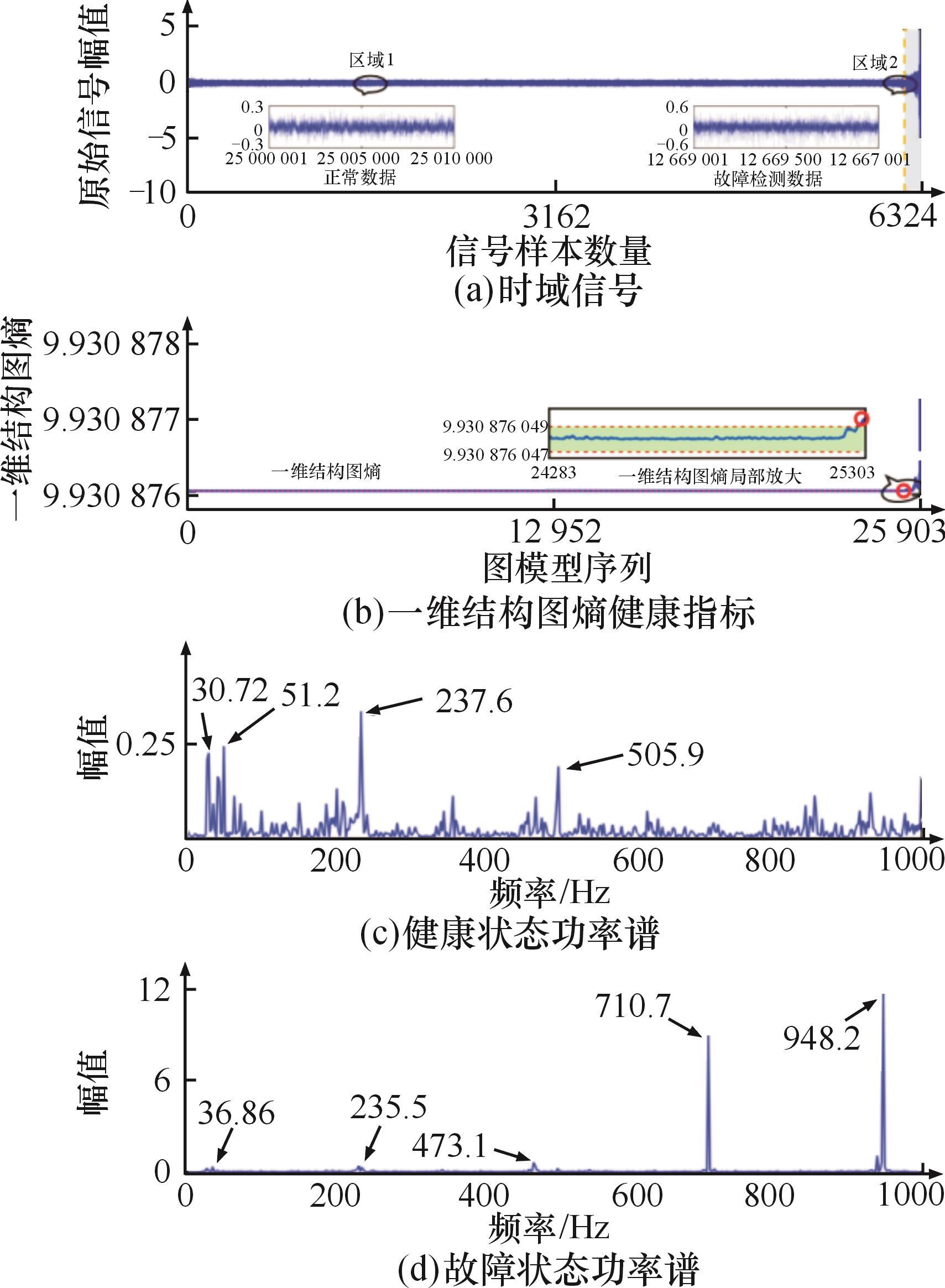

Dataset 3	25 283	6173	61 730
