High-precision Computation of Inverse Kinematics for Redundant Robots Based on Flow Model

doi:10.3969/j.issn.1004-132X.2025.12.019

Abstract

Abstract:

To improve the accuracy of deep neural networks in solving inverse kinematics for redundant robots and reduce the probability of self-collision solutions， a solution method was proposed based on the conditional normalizing flows model. An improved L-M algorithm was employed to perform secondary optimization on the initial solutions generated by the conditional normalizing flows model to enhance computational accuracy. Furthermore， by training a multi-layer perceptron with extracted self-collision prior knowledge， a self-collision solution detector was constructed to filter out self-collision solutions. The results demonstrate that the calculated positional and angular errors remain below 0.01 mm and 0.1° respectively， the self-collision rate is maintained under 0.1%， and the single computation time is consistently within 10 ms. This method enables efficient and stable solutions for inverse kinematics problems in redundant robots.

Key words: inverse kinematics, redundant robot, conditional normalizing flow, Levenberg-Marquardt（L-M） algorithm

摘要：

为提高深度神经网络计算冗余机器人逆运动学解的精度，并降低自碰撞解的出现概率，提出了一种基于条件标准化流模型的求解方法。采用改进列文伯格-马夸尔特（L-M）算法对条件标准化流模型生成的初始解进行二次优化以提高计算精度。通过提取自碰撞先验信息训练多层感知机，构造自碰撞解检测器以剔除自碰撞解。结果表明，求解的位置和角度误差分别小于0.01 mm和0.1°，自碰撞率低于0.1%，并且单次计算的时间稳定在10 ms以内。该方法可用于对冗余机器人逆运动学问题的高效稳定求解。

关键词: 逆运动学, 冗余机器人, 条件标准化流, 列文伯格-马夸尔特算法

CLC Number:

TP241.2

Feng YIN, Xin HUANG, Jiayi ZHOU. High-precision Computation of Inverse Kinematics for Redundant Robots Based on Flow Model[J]. China Mechanical Engineering, 2025, 36(12): 2960-2967.

印峰, 黄欣, 周佳义. 基于流模型的冗余机器人逆运动学解高精度计算[J]. 中国机械工程, 2025, 36(12): 2960-2967.

Figures/Tables 15

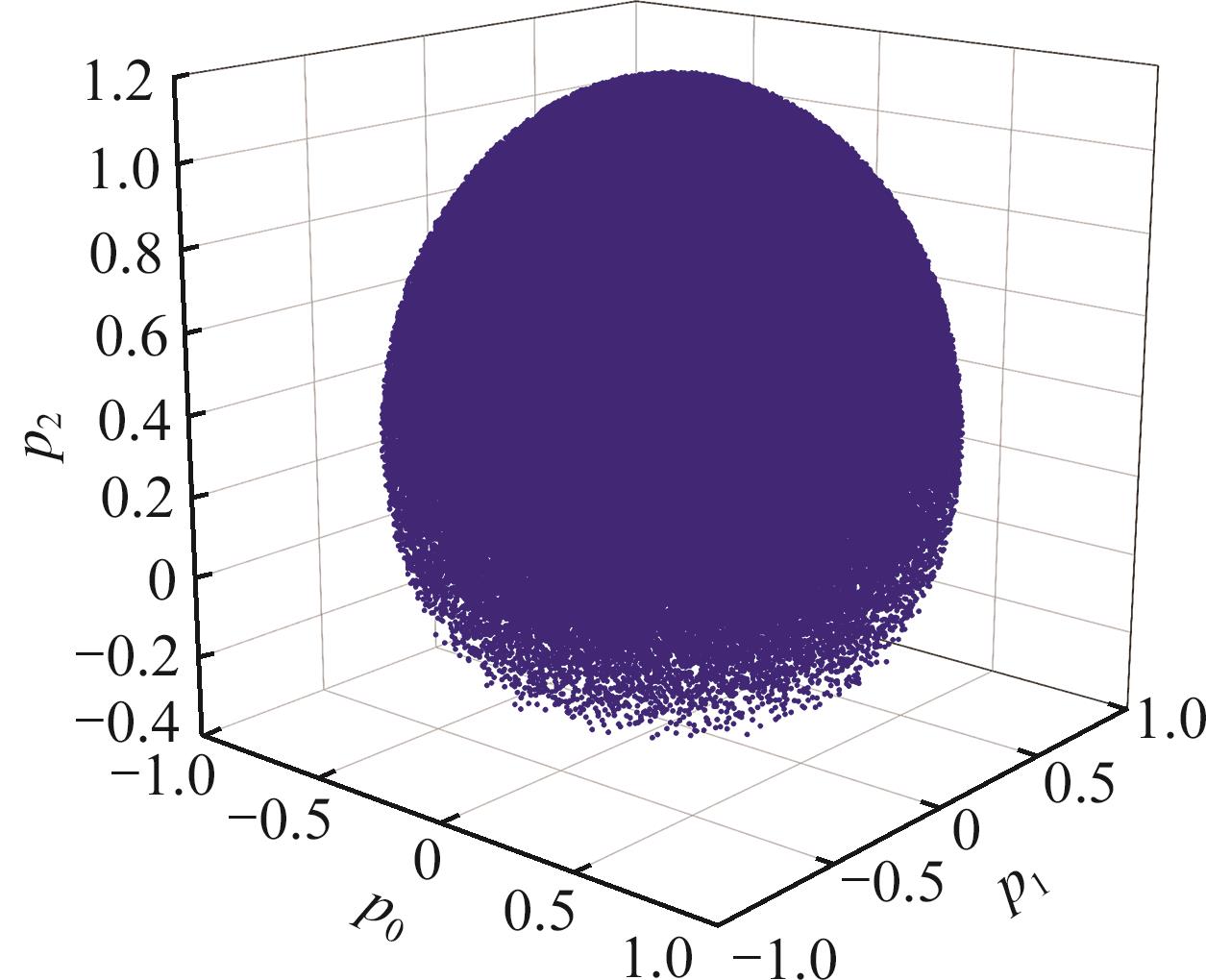

Fig.1 The first three dimensions of Panda robot training conditional dataset

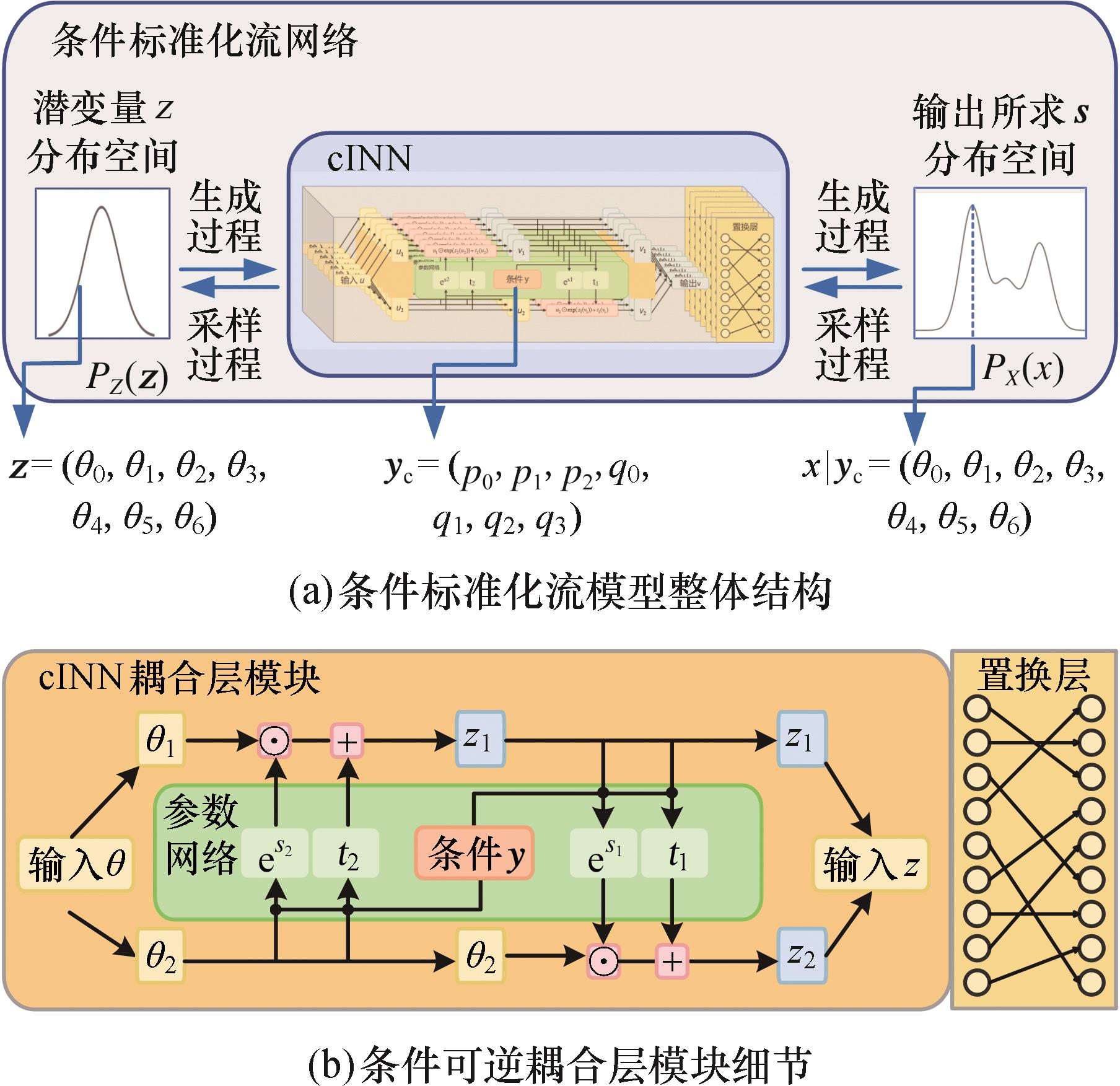

Fig.2 Network architecture diagram of CNF module

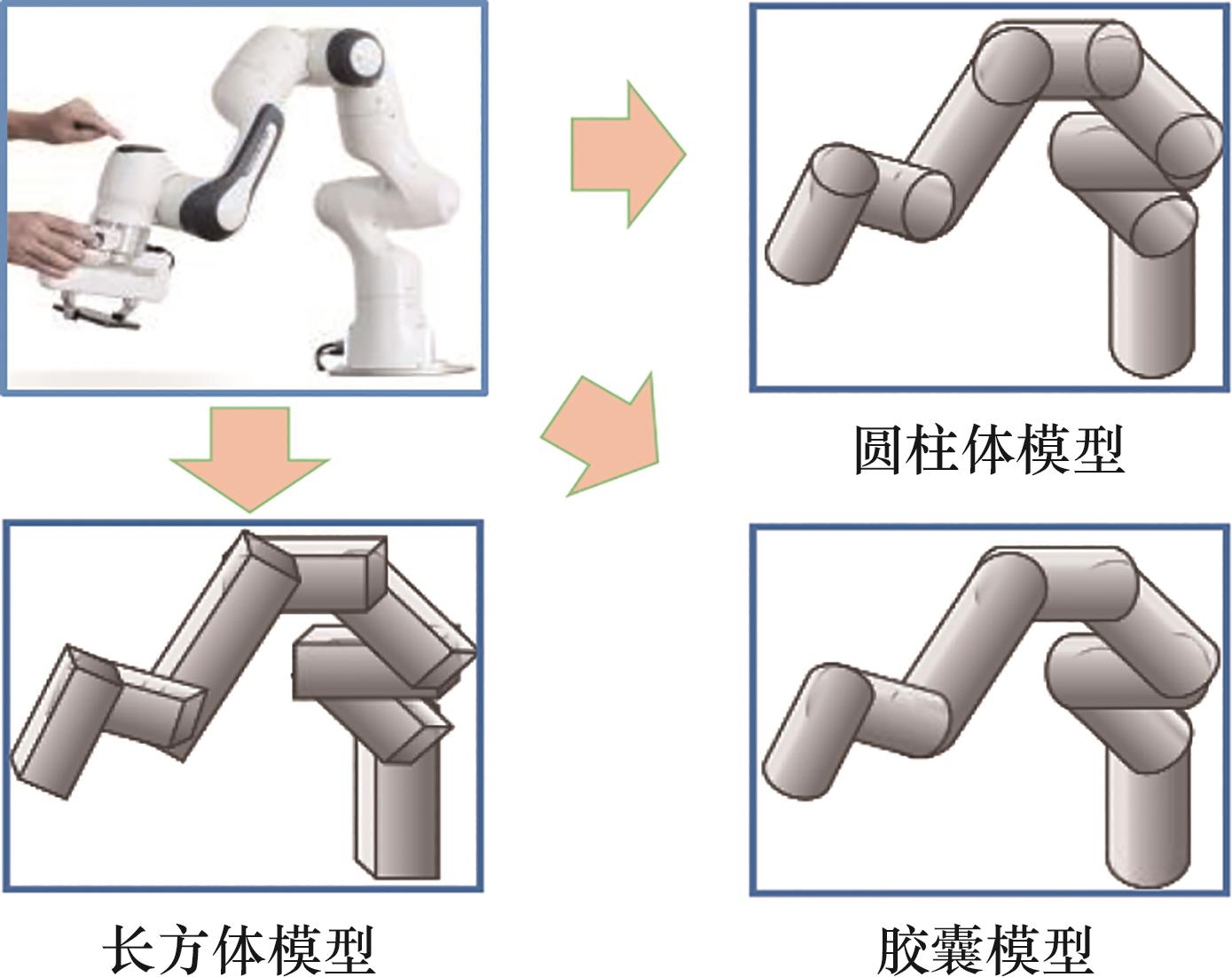

Fig.3 Robot collision detection models

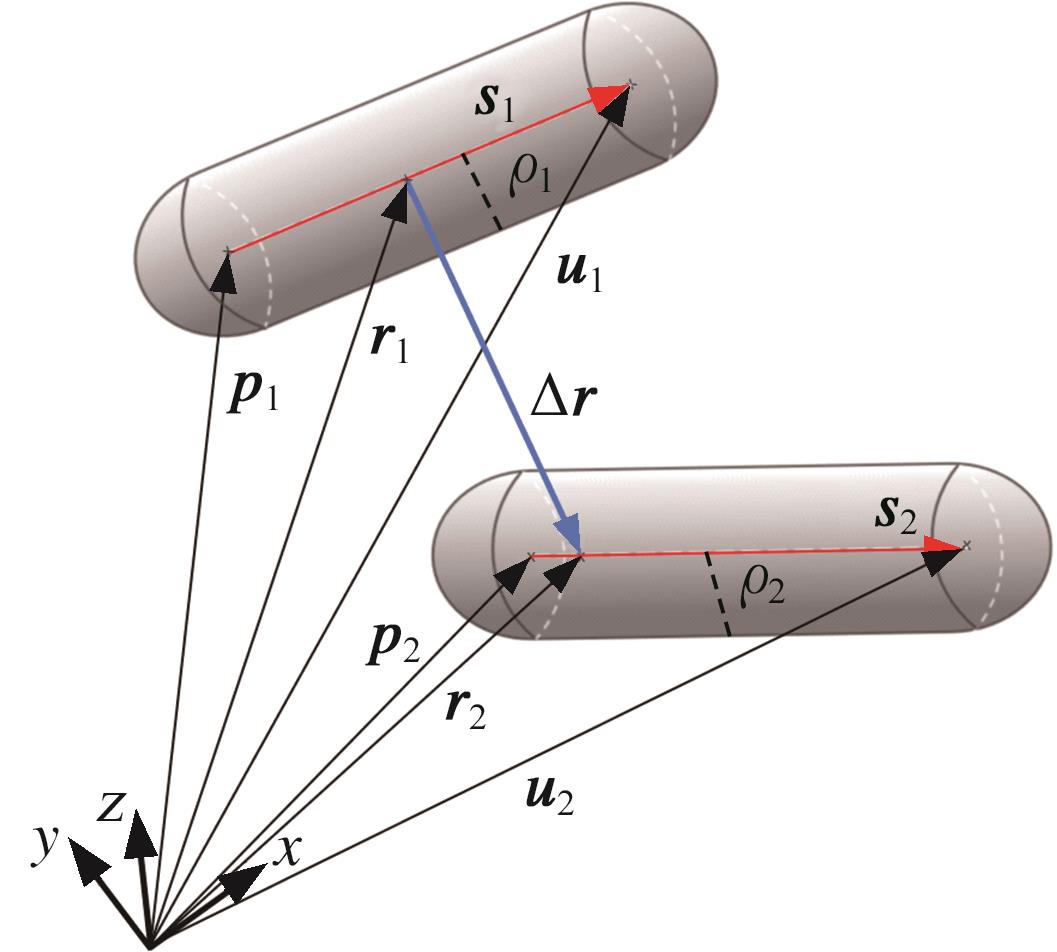

Fig.4 The minimum distance Δr between capsules

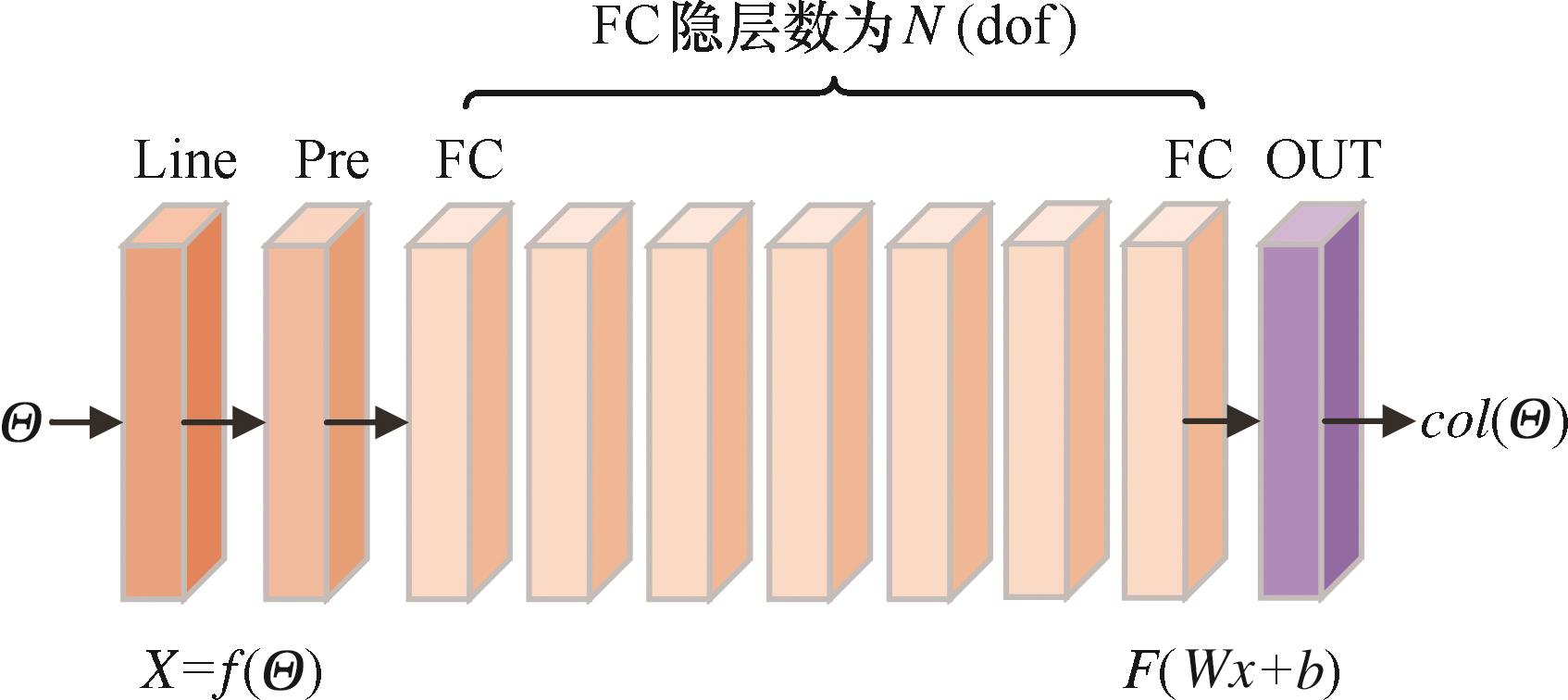

Fig.5 Multi-layer perceptron

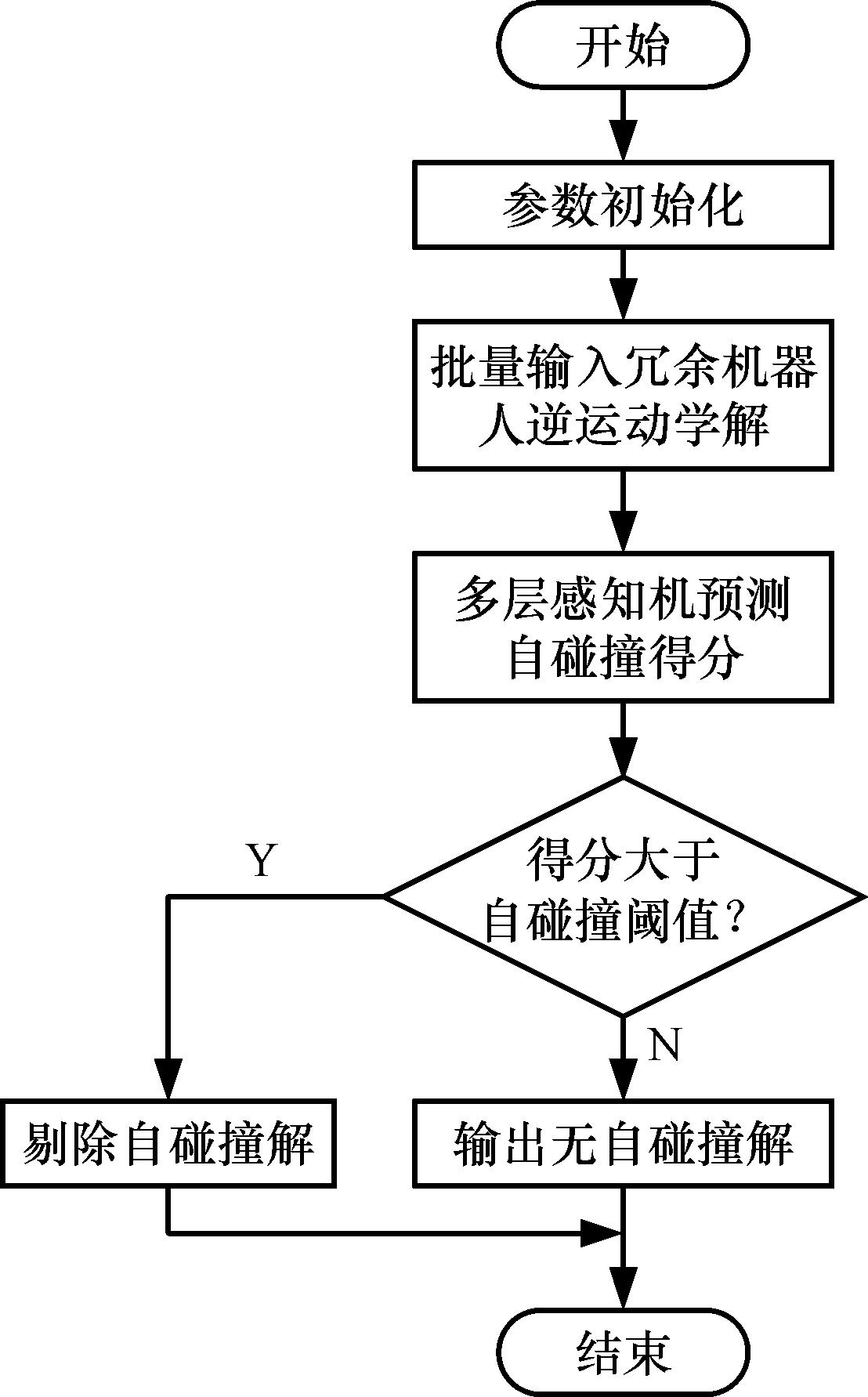

Fig.6 Self collision detection flowchart

Tab.1 MMD scores of generative networks

模型	MMD 得分
INN	0.061
cINN	0.058
CGAN（Cycle IK）	0.037
CNL（IKFLOW）	0.033
CNF（NOC-IK）	0.031

Tab.2 IKFLOW inverse kinematics solution results

机器人	隐藏层数	每个解的时间/ms	平均L2位置误差/cm	平均角度误差/（º）	自碰撞概率/%
Panda	6	3.3376	1.4405	8.4781	6.052
Panda	12	6.3605	0.6826	2.2817	4.564
Fetch	12	6.1903	1.4507	0.7864	2.976
Fetch	16	7.29508	0.9792	3.6491	2.192
Iiwa7	12	10.0659	2.0168	3.6801	0.028

Tab.3 NOC-IK（CNF）inverse kinematics solution results

机器人	隐藏层数	每个解的时间/ms	平均L2位置误差/cm	平均角度误差/（º）	自碰撞概率/%
Panda	6	2.0621	1.0177	5.0036	2.330
Panda	12	3.9418	0.6808	2.1554	1.584
Fetch	12	3.9242	1.4843	0.6724	3.004
Fetch	16	5.1982	0.8601	1.8602	1.660
Iiwa7	12	7.9731	1.3409	3.1826	0

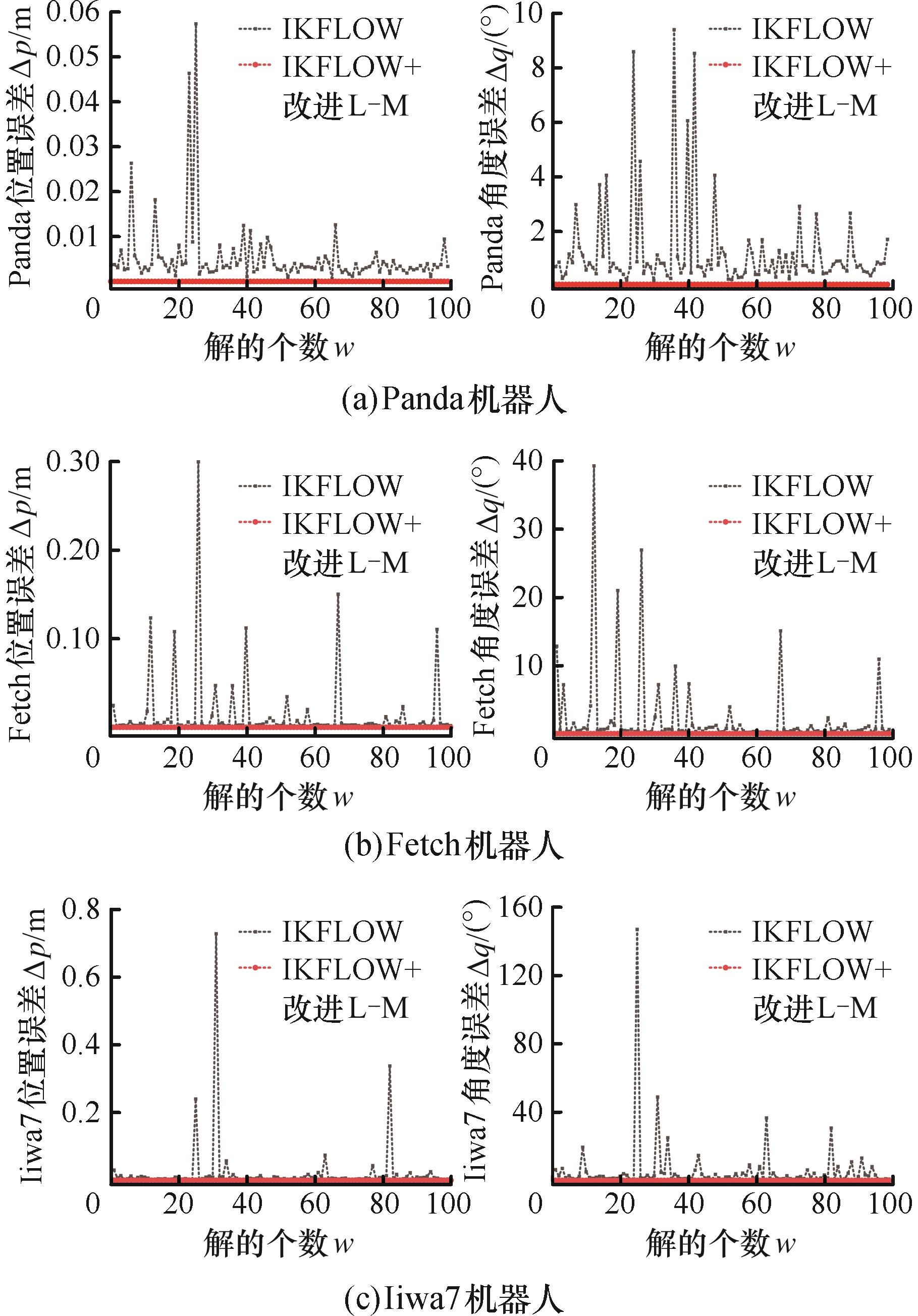

Fig.7 Comparison of average pose errors of robots

Tab.4 Self-collision detection results

方法	每个解的时间/ms	输出自碰撞解个数
FCL	1.5855	0
$c o l (Θ)$	7.4157	0
MLP	0.2651	0

Tab.4 Self-collision detection results

方法	每个解的时间/ms	输出自碰撞解个数
FCL	1.5855	0
$c o l (Θ)$	7.4157	0
MLP	0.2651	0

Tab.5 Experimental results of ablation

模块

均方误差/cm

平均自碰撞

概率/%

每个解的

时间/ms

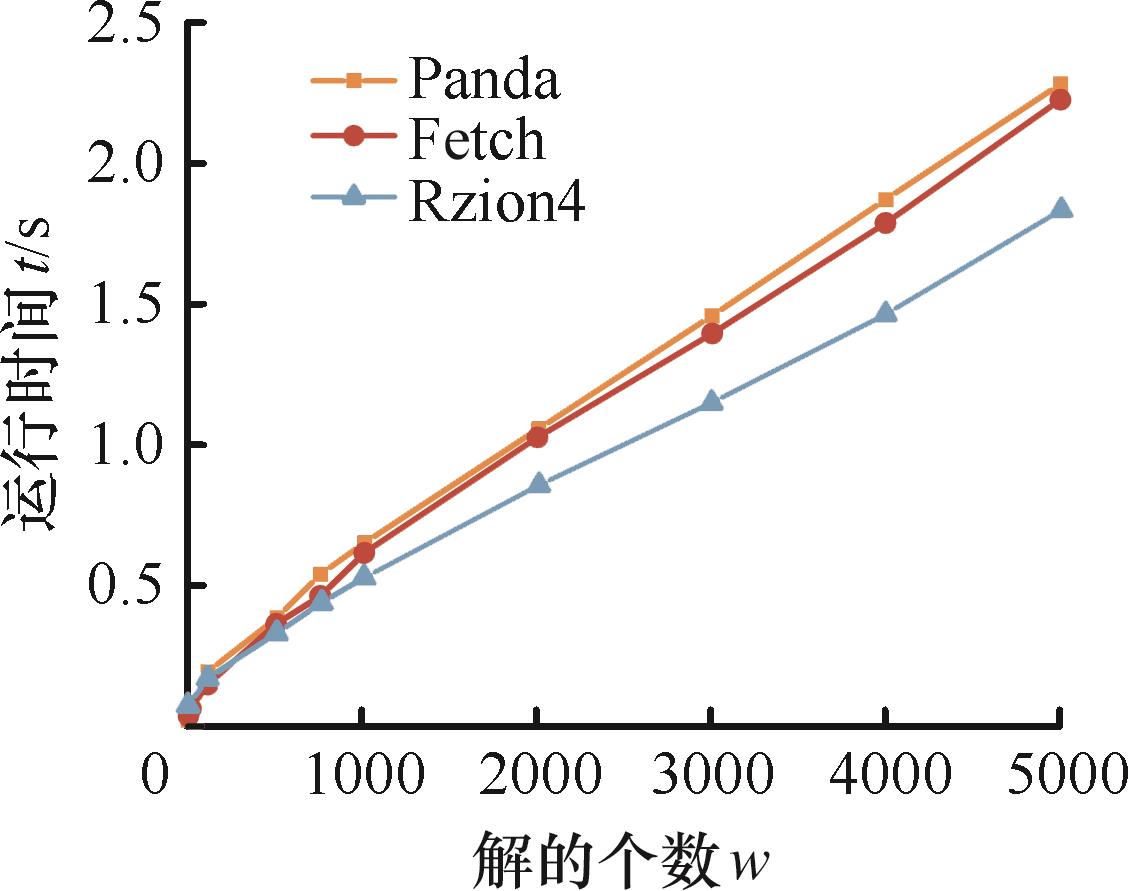

Fig.8 Total running time of NOC-IK

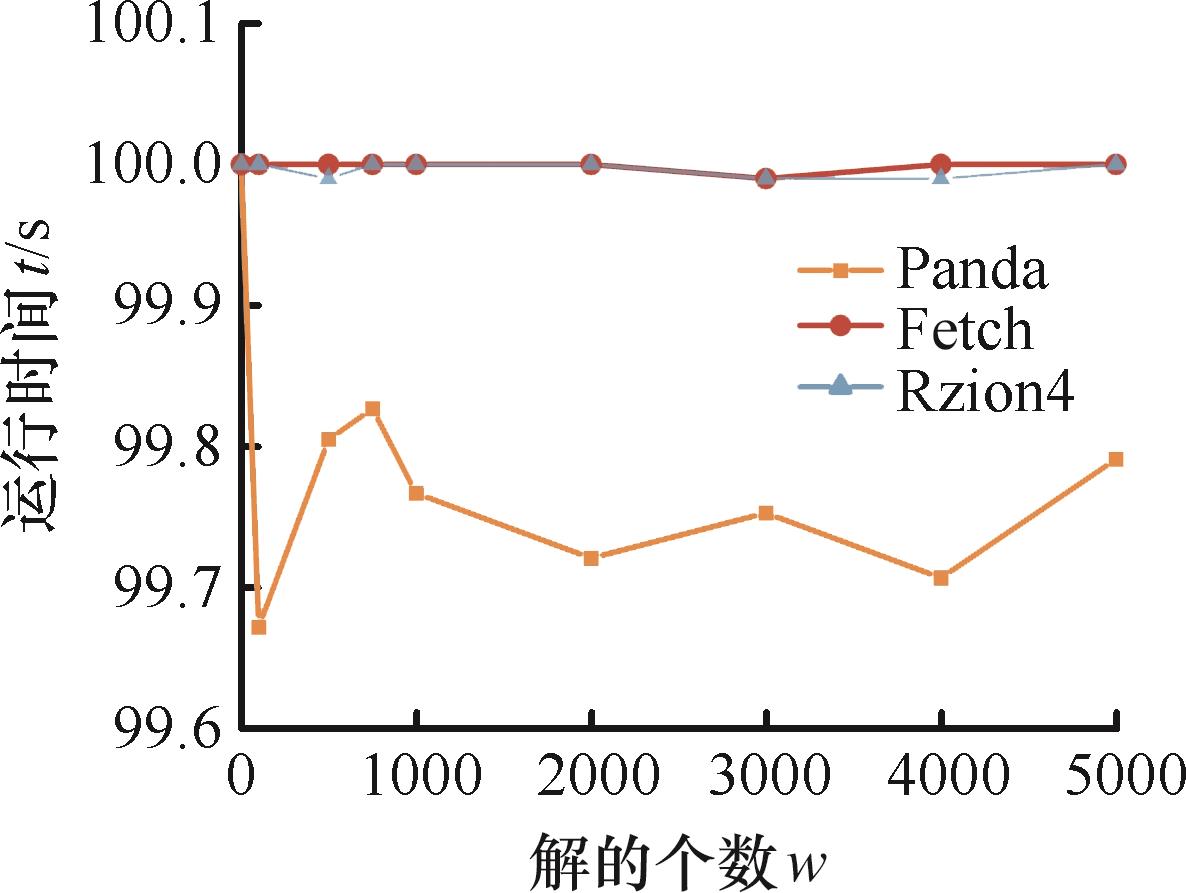

Fig.9 The self-collision probability

Tab.6 The results of comparison with other models

模型	均方误差/cm	平均自碰撞概率/%	每个解的时间/ms
B-NAFs	3.871	0.300	0.6800
BP	0.980		16.7800
ResNet-BP	0.600		8.7000
IKFLOW	0.772	6.732	6.7322
CycleIK^［15］	0.570		0.4100
CycleIK-Gaikpy^［15］	0.051		20.0071
CNN	0.012		12.9600
NOC-IK	0.001	0.077	9.9425
