An Enhancement Method for Induction Heating Efficiency Based on Ferrite Magnetic Circuit Optimization

doi:10.3969/j.issn.1004-132X.2026.05.014

Abstract

Abstract:

To meet the strict requirements of ground thermal experiments for advanced composite material performance testing， an efficient optimization scheme was proposed for a graphite induction heating system of non-conductive materials. The overall structure of the graphite induction heating furnace and two ferrite structures were designed， and the COMSOL simulation model was established covering the coupling of electromagnetic field， temperature field and thermal radiation multiphysics fields. The results show that under the working conditions of 20 kW input power and 20 kHz frequency of the coil， the number of coil turns is positively correlated with the temperature rise of the graphite， but the thermal radiation effect decreases nonlinearly with the increasing of the number of turns. After comprehensive evaluation， it is determined that the four-turn coil is the optimal parameter. The enhancement of the heating effectiveness by ferrite materials is the combined results of the overall structure's ability to gather the magnetic field and the power drop problem caused by the gathered magnetic field. The cylindrical structure is overall superior to the spiral structure， and the heating performance is the best at a coil-to-cylinder spacing of 4 mm. The high magnetic permeability ferrite cylindrical structure may significantly improve the heating performance of the induction heating furnace， providing a feasible strategy for high-demand ground thermal experiments.

Key words: multiphysics coupling, induction heating, radiative heating, structural design, optimization design

摘要：

为满足先进复合材料性能测试对地面热实验的严苛需求，提出一种面向非导电材料的高效石墨感应加热系统优化方案，设计了石墨感应加热炉整体结构和两种铁氧体结构，建立了涵盖电磁场-温度场-热辐射多物理场耦合的COMSOL仿真模型。研究结果表明，在线圈输入功率为20 kW、频率为20 kHz的工况下，线圈匝数与石墨温升成正相关，但热辐射效果随匝数增加呈非线性衰减，经综合评估确定四匝线圈为最优参数。铁氧体材料对加热效果的增强是整体结构对磁场的聚集能力和聚集磁场引发的功率下降问题的综合结果，圆筒形结构整体优于螺旋形结构，圆筒形结构与线圈间距为4 mm时的加热性能最佳。高磁导率铁氧体圆筒形结构可以显著提高感应加热炉的加热性能，为高需求地面热实验提供了可行方案。

关键词: 多物理场耦合, 感应加热, 辐射加热, 结构设计, 优化设计

CLC Number:

TH12

LI Yunlong, ZHANG Dahai, LU Fangzhou, LI Yanjie, XU Peifei, FEI Qingguo. An Enhancement Method for Induction Heating Efficiency Based on Ferrite Magnetic Circuit Optimization[J]. China Mechanical Engineering, 2026, 37(5): 1141-1149.

李昀龙, 张大海, 陆方舟, 李彦杰, 徐培飞, 费庆国. 基于铁氧体磁路优化的感应加热效率提升方法[J]. 中国机械工程, 2026, 37(5): 1141-1149.

Figures/Tables 15

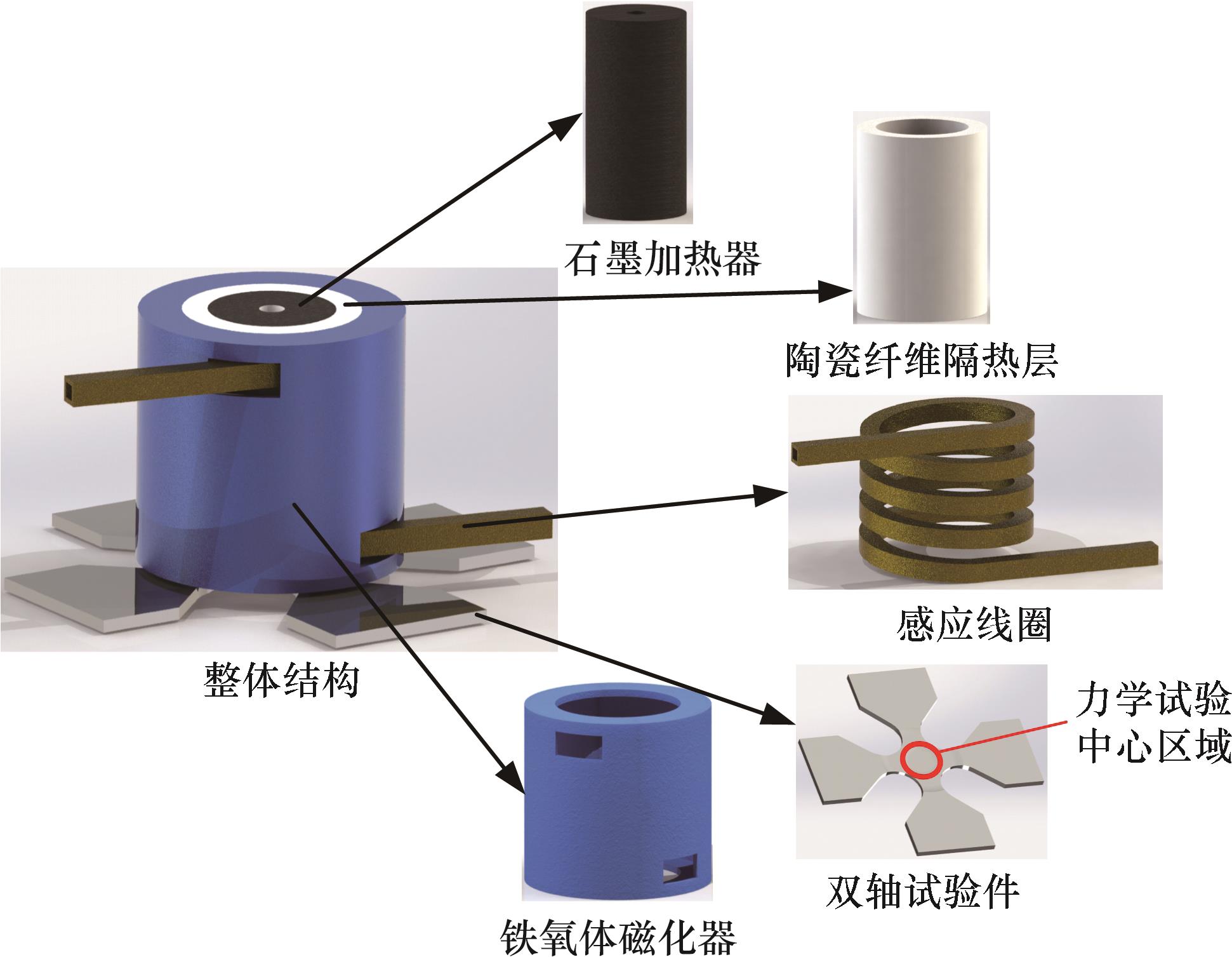

Fig.1 Three-dimensional modeling diagram of the main structure of the graphite heater

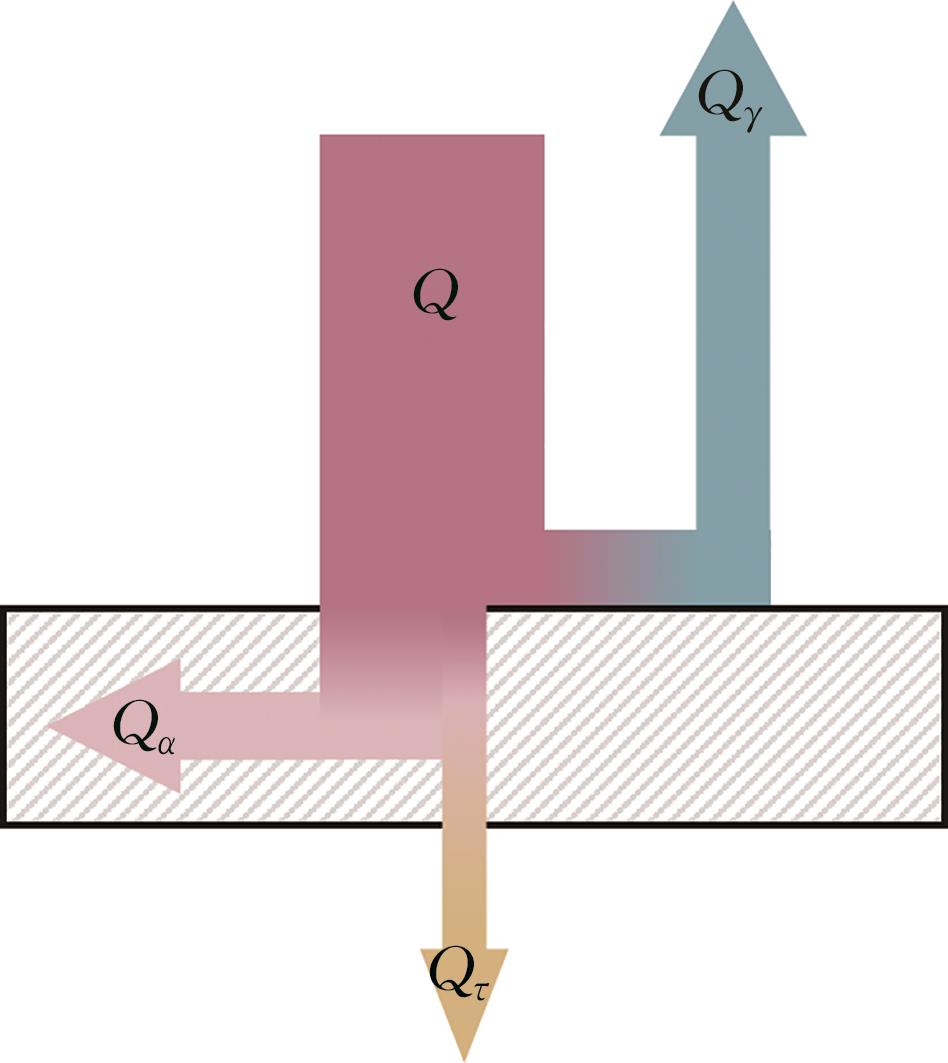

Fig.2 Schematic diagram of the phenomenon of energy changes on the object surface

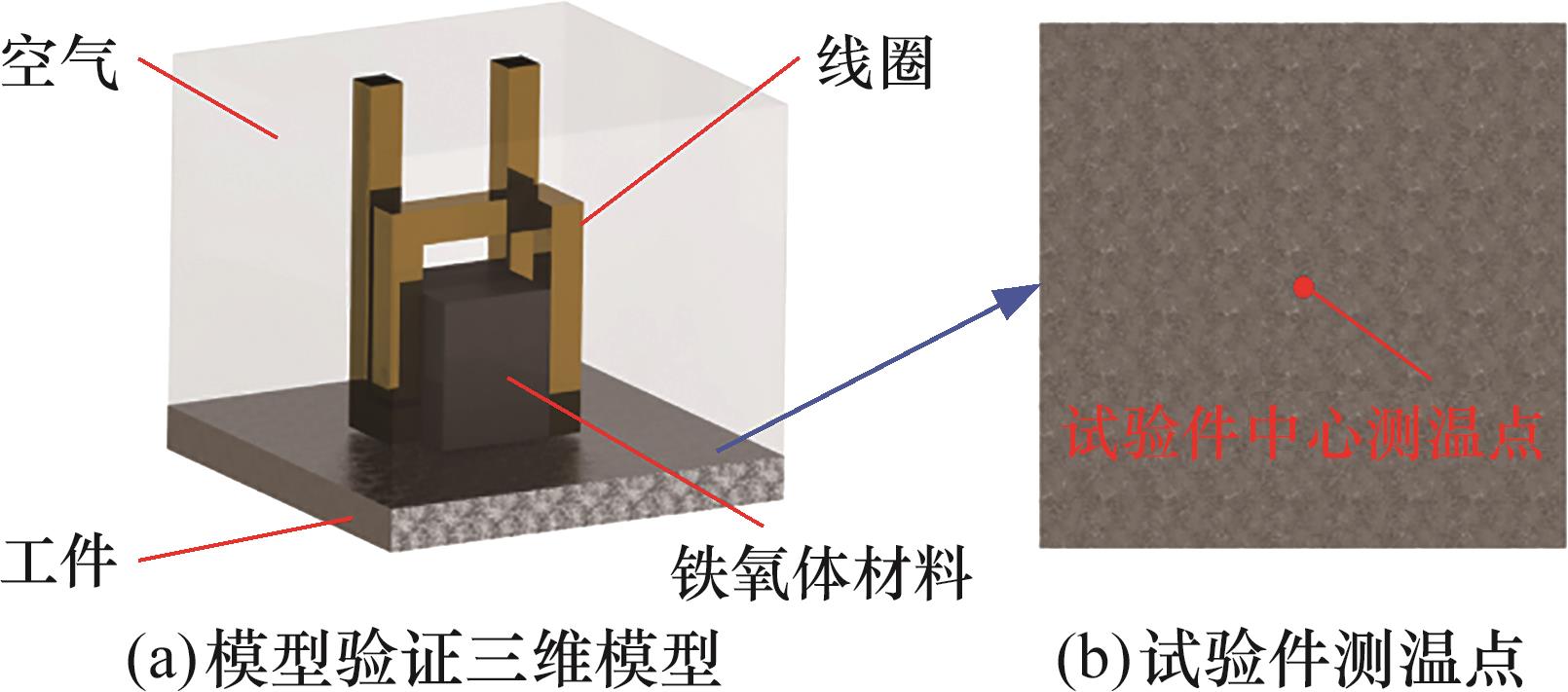

Fig.3 3D model for verification and temperature measurement points on the test specimen

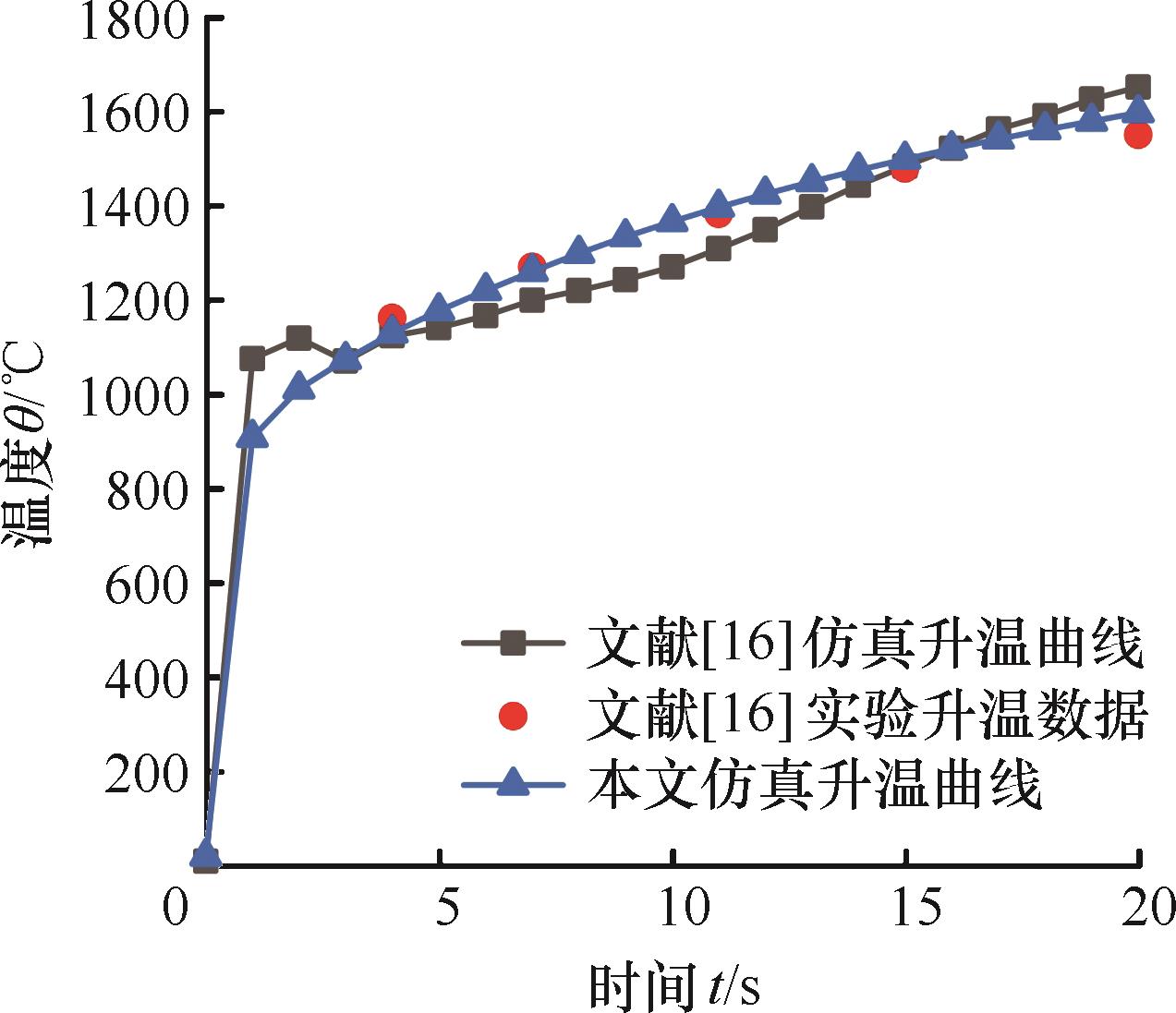

Fig.4 Temperature rise curve at the center of the test piece

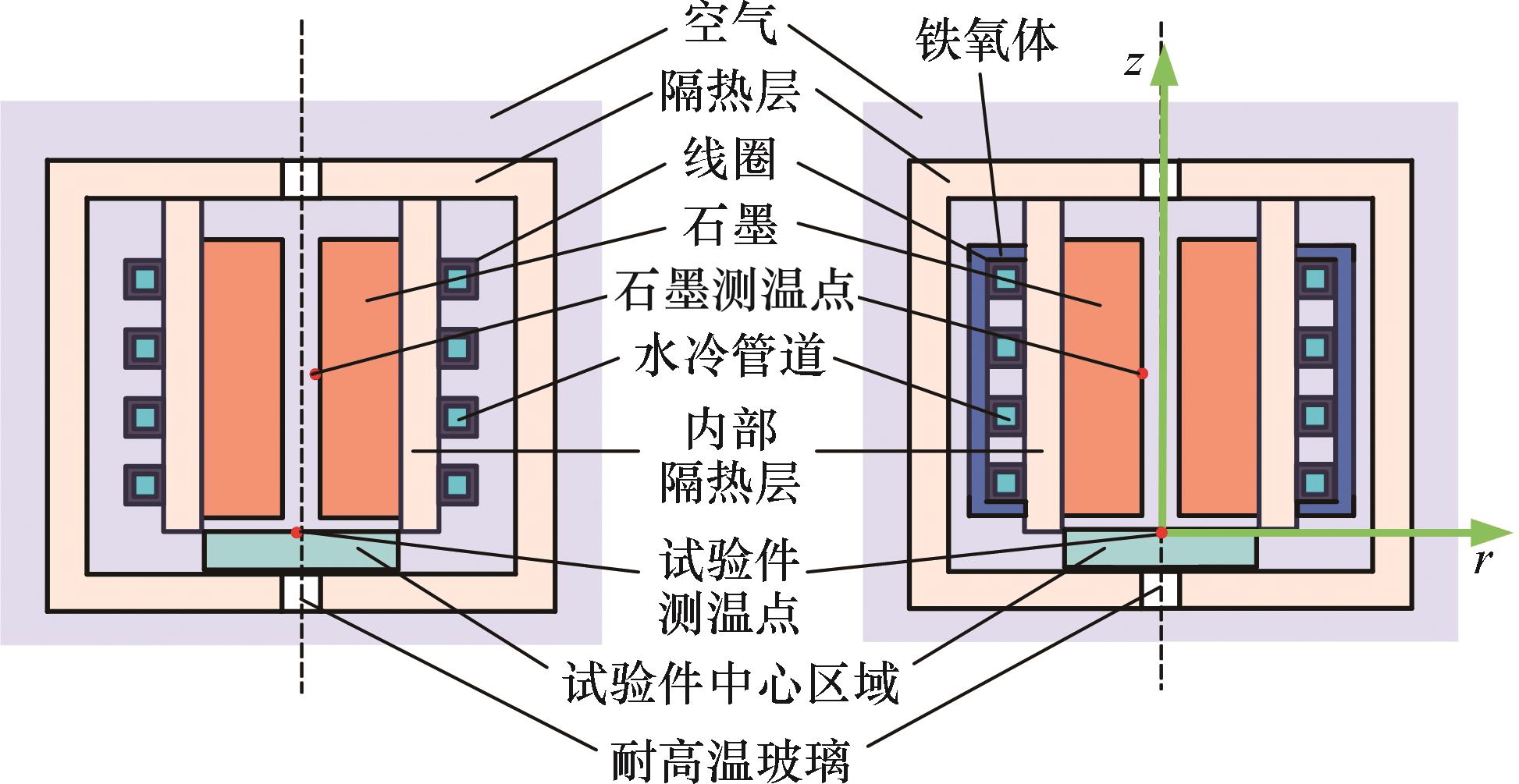

Fig.5 Two-dimensional model of graphite induction heating furnace

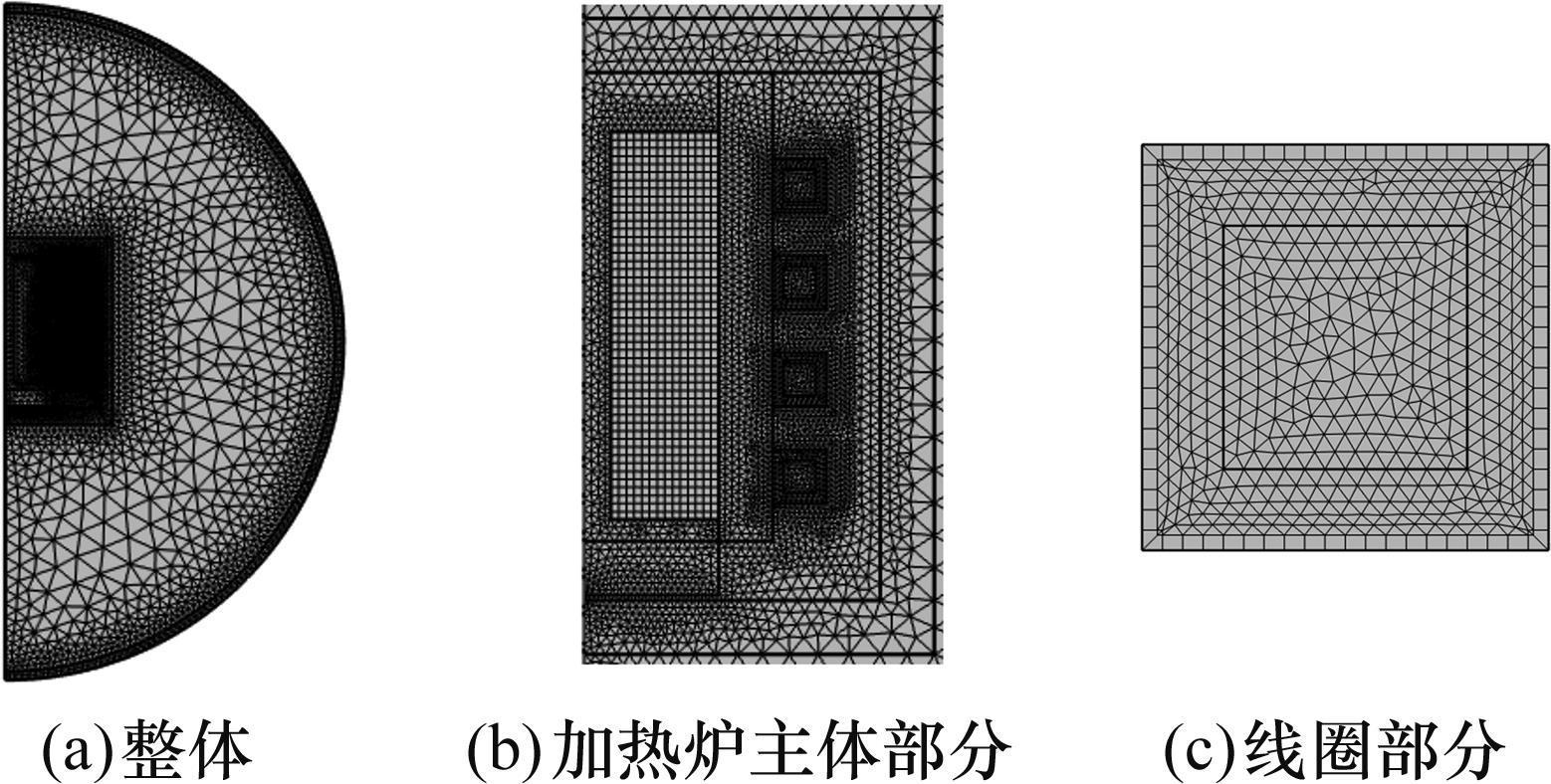

Fig.6 Overall grid and some major grids

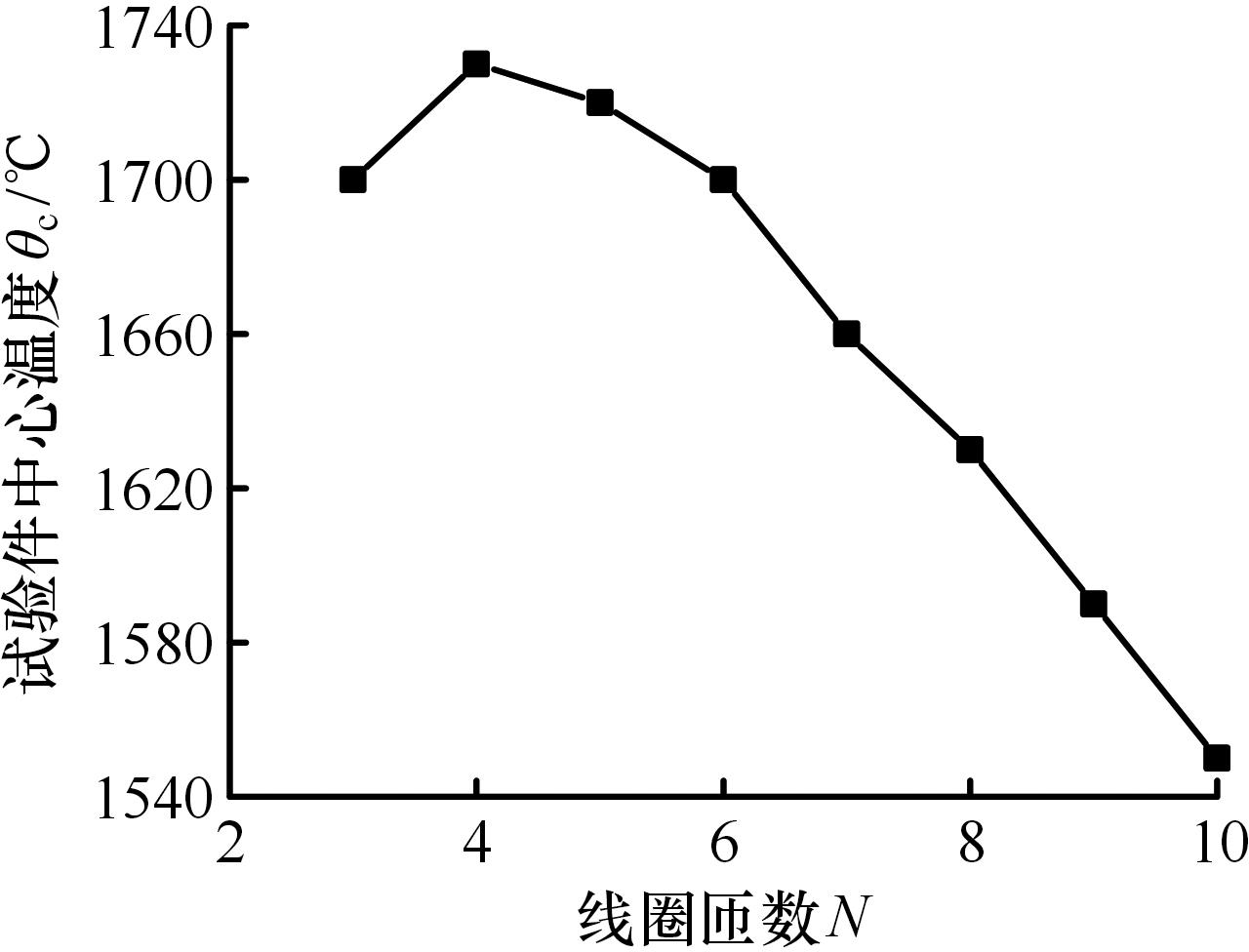

Fig.7 Graphite radiant heating performance corresponding to the number of coil turns

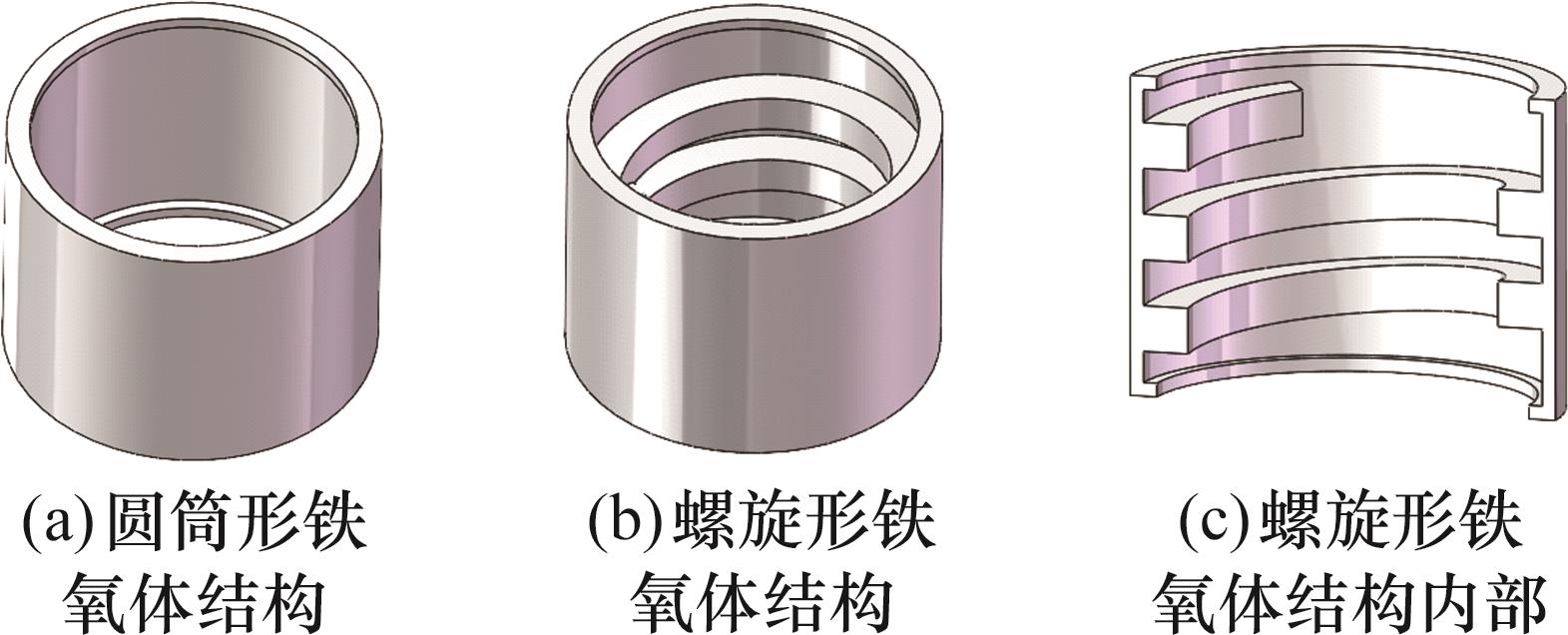

Fig.8 Schematic diagrams of cylindrical ferrite structure and helical ferrite structure

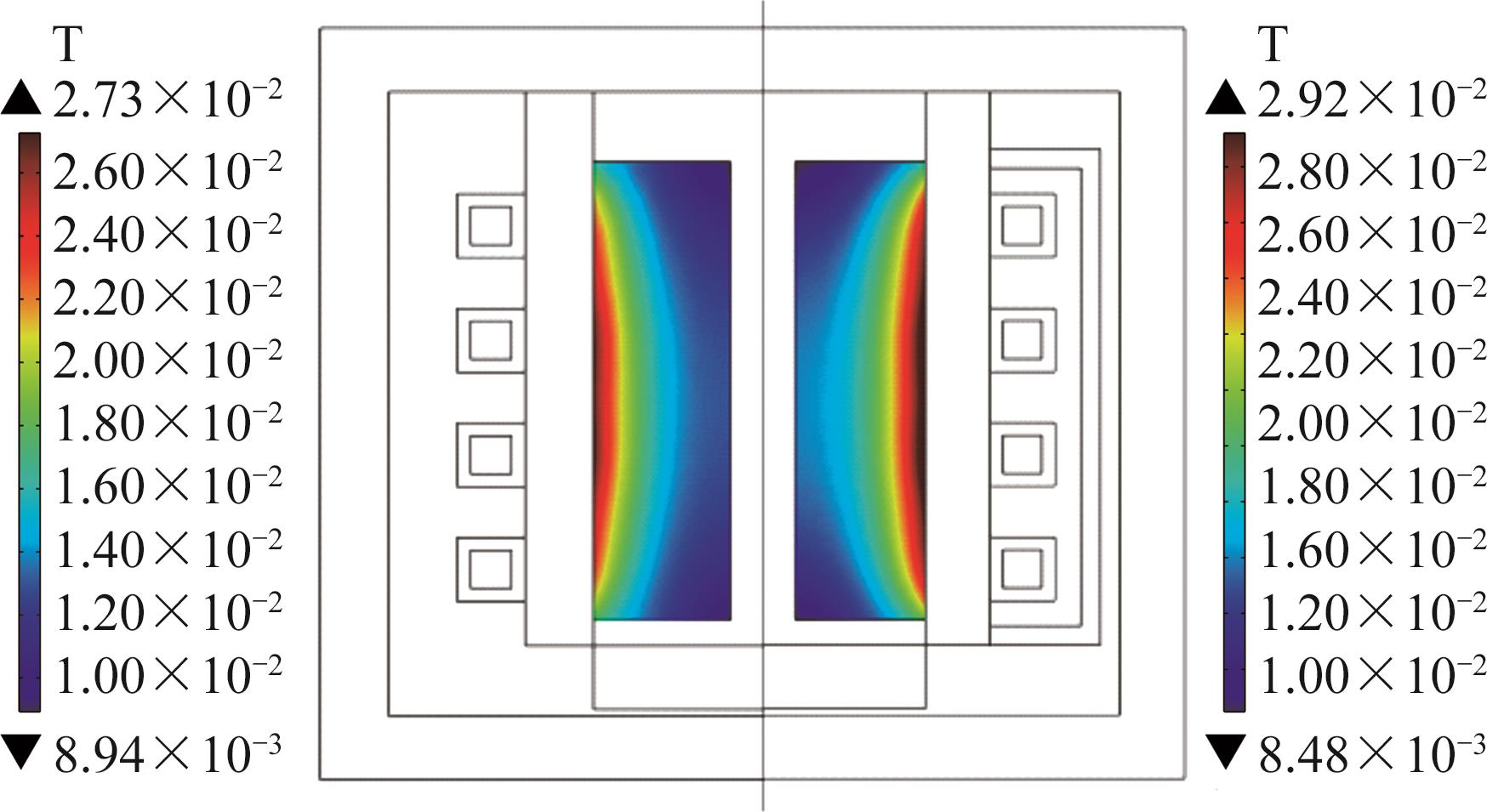

Fig.9 Comparison of magnetic flux density between the original coil（left） and the cylindrical ferrite structure（right）

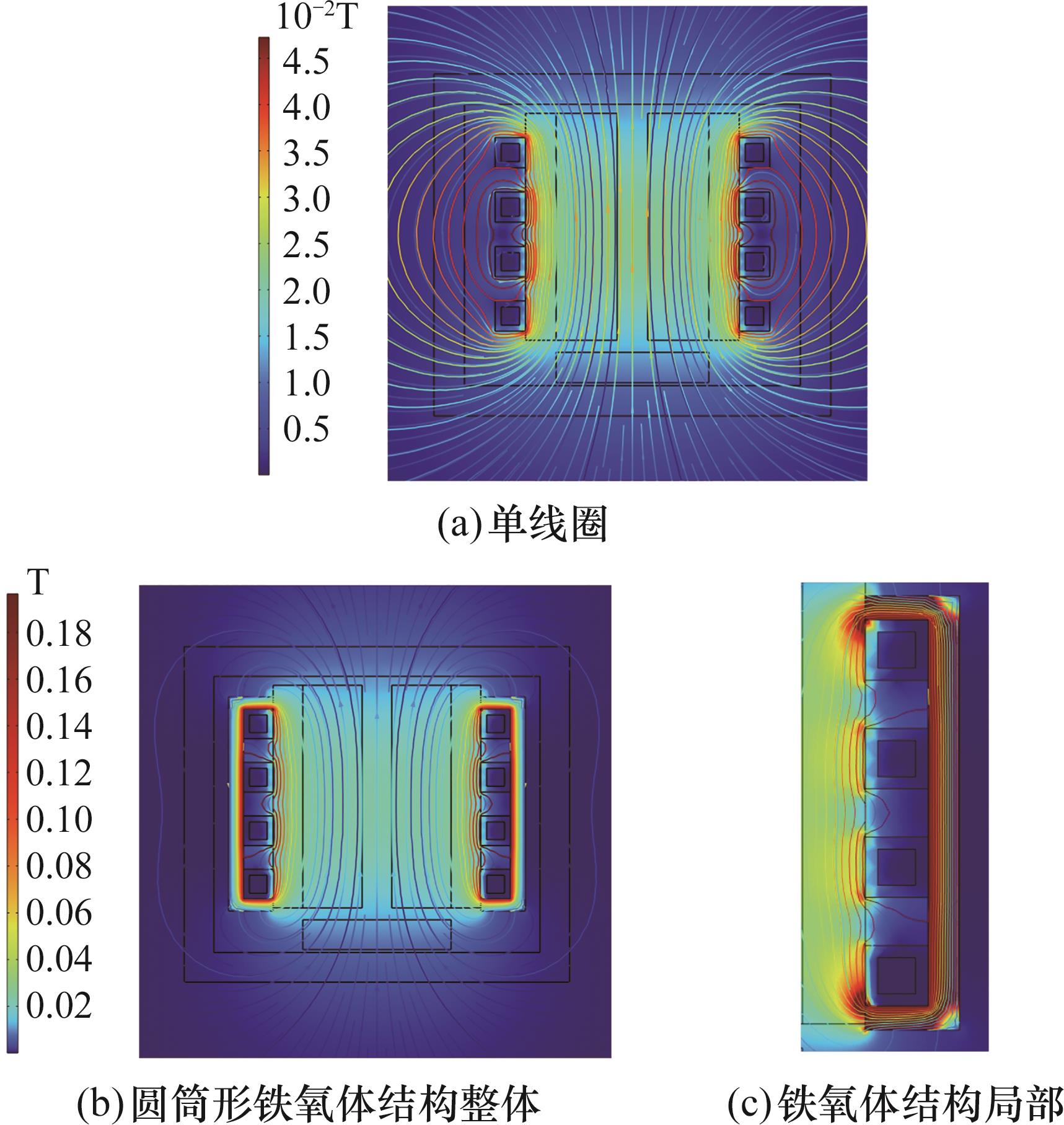

Fig.10 Magnetic induction line distribution diagram

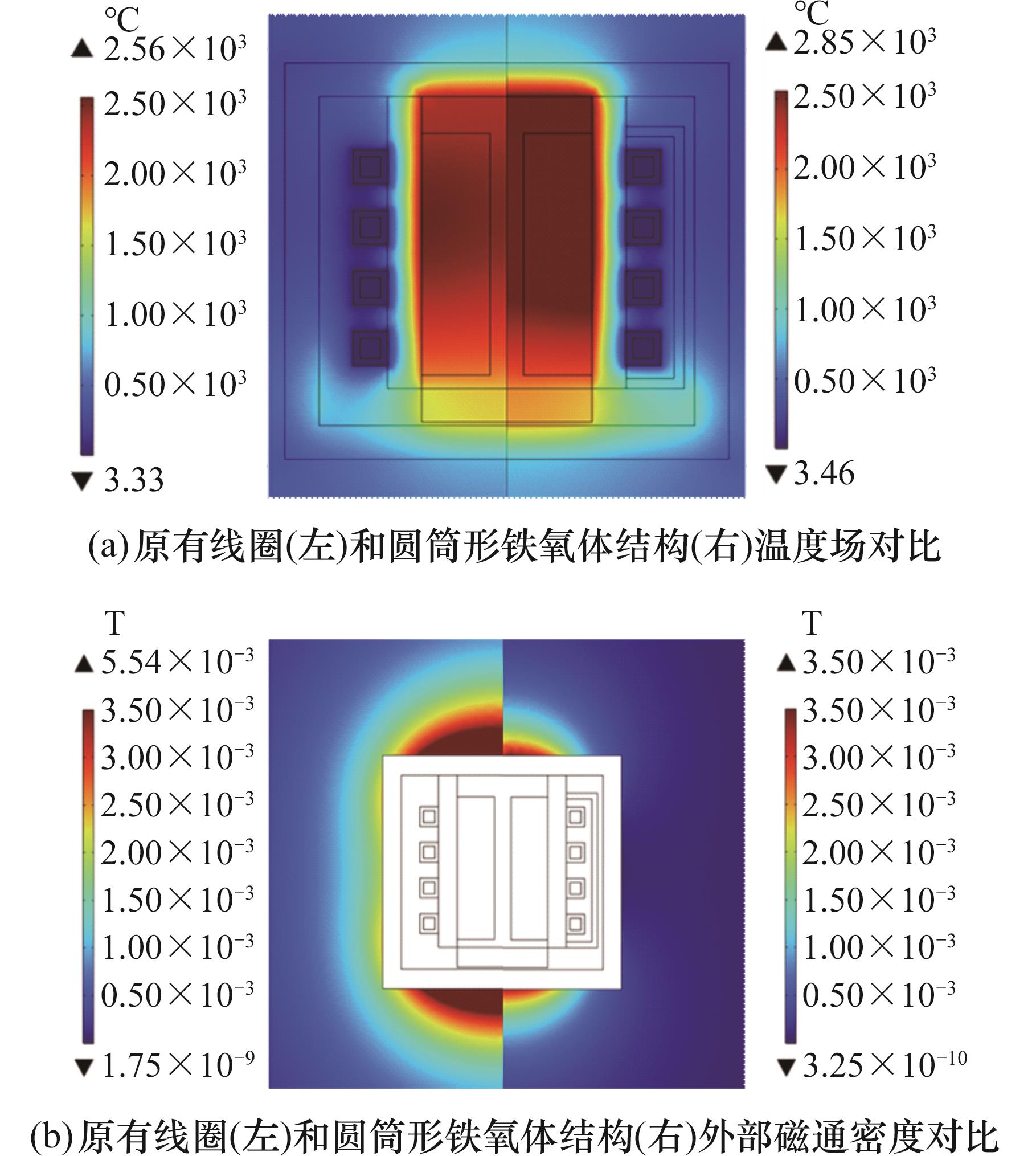

Fig.11 Comparison of temperature field and external magnetic flux density between the original coil and the cylindrical ferrite structure

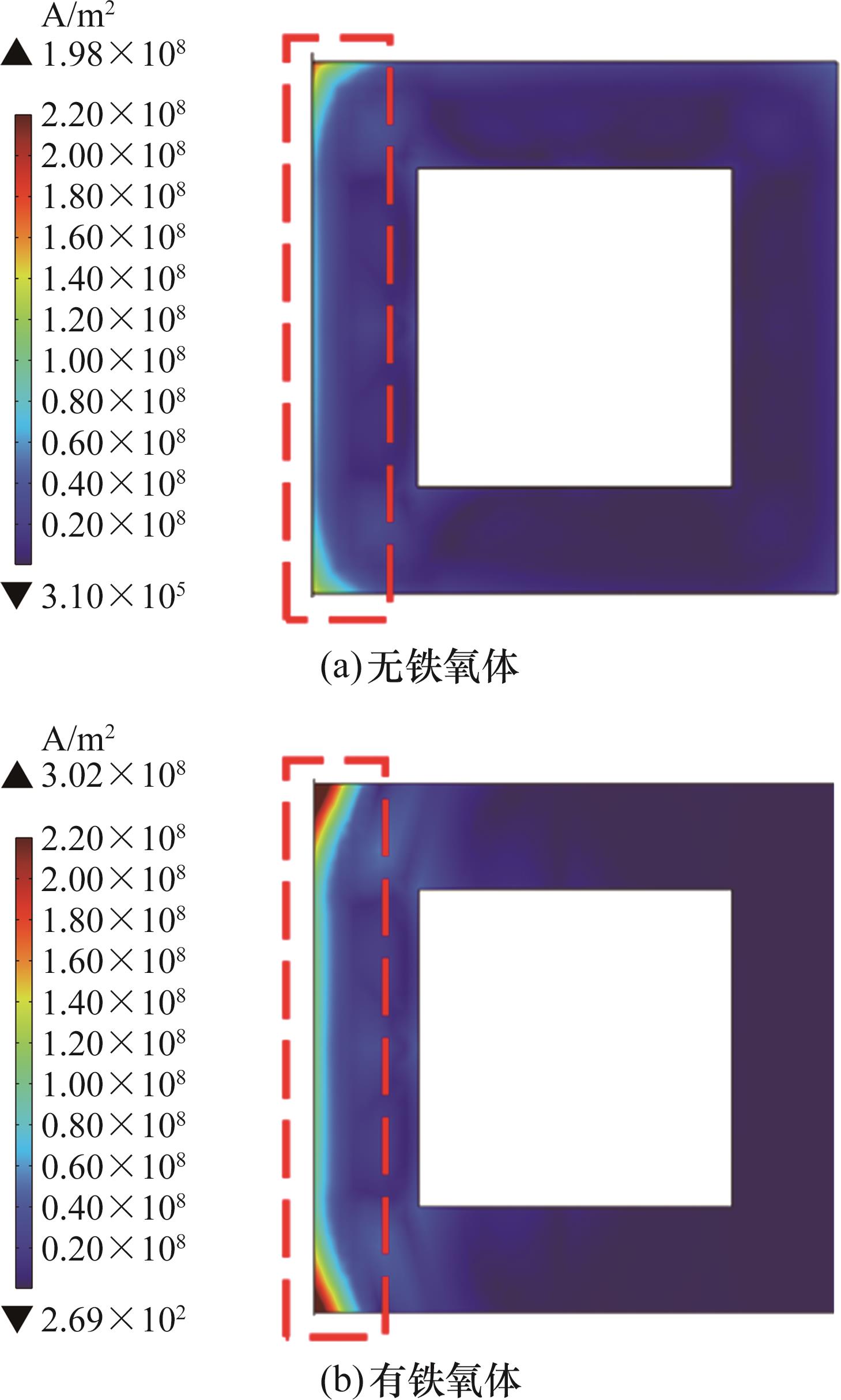

Fig.12 Comparison of current density between the original coil and the cylindrical ferrite structure

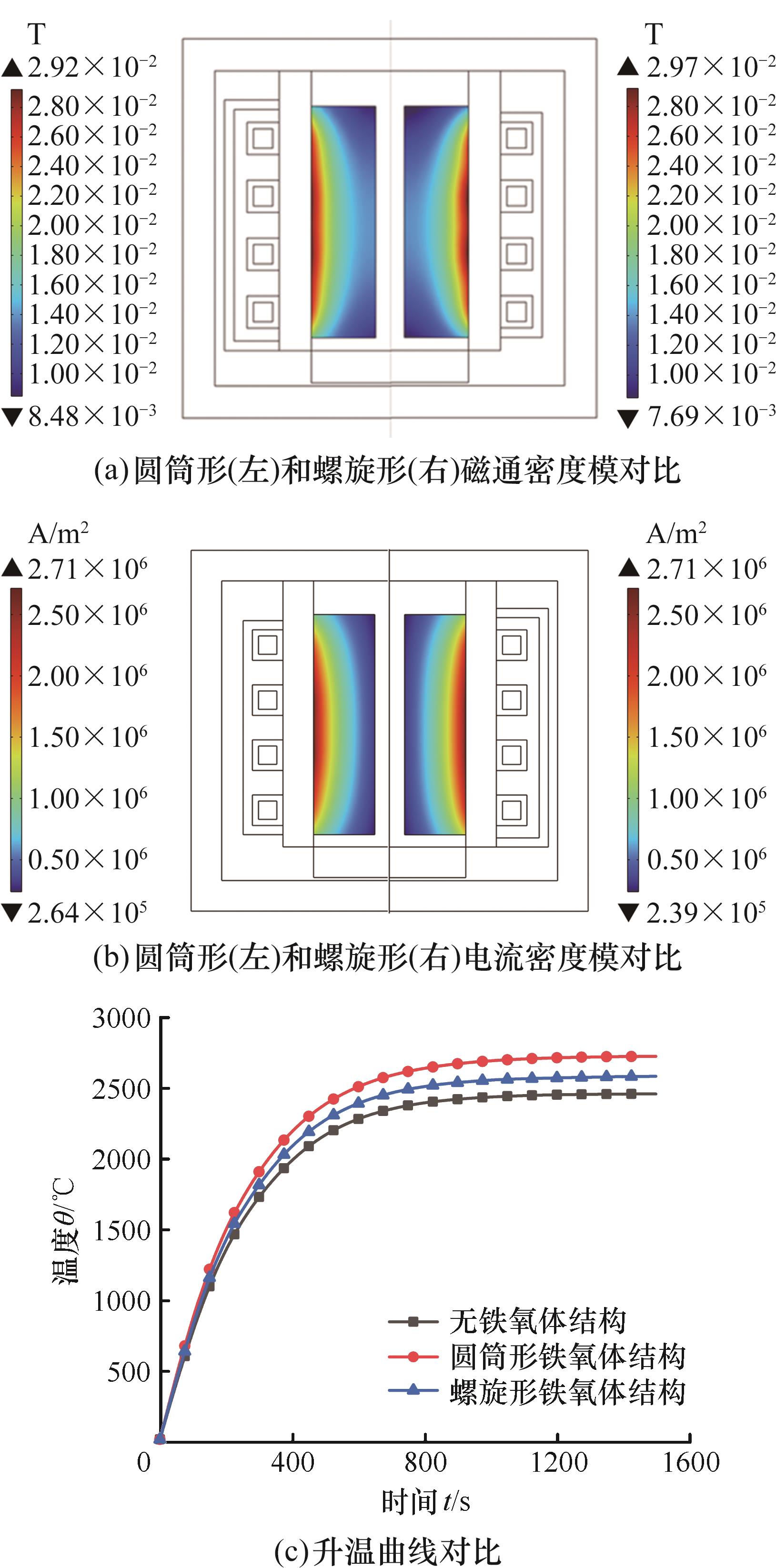

Fig.13 Comparison of magnetic flux density modulus， current density modulus distribution， and temperature rise curves under different ferrite structures

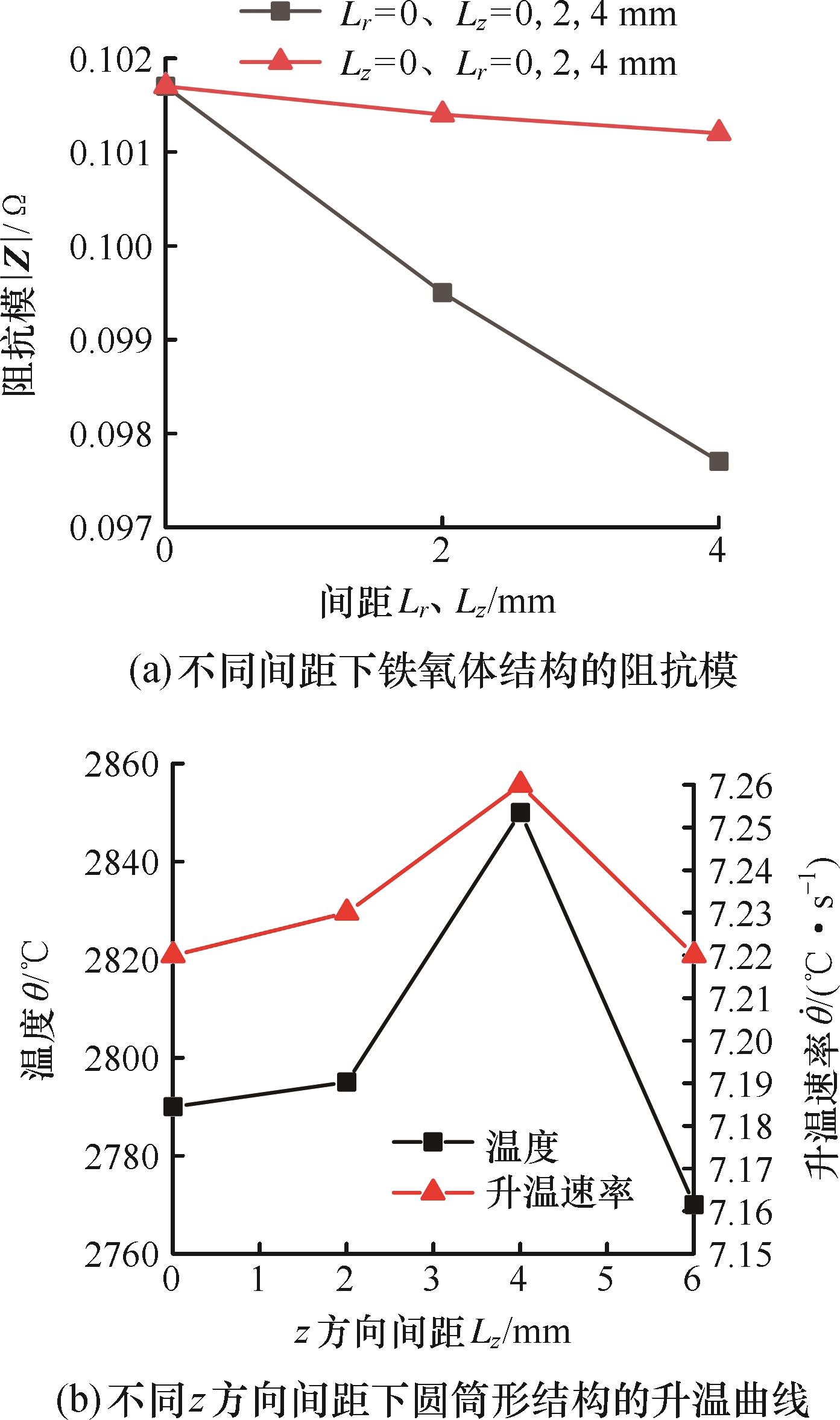

Fig.14 Impedance modulus of ferrite structure and temperature rise curves of cylindrical structure under different spacing

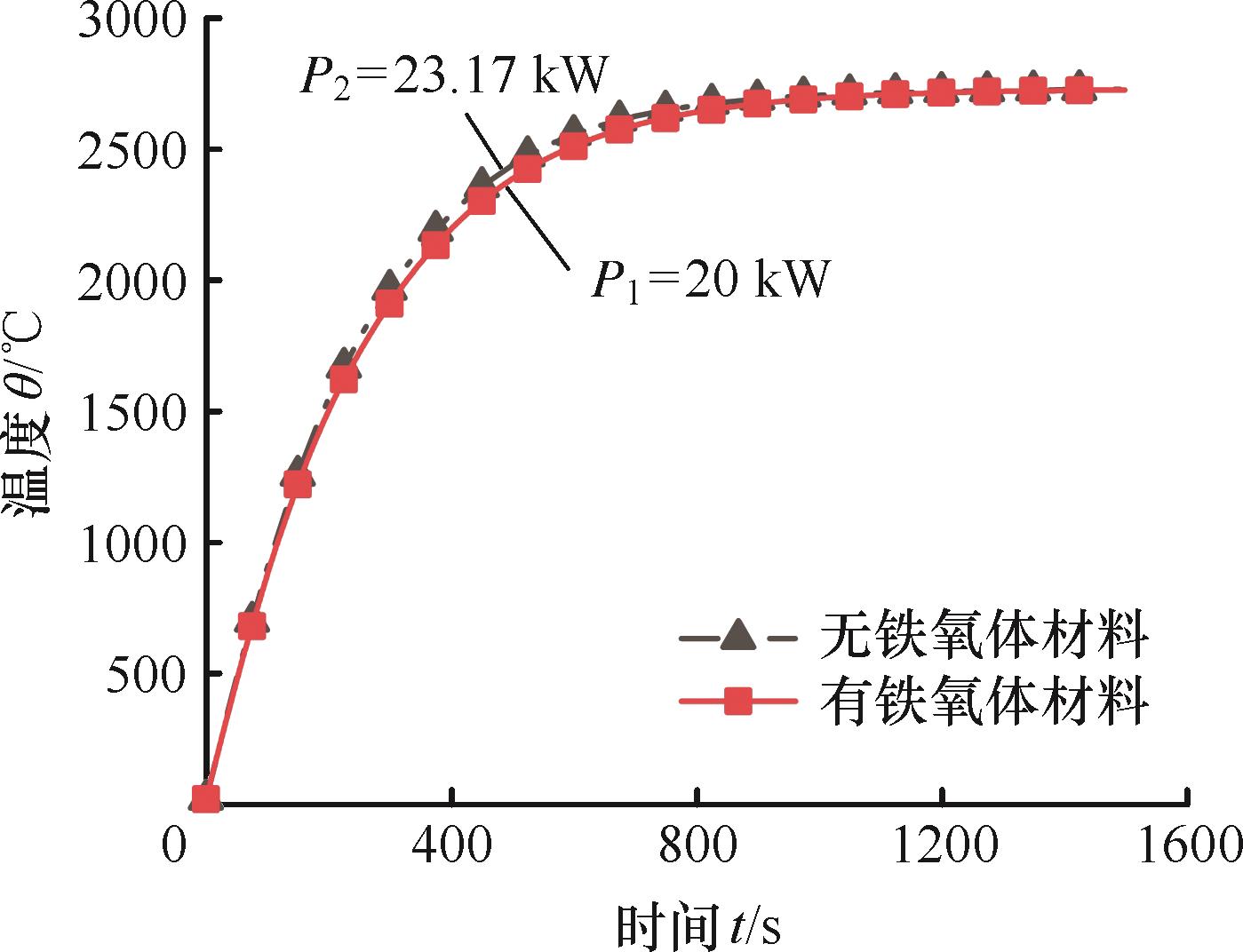

Fig.15 Temperature rise curves of different powers with and without ferrite structure

References 25

[1]	王长青. 空天飞行技术创新与发展展望［J］. 宇航学报， 2021， 42（7）： 807-819.
	WANG Changqing. Technological Innovation and Development Prospect of Aerospace Vehicle［J］. Journal of Astronautics， 2021， 42（7）： 807-819.
[2]	马晗，陈强，杨利鑫，等. 基于光子晶体的热防护结构热调控性能研究［J］. 工程热物理学报， 2024， 45（12）： 3853-3862.
	MA Han， CHEN Qiang， YANG Lixin， et al. Thermal Regulation Performance Study of Thermal Protection Structures Based on Photonic Crystals［J］. Journal of Engineering Thermophysics， 2024， 45（12）： 3853-3862.
[3]	李军平，金恩泽，袁泽帅，等. 碳纤维增强陶瓷基热结构复合材料的研究进展［J］. 宇航总体技术， 2025， 9（3）： 74-80.
	LI Junping， JIN Enze， YUAN Zeshuai， et al. Progress of Carbon Fiber Reinforced Ceramic Matrix Hot Structure Composites［J］. Astronautical Systems Engineering Technology， 2025， 9（3）： 74-80.
[4]	吴军，徐培飞，荆瑞，等. SiC/SiC复合材料层板低速冲击及其剩余强度试验研究［J］. 无机材料学报， 2024， 39（1）： 51-60.
	WU Jun， XU Peifei， JING Rui， et al. Experimental Study on Low-velocity Impact and Residual Strength of SiC/SiC Composite Laminates［J］. Journal of Inorganic Materials， 2024， 39（1）： 51-60.
[5]	陈浩. 石墨加热器辐射加热特性研究及优化设计［D］. 北京：北京化工大学， 2024.
	CHEN Hao. Study on Radiant Heating Characteristics and Optimal Design of Graphite Heater［D］. Beijing： Beijing University of Chemical Technology， 2024.
[6]	韩硕. 内孔感应加热器的设计及其对大型筒体加热温度场影响的数值研究［D］. 青岛：青岛科技大学， 2018.
	HAN Shuo. Design of Inner-hole Induction Heater and Its Numerical Study on the Effect of Temperature Field on Heating of Large-scale Cylinders［D］. Qingdao： Qingdao University of Science & Technology， 2018.
[7]	贾成成. 连续推舟式石墨提纯炉加热段温流场数值模拟与提纯工艺研究［D］. 南昌：南昌大学， 2023.
	JIA Chengcheng. Numerical Simulation of Temperature Flow Field in Heating Section of Continuous Push-boat Graphite Purification Furnace and Study of Purification Process［D］. Nanchang： Nanchang University， 2023.
[8]	LI Rui， ZHANG Yuanyuan， CHU Xiaodong， et al. Design and Numerical Study of Induction-heating Graphitization Furnace Based on Graphene Coils［J］. Applied Sciences， 2024， 14（6）： 2528.
[9]	SHI Lei， GE Runqi， TAN Nongchao， et al. Non-contact Heating Methods of Carbon Fiber Thermoplastic Compo-sites Based on Joule Thermal Properties： Optimization and Validation［J］. Carbon， 2024， 219： 118830.
[10]	CUI Peng， ZHU Wenbo， LI Haosong， et al. Ultra-efficient Localized Induction Heating by Dual-ferrite Synchronous Magnetic Field Focusing［J］. Applied Energy， 2023， 348： 121535.
[11]	GAO Kai， QIN Xunpeng， WANG Zhou， et al. Numerical and Experimental Analysis of 3D Spot Induction Hardening of AISI 1045 Steel［J］. Journal of Materials Processing Technology， 2014， 214（11）： 2425-2433.
[12]	GAO Kai， QIN Xunpeng， WANG Zhou， et al. Effect of Magnetizer Geometry on the Spot Induction Heating Process［J］. Journal of Materials Processing Technology， 2016， 231： 125-136.
[13]	HUANG M S， HUANG Y L. Effect of Multi-layered Induction Coils on Efficiency and Uniformity of Surface Heating［J］. International Journal of Heat and Mass Transfer， 2010， 53（11/12）： 2414-2423.
[14]	NIAN S C， HUANG M S， TSAI T H. Enhancement of Induction Heating Efficiency on Injection Mold Surface Using a Novel Magnetic Shielding Method［J］. International Communications in Heat and Mass Transfer， 2014， 50： 52-60.
[15]	NIAN S C， TSAI S W， HUANG M S， et al. Key Para-meters and Optimal Design of a Single-layered Induction Coil for External Rapid Mold Surface Heating［J］. International Communications in Heat and Mass Transfer， 2014， 57： 109-117.
[16]	ZHU Zhenhua， QIN Xunpeng， GAO Kai， et al. Design and Research on the Spot Inductor for Obtaining Local High Temperature Rapidly［J］. International Communications in Heat and Mass Transfer， 2018， 96： 122-129.
[17]	BUI H T， HWANG S J. Modeling a Working Coil Coupled with Magnetic Flux Concentrators for Barrel Induction Heating in an Injection Molding Machine［J］. International Journal of Heat and Mass Transfer， 2015， 86： 16-30.
[18]	WEN Huaiyu， ZHANG Xiaobo， YE Hugen， et al. Research on the Mechanism of Magnetic Flux Concentrator in the Gap-to-gap Induction Heating of Wind Power Gear［J］. International Journal of Thermal Sciences， 2021， 168： 107055.
[19]	WANG Borui， YAN Mingyin. The Heating Effect Analysis of Electromagnetic Induction Heating System Based on the Multi Objective Optimization Strategy［J］. Journal of Energy Storage， 2025， 105： 114705.
[20]	DONG Jianwei， ZHANG Zheng， WANG Deguo， et al. Numerical Simulation and Experimental Study on the Preparation of the Inner Layer of Bimetal Composite Pipe by High-frequency Induction Heating［J］. Materials Today Communications， 2024， 38： 108118.
[21]	刘路. 基于数值计算的二维热传导过程的求解与仿真研究［D］. 咸阳：西北农林科技大学， 2023.
	LIU Lu. Solution and Simulation for 2D Heat Conduction Process Based on Numerical Calculation［D］. Xianyang： Northwest A & F University， 2023.
[22]	XUE Fei， HE Diqiu， ZHOU Haibo， et al. Optimization Research on Inductor Structural Parameters for Post-weld Electromagnetic Induction Heating Pulsation Aging Treatment of Large Aluminum Components［J］. Case Studies in Thermal Engineering， 2024， 63： 105372.
[23]	邓四维. 多线圈感应加热系统的研究［D］. 杭州：浙江大学， 2023.
	DENG Siwei. Research on Multi-coil Induction Heating System［D］. Hangzhou： Zhejiang University， 2023.
[24]	LU M， NGO K D T. Analytical Calculation of Proximity-effect Resistance for Planar Coil with Litz Wire and Ferrite Plate in Inductive Power Transfer［J］. IEEE Transactions on Industry Applications， 2019， 55（3）： 2984-2991.
[25]	WANG Yuefei， LIU Zhen. Development of Numerical Modeling and Temperature Controller Optimization for Internal Heating Vacuum Furnace［J］. IEEE Access， 2021， 9： 126765-126773.
