Modeling and Analyses of Calendering Pressure for Lithium-ion Battery Electrodes Based on Kuhn Yield Criterion

doi:10.3969/j.issn.1004-132X.2026.03.020

Abstract

Abstract:

Calendering was a crucial process in the manufacturing of lithium-ion battery electrodes， and the calendering pressure was an important parameter for electrode calendering. Due to the special structures of battery electrodes， the calendering pressure was difficult to predict. To address this issue， a predictive model was established for the unit pressure distribution during the calendering processes of lithium-ion battery electrodes based on Kuhn yield criterion in the field of powder forming. The model was validated through calendering experiments. The results demonstrate good agreement with experimental data， and the prediction errors of the unit width pressure remain within 10%. Further analyses exploring the distribution characteristics of unit pressure and frictional stress within the roll gap were carried out， and the effects of compression rate and roll diameter on unit width pressure and unit width torque were disussed. The results indicate that both unit width pressure and unit width torque increase with the increasing compression rate and roll diameter.

Key words: lithium-ion battery electrode, calendering, Kuhn yield criterion, unit pressure distribution, unit width pressure, torque

摘要：

辊压是锂离子电池极片制造过程中的重要工序，辊压力是极片辊压的重要参数，由于电池极片的特殊结构，辊压力难以预测。为解决这一问题，基于粉末成形领域的Kuhn屈服准则，建立了一种锂离子电池极片辊压过程单位压力分布预测模型，并通过辊压实验对模型进行了验证。结果表明，模型计算结果与实验数据吻合良好，对单位宽度压力的预测误差保持在10%以内。进一步研究分析了辊缝内单位压力与摩擦应力分布特征，分别讨论了压下率与轧辊直径对单位宽度压力与单位宽度力矩的影响，研究结果显示，随着压下率和轧辊直径的增大，单位宽度压力与单位宽度力矩均随之增大。

关键词: 锂离子电池极片, 辊压, Kuhn屈服准则, 单位压力分布, 单位宽度压力, 力矩

CLC Number:

TG335

WANG Guodong, WANG Dongcheng, DUAN Bowei, LIU Hongmin. Modeling and Analyses of Calendering Pressure for Lithium-ion Battery Electrodes Based on Kuhn Yield Criterion[J]. China Mechanical Engineering, 2026, 37(3): 708-716.

王国栋, 王东城, 段伯伟, 刘宏民. 基于Kuhn屈服准则的锂离子电池极片辊压力建模与分析[J]. 中国机械工程, 2026, 37(3): 708-716.

Figures/Tables 18

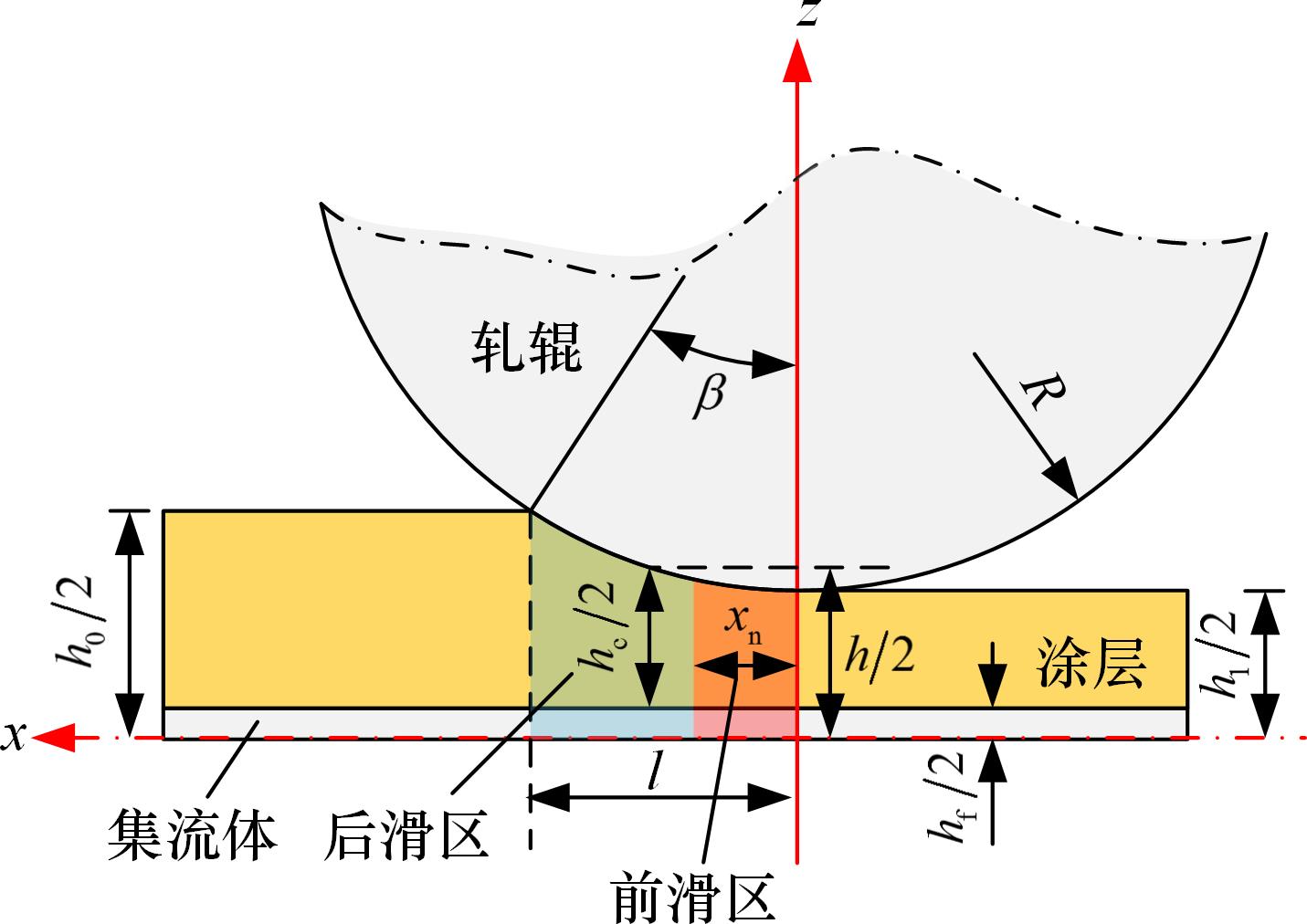

Fig.1 Schematic diagram of the battery electrode calendering process

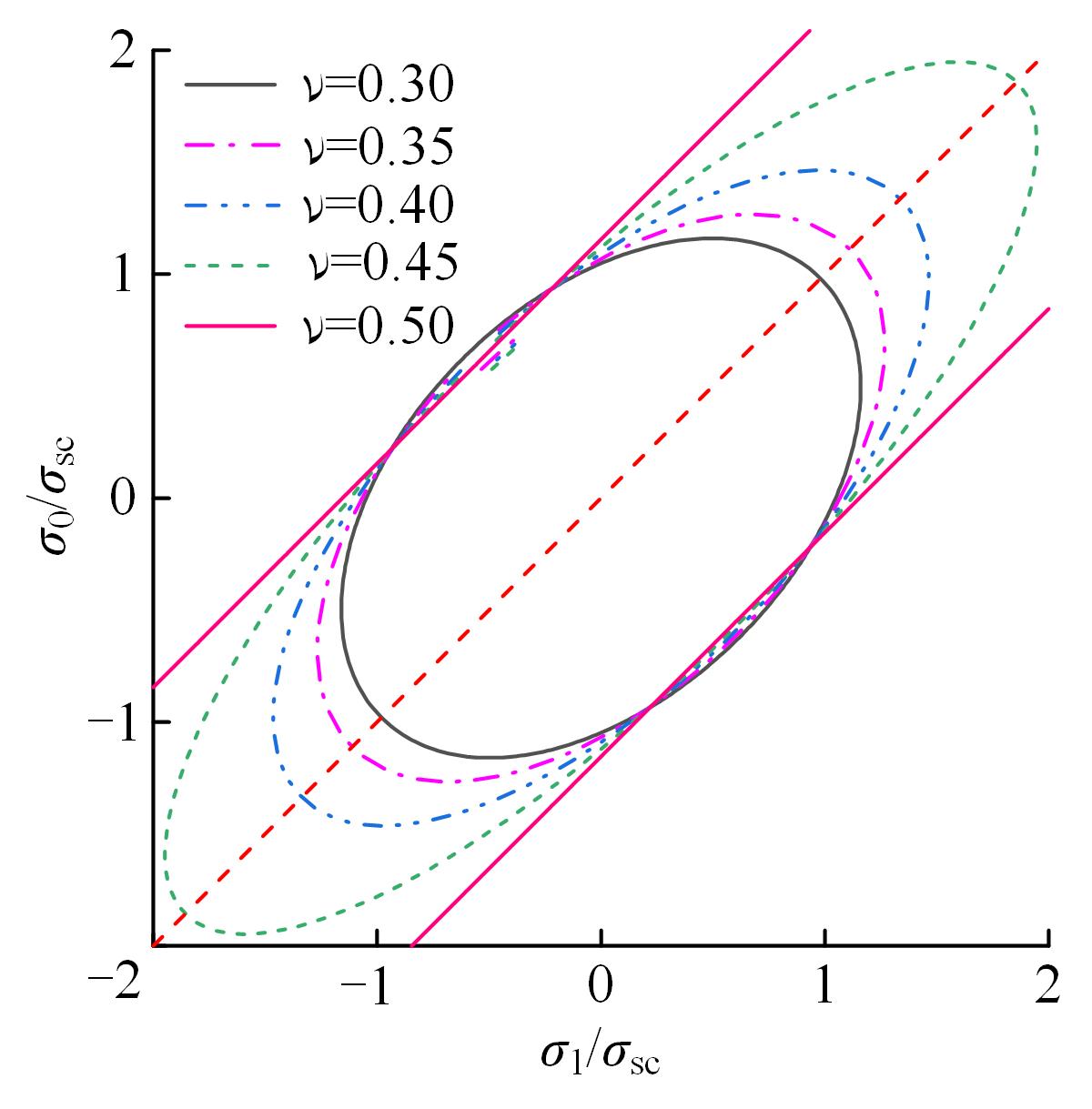

Fig.2 The yield locus of the Kuhn yield criterion under plane strain conditions

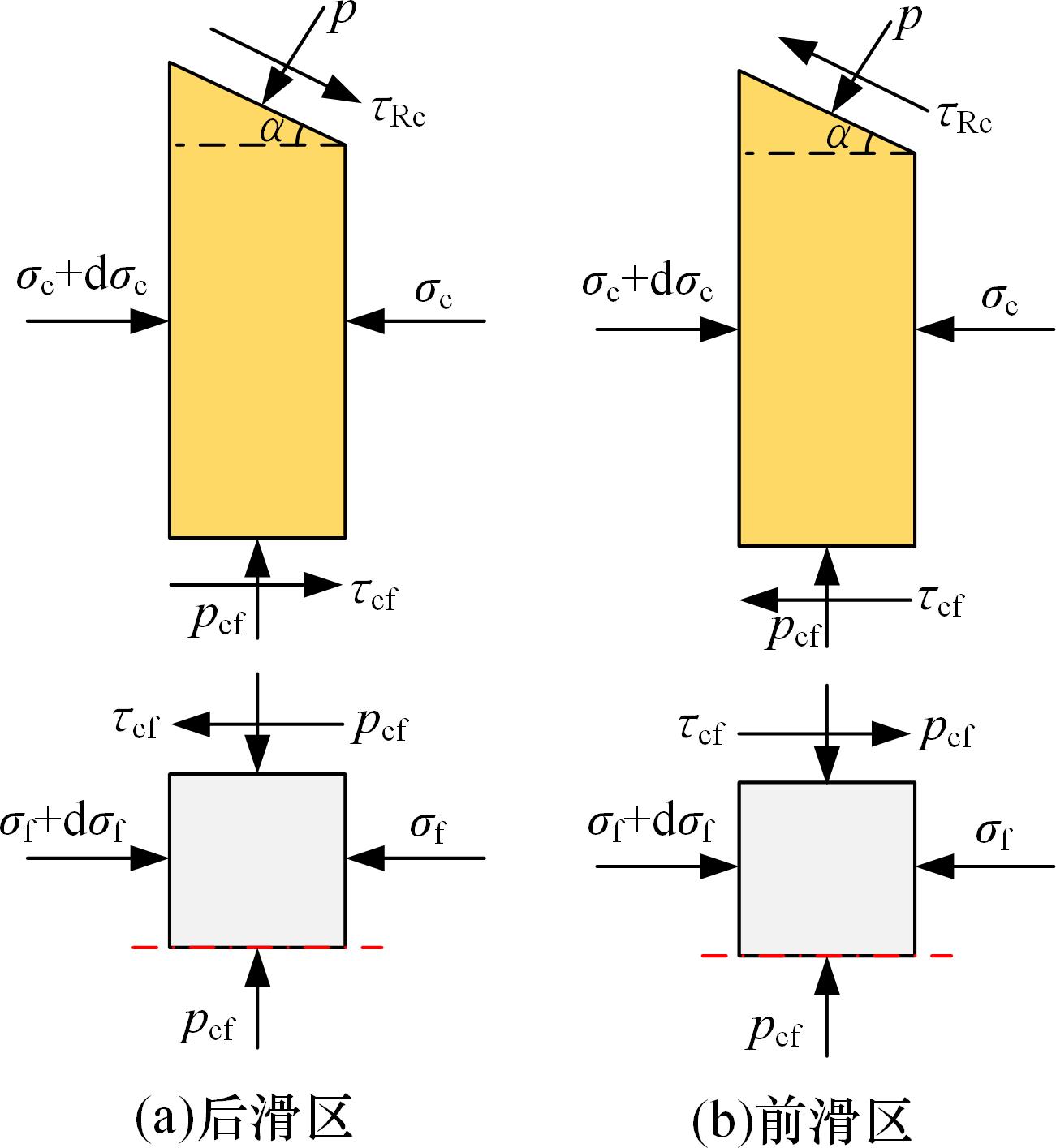

Fig.3 Schematic diagram of the forces on electrode differential element

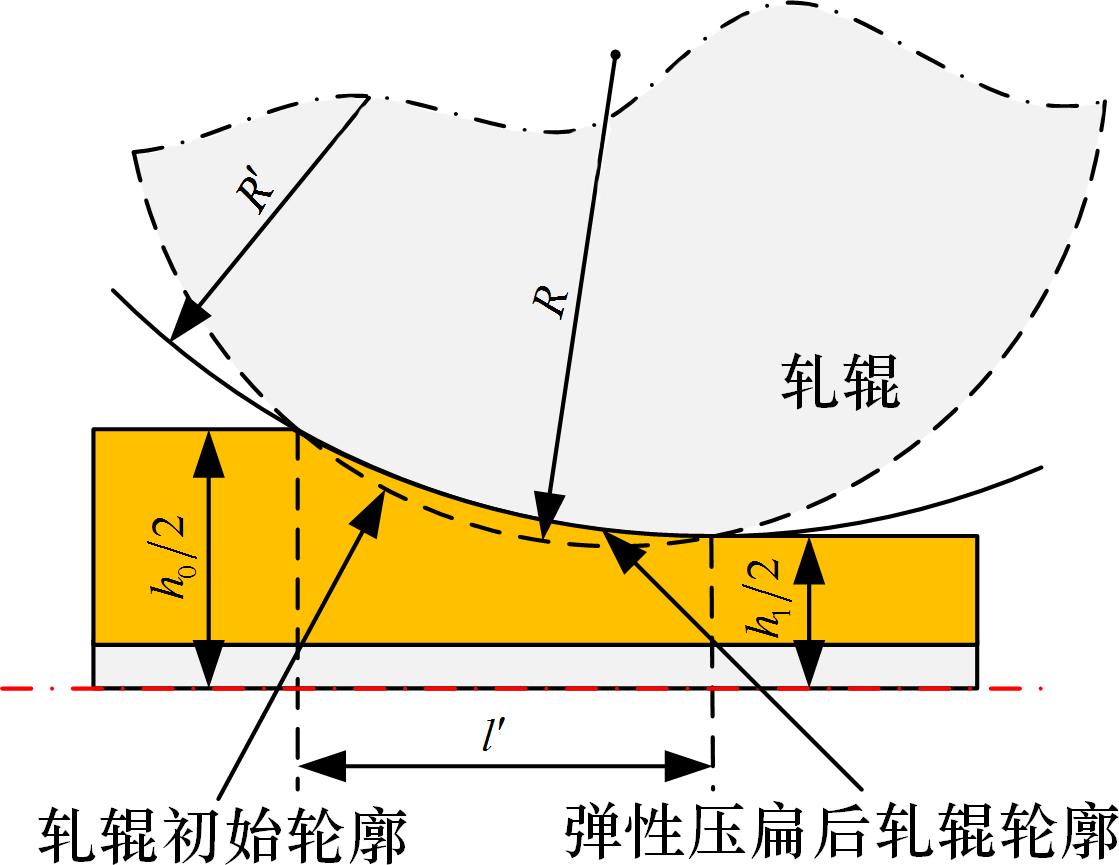

Fig.4 Schematic diagram of roll elastic flattening

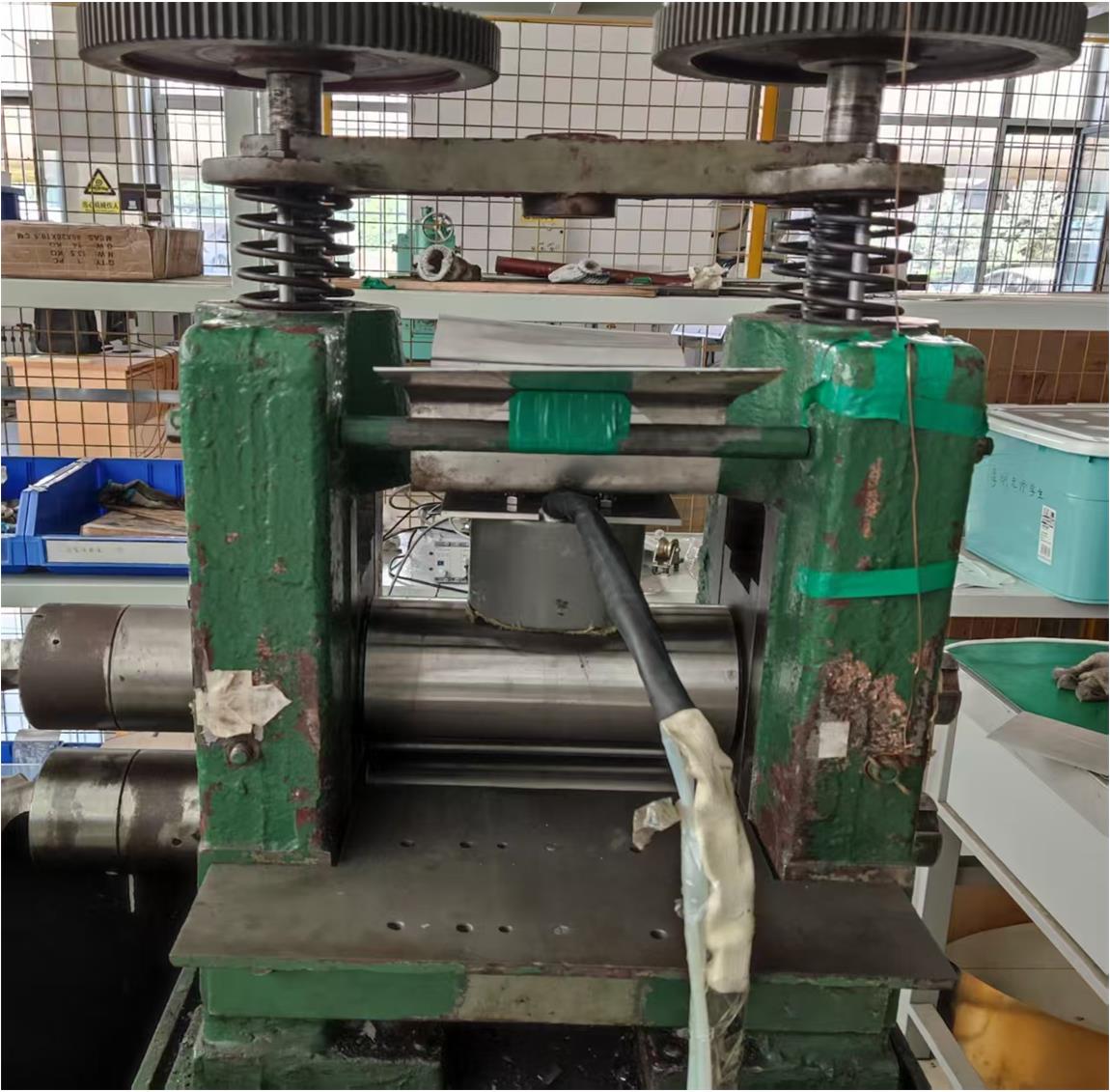

Fig.5 Experimental calender

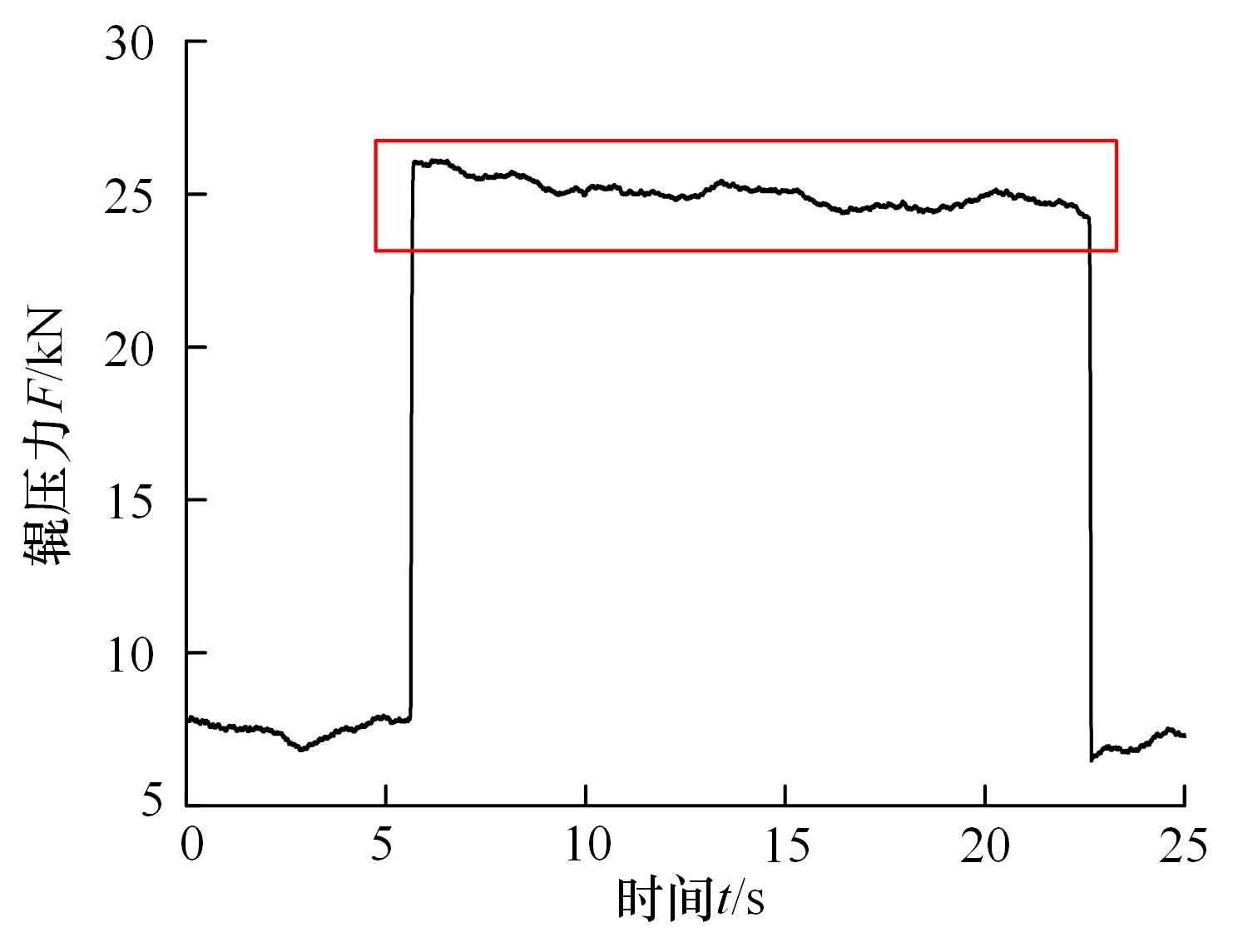

Fig.6 Calendering pressure measured during the calendering experiment

Tab.1 Mercury intrusion porosimeter parameters

	低压站	高压站
压力变化范围/Pa	0~3.45×10⁵	大气压~2.28×10⁸
分辨率/Pa	68.9	689
孔径测量范围/μm	3.6~360	0.005~6

Tab.2 Coating parameters

	σ₀/MPa	n	K/MPa	s	m	ρ₀
正极	410	3.5	4200	1	4	0.581
负极	153	2.5	700	1	6	0.461

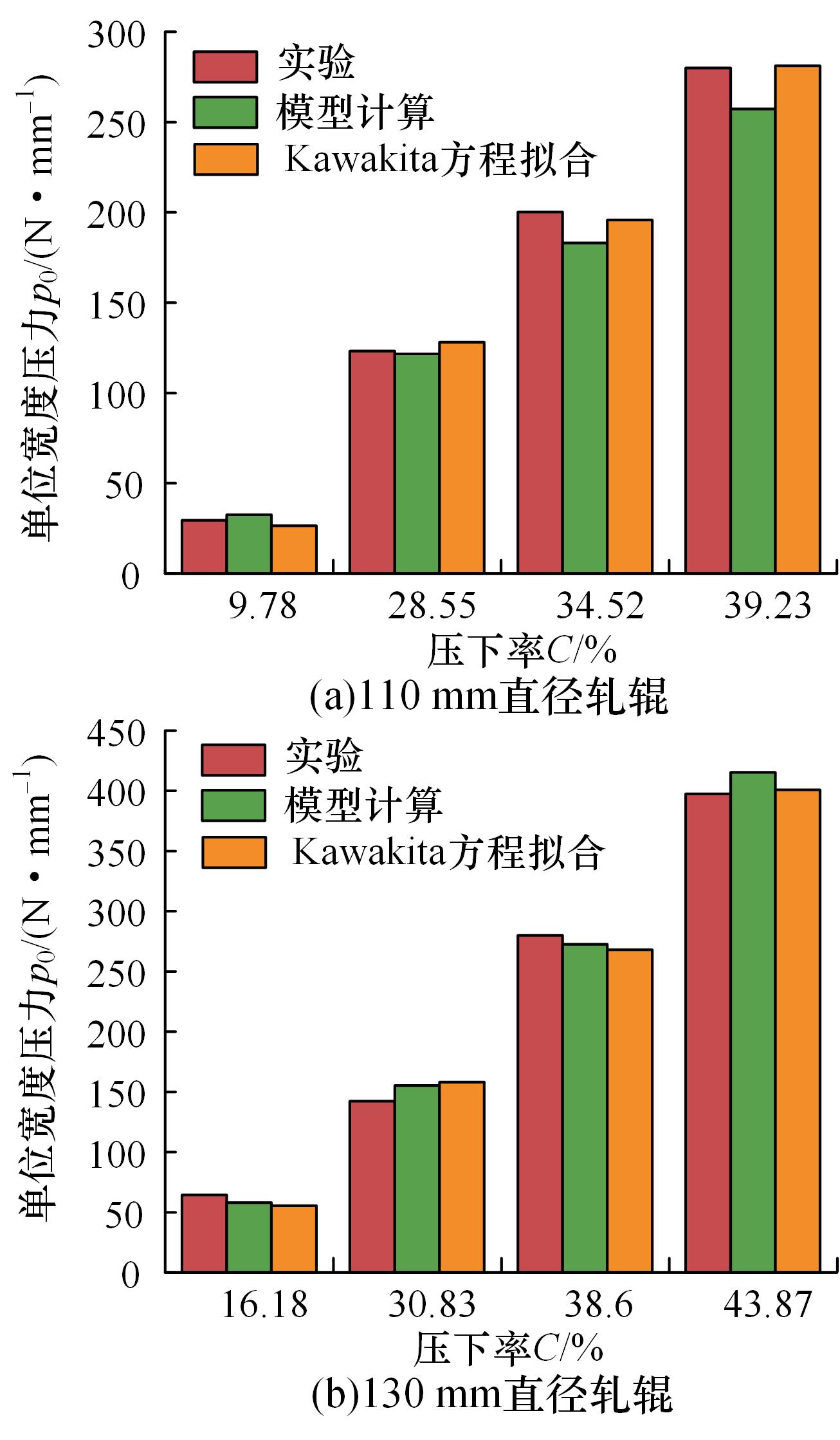

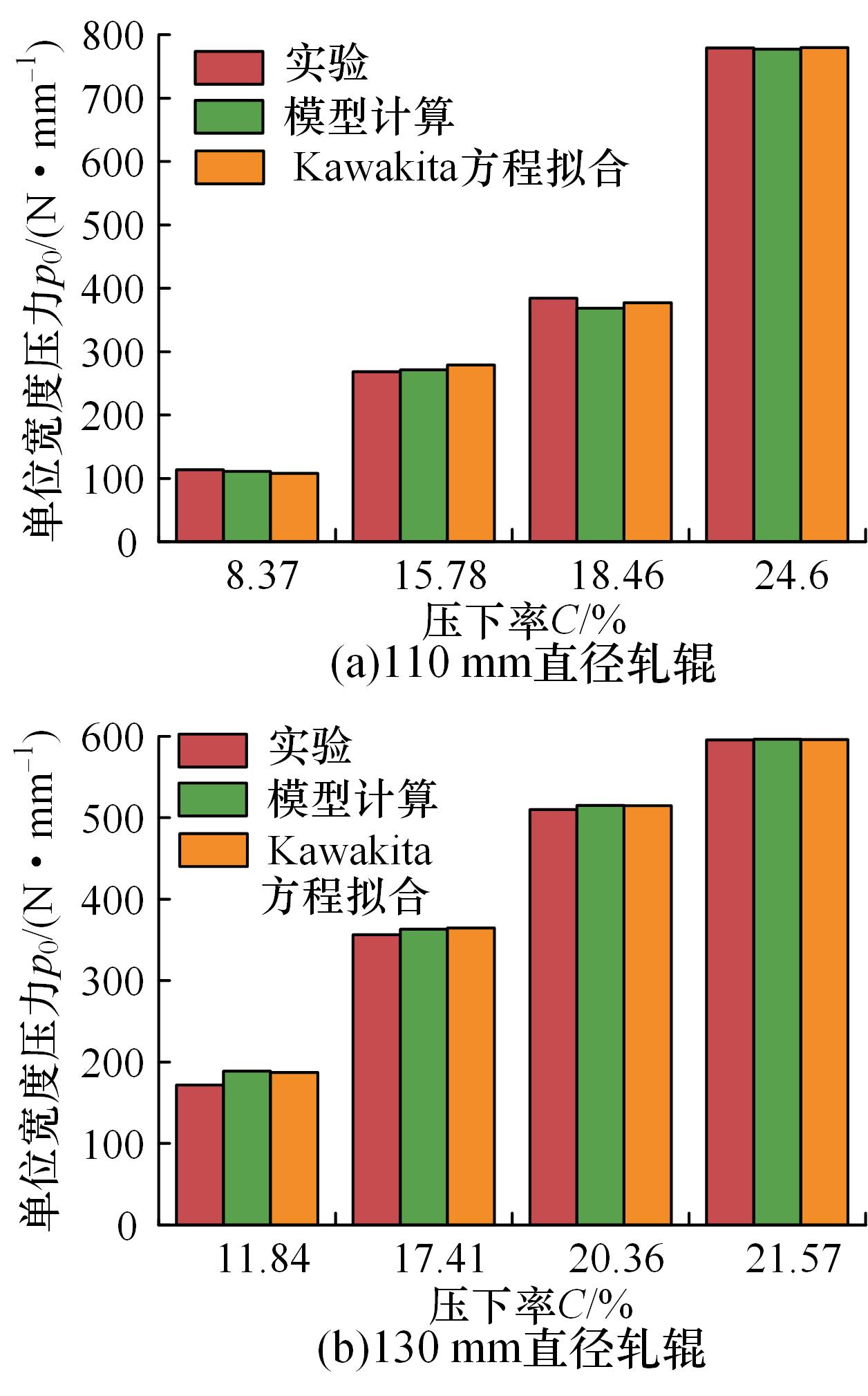

Fig.7 Comparison of unit width pressure for cathode electrode during calendering

Fig.8 Comparison of unit width pressure for anode electrode during calendering

Tab.3 Fitting parameters of the Kawakita equation

轧辊直径/mm	极片类型	A	B
110	正极	0.357	352.77
110	负极	0.571	127.99
130	正极	0.329	314.41
130	负极	0.605	152.28

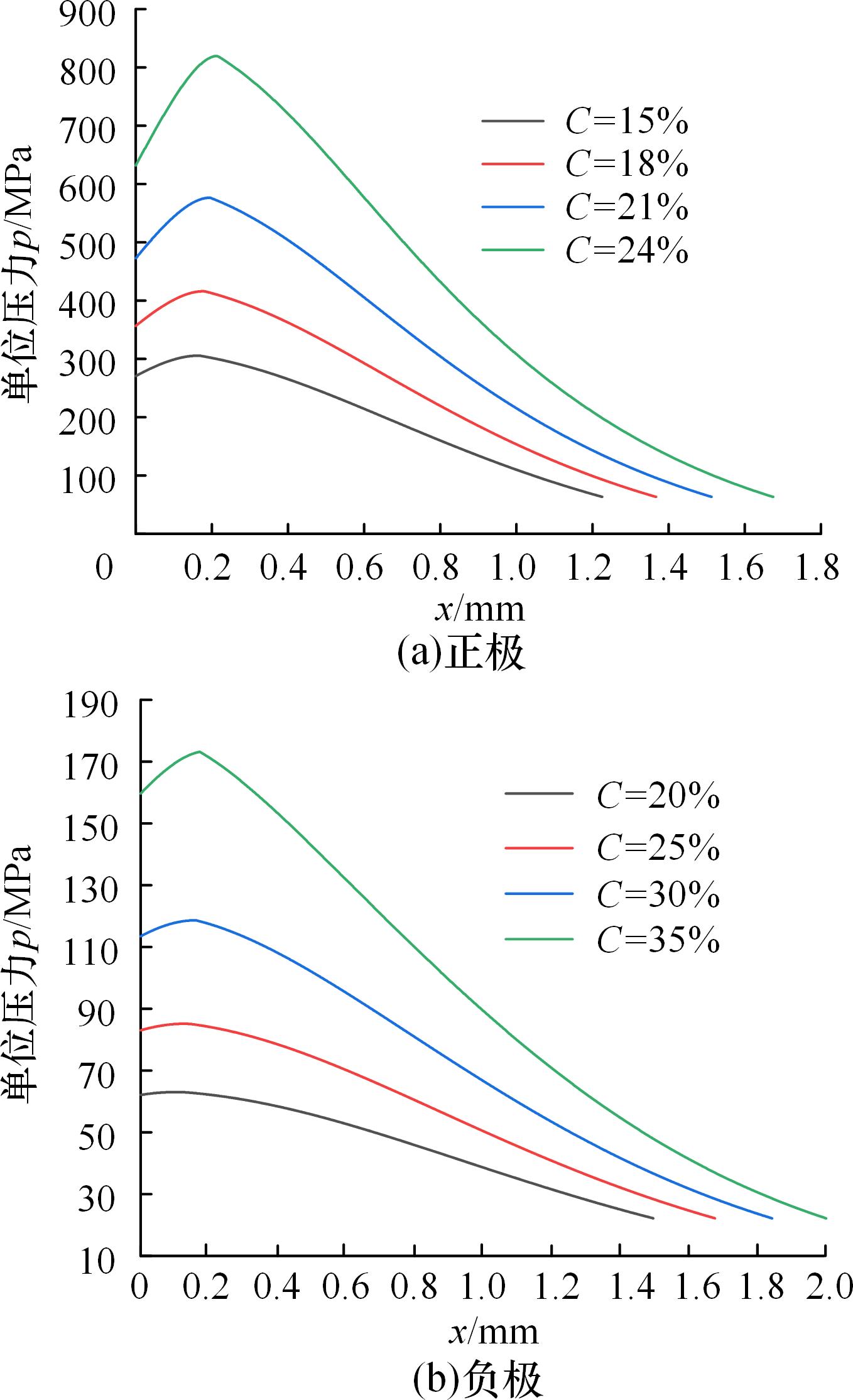

Fig.9 Unit pressure distribution of the electrode under different compression rates

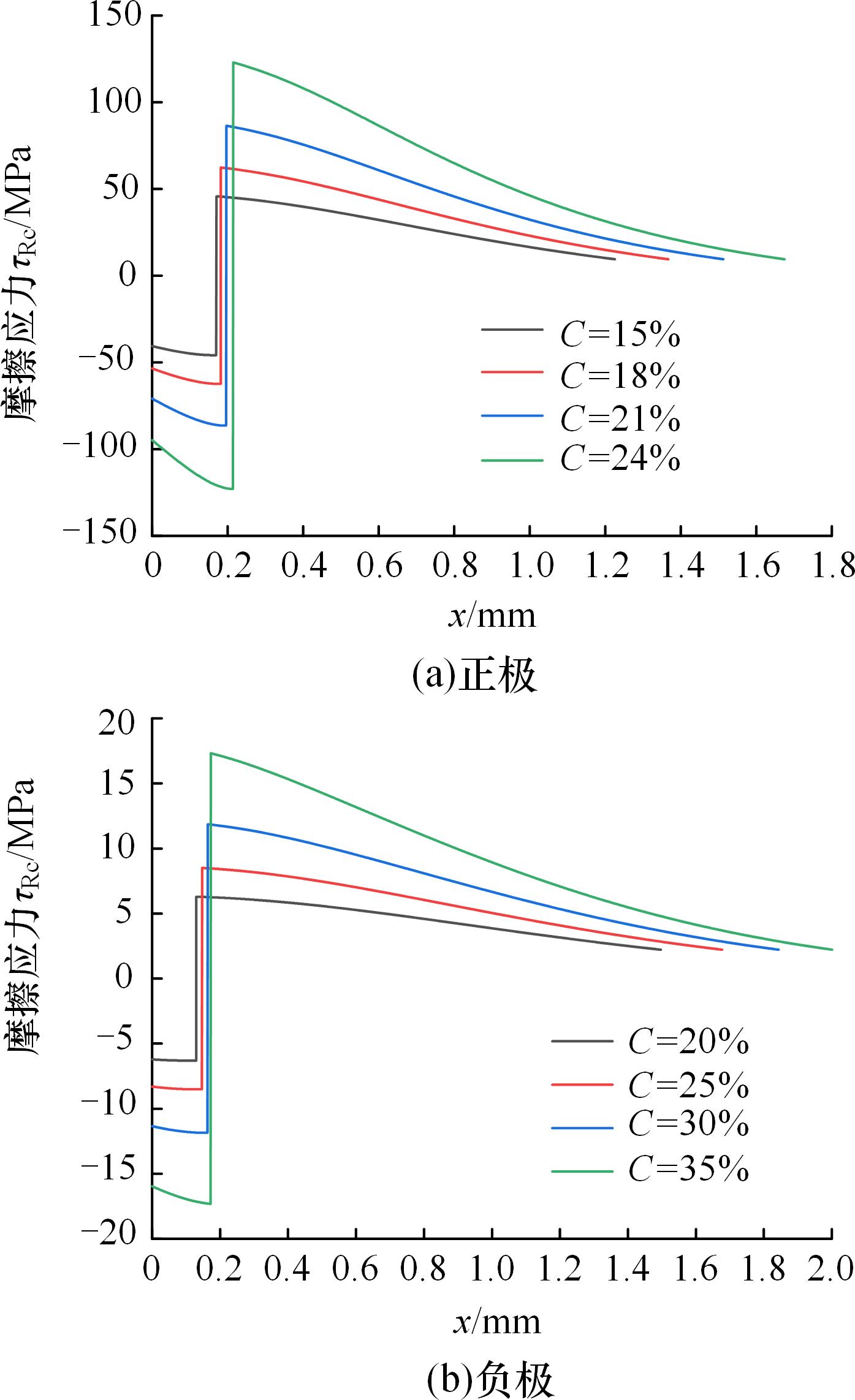

Fig.10 Frictional stress distribution of the electrode under different compression rates

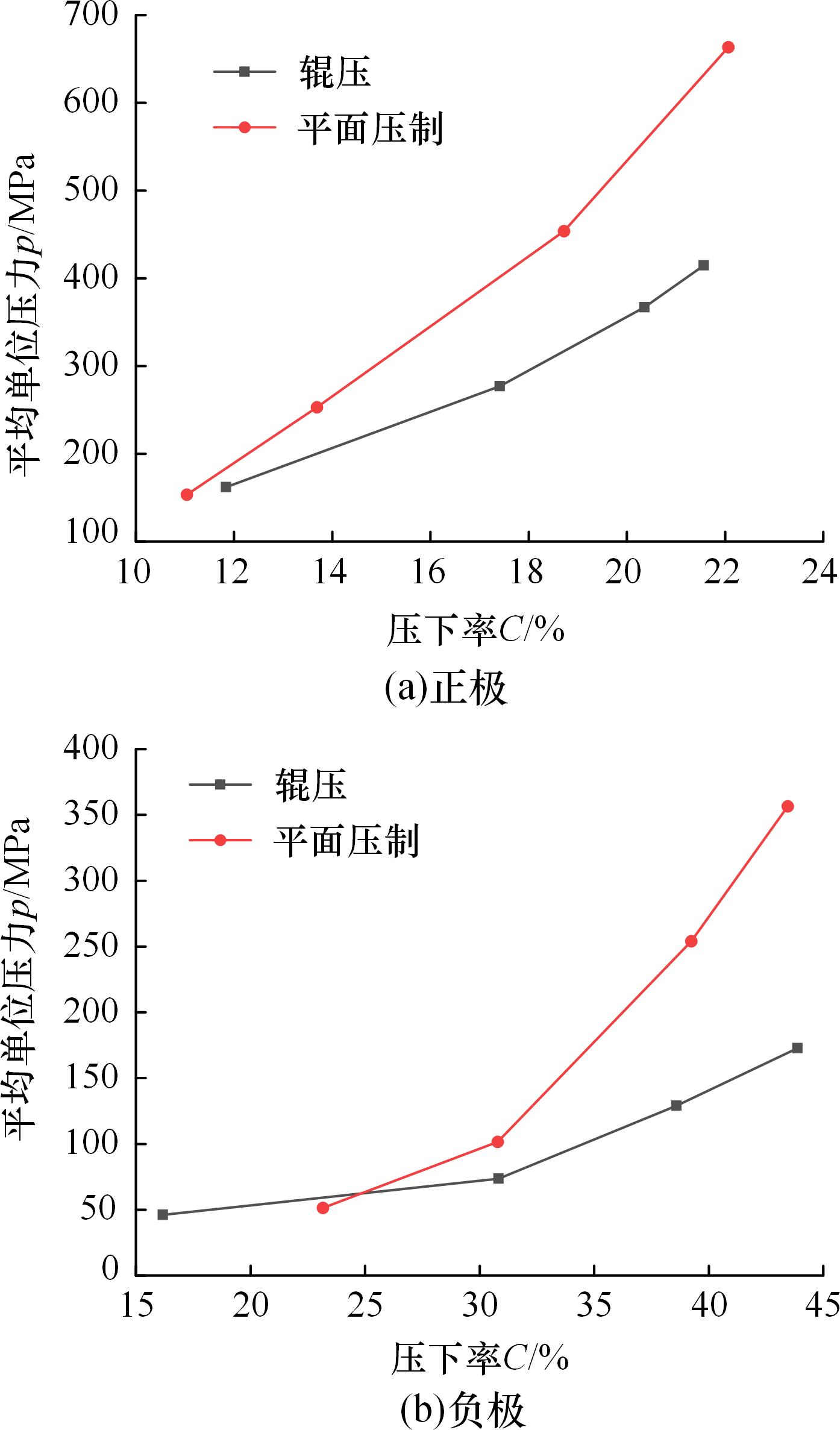

Fig.11 Comparison of average unit pressure between calendering and flat pressing

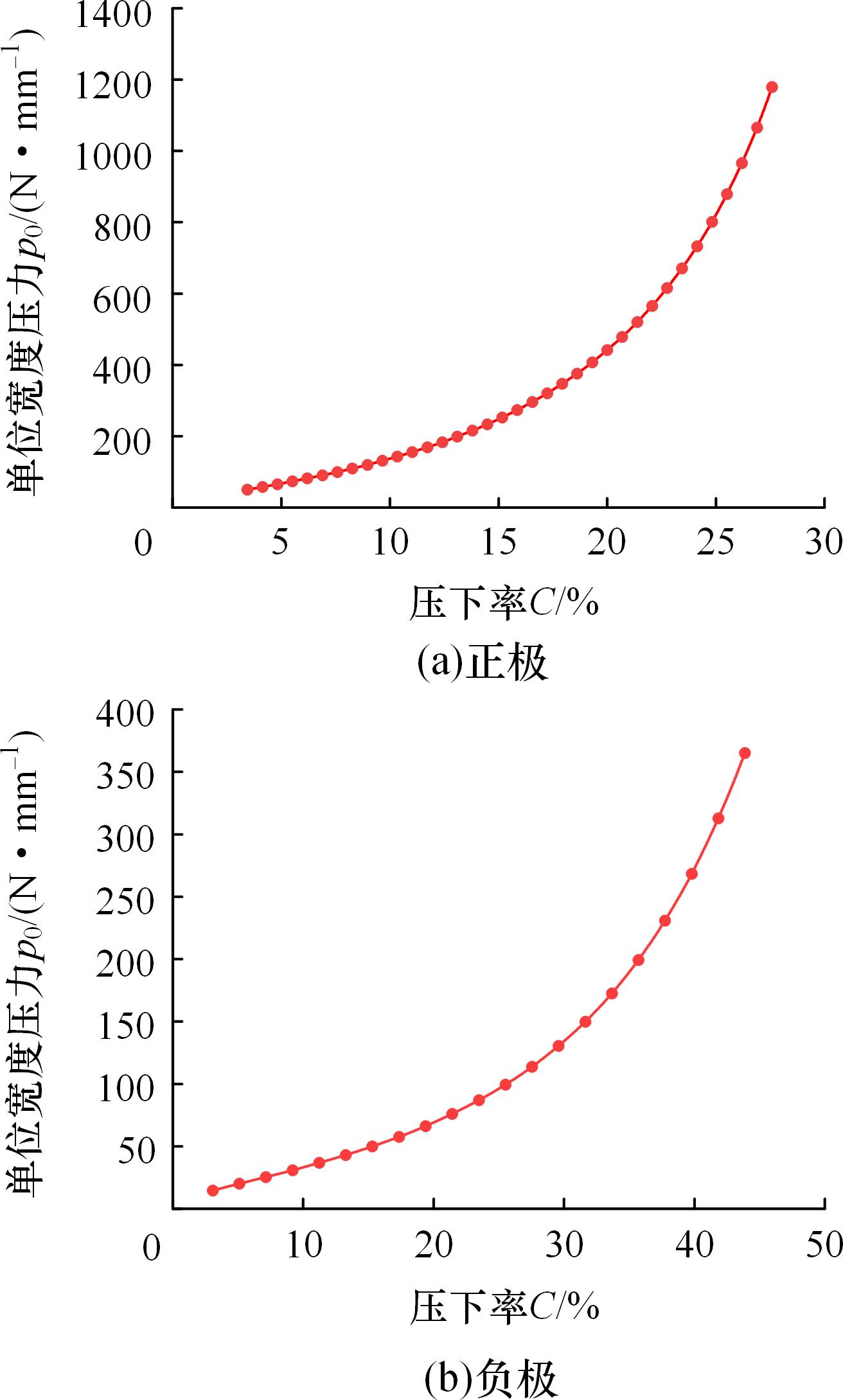

Fig.12 The relationship between compression rate and unit width pressure

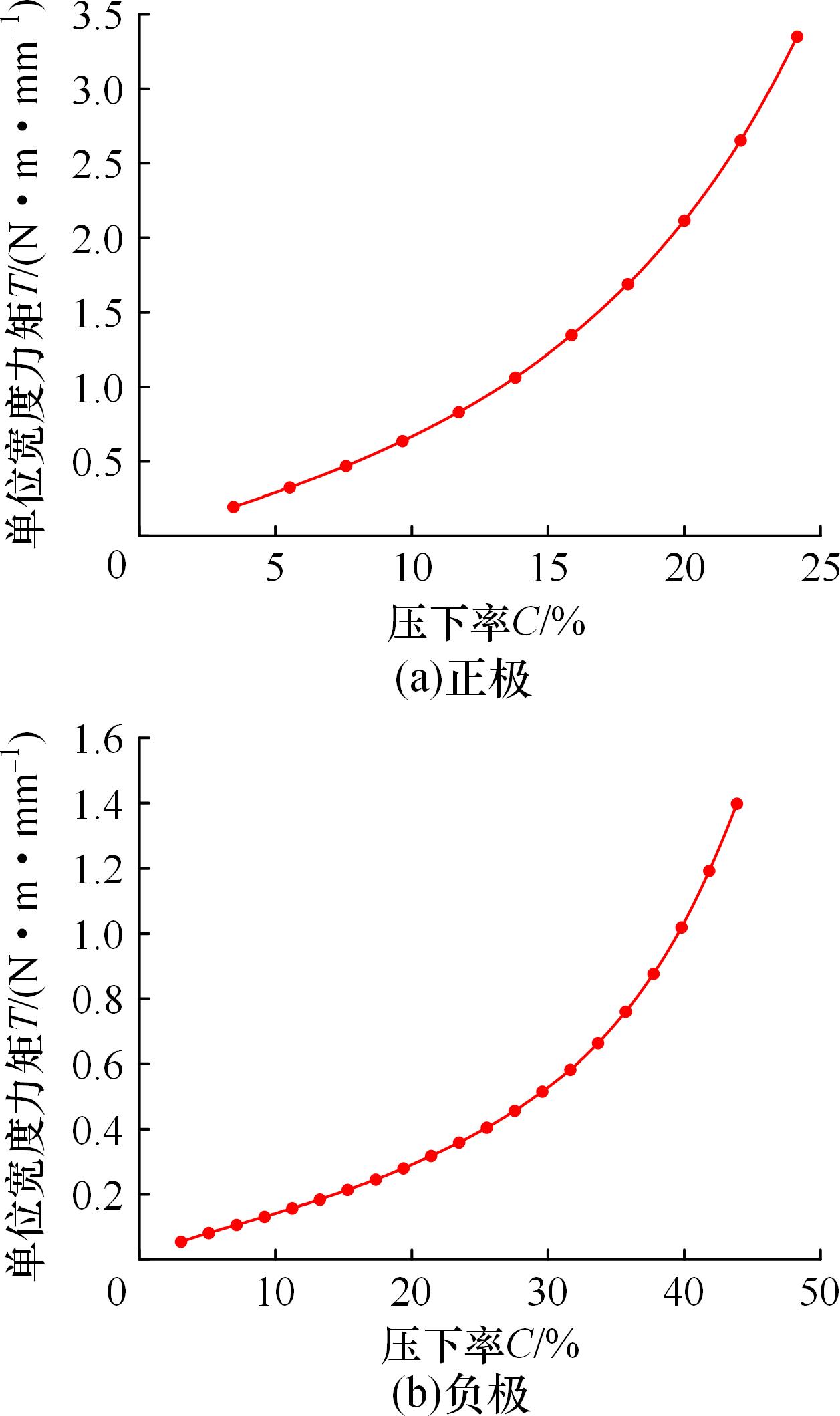

Fig.13 The relationship between compression rate and unit width torque

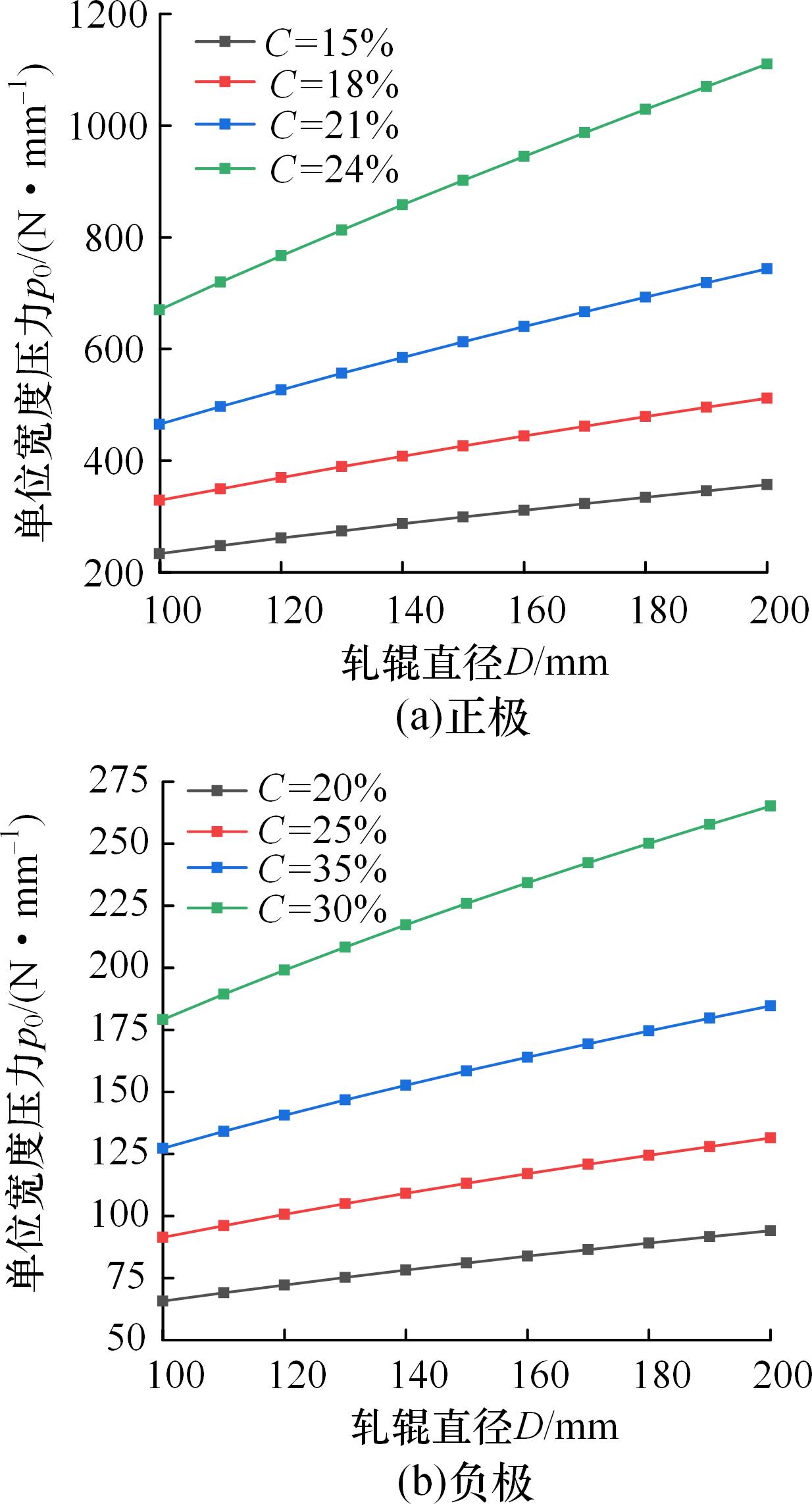

Fig.14 The relationship between roll diameter and unit width pressure under different compression rates

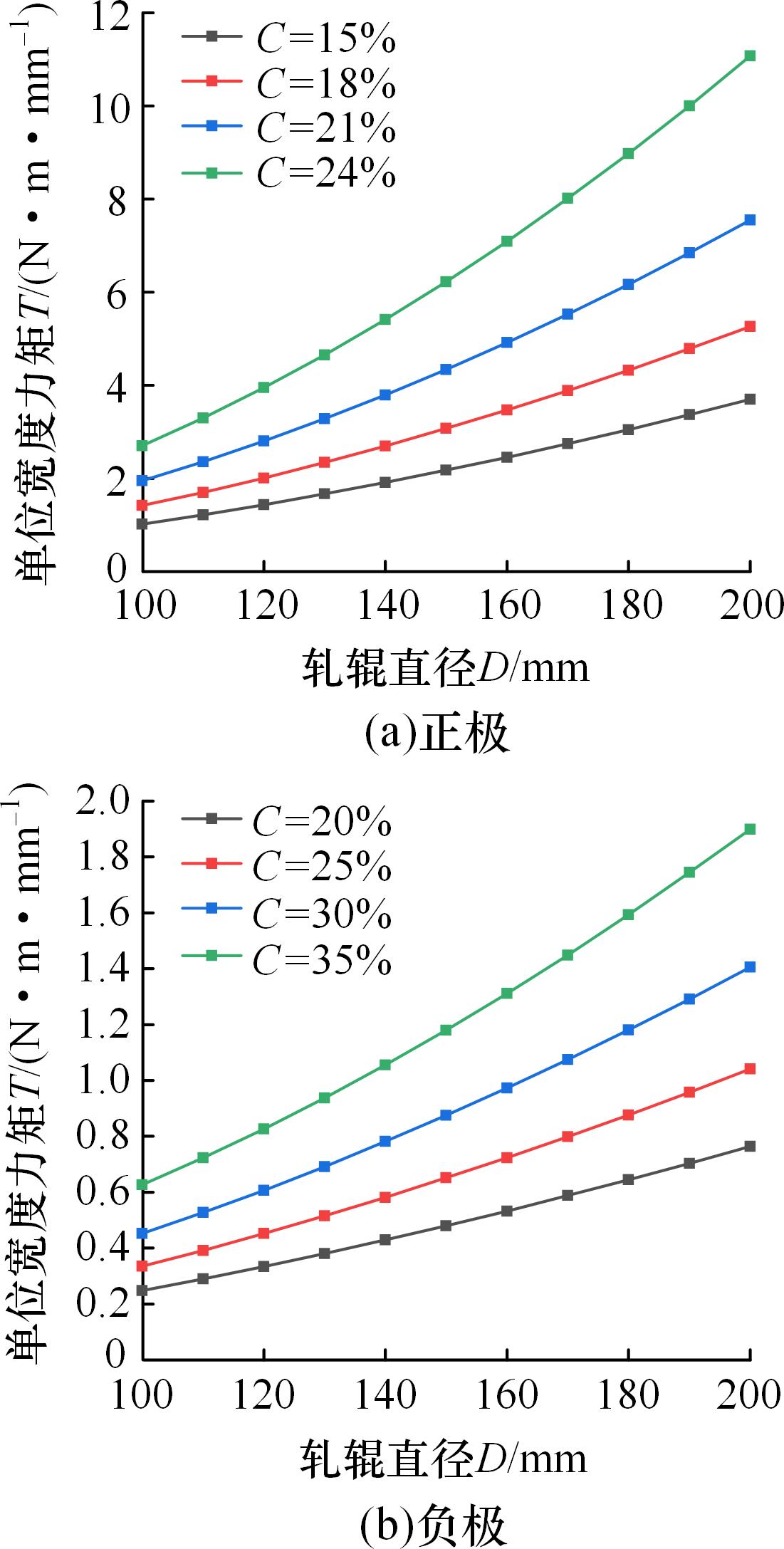

Fig.15 The relationship between roll diameter and unit width torque under different compression rates
