Analysis of Compressive Stiffness Characteristics of Tubular Support Structures with Negative Poisson's Ratio

doi:10.3969/j.issn.1004-132X.2026.03.003

Abstract

Abstract:

Negative Poisson ratio structures were widely used in engineering because of their unique structural properties， high energy absorption and good deformation adaptability. The performance optimization of tubular supports was studied with negative Poisson ratio structure in engineering applications. Combining structural design and mechanics analyses， the compressive performance of tubular supports was systematically investigated. Based on the unique inward shrinkage deformation characteristics of negative Poisson's ratio structures， four new tubular stent structures were designed and prepared. By analyzing the stress distribution and load displacement curve through physical compression test and numerical simulation， a multi-dimensional evaluation system was constructed including peak load， energy absorption and compression stiffness. The results show that the stabilitys of FB-H structure is the best under continuous radial pressure， and the compressive strength of FB-X structure and FB-S structure are increased by 42% and 123%， respectively. Different structures show differences under axial loads. The FB-X and FB-S brackets have high rigidity and are suitable for scenarios requiring support stability. The FB-N and FB-H brackets are flexible and suitable for large deformation scenes.

Key words: tubular stent, negative Poisson ratio structure, axial compression, radial compression, compression stiffness

摘要：

负泊松比结构具有独特的结构特性以及高能量吸收、形变适应性好等力学性能，被广泛应用于工程领域。针对负泊松比结构管状支架在工程应用中的性能优化问题展开研究，通过结构设计与力学分析相结合的方法，系统探究了管状支架的抗压性能。基于负泊松比结构特有的向内收缩变形特性，设计制备了4种新型管状支架结构，结合物理压缩试验和数值模拟，通过分析应力分布和载荷位移曲线，构建了峰值载荷、能量吸收量及压缩刚度等多维度评价体系。结果表明，FB-H结构在径向持续受压时稳定性最优，抗压强度与FB-X结构和FB-S结构相比分别提高了42%和123%。轴向载荷下不同结构呈现出差异，FB-X和FB-S结构支架刚性高，可适用于要求支撑稳定场景；FB-N和FB-H结构支架柔性好，可适用于较大变形场景。

关键词: 管状支架, 负泊松比结构, 轴向压缩, 径向压缩, 压缩刚度

CLC Number:

TB34

SU Yilin, JI Xiaogang, XIN Jiaming, NIU Guofa. Analysis of Compressive Stiffness Characteristics of Tubular Support Structures with Negative Poisson's Ratio[J]. China Mechanical Engineering, 2026, 37(3): 538-545.

苏义麟, 纪小刚, 辛嘉铭, 牛国法. 负泊松比管状支架结构的压缩刚度特性分析[J]. 中国机械工程, 2026, 37(3): 538-545.

Figures/Tables 17

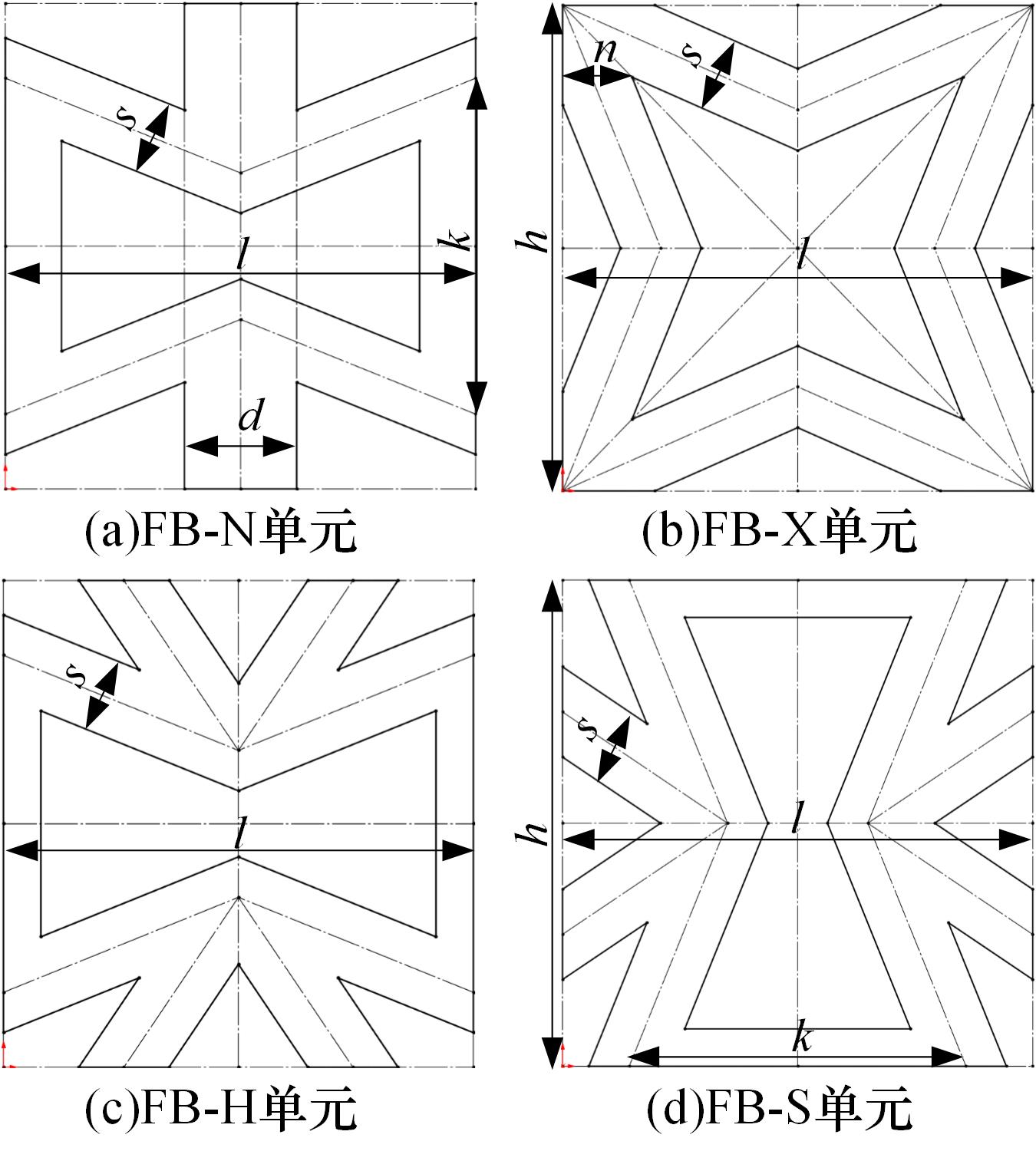

Fig.1 Negative Poisson's ratio cell structure

Tab.1 Unit parameter size

	d	s	n	k	l	h
尺寸值/mm	1.5	1	1.23	4.5	2π	6.5

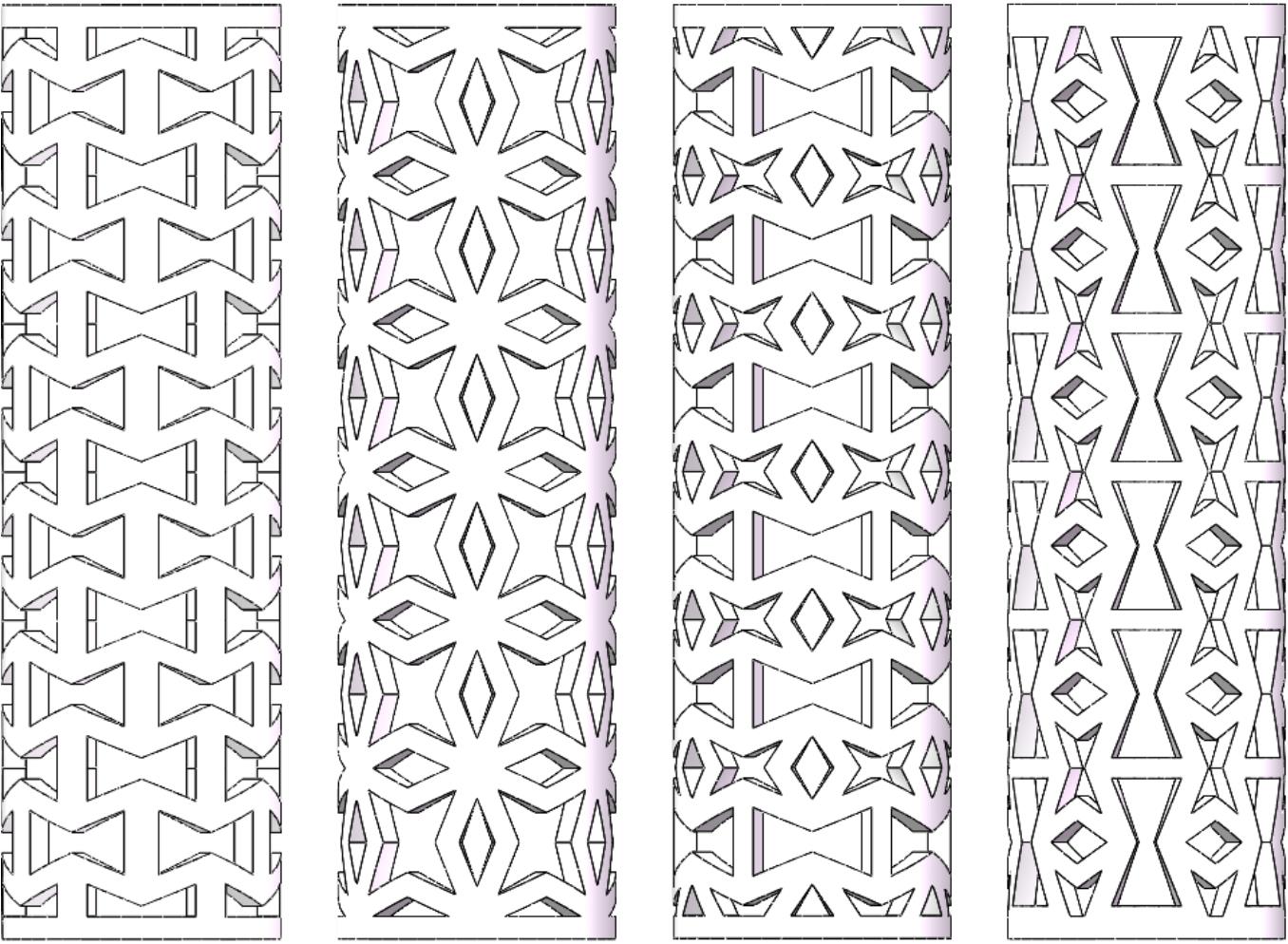

Fig.2 Negative Poisson ratio tubular scaffold structure

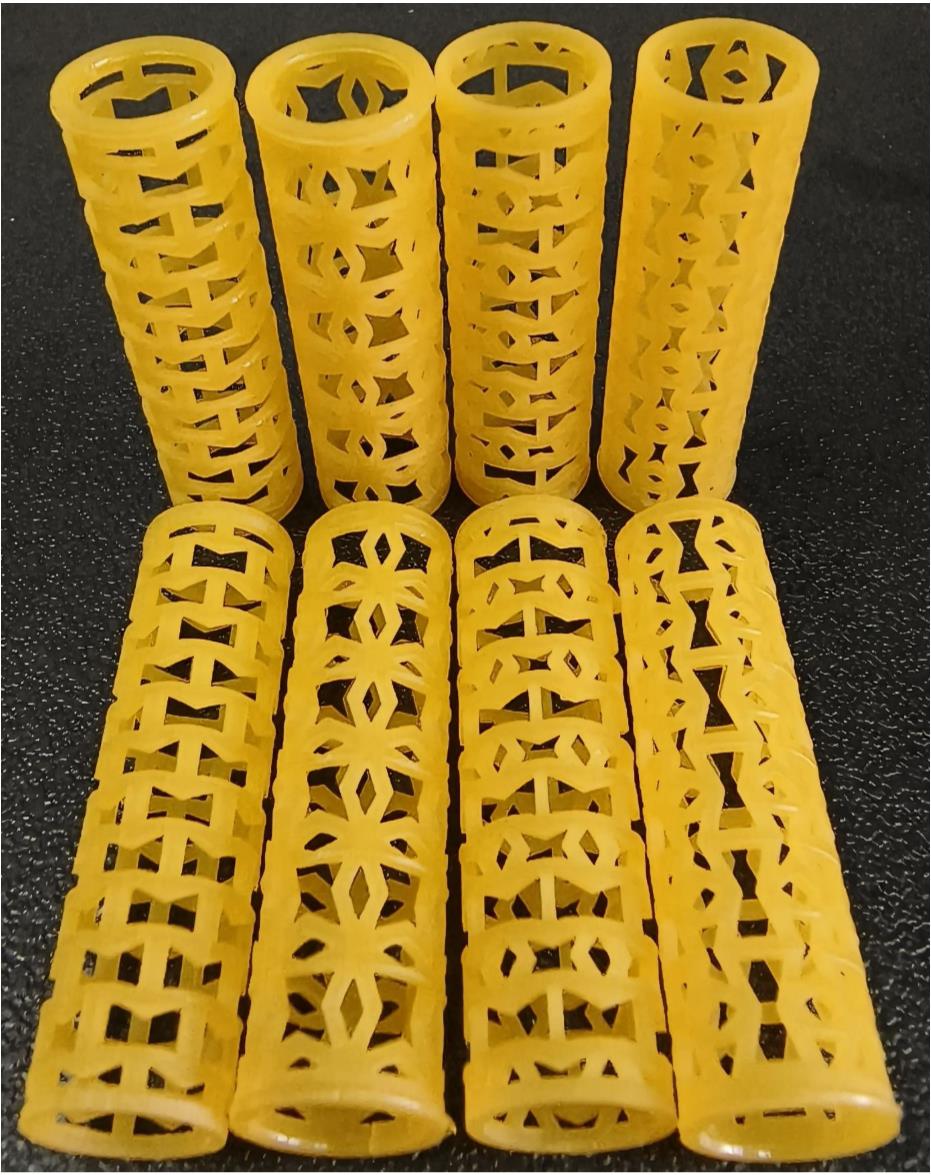

Fig.3 Solid model of tubular scaffold structure

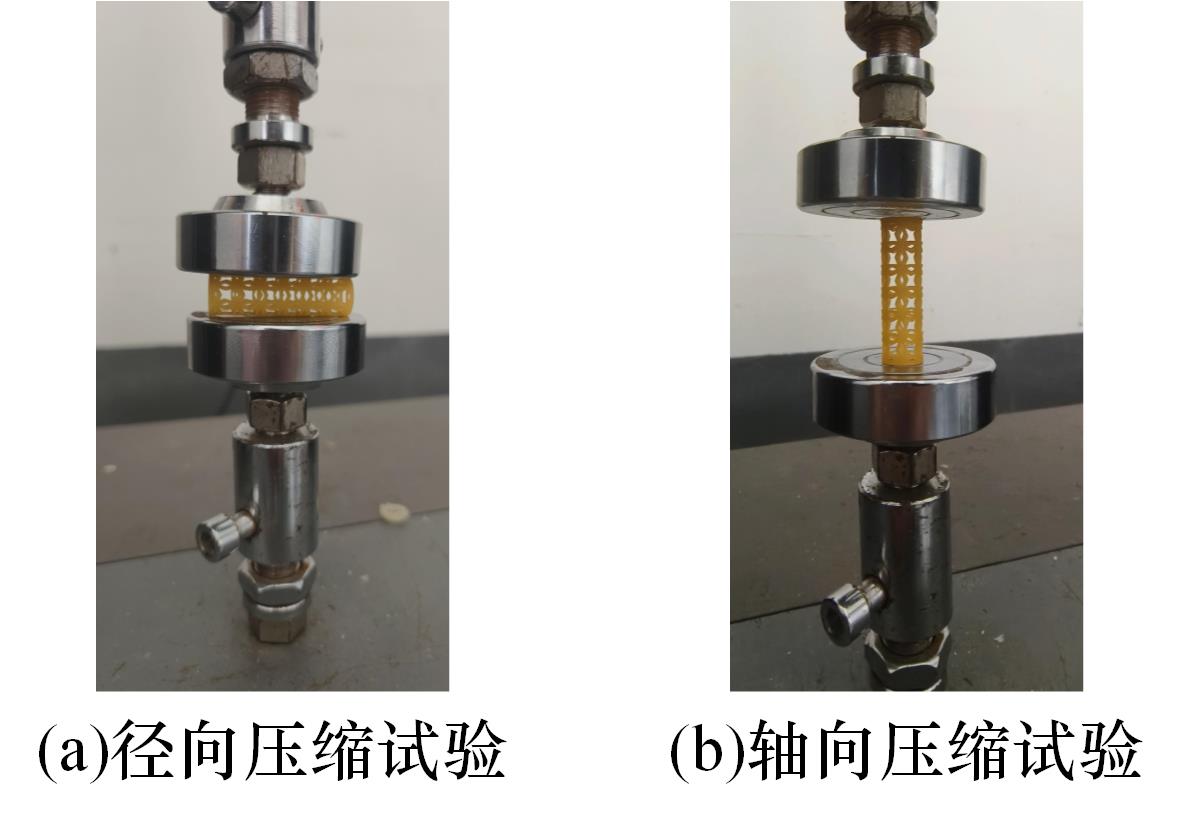

Fig.4 Experimental schematic diagram

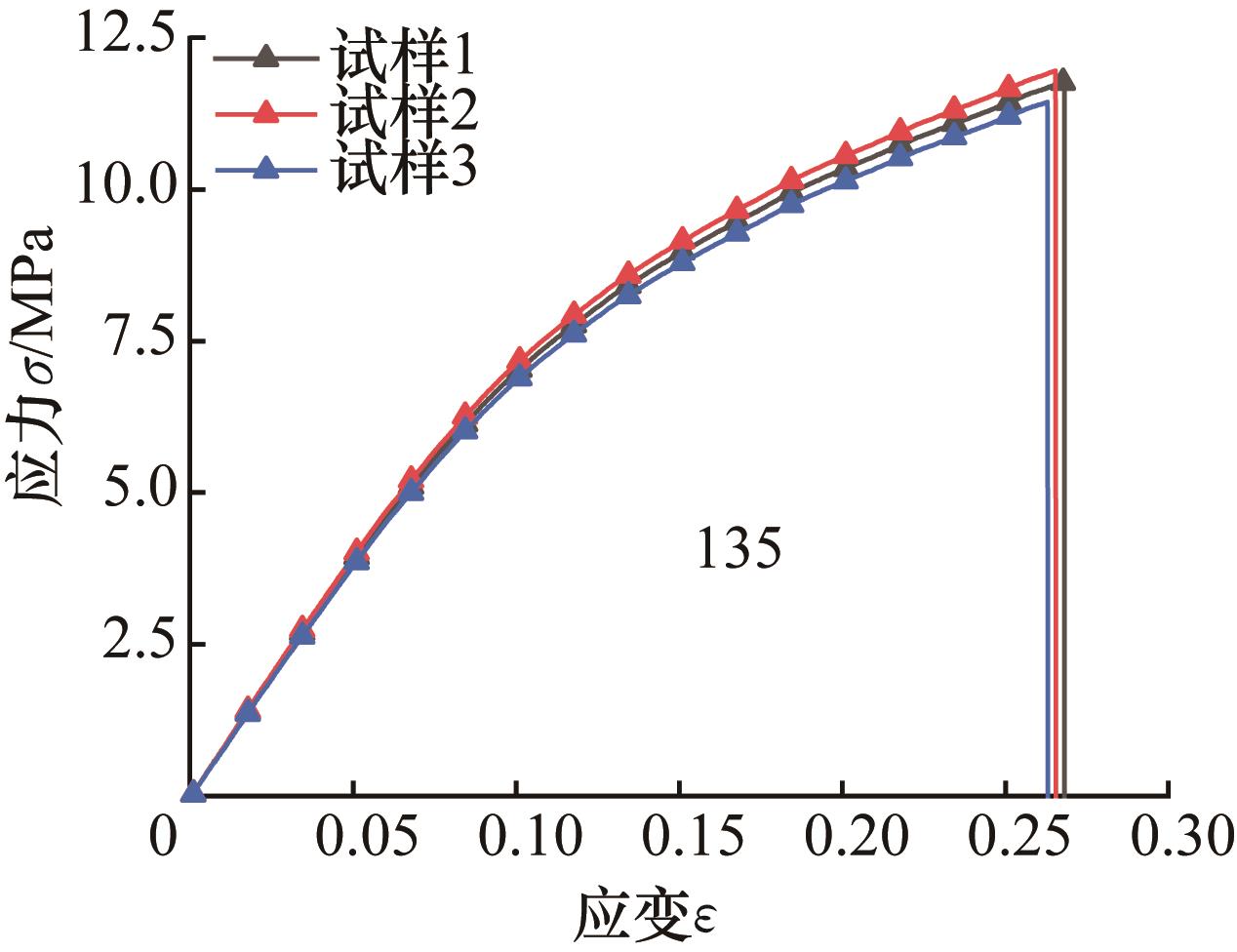

Fig.5 Stress-strain curve of material specimen

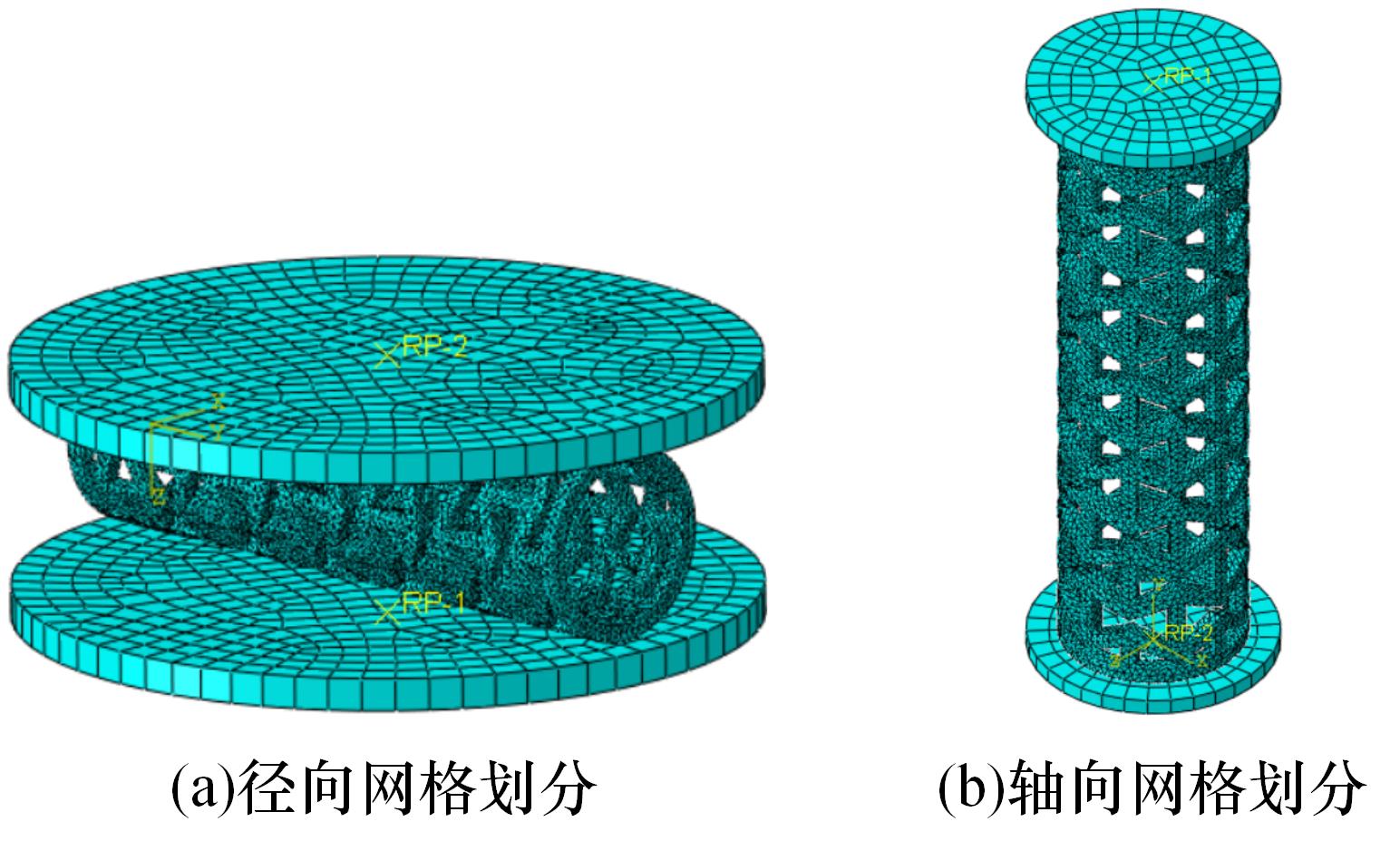

Fig.6 Finite element simulation grid division diagram

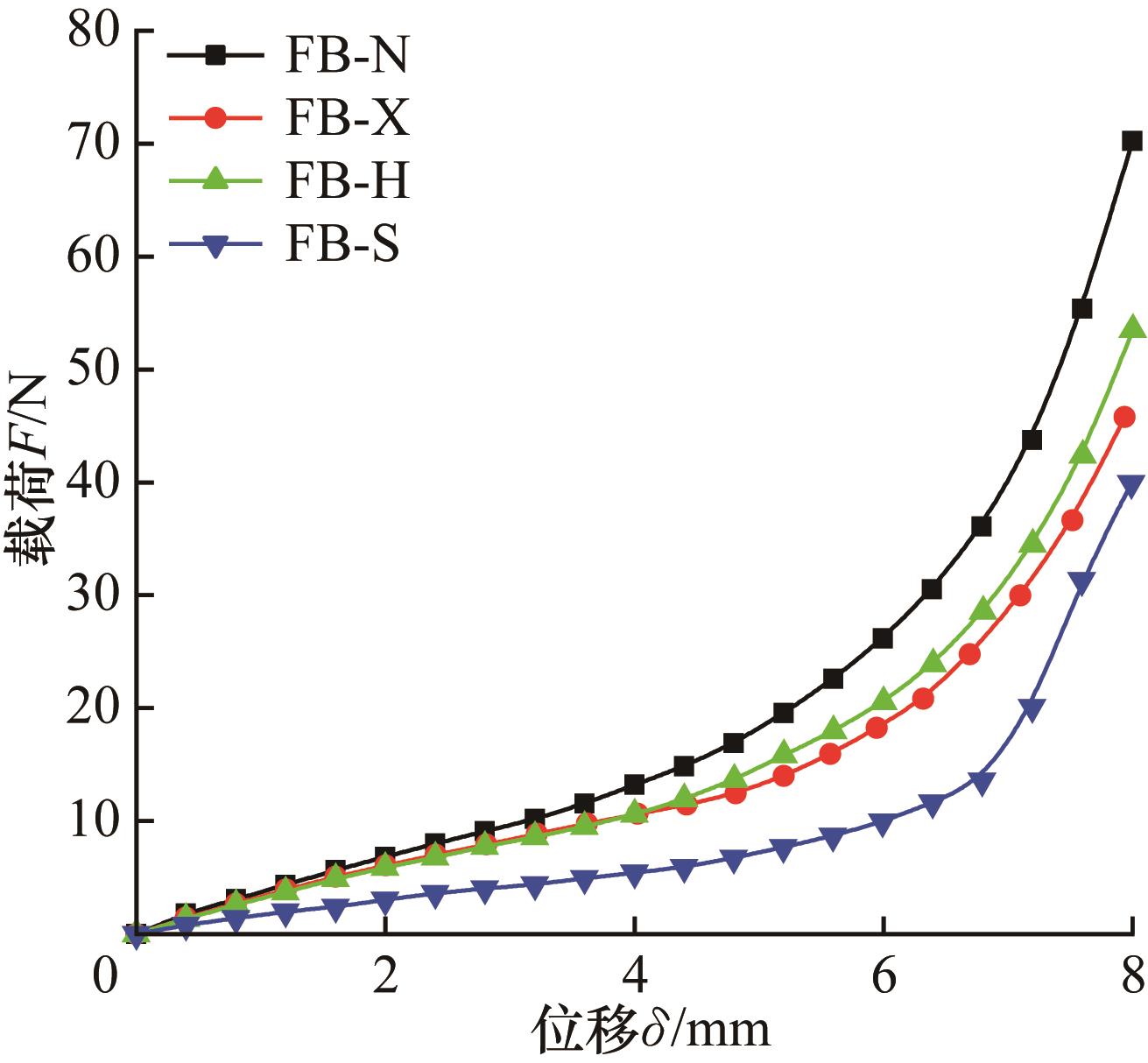

Fig.7 Numerical simulation of load-displacement curve in radial compression

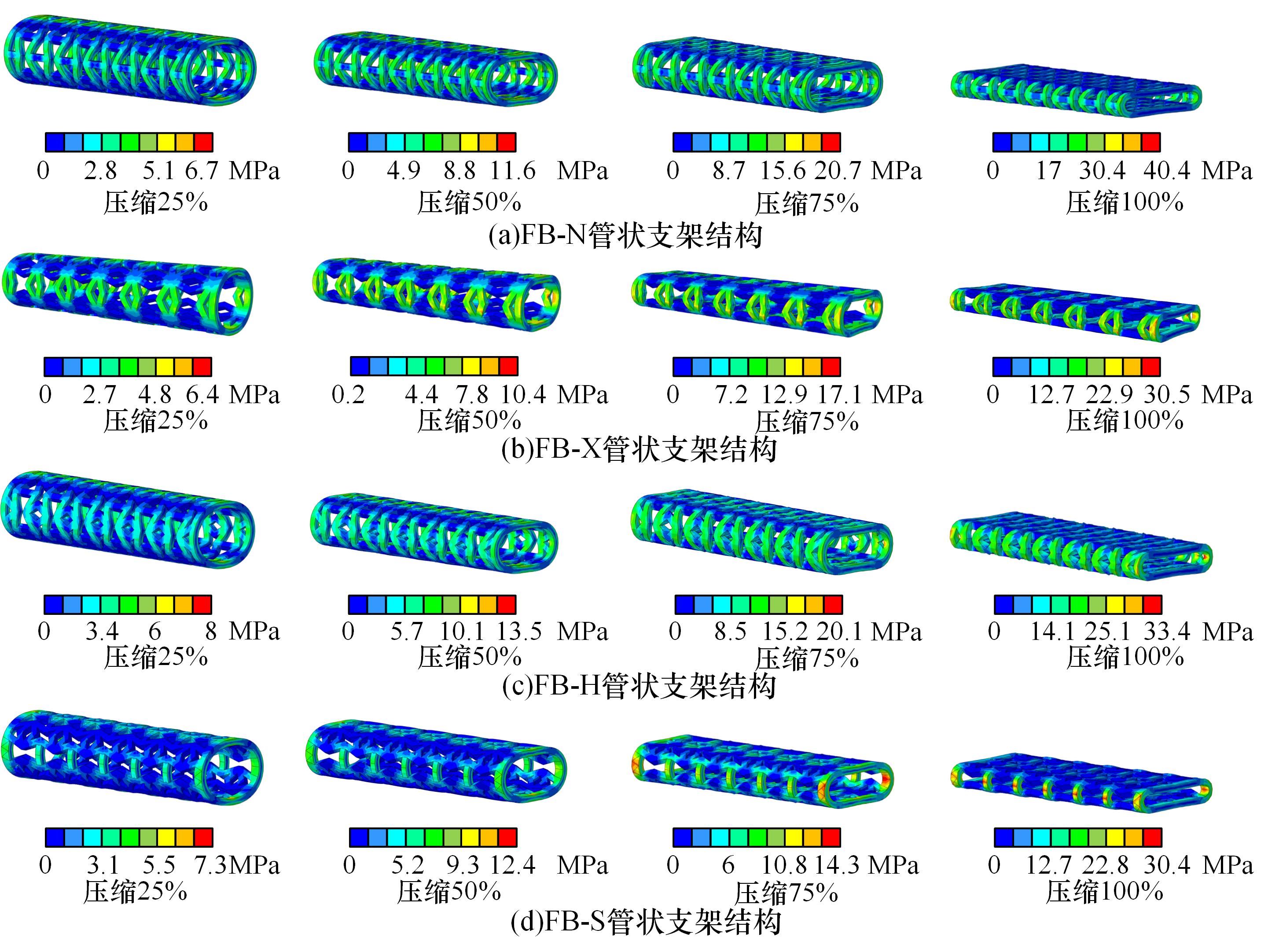

Fig.8 Stress distribution of 4 structures under different radial compression displacements

Fig.9 Load-displacement curve for numerical simulation of axial compression

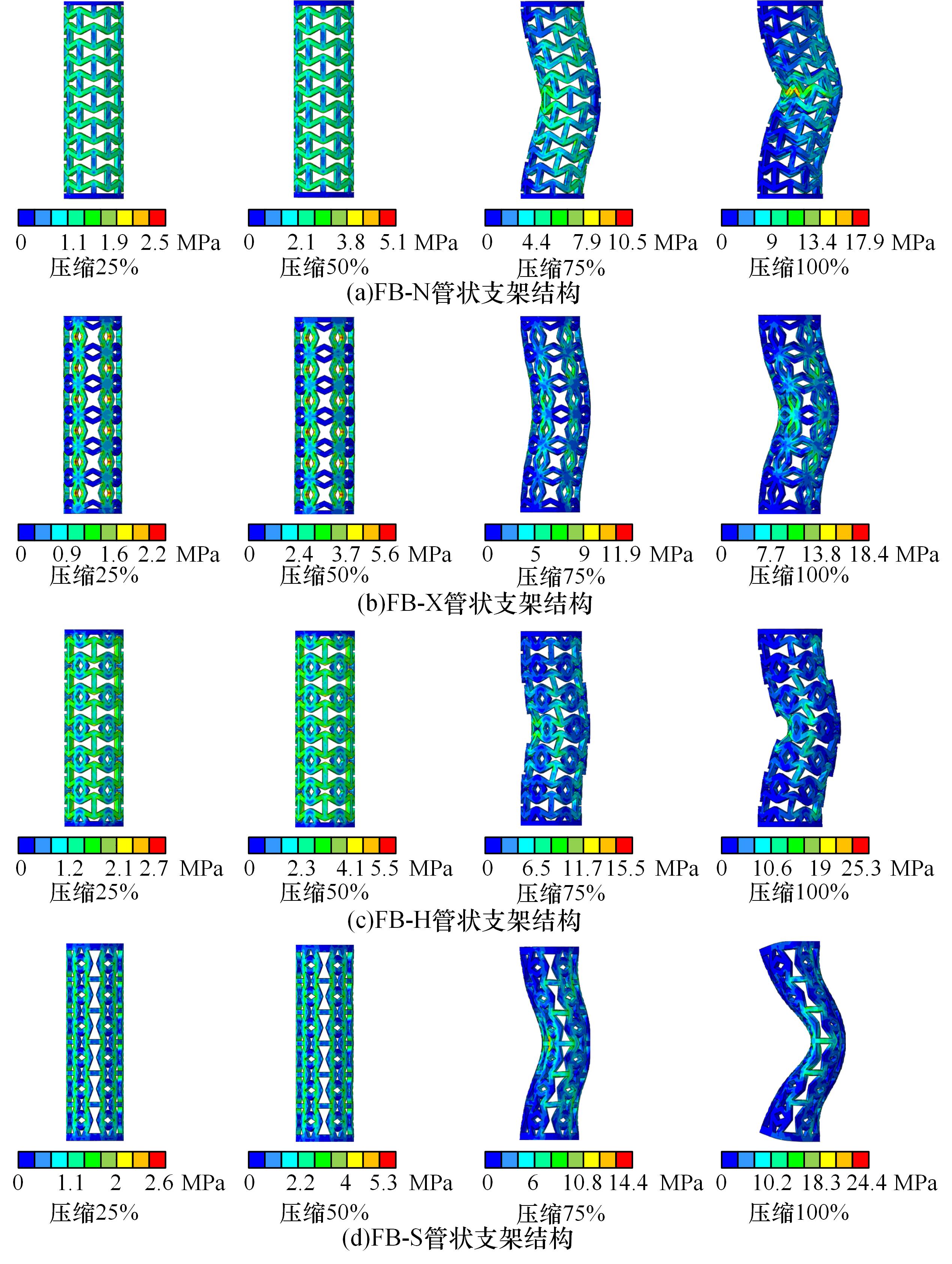

Fig.10 Stress distribution of 4 structures under different axial compression displacements

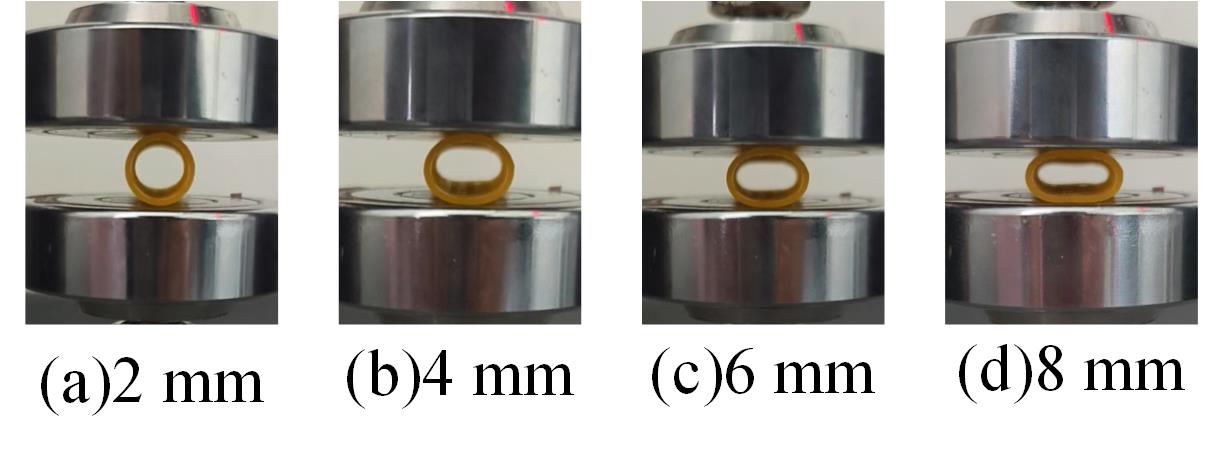

Fig.11 Radial compression test process

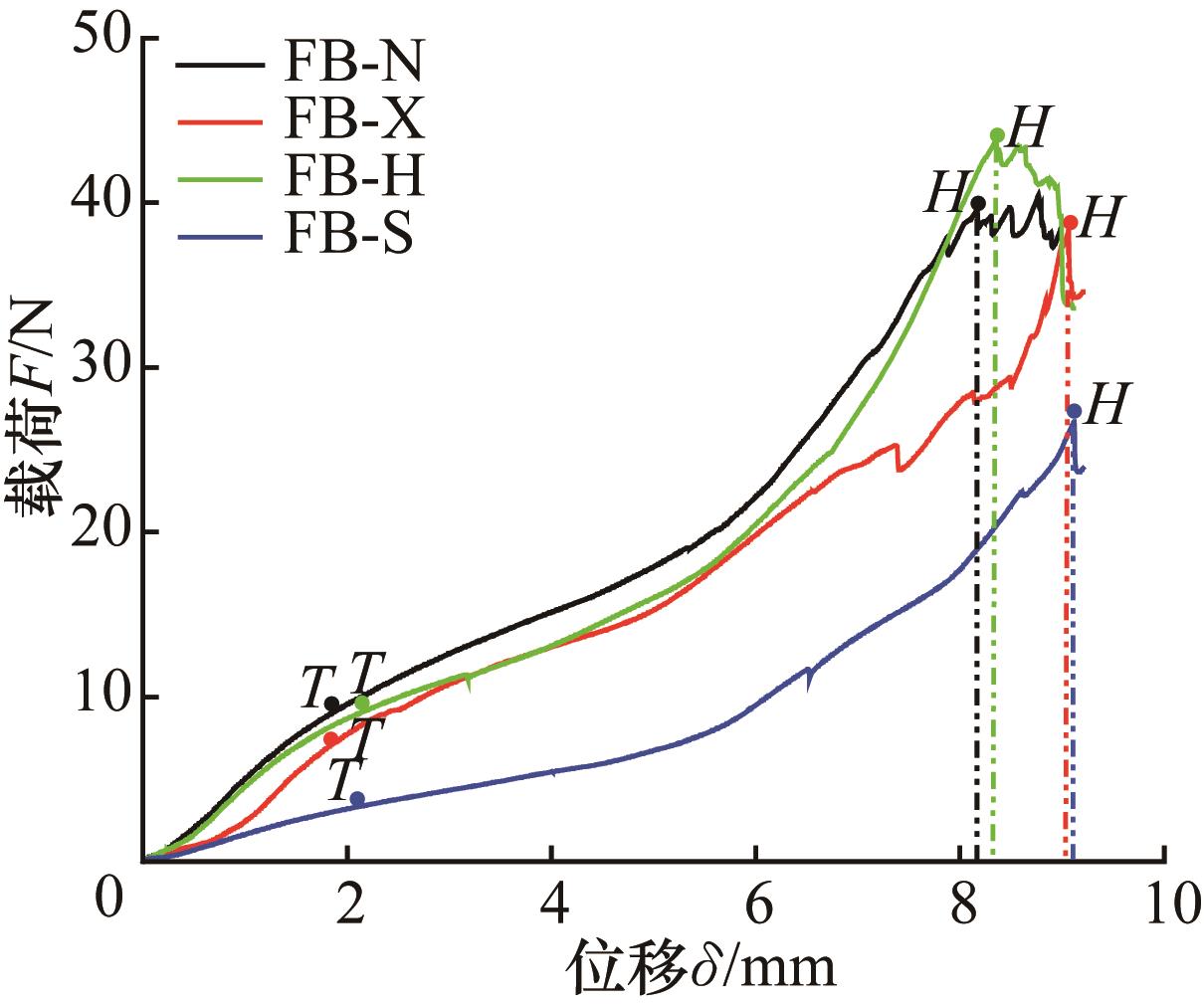

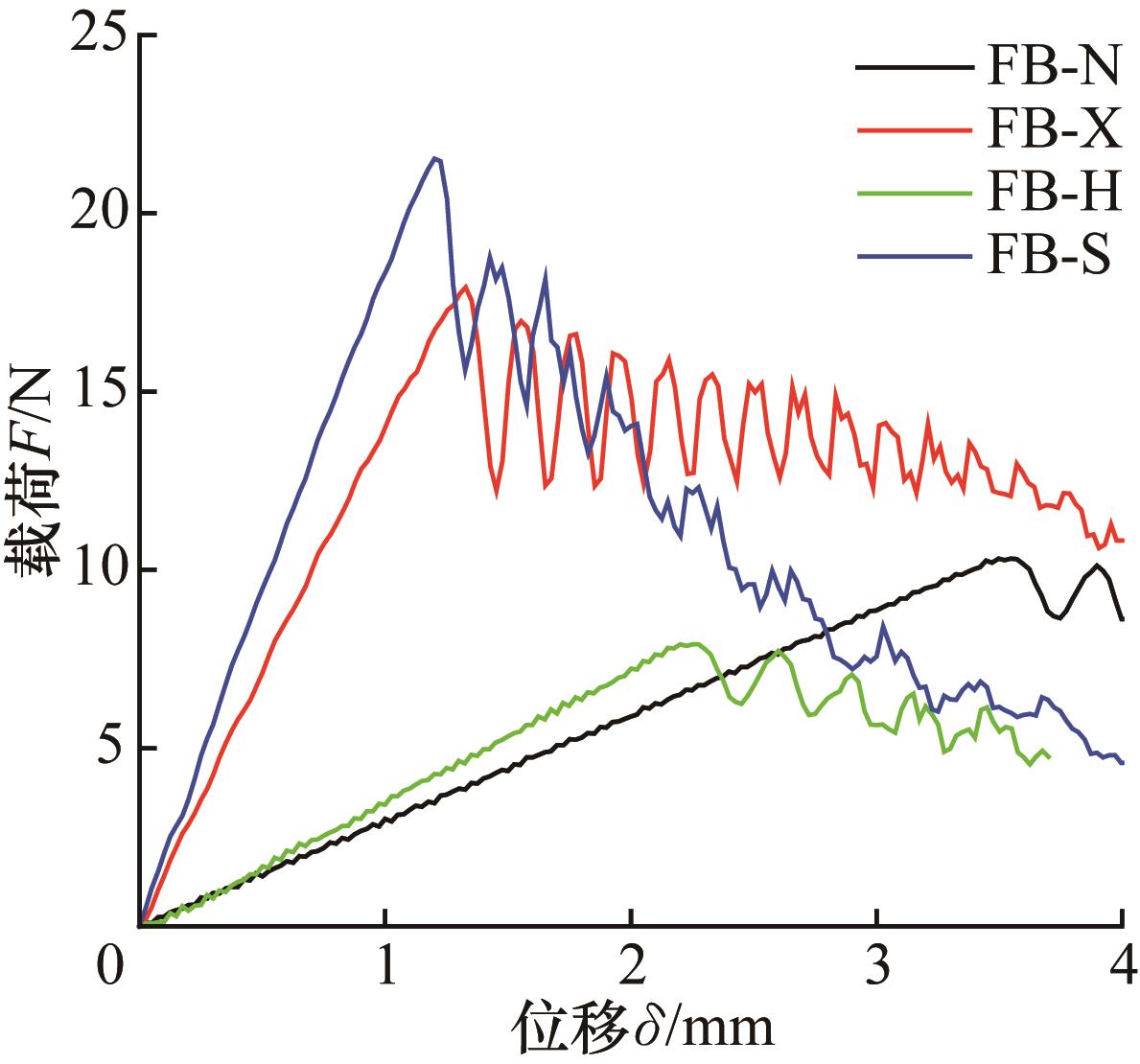

Fig.12 Radial compression load-displacement curve

Tab.2 Parameters of 4 kinds of tubular support structures under radial load

	FB-N	FB-X	FB-H	FB-S
峰值载荷F_max/N	40.5	38.3	43.8	26.7
平均压缩力F_a/N	15.8	15.4	16.1	8.5
压缩力效率 $λ$	39%	40.2%	36.8%	31.8%
能量吸收量U/J	0.138	0.139	0.134	0.077
压缩刚度K/（N·mm^-1）	5.0	3.4	4.6	1.7

Tab.2 Parameters of 4 kinds of tubular support structures under radial load

	FB-N	FB-X	FB-H	FB-S
峰值载荷F_max/N	40.5	38.3	43.8	26.7
平均压缩力F_a/N	15.8	15.4	16.1	8.5
压缩力效率 $λ$	39%	40.2%	36.8%	31.8%
能量吸收量U/J	0.138	0.139	0.134	0.077
压缩刚度K/（N·mm^-1）	5.0	3.4	4.6	1.7

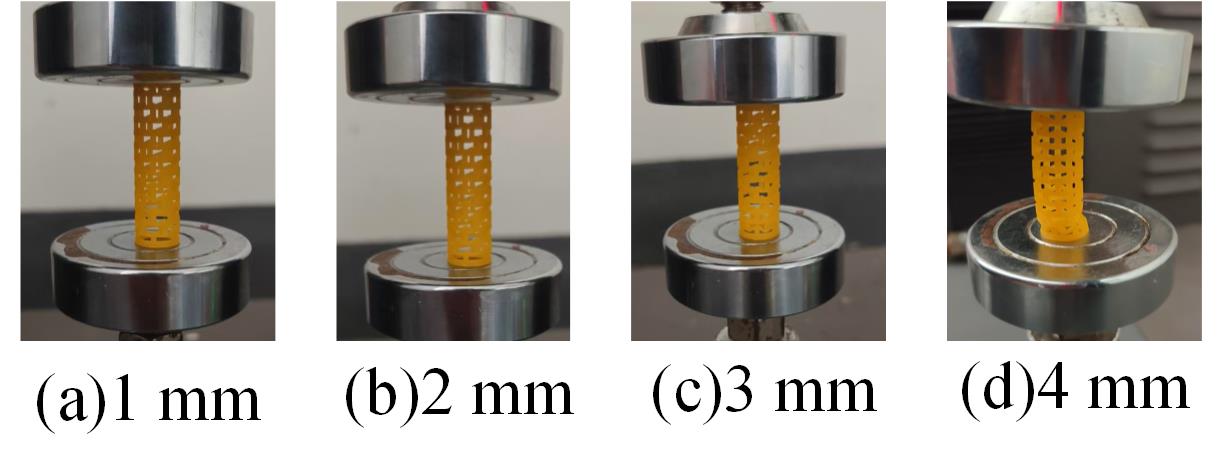

Fig.13 Axial compression test process

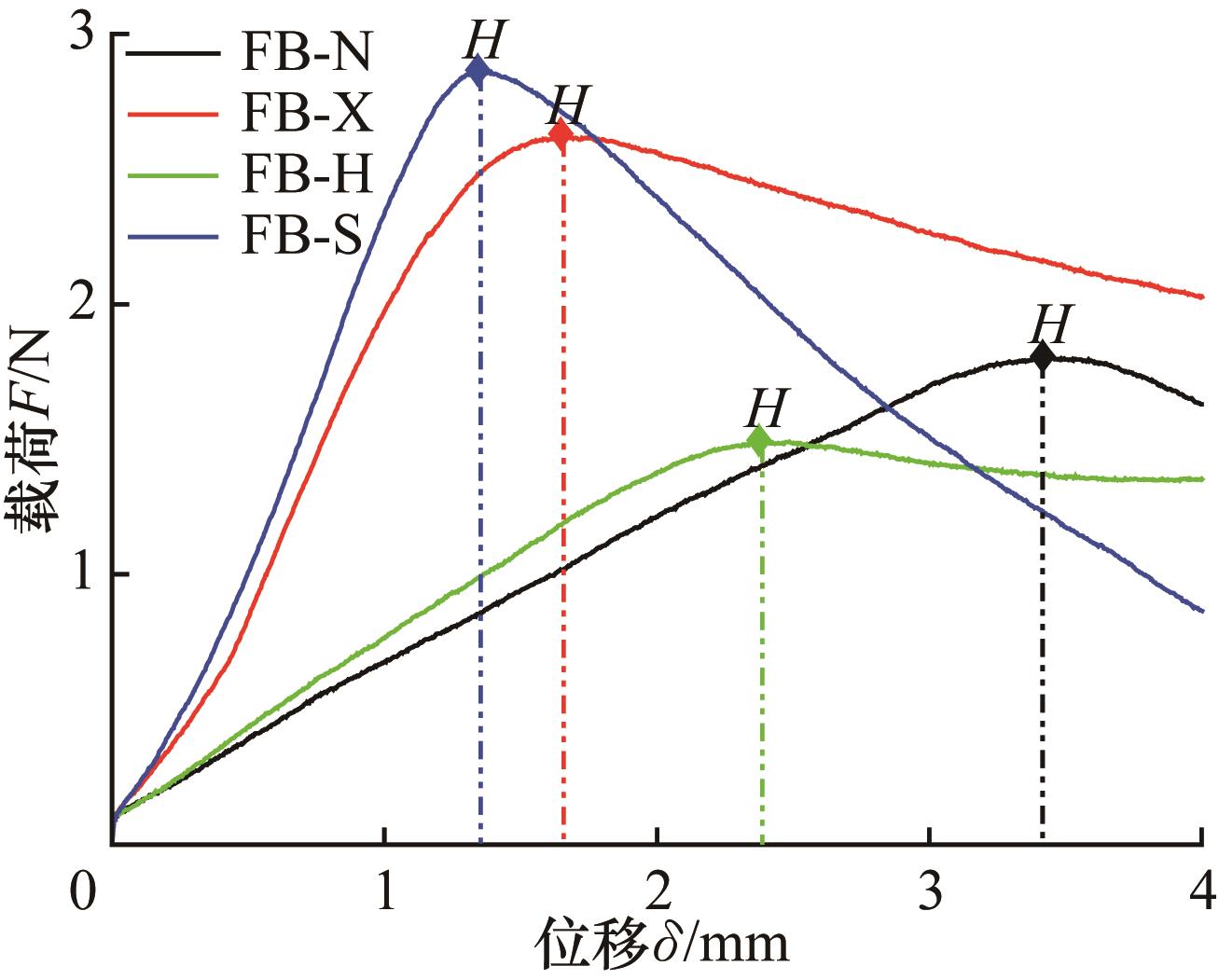

Fig.14 Axial compression load-displacement curve

Tab. 3 Parameters of 4 kinds of tubular support structures under axial load

	FB-N	FB-X	FB-H	FB-S
峰值载荷F_max/N	1.79	2.62	1.49	2.86
平均压缩力F_a/N	1.07	1.05	0.86	1.49
压缩力效率 $λ$	59.8%	40.1%	57.7%	52.1%
能量吸收量U/mJ	3.82	2.77	2.03	2.01
压缩刚度K/（N·mm^-1）	0.51	1.49	0.63	2.12

Tab. 3 Parameters of 4 kinds of tubular support structures under axial load

	FB-N	FB-X	FB-H	FB-S
峰值载荷F_max/N	1.79	2.62	1.49	2.86
平均压缩力F_a/N	1.07	1.05	0.86	1.49
压缩力效率 $λ$	59.8%	40.1%	57.7%	52.1%
能量吸收量U/mJ	3.82	2.77	2.03	2.01
压缩刚度K/（N·mm^-1）	0.51	1.49	0.63	2.12
