快速单曝光高动态范围高反光金属表面缺陷辨识算法研究

doi:10.3969/j.issn.1004-132X.2025.09.016

摘要/Abstract

摘要：

基于细节增强手段以及循环一致性生成对抗网络（CycleGAN）提出了一种快速单曝光高动态范围（HDR）的高反光金属表面缺陷辨识算法。将输入的低动态范围图像转换为HSV颜色空间，经导向滤波处理后得到亮度层和细节层；利用CycleGAN网络对这些层的动态范围分别进行扩展，并将扩展动态范围后的亮度层和细节层进行加权融合，经过滤波去噪后得到利于缺陷辨识的HDR图像；通过阈值分割、特征筛选、形态学处理等手段对HDR图像进行缺陷辨识。将该单曝光算法与经典的3种单曝光算法和1种多曝光算法进行实验对比分析，用峰值信噪比、图像熵、处理时间、灰度直方图、辨识结果5项指标综合评价实验结果。结果表明，该算法相较于其他3种单曝光算法能更好地解决过曝光问题，接近多曝光算法水平，且算法处理时间更短，能满足在线检测的需求，同时该算法挖掘图像细节信息的能力优于其他算法，辨识准确度更高。

关键词: 高反光金属, 单曝光高动态范围成像, 细节增强, 循环一致性生成对抗网络

Abstract:

A rapid single-exposure HDR defect recognition algorithm was proposed for highly reflective metal surfaces. This algorithm was based on detail enhancement techniques and CycleGAN. The input low dynamic range （LDR） images were first converted to HSV color space and processed with guided filtering to obtain luminance and detail layers. The CycleGAN network was then used to enhance the dynamic range of these layers separately. The enhanced luminance and detail layers were weighted and fused， followed by filtering and denoising to produce an HDR image suitable for defect recognition. Defects were identified in the HDR image using threshold segmentation， feature selection， and morphological processing. This single-exposure algorithm was experimentally compared with three classic single-exposure algorithms and one multi-exposure algorithm. The evaluation was based on five metrics： peak signal-to-noise ratio（PSNR）， image entropy， processing time， gray histograms， and recognition results. The experimental results indicate that the algorithm herein outperforms three other single-exposure algorithms in effectively addressing overexposure issues， achieving results comparable to multi-exposure algorithms. Additionally， it has a shorter processing time， making it suitable for online detection. Furthermore， this algorithm demonstrates superior capability in extracting image detail information compared to other algorithms， resulting in higher accuracy in recognition.

Key words: highly reflective metal, single-exposure high dynamic range（HDR） imaging, detail enhancement, cycle-consistent generative adversarial network （CycleGAN）

中图分类号:

TP391

贾维昊, 王鹏, 陈凯, 仝飞, 王国彪. 快速单曝光高动态范围高反光金属表面缺陷辨识算法研究[J]. 中国机械工程, 2025, 36(9): 2039-2046.

Weihao JIA, Peng WANG, Kai CHEN, Fei TONG, Guobiao WANG. Research on Rapid Single-exposure HDR Defect Recognition Algorithm for Highly Reflective Metal Surfaces[J]. China Mechanical Engineering, 2025, 36(9): 2039-2046.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.cmemo.org.cn/CN/10.3969/j.issn.1004-132X.2025.09.016

https://www.cmemo.org.cn/CN/Y2025/V36/I9/2039

图/表 10

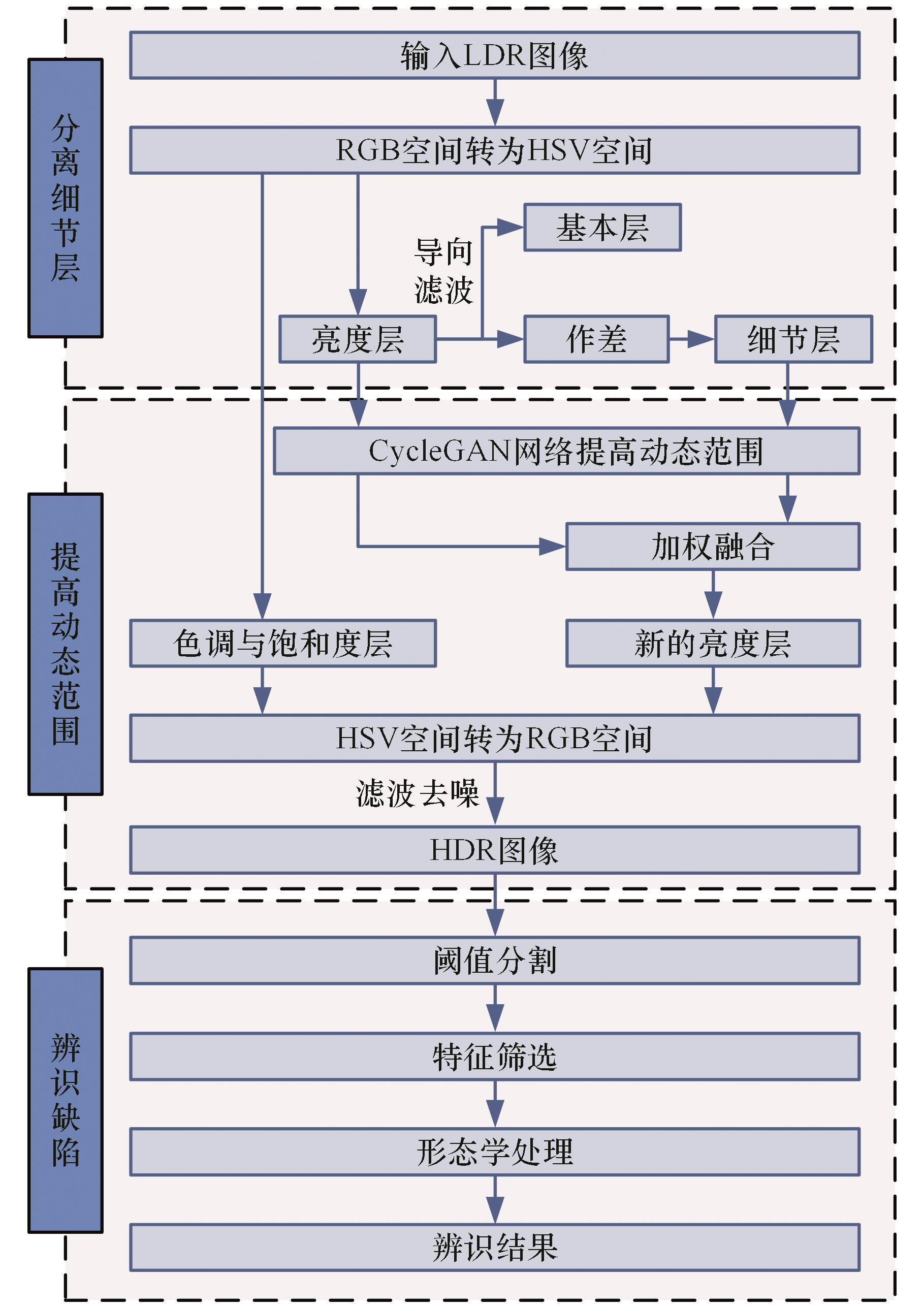

图1 快速单曝光HDR表面缺陷辨识算法技术路线

Fig.1 Technical roadmap for rapid single exposure HDR surface defect recognition algorithm

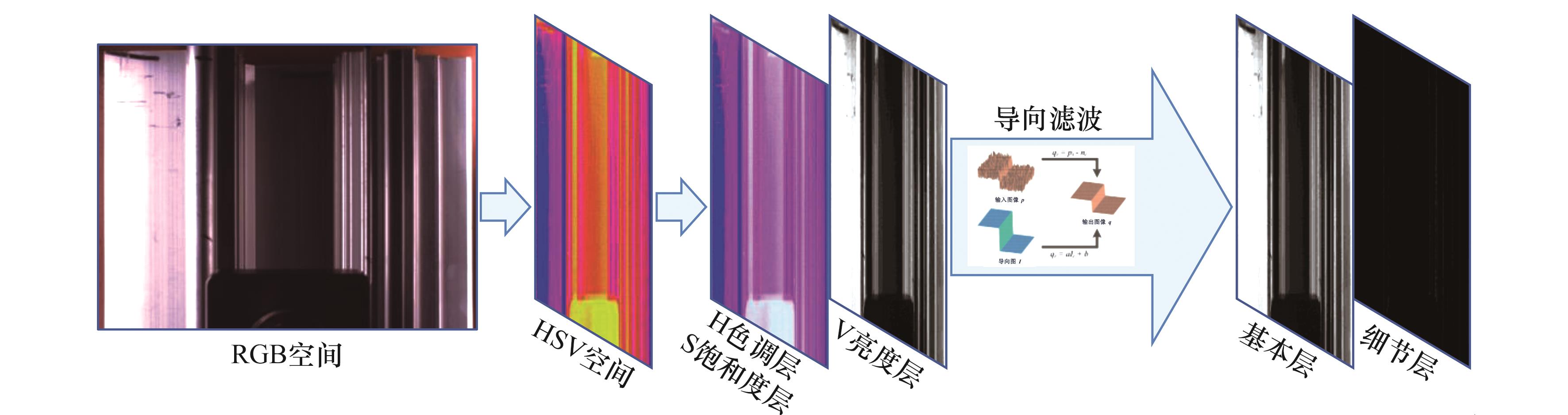

图2 分离细节层

Fig.2 Separate detail layer

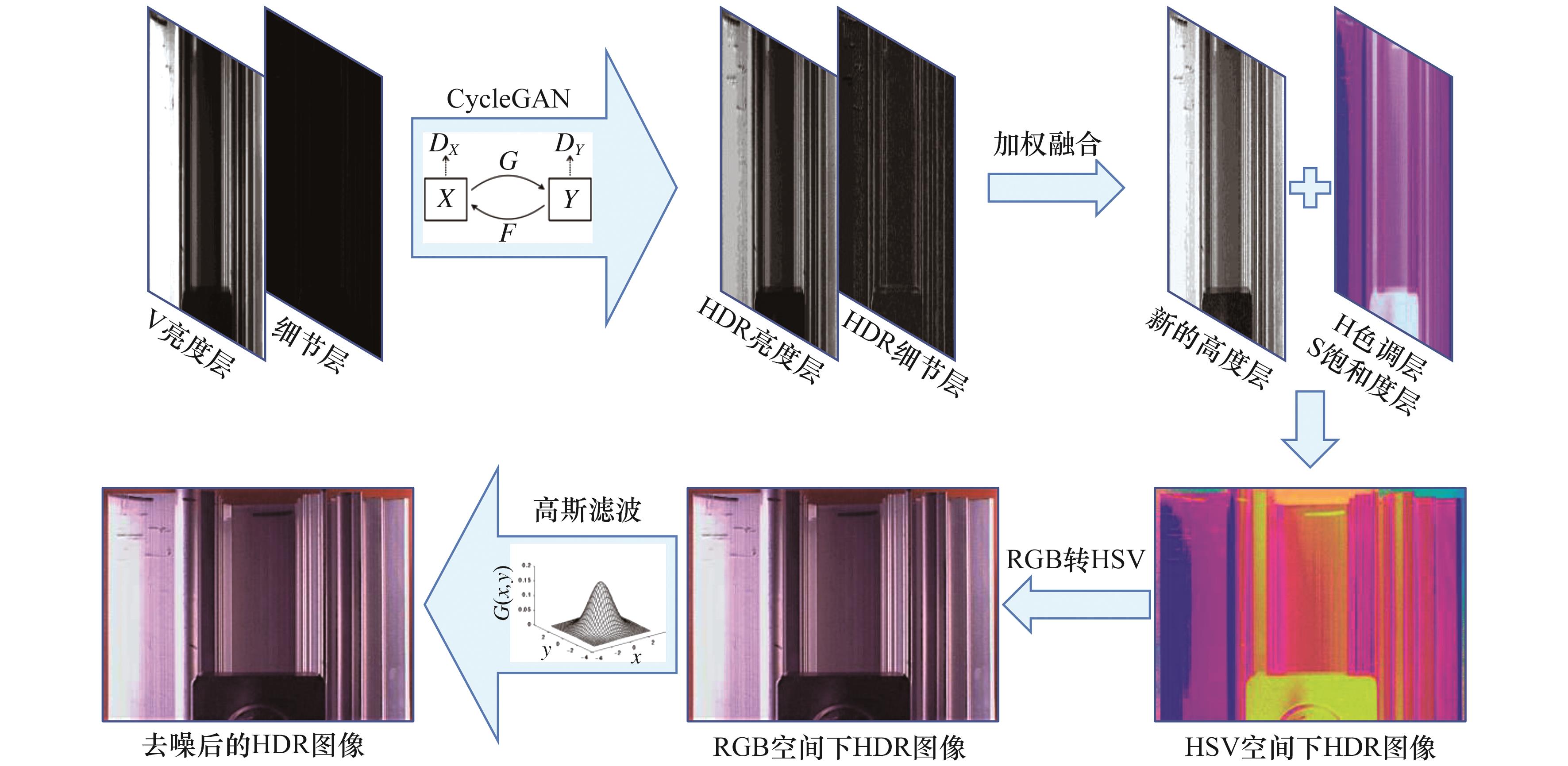

图3 提高动态范围

Fig.3 Enhance dynamic range

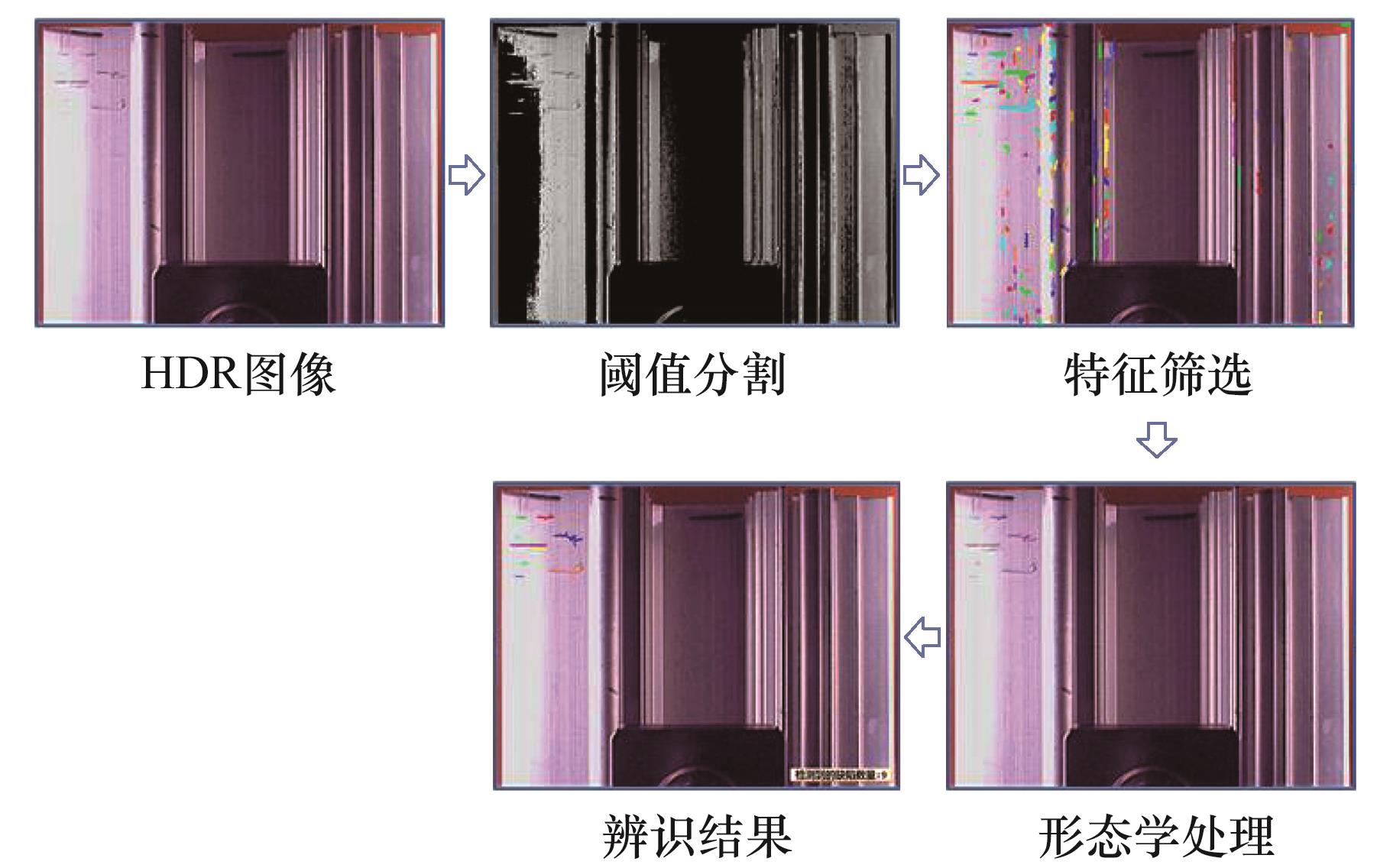

图4 缺陷辨识过程

Fig.4 Defect identify process

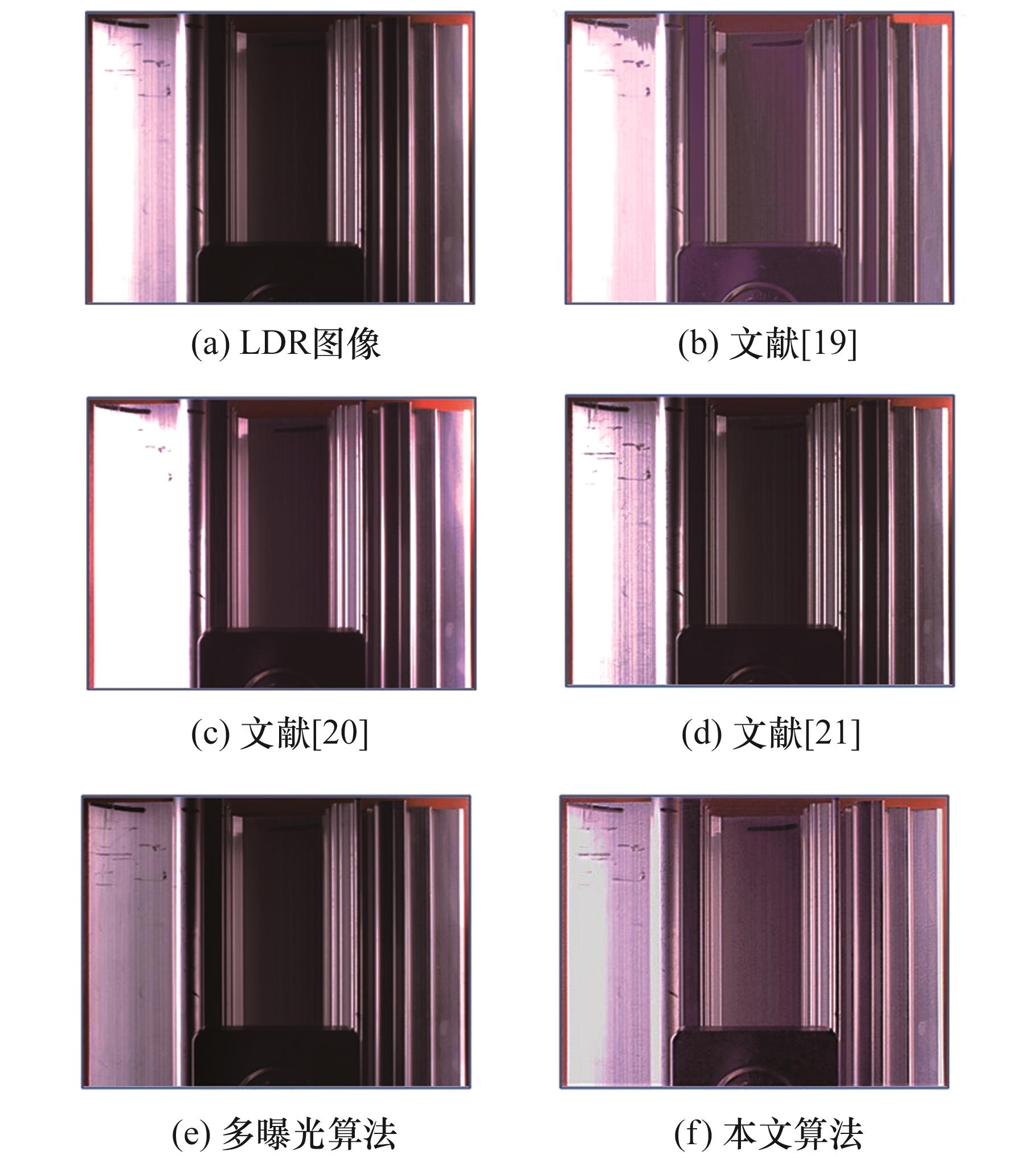

图5 各算法成像效果

Fig.5 Imaging effects of various algorithms

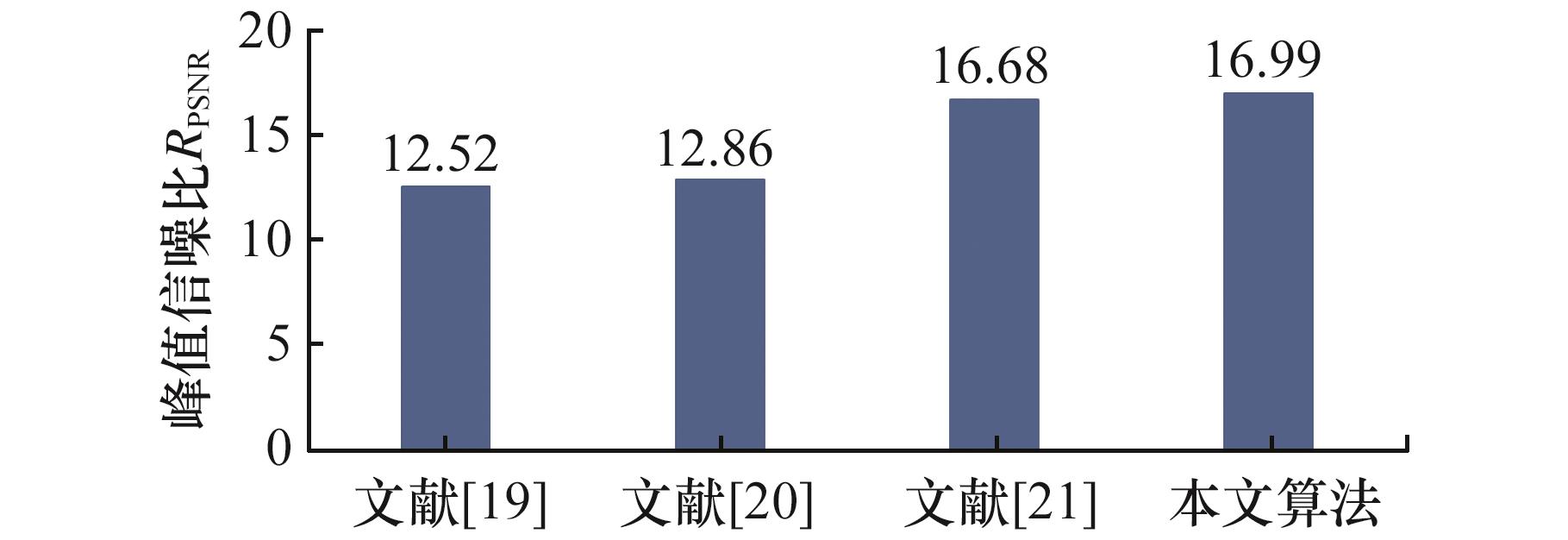

图6 PSNR对比结果

Fig.6 Comparison of PSNR

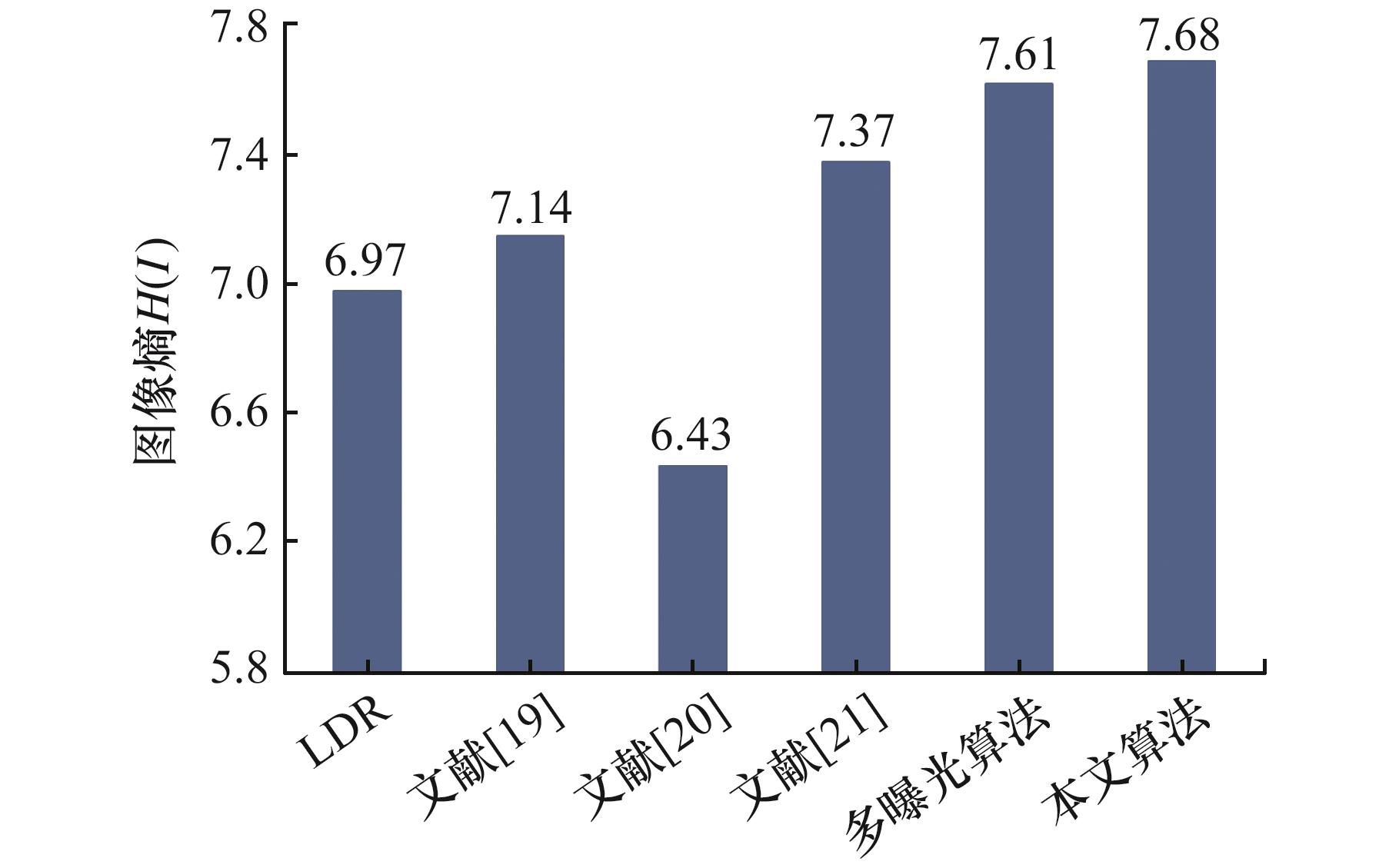

图7 图像熵对比结果

Fig.7 Comparison of image entropy

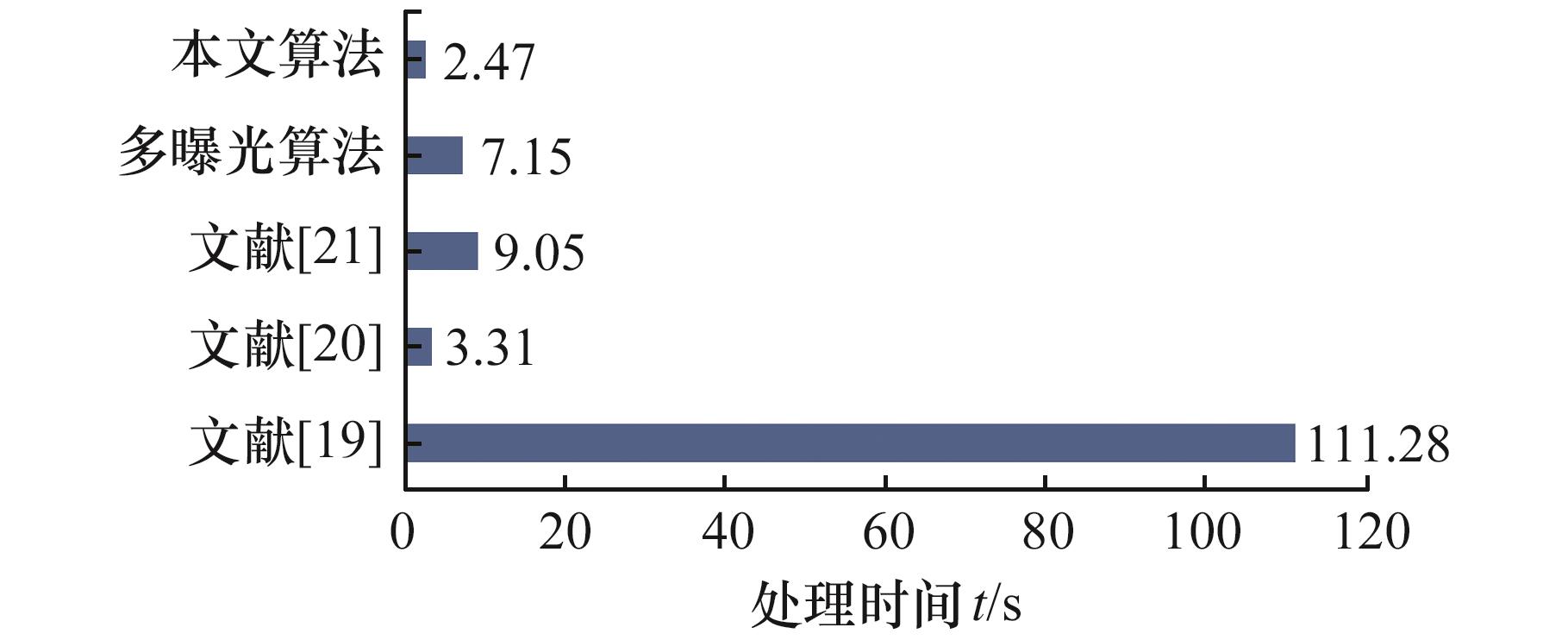

图8 处理时间对比结果

Fig.8 Comparison of processing time

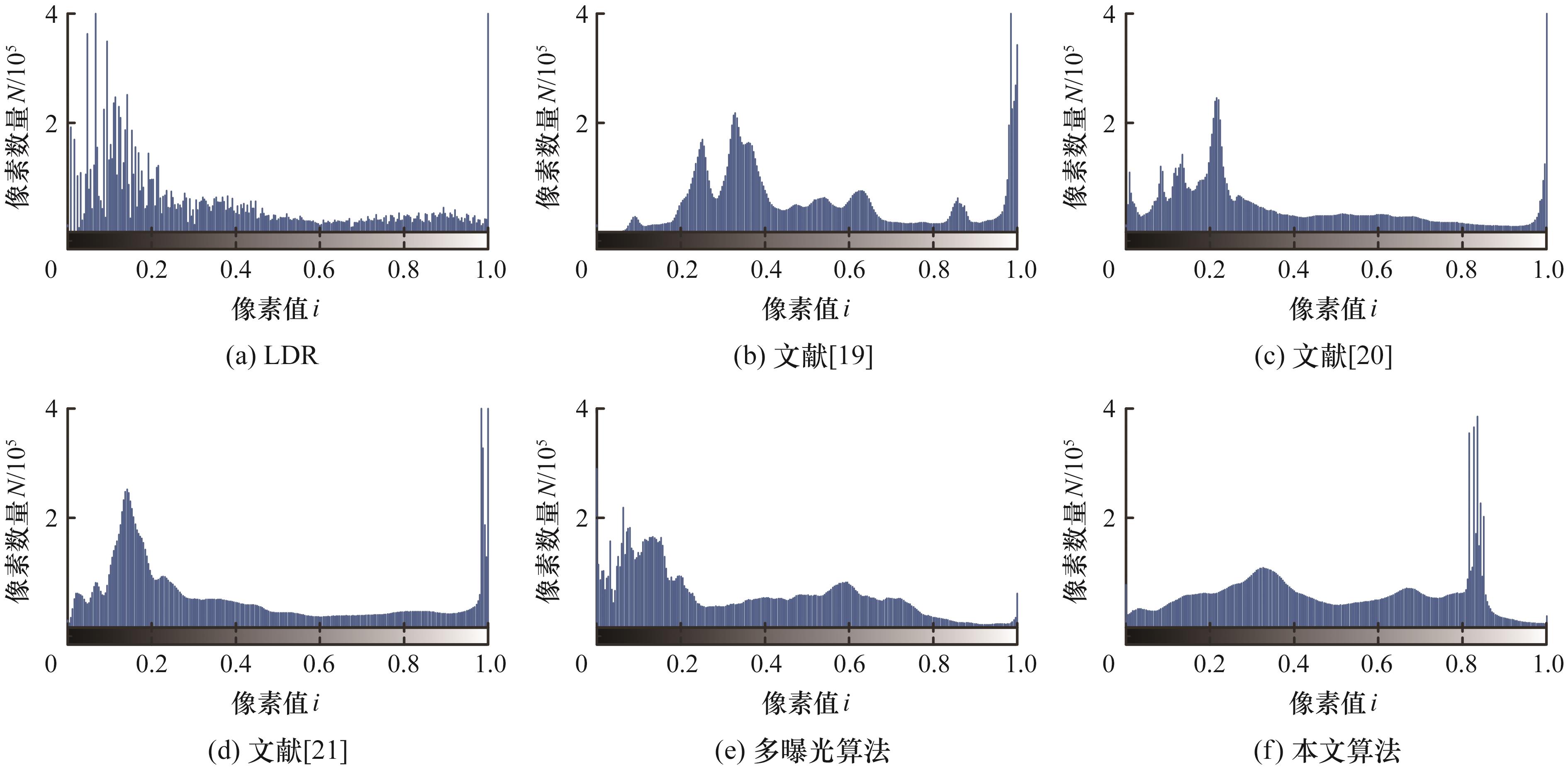

图9 图像的灰度直方图

Fig.9 Gray histogram of image

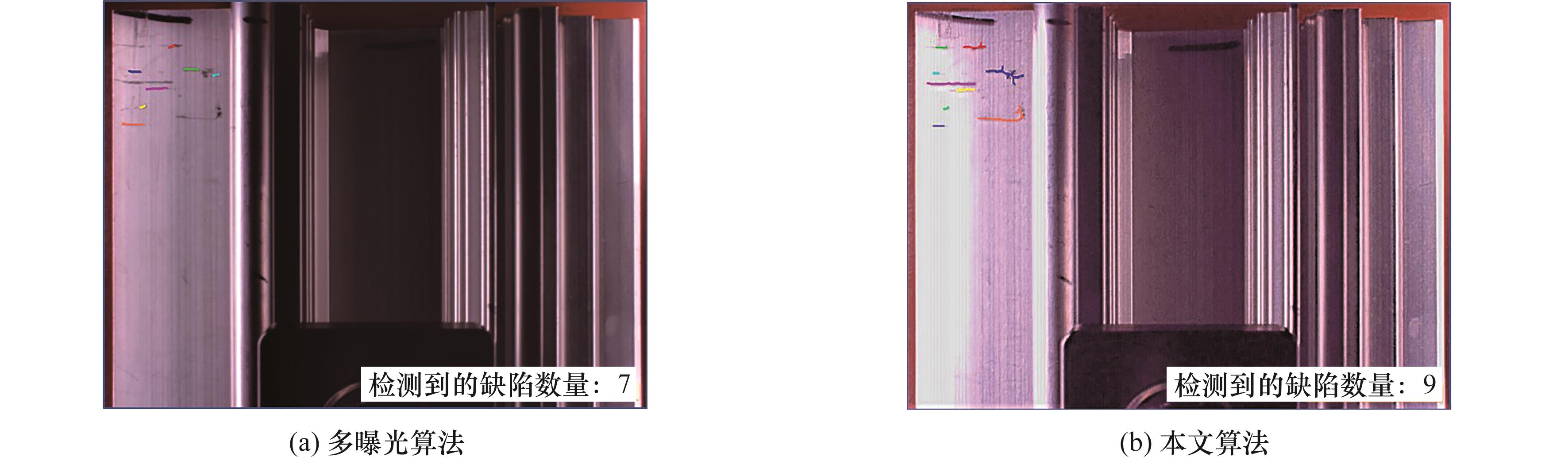

图10 辨识结果

Fig.10 Identification results
