Reconstruction of Excitation Signals for Vibration Environment Simulation Tests of Projectile Road Transportation

doi:10.3969/j.issn.1004-132X.2026.08.025

Abstract

Abstract:

Vibration environment simulation tests for missile road transportation are essential for equipment development and reliability verification. Conventional full-vehicle simulation tests， however， suffer from long development cycles and difficulties in obtaining realistic excitation signals， which often leads to inadequate reproduction of the complex coupled vibration environment. To address this issue， this study proposes a data-driven excitation signal reconstruction method and compares its accuracy with that of a model-driven approach as the benchmark. First， a long short-term memory （LSTM） neural network model optimized by the quantum-behaved particle swarm optimization （QPSO） algorithm （QPSO-LSTM） is constructed to achieve high precision signal reconstruction. Second， a rigid-flexible coupled model of the “transport vehicle-packaging box-missile body-missile components” is established based on multi-body dynamics theory to obtain the model-driven reconstructed signal. Finally， the reconstruction accuracy of both methods is compared through simulation tests under different road surfaces and vehicle speeds. The experimental results indicate that the data-driven method achieves an average root-mean-square relative error of 1.54%， which is significantly lower than the 5.15% obtained by the model-driven method. This performance advantage demonstrates the superiority of the data-driven method in engineering practice.

Key words: projectile transportation, signal reconstruction, data-driven, model-driven, neural network

摘要：

导弹道路运输振动环境模拟试验对装备研发及可靠性验证至关重要。传统整车模拟试验存在周期长、真实激励信号获取困难等问题，导致复杂耦合振动环境难以有效复现。为此，提出一种数据驱动的激励信号重构方法，并以模型驱动方法为基准框架进行精度对比验证。首先构建量子粒子群算法（QPSO）优化的长短期记忆（LSTM）神经网络模型（QPSO-LSTM），实现高精度激励信号重构。然后基于多体动力学理论构建“运输车辆-包装箱-弹体-导弹部件”刚柔耦合模型，获取模型驱动重构信号。最后通过不同路面、车速模拟试验对比分析重构精度。试验结果表明，数据驱动方法的均方根相对误差平均值（1.54%）低于模型驱动方法的相应值（5.15%）。这一性能优势凸显了数据驱动方法在工程实践中的优越性。

关键词: 弹体运输, 信号重构, 数据驱动, 模型驱动, 神经网络

CLC Number:

TJ06

LING Qihui, YAN Yongyong, LI Xinyu, DAI Juchuan, XU Xiaoqiang. Reconstruction of Excitation Signals for Vibration Environment Simulation Tests of Projectile Road Transportation[J]. China Mechanical Engineering, 2026, 37(8): 2058-2067.

凌启辉, 严勇勇, 李新宇, 戴巨川, 胥小强. 导弹道路运输振动环境模拟试验激励信号重构[J]. 中国机械工程, 2026, 37(8): 2058-2067.

Figures/Tables 17

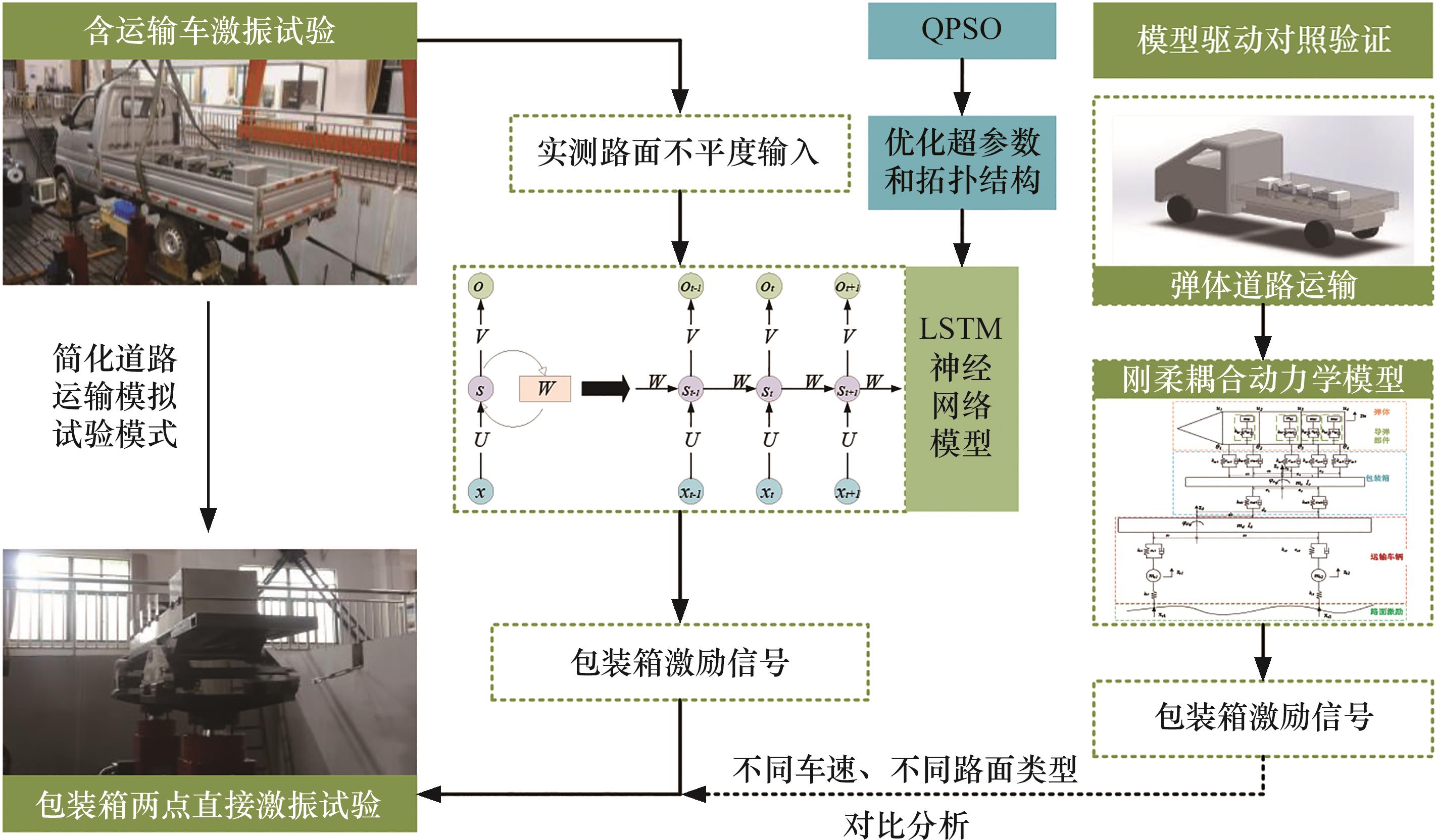

Fig.1 Research route

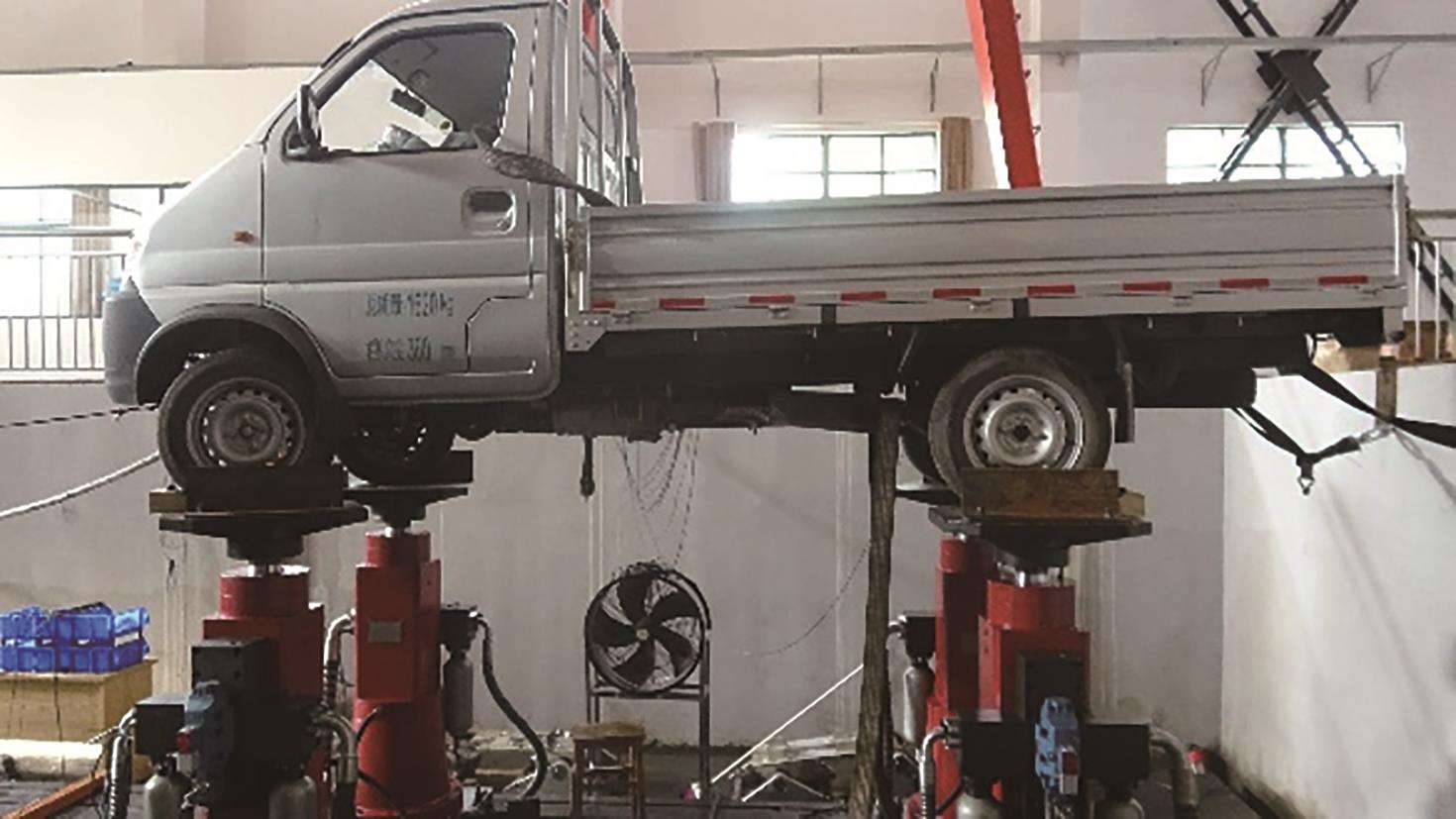

Fig.2 Experimental platform

Tab.1 Test conditions

试验工况	试验项目	车速或激振频率
1	戈壁路运输模拟	10 km/h
2	铺面路运输模拟	10 km/h
3	起伏路运输模拟	10 km/h
4	砂石路运输模拟	10 km/h
5	铺面路运输模拟	40 km/h
6	随机路谱试验
7	正弦扫频激励试验	1～20 Hz

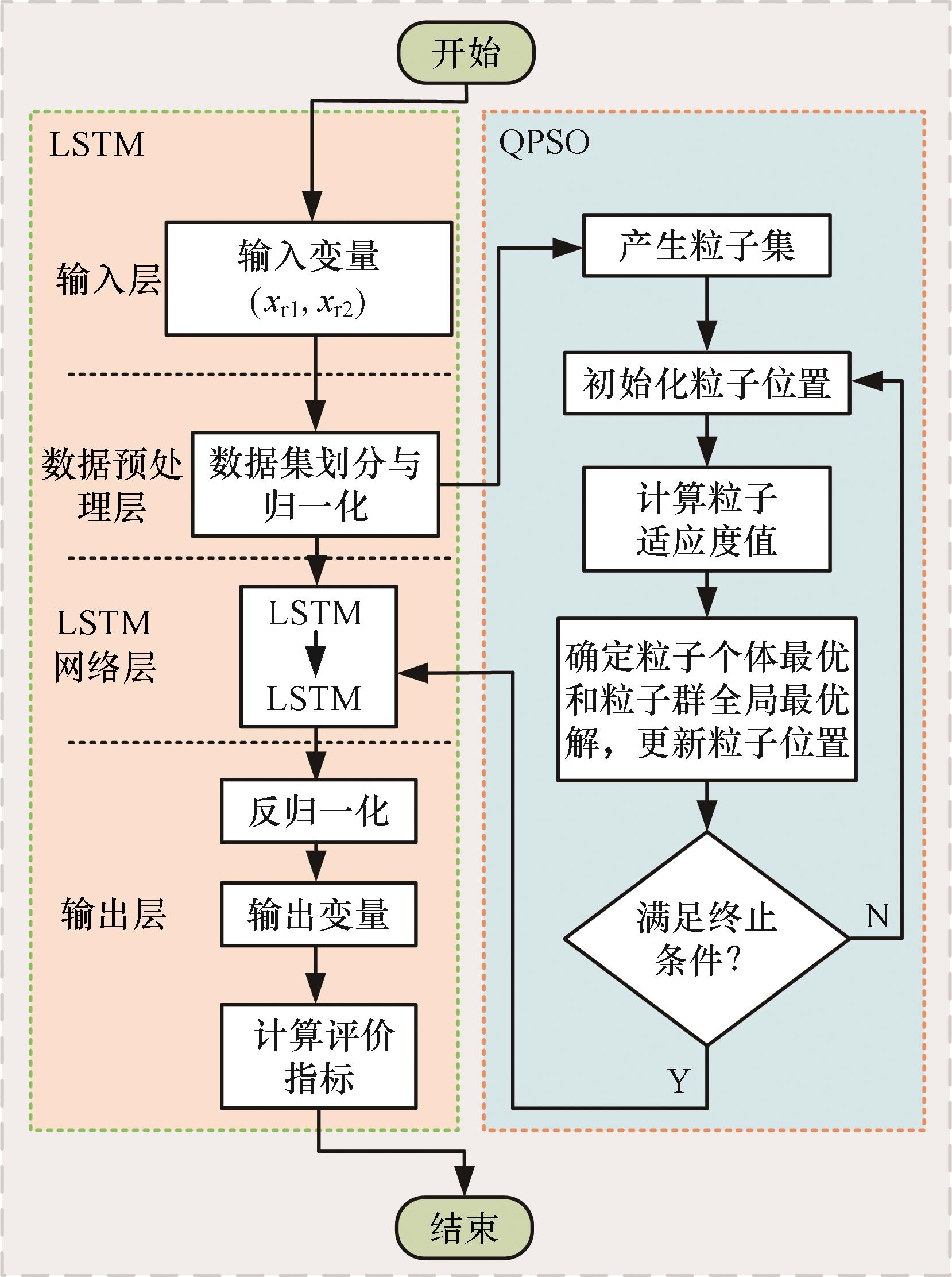

Fig.3 QPSO-LSTM network model

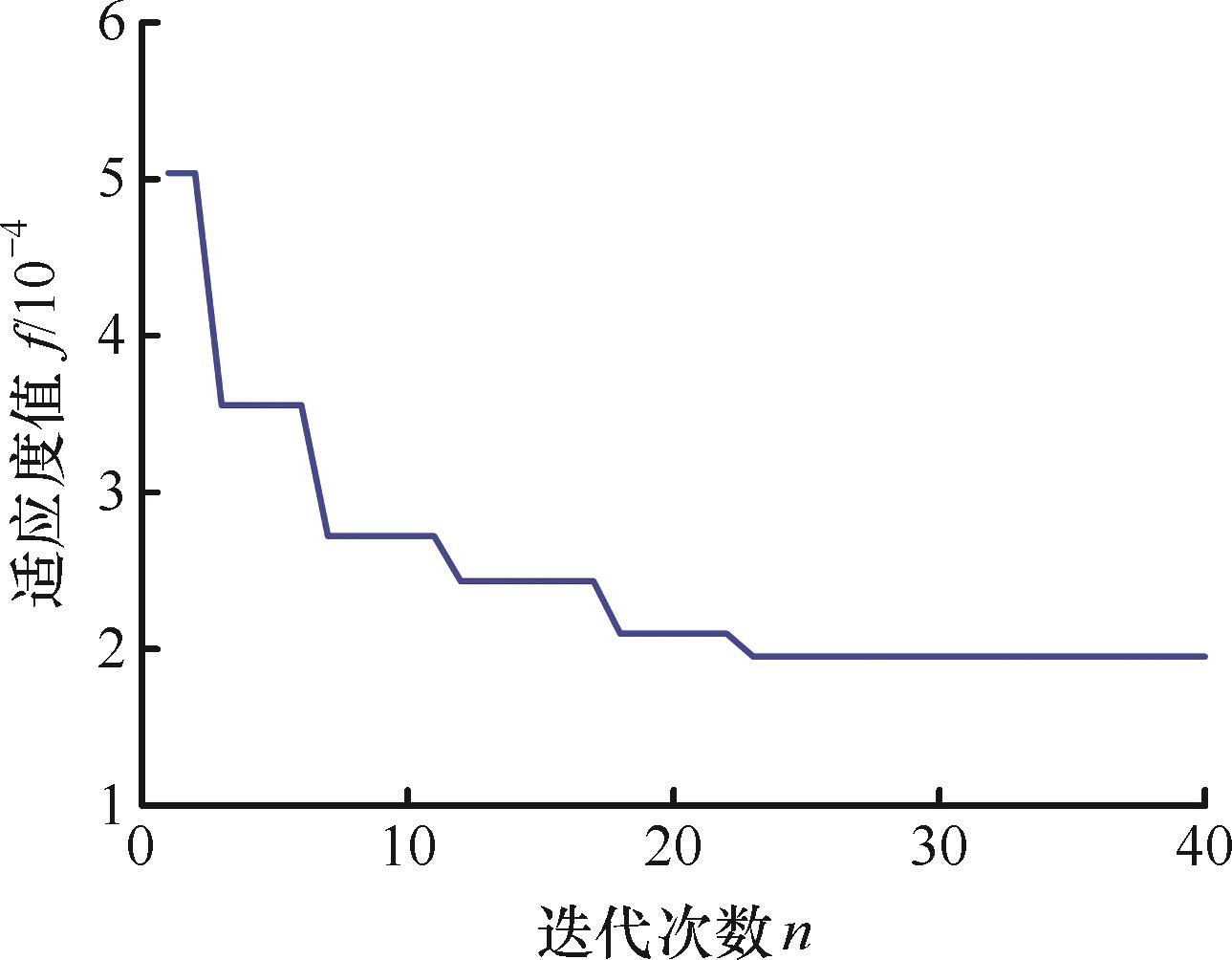

Fig.4 Particle fitness curve

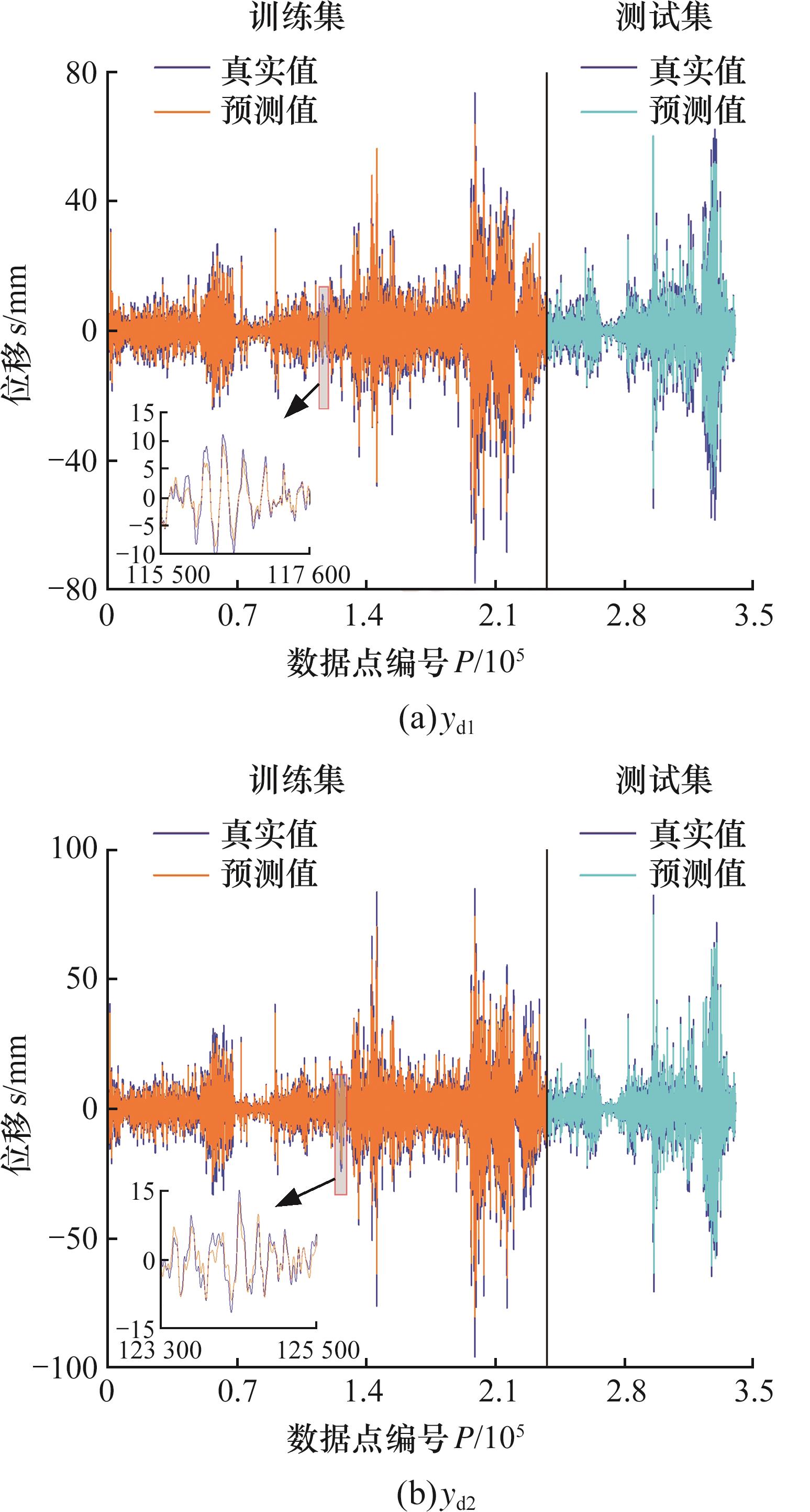

Fig.5 Prediction results of training at different locations

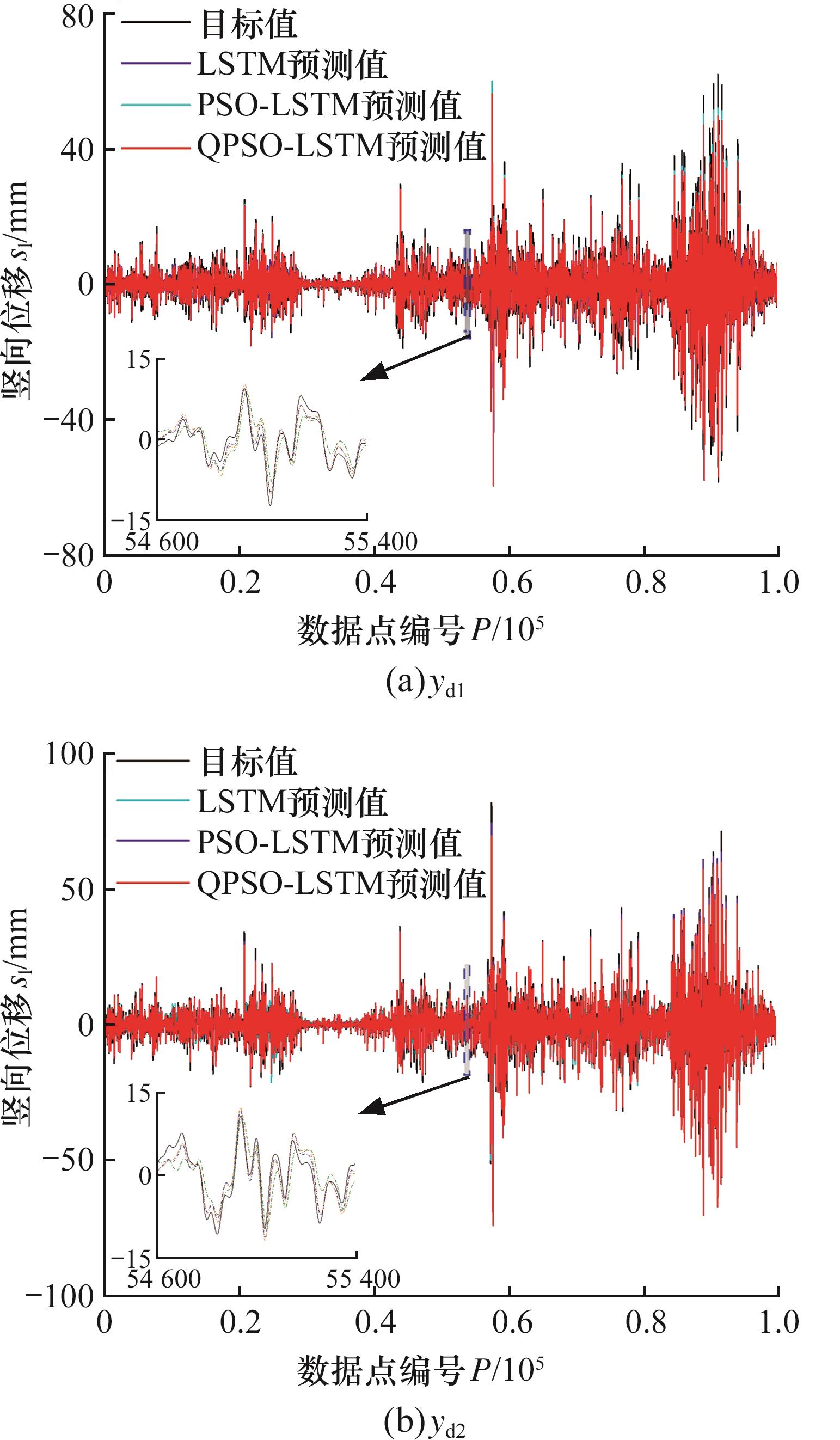

Fig.6 Comparison of prediction results for different positions of various models

Tab.2 Comparison of prediction accuracy among various models

预测模型	预测目标	RMSE值	MAE值	R²
LSTM	y_d1	4.02	2.49	0.727
LSTM	y_d2	5.01	3.16	0.664
PSO-LSTM	y_d1	1.71	1.45	0.940
PSO-LSTM	y_d2	1.89	1.31	0.933
QPSO-LSTM	y_d1	1.69	1.16	0.951
QPSO-LSTM	y_d2	1.79	1.21	0.956

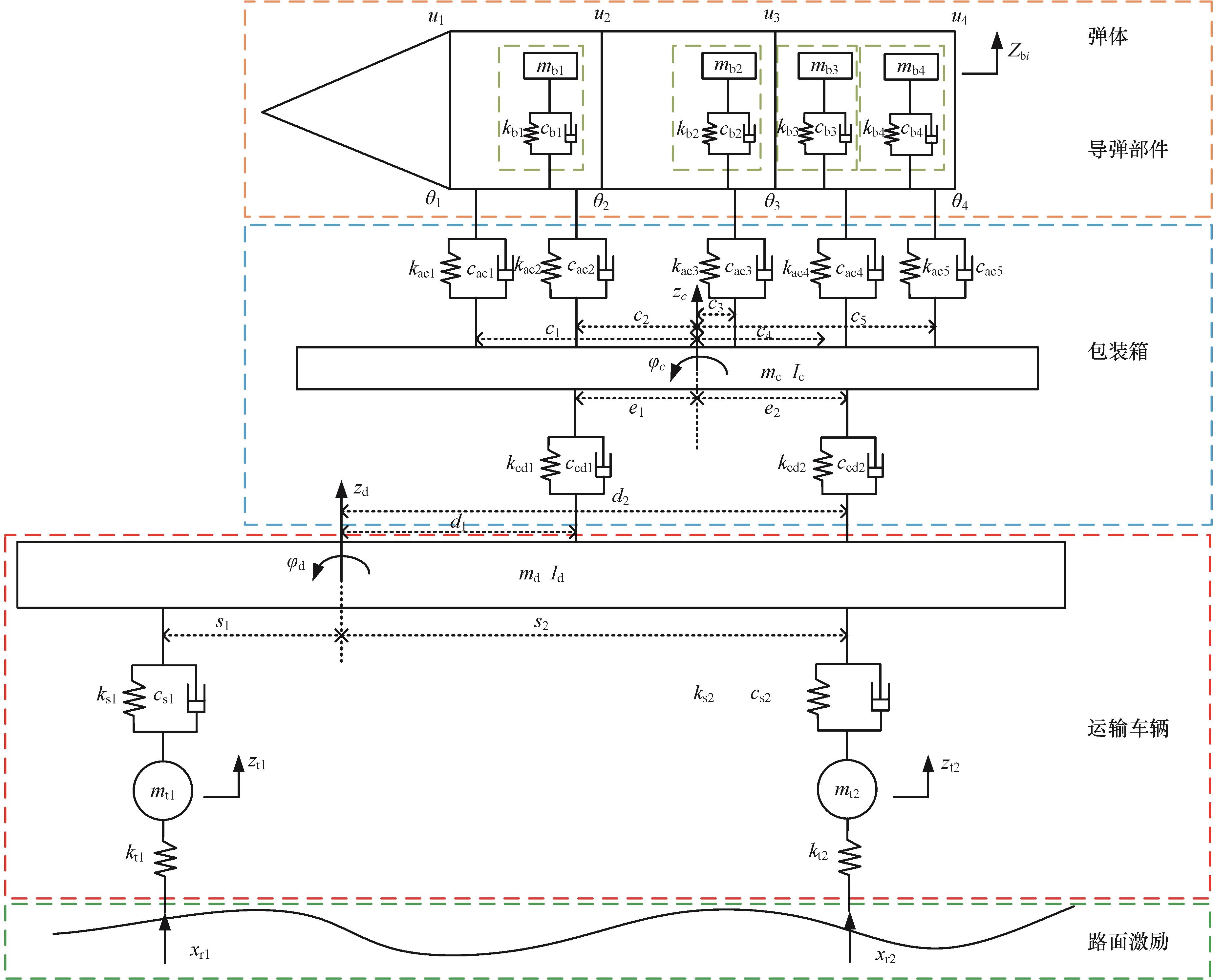

Fig.7 Coupled dynamic model of transportation vehicle packaging box missile body missile components

Tab.3 Parameters of rigid flexible coupling dynamic model

导弹部件和支撑	弹体和支撑	运输车辆
m_b1=5.35 kg	L₁=0.68 m	m_c=25.68 kg
m_b2=6.15 kg	L₂=0.37 m	I_c=9.53 kg · m²
m_b3=9.35 kg	L₃=0.71 m	m_d=500 kg
m_b4=4.23 kg	x_a11=0.09 m	I_d=2.9 $×$ 10³ kg · m²
k_b1=3.97 $×$ 10⁵ N/m	x_a12=0.43 m	m_ti=32.5 kg
k_b2=9.76 $×$ 10⁷ N/m	x_a21=0.16 m	k_cdi=1.9 $M$ N/m
k_b3=9.36 $×$ 10⁷ N/m	x_a31=0.19 m	c_cdi=2 $00$ N·s/m
k_b4=7.1 $0 ×$ 10⁷ N/m	x_a32=0.66 m	k_si=1.243 $×$ 10⁵ N/m
c_b1=1.5 $k$ N/（m·s）	c₁=0.73 m	c_si=3.6 $k$ N·s/m
c_b2=2.5 $k$ N/（m·s）	c₂=0.23 m	k_ti=6 $00 k$ N/m
c_b3=3 $k$ N/（m·s）	c₃=0.04 m	e₁=0.23 m
c_b4=1.7 $k$ N/（m·s）	c₄=0.38 m	e₂=0.38 m
x_b11=0.48 m	c₅=0.84 m	d₁=1.22 m
x_b21=0.22 m		d₂=1.83 m
x_b31=0.21 m		s₁=0.9 m
x_b32=0.56 m		s₂=1.8 m

Tab.3 Parameters of rigid flexible coupling dynamic model

导弹部件和支撑	弹体和支撑	运输车辆
m_b1=5.35 kg	L₁=0.68 m	m_c=25.68 kg
m_b2=6.15 kg	L₂=0.37 m	I_c=9.53 kg · m²
m_b3=9.35 kg	L₃=0.71 m	m_d=500 kg
m_b4=4.23 kg	x_a11=0.09 m	I_d=2.9 $×$ 10³ kg · m²
k_b1=3.97 $×$ 10⁵ N/m	x_a12=0.43 m	m_ti=32.5 kg
k_b2=9.76 $×$ 10⁷ N/m	x_a21=0.16 m	k_cdi=1.9 $M$ N/m
k_b3=9.36 $×$ 10⁷ N/m	x_a31=0.19 m	c_cdi=2 $00$ N·s/m
k_b4=7.1 $0 ×$ 10⁷ N/m	x_a32=0.66 m	k_si=1.243 $×$ 10⁵ N/m
c_b1=1.5 $k$ N/（m·s）	c₁=0.73 m	c_si=3.6 $k$ N·s/m
c_b2=2.5 $k$ N/（m·s）	c₂=0.23 m	k_ti=6 $00 k$ N/m
c_b3=3 $k$ N/（m·s）	c₃=0.04 m	e₁=0.23 m
c_b4=1.7 $k$ N/（m·s）	c₄=0.38 m	e₂=0.38 m
x_b11=0.48 m	c₅=0.84 m	d₁=1.22 m
x_b21=0.22 m		d₂=1.83 m
x_b31=0.21 m		s₁=0.9 m
x_b32=0.56 m		s₂=1.8 m

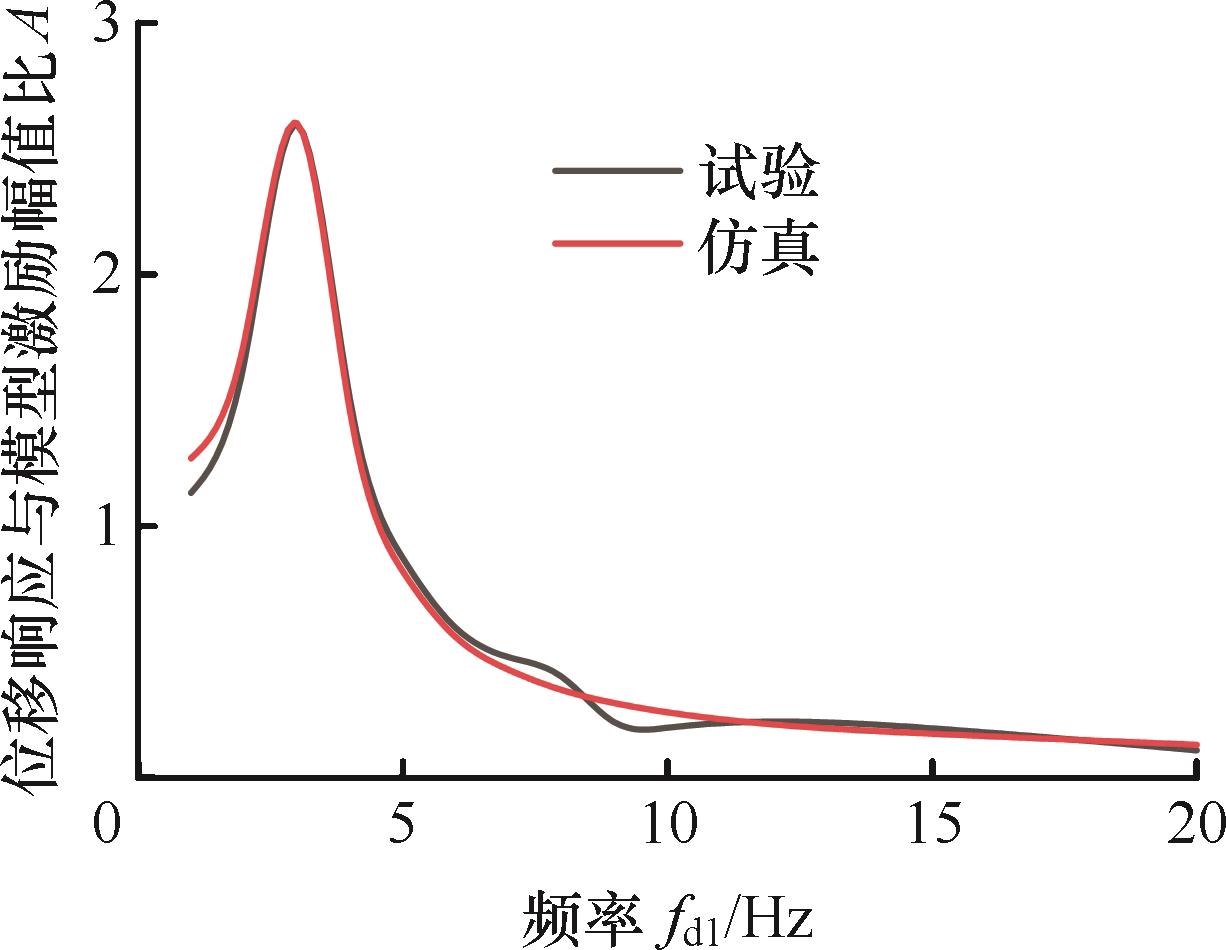

Fig.8 Comparison of yd1 amplitude frequency curve

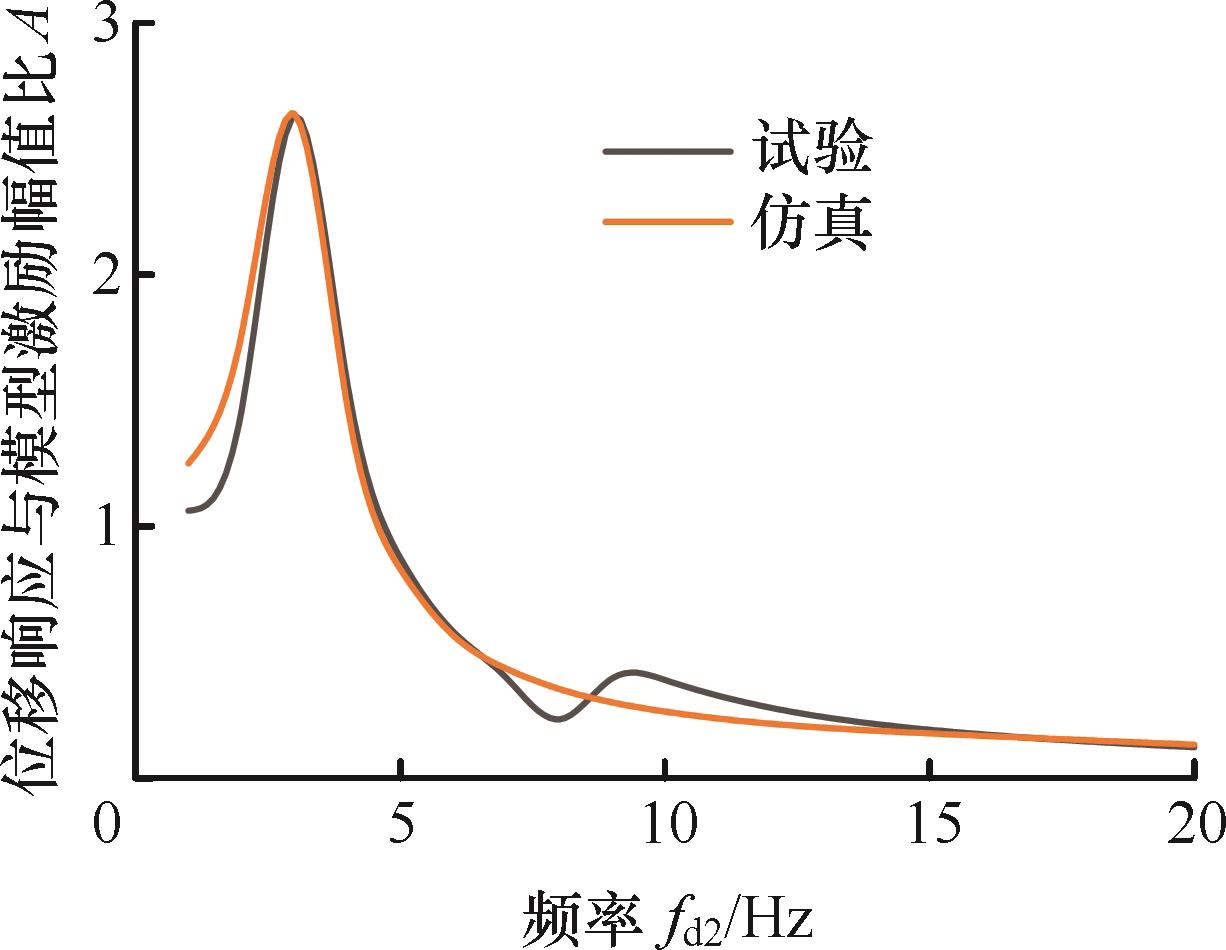

Fig.9 Comparison of yd2 amplitude frequency curve

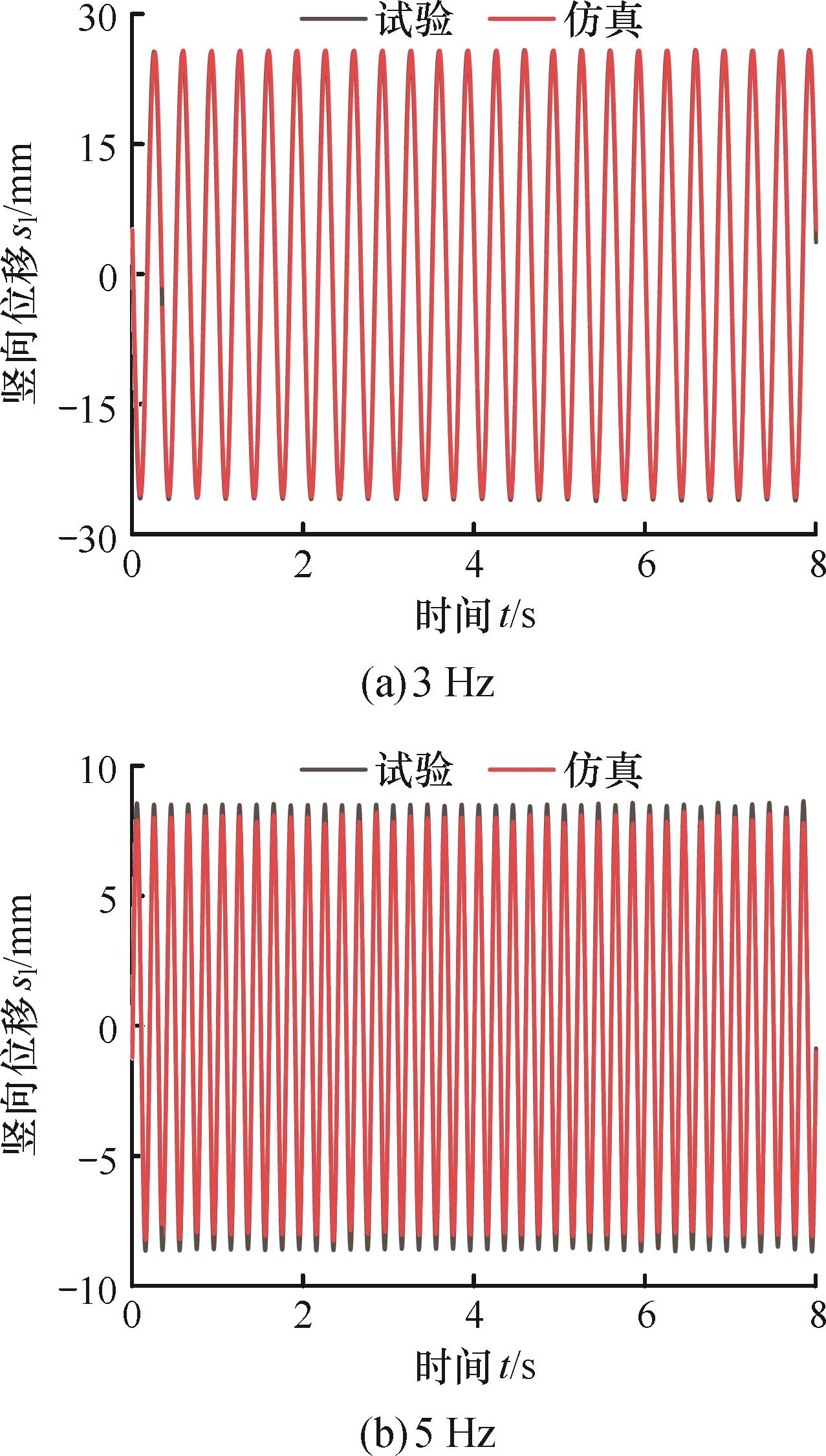

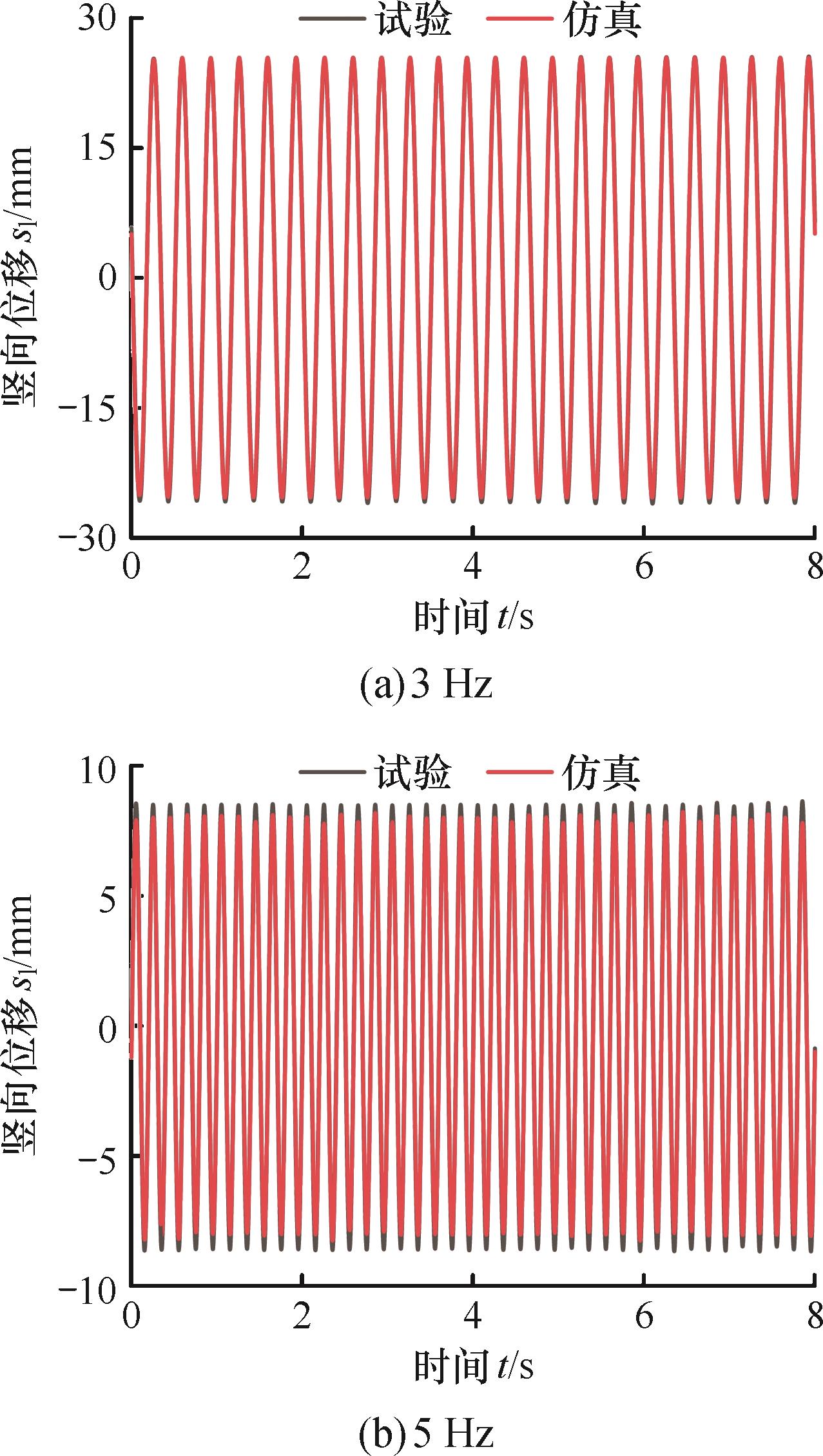

Fig.10 Comparison of yd1 at different frequencies

Fig.11 Comparison of yd2 at different frequencies

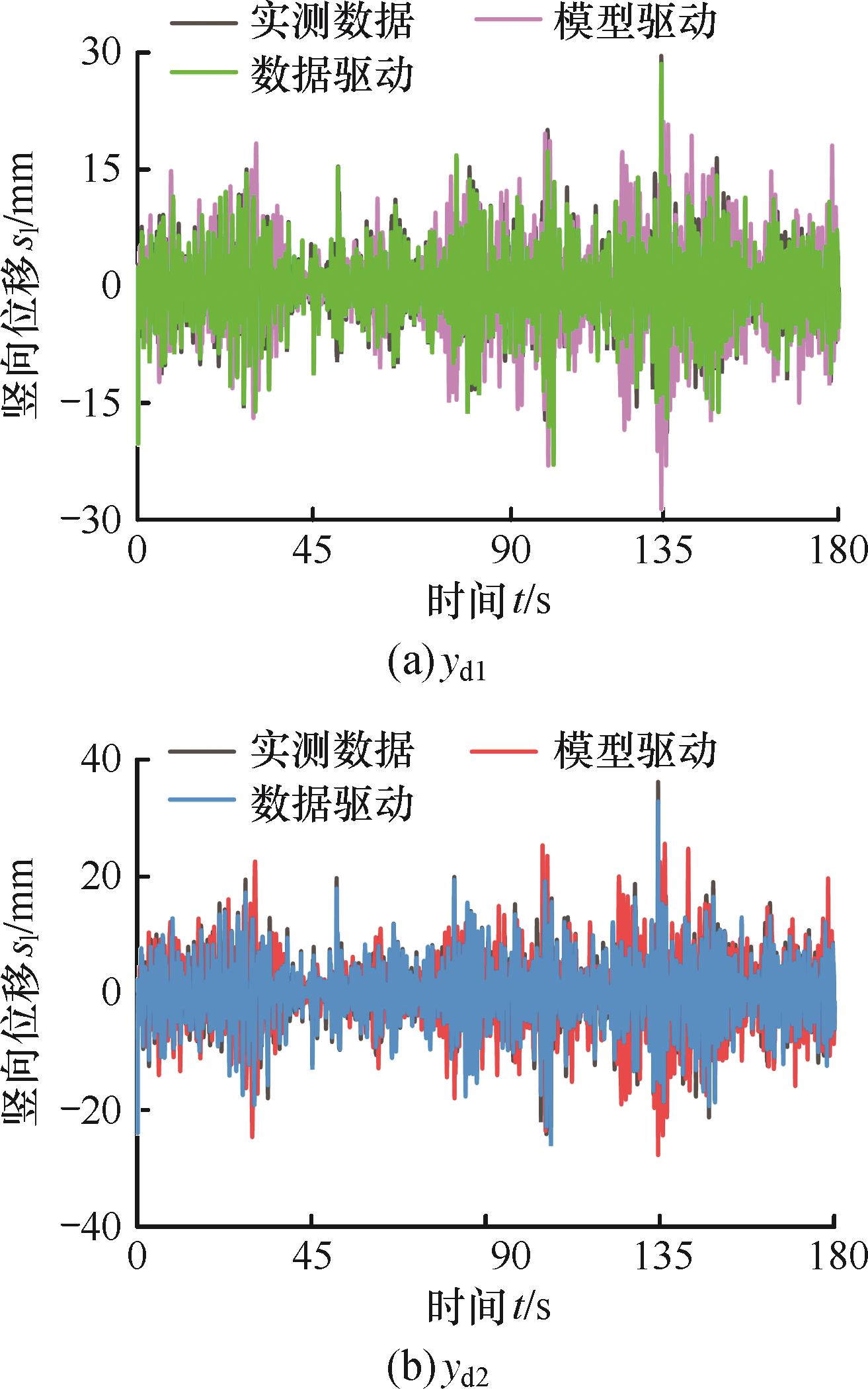

Fig.12 Comparison of displacement at different positions on 10km/h undulating roads

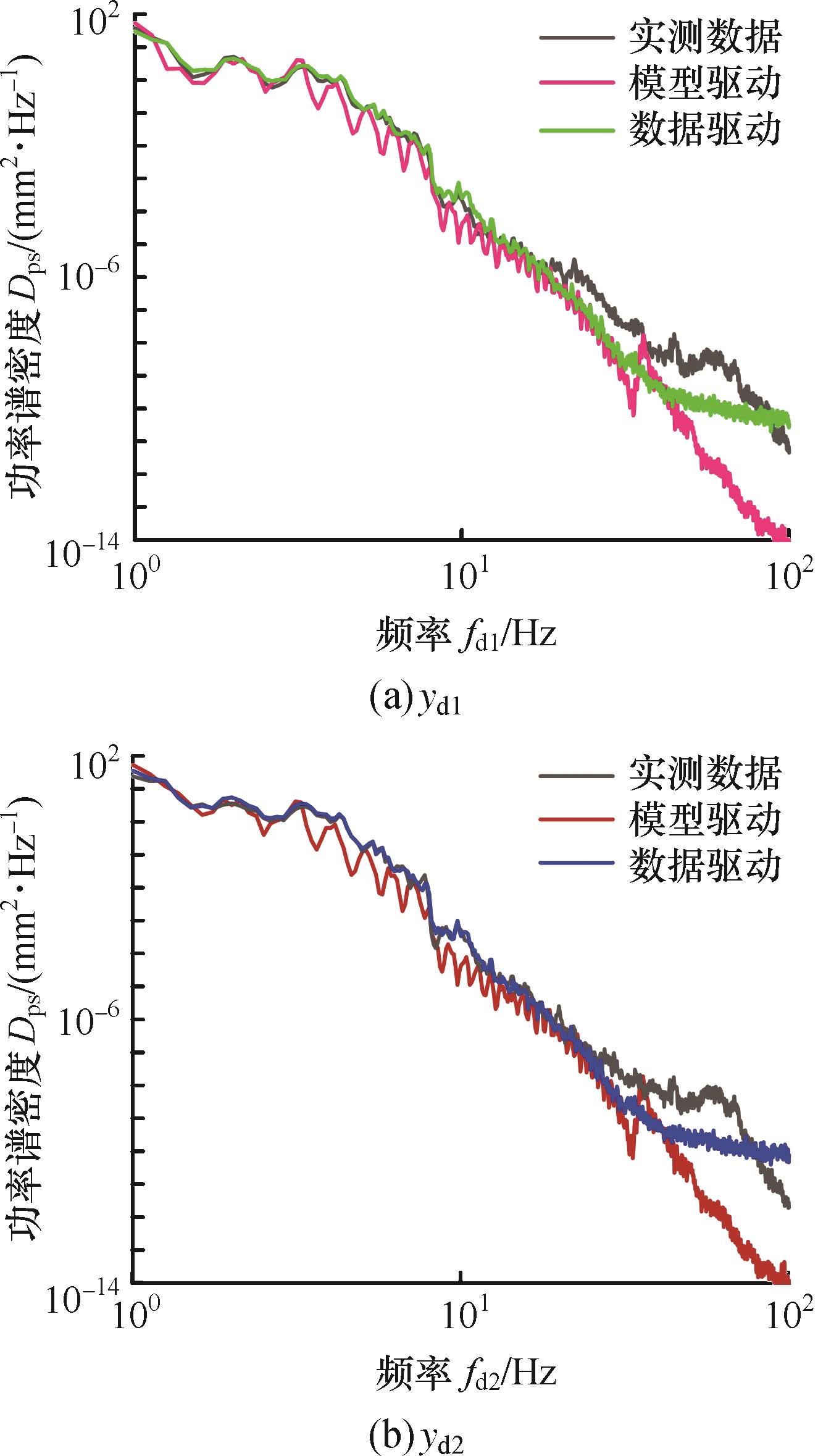

Fig.13 Comparison of power spectra at different positions on 10 km/h undulating roads

Tab.4 Comparison of root mean square displacement values under various operating conditions

试验工况	测点位置	实测数据	模型驱动	模型驱动相对误差/%	数据驱动	数据驱动相对误差/%
1	y_d1	3.40	3.49	2.65	3.35	1.47
1	y_d2	3.90	4.07	4.36	3.79	2.82
2	y_d1	1.81	1.80	0.55	1.79	1.10
2	y_d2	1.78	1.82	2.25	1.81	1.69
3	y_d1	4.76	5.02	5.46	4.81	1.05
3	y_d2	5.46	5.80	6.22	5.50	0.73
4	y_d1	6.29	6.92	10.02	6.44	2.38
4	y_d2	7.02	7.87	12.11	6.93	1.28
5	y_d1	4.51	4.59	1.77	4.59	1.77
5	y_d2	5.57	5.91	6.10	5.63	1.08
均值				5.15		1.54
