基于多源信息融合的超大型环件轧制过程几何形状分阶段测量模型和方法

doi:10.3969/j.issn.1004-132X.2025.11.033

中国机械工程 ›› 2025, Vol. 36 ›› Issue (11): 2747-2756.DOI: 10.3969/j.issn.1004-132X.2025.11.033

• 先进材料加工工程 • 上一篇

基于多源信息融合的超大型环件轧制过程几何形状分阶段测量模型和方法

汪小凯¹^,²^,³(), 郑戈飞¹^,²^,³(), 黄康文¹^,²^,³, 刘子强¹^,²^,³, 韩星会¹^,²^,³, 华林¹^,²^,³

^1.武汉理工大学现代汽车零部件技术湖北省重点实验室, 武汉, 430070
^2.武汉理工大学汽车零部件技术湖北省协同创新中心, 武汉, 430070
^3.武汉理工大学材料绿色精密成形技术与装备湖北省工程中心, 武汉, 430070

收稿日期:2025-01-09 出版日期:2025-11-25 发布日期:2025-12-09
通讯作者: 郑戈飞
作者简介:汪小凯，男，1982年生，教授、博士研究生导师。研究方向为运载装备智能制造及先进无损检测。E-mail：wxk0919@163.com
郑戈飞^*（通信作者），男，1998年生，博士研究生。研究方向为成形过程在位检测。E⁃mail：599902605@qq.com。
基金资助:
国家自然科学基金(52175362);国家自然科学基金(U2037204);教育部创新团队发展计划(IRT_17R83);高等学校学科创新引智计划(B17034)

Staged Measurement Model and Method for Geometric Shape of Super Large Ring Forging Processes Based on Multi-source Information Fusion

Xiaokai WANG¹^,²^,³(), Gefei ZHENG¹^,²^,³(), Kangwen HUANG¹^,²^,³, Ziqiang LIU¹^,²^,³, Xinghui HAN¹^,²^,³, Lin HUA¹^,²^,³

^1.Hubei Key Laboratory of Advanced Technology of Automobile Parts，Wuhan University of Technology，Wuhan，430070
^2.Hubei Collaborative Innovation Center of Automotive Components Technology，Wuhan University of Technology，Wuhan，430070
^3.Hubei Engineering Center of Material Green Precision Forming Technology and Equipment，Wuhan University of Technology，Wuhan，430070

Received:2025-01-09 Online:2025-11-25 Published:2025-12-09
Contact: Gefei ZHENG

摘要/Abstract

摘要：

为提高超大型环件轧制几何形状测量精度，提出一种基于多源信息融合的分阶段测量方法。该方法利用三个激光位移传感器实时数据，结合轧制进给和整圆定径阶段特性，分阶段精确测量环件直径增长速度、环心偏移及圆度误差。建立了环件理论直径增长速度模型和外轮廓圆度误差模型，分析了环件直径增长速度和圆度误差的形成机制。通过在ABAQUS软件中构建ϕ10 m超大型环件轧制有限元仿真模型，将所提多源融合方法与工业相机拍摄、单点激光测量进行对比分析，验证了所提方法具有更高的准确性，并探究了芯辊进给速度对环件几何状态的影响。最终，通过缩比轧制实验验证了所提方法的有效性，轧制末期环件外轮廓拟合精度达91.7%。

关键词: 超大型环件, 径轴向轧制, 环心偏移, 圆度误差, 误差分离

Abstract:

To enhance the geometric shape measurement accuracy in super-large ring rolling processes， a staged measurement method was proposed based on multi-source information fusion. This method utilized real-time data from three laser displacement sensors， combining with the characteristics of the rolling feed and rounding-sizing stage， to accurately measure the ring's diameter growth velocity， center offset， and roundness error in distinct phases. Theoretical models for the ring's diameter growth velocity and outer contour roundness errors were established， the formation mechanism of the diameter growth velocity and roundness error of ring were analyzed. By constructing a finite element simulation model of ϕ10 m super large ring rolling in ABAQUS software， the proposed multi-source fusion method was comparatively analyzed against industrial camera imaging and single-point laser measurement， which verified superior accuracy of the proposed method and the influences of the mandrel feed speed on the ring's geometric state were explored. Finally， the effectiveness of the proposed method was confirmed by scaled-down rolling experiments， with the outer contour fitting accuracy reaching as 91.7% in the final rolling stages.

Key words: super large ring, radial-axial rolling, center offset, roundness error, error separation

中图分类号:

TG335.11

汪小凯, 郑戈飞, 黄康文, 刘子强, 韩星会, 华林. 基于多源信息融合的超大型环件轧制过程几何形状分阶段测量模型和方法[J]. 中国机械工程, 2025, 36(11): 2747-2756.

Xiaokai WANG, Gefei ZHENG, Kangwen HUANG, Ziqiang LIU, Xinghui HAN, Lin HUA. Staged Measurement Model and Method for Geometric Shape of Super Large Ring Forging Processes Based on Multi-source Information Fusion[J]. China Mechanical Engineering, 2025, 36(11): 2747-2756.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.cmemo.org.cn/CN/10.3969/j.issn.1004-132X.2025.11.033

https://www.cmemo.org.cn/CN/Y2025/V36/I11/2747

图/表 16

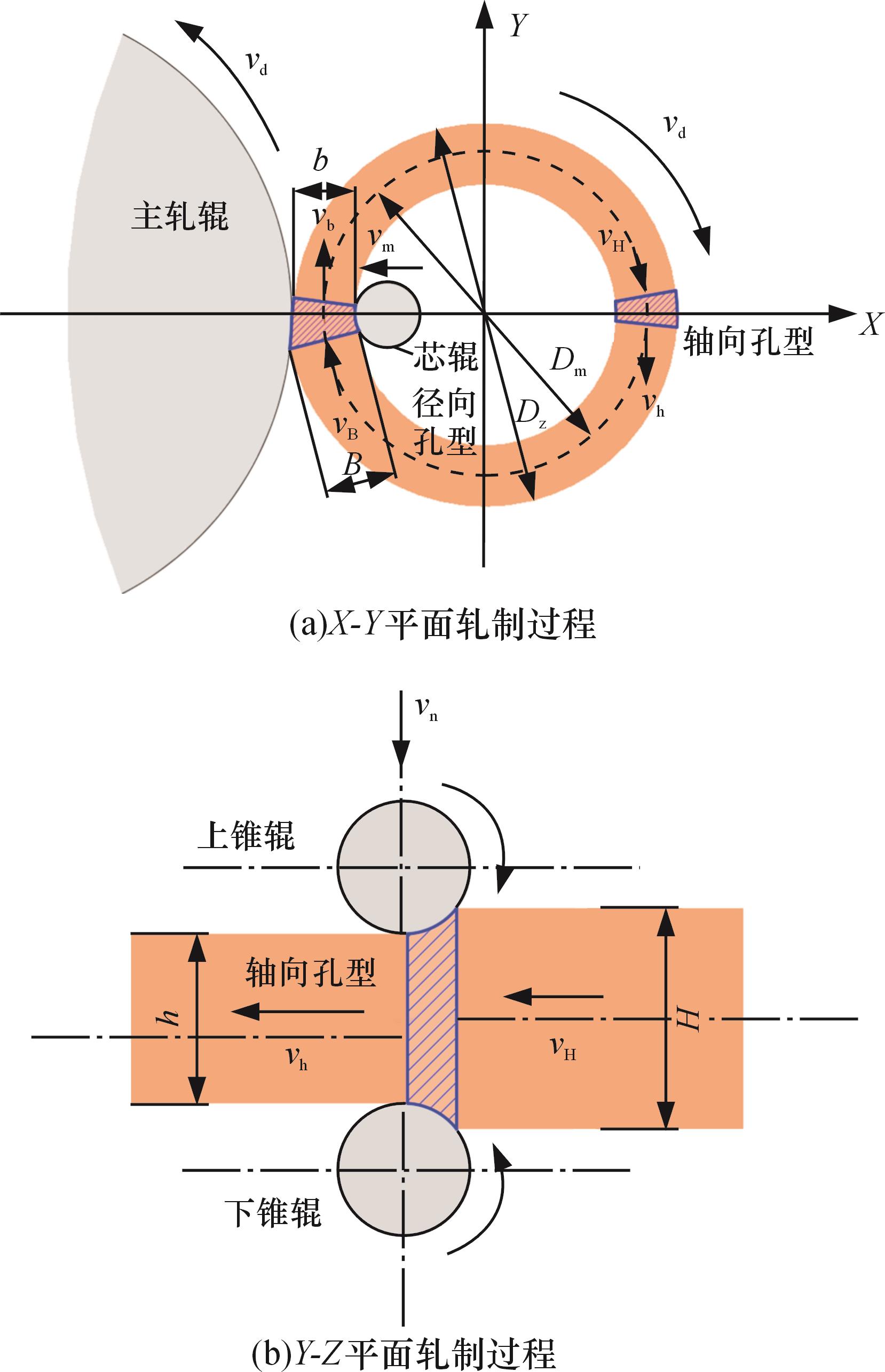

图1 轧制过程金属流动示意图

Fig.1 Schematic diagram of metal flow during the rolling process

图2 外轮廓圆度误差在轧制过程中的演变

Fig.2 Evolution of roundness error during the rolling process

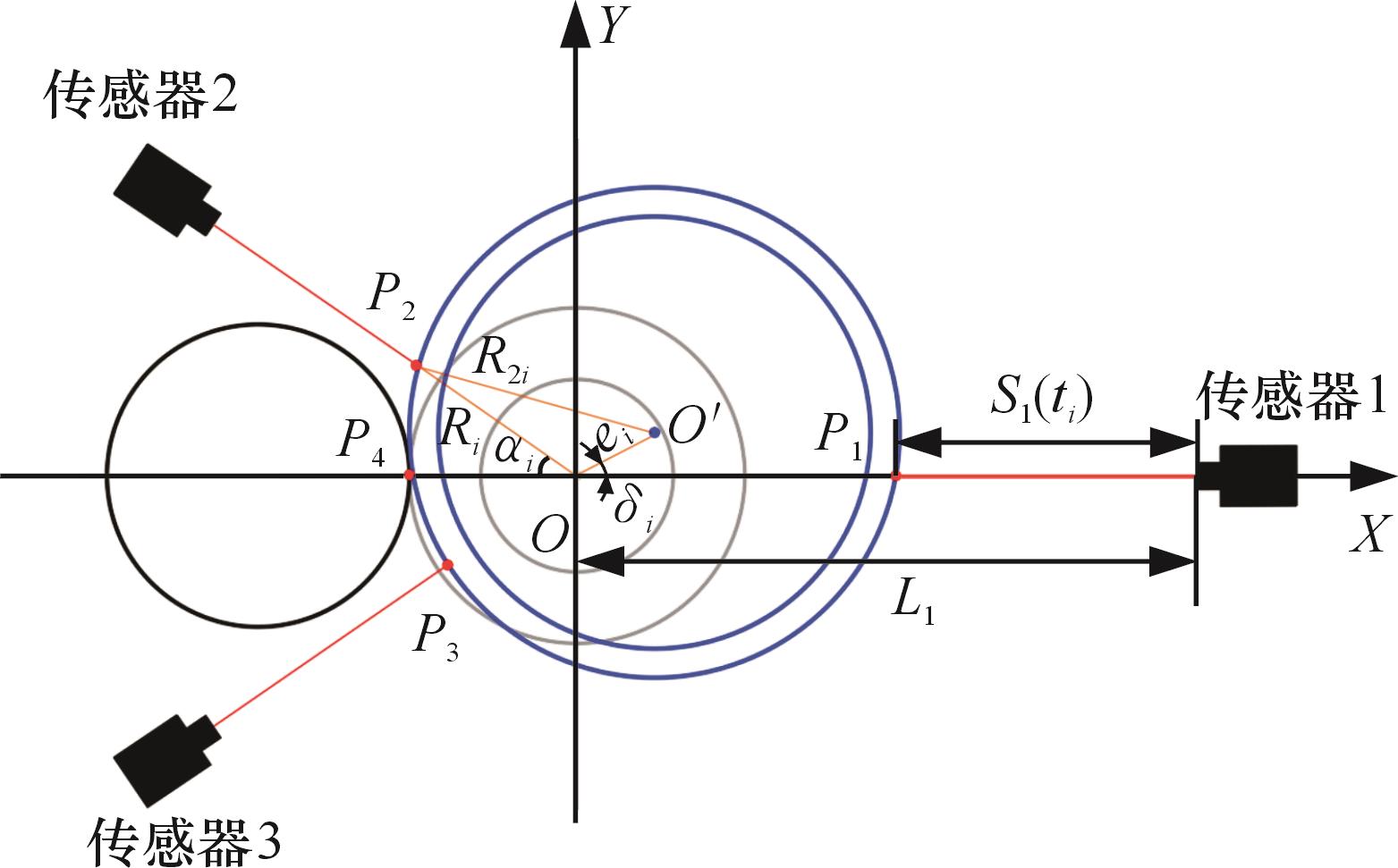

图3 环件几何形状测量原理

Fig.3 Measurement principle of the geometric shape of the ring component

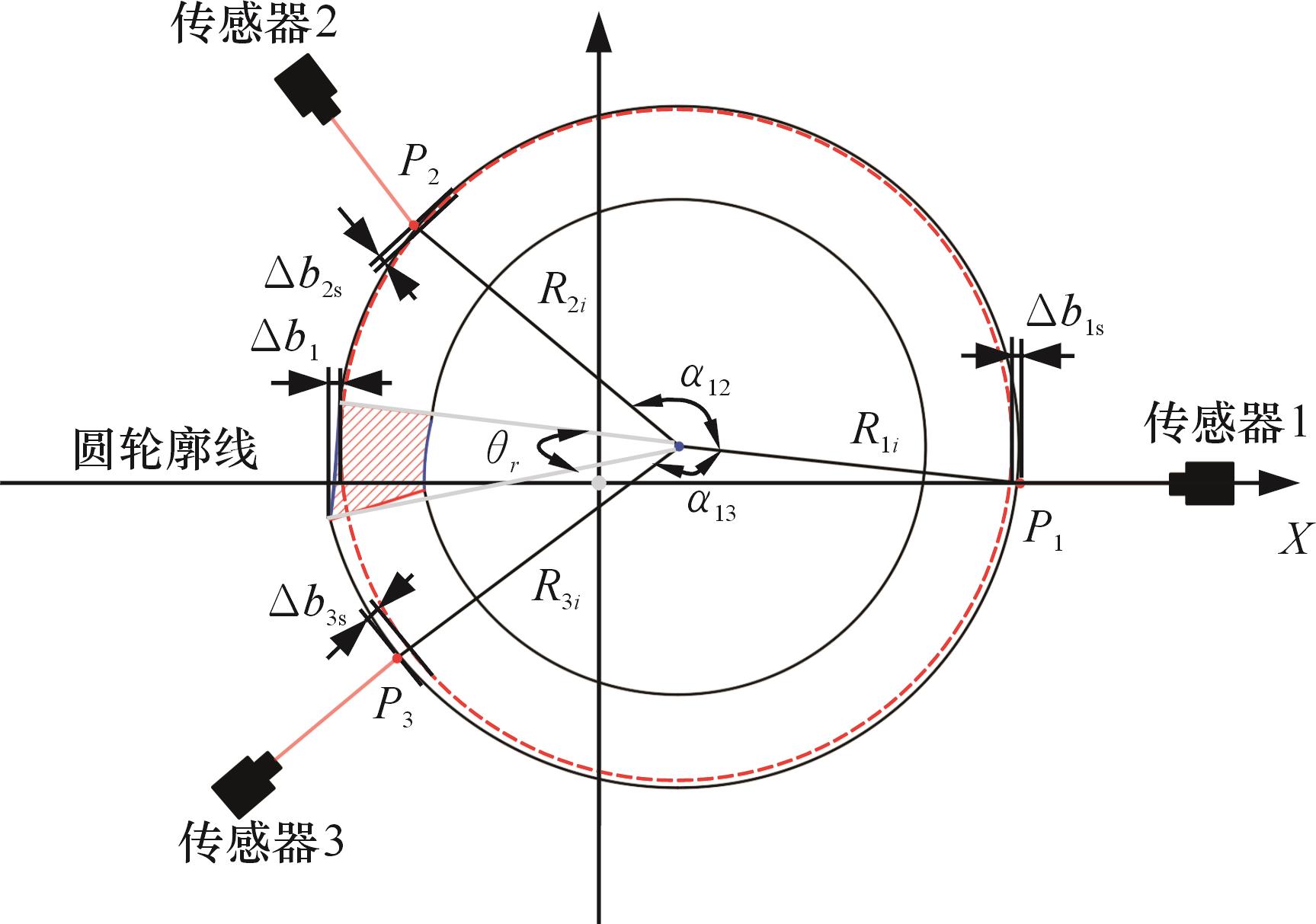

图4 进给阶段圆度误差测量

Fig.4 Measurement of roundness error during the early stage of rolling

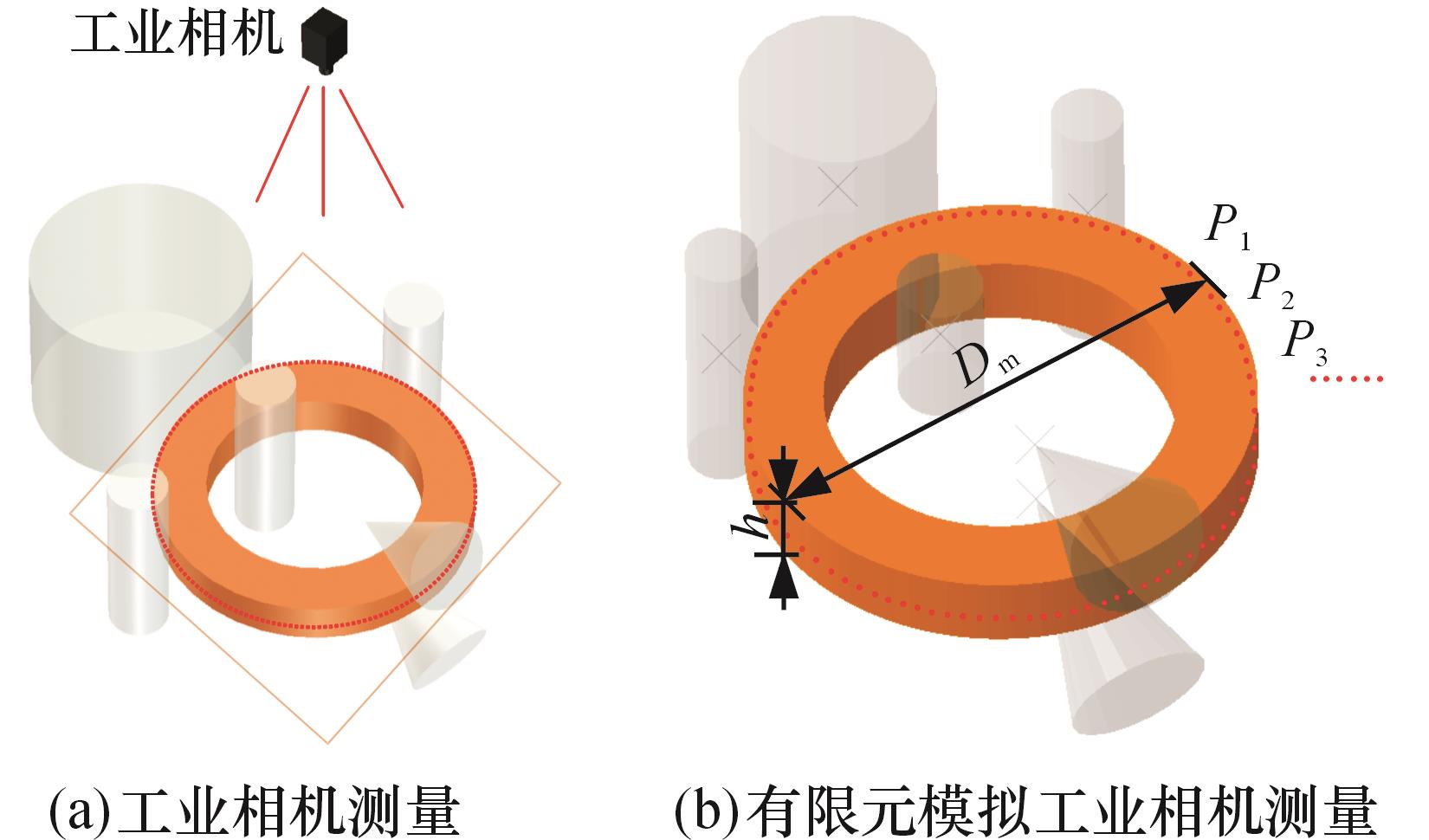

图5 虚拟传感器测量法仿真模型

Fig.5 Virtual sensor measurement method simulation model

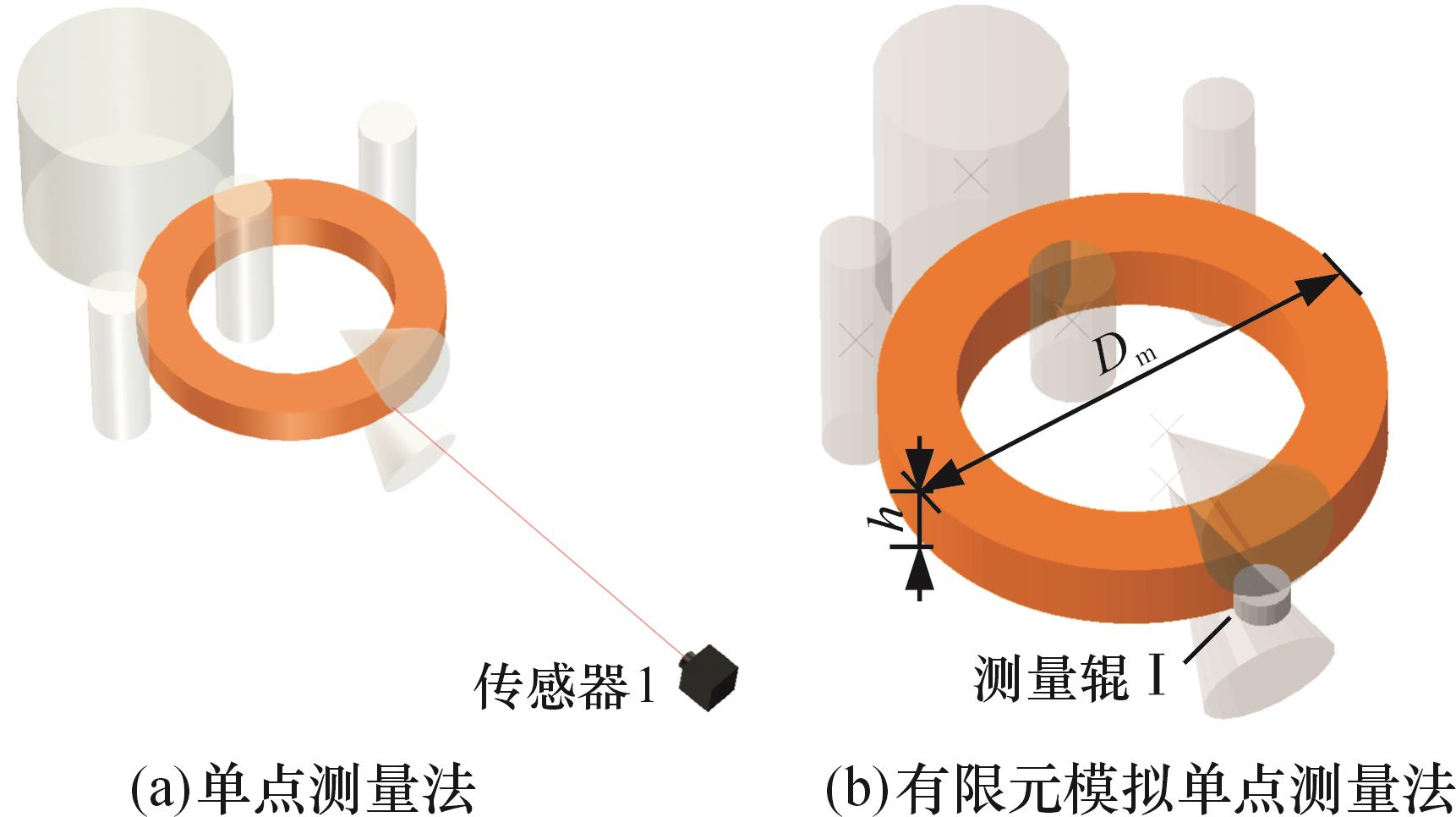

图6 单点测量法仿真模型

Fig.6 Single-point measurement method simulation model

图7 三点测量法仿真模型

Fig.7 Three-point measurement method simulation model

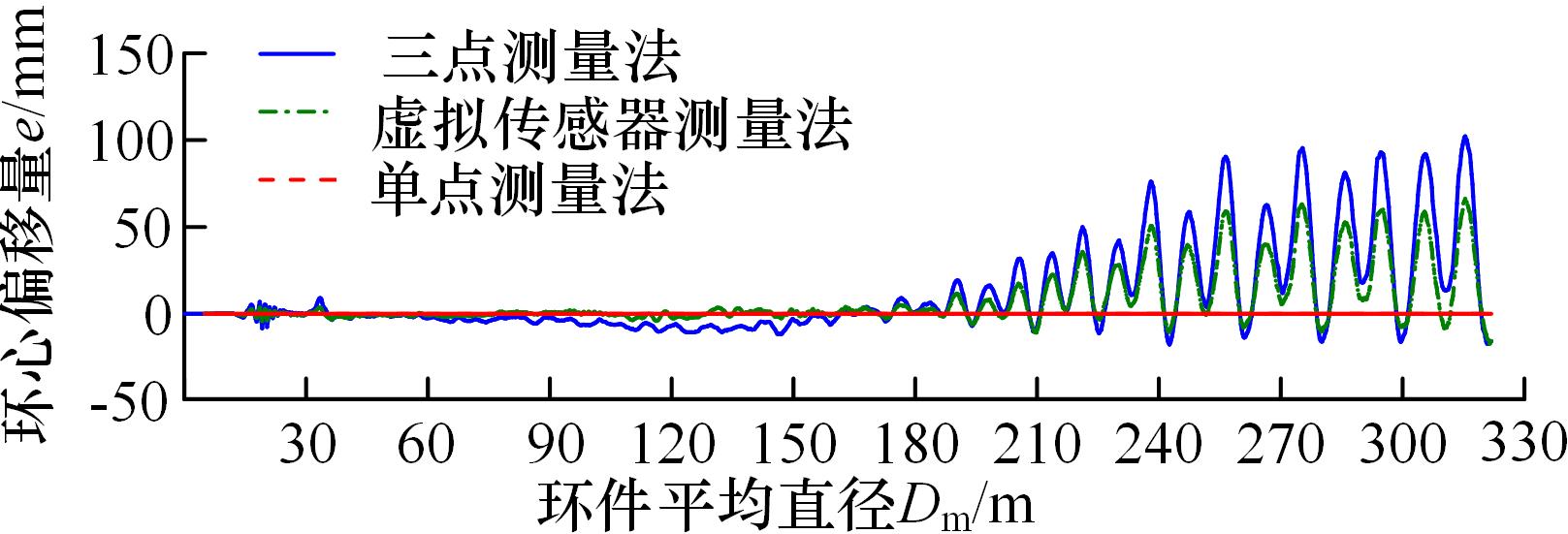

图8 不同测量方法中环心偏移量测量效果比较

Fig.8 Comparison of ring offset measurement effects among different measurement methods

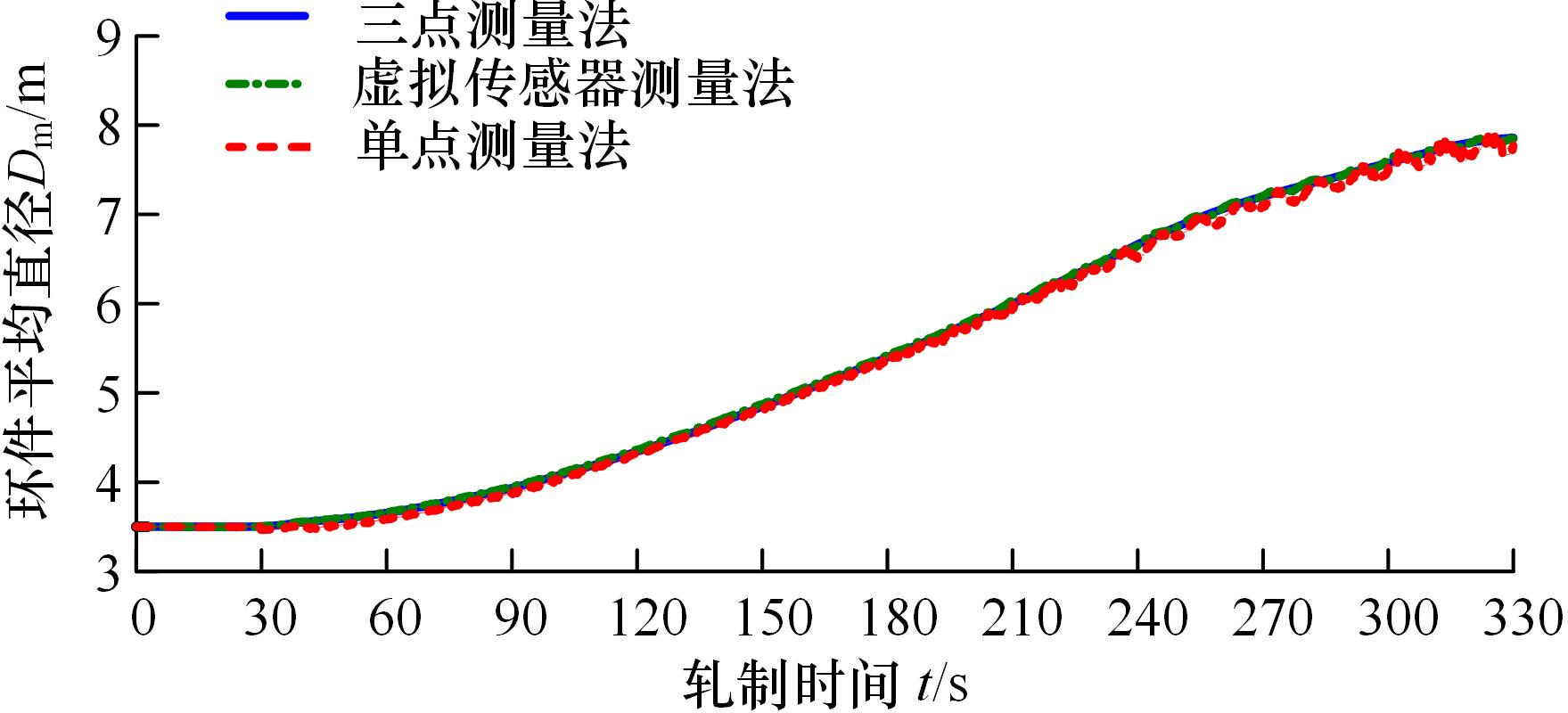

图9 不同测量方法中环件外直径测量效果比较

Fig.9 Comparison of outer diameter measurement effects among different measurement methods

图10 有限元仿真轧制过程

Fig.10 Finite element simulation of rolling process

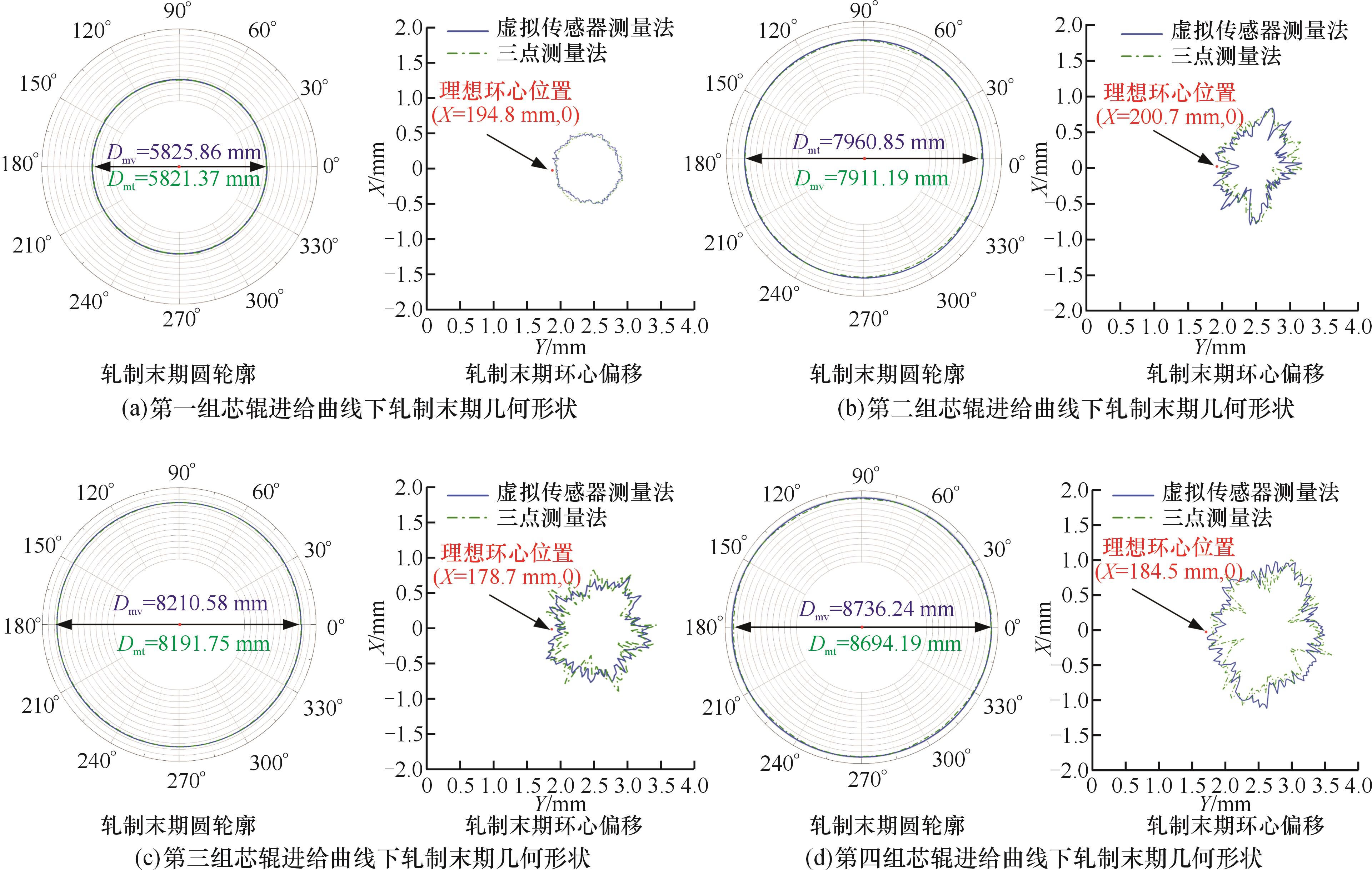

图11 不同测量方法中圆度误差测量效果比较

Fig.11 Comparison of circularity error measurement effects among different measurement methods

图12 不同芯辊进给速度对直径增长速度影响

Fig.12 Influence of different mandrel feed speeds on the increase in diameter

图13 不同芯辊进给速度对圆度误差及环心偏移量影响

Fig.13 Influences of different mandrel feed speeds on circularity error and ring center offset

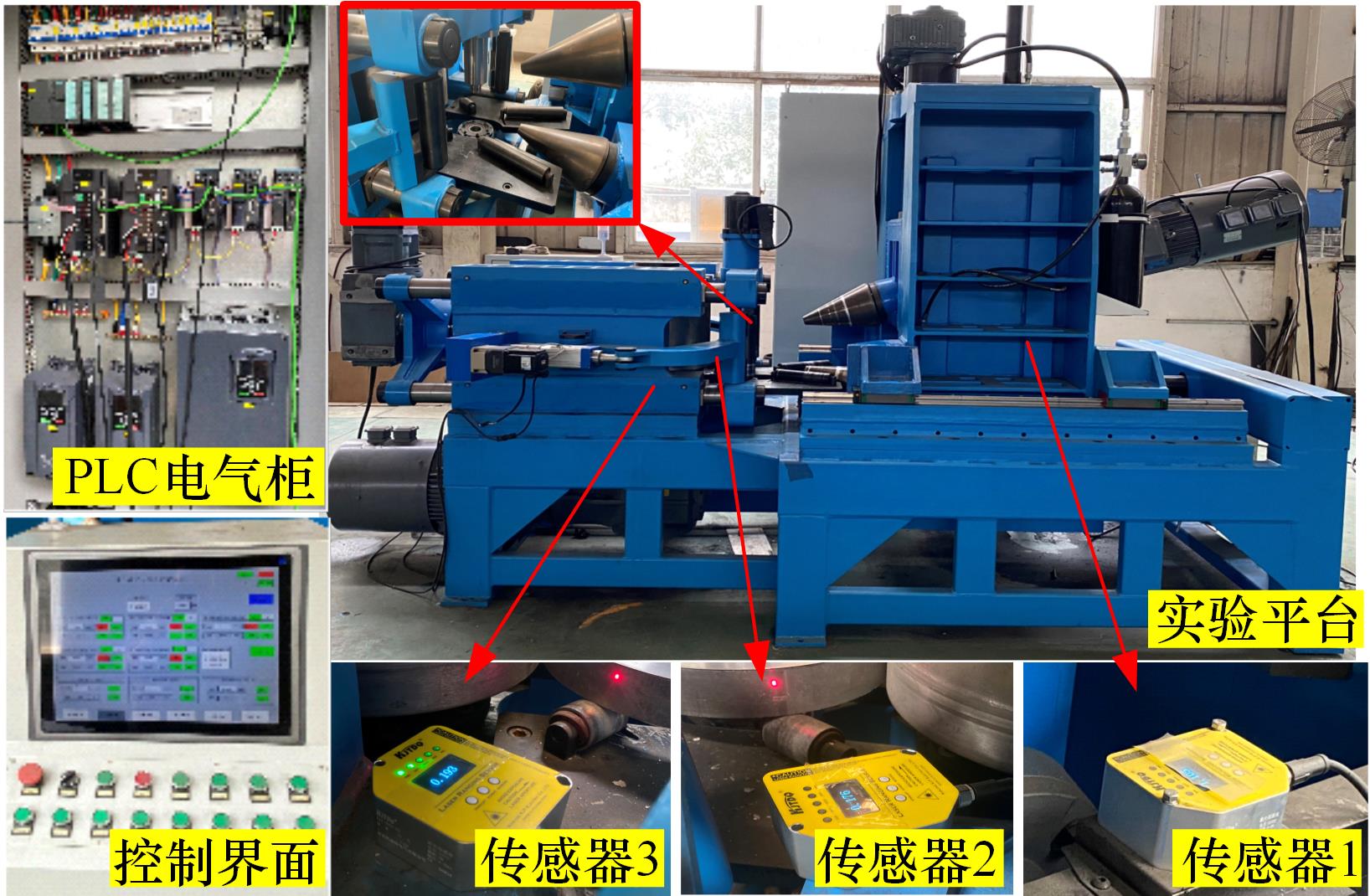

图14 轧制实验传感器布置

Fig.14 Sensor layout in rolling experiment

图15 环形坯料和成形后的环形产品

Fig.15 Ring blank and the formed ring product

图16 圆轮廓测量效果

Fig.16 Circular contour measurement

参考文献 12

[1]	钟明君，于浩.环件轧制技术的研究现状及发展趋势［J］.热加工工艺，2024，53（19）：10-15.
	ZHONG Mingjun， YU Hao. Research Status and Development Trends of Ring Rolling Technology［J］. Hot Working Technology， 2024， 53（19）： 10-15.
[2]	PARK D H， KWON H D， KWON H H. Development of Cam Ring Gear Parts of Large Diameter for Truck Clutch Using Hot-cold Complex Forging Technology of Small Bar［J］. International Journal of Precision Engineering and Manufacturing， 2019， 20： 827-836.
[3]	华林，钱东升，邓加东，等.超大型环件轧制理论与技术［J］.锻压技术，2018，43（7）：17-31.
	HUA Lin， QIAN Dongsheng， DENG Jiadong， et al. Theory and Technology of Super Large Ring Rolling［J］. Forging & Stamping Technology，2018， 43（7）： 17-31.
[4]	孙孟乾，孙建亮，韩辉，等.大型铝合金筒节轧制过程圆度控制及影响因素分析［J］.燕山大学学报，2021，45（2）：108-115.
	SUN Mengqian， SUN Jianliang， HAN Hui， et al. Roundness Control and Influencing Factor Analysis in the Rolling Process of Large Aluminum Alloy Cylinder Sections［J］. Journal of Yanshan University， 2021， 45（2）： 108-115.
[5]	钱东升，田汉，邓加东.面向极大尺度环件径-轴向稳定轧制的环件匀速长大状态精准闭环控制方法［J］.机械工程学报，2023，59（10）：85-95.
	QIAN Dongsheng， TIAN Han， DENG Jiadong. Precise Closed-loop Control Method for Uniform Growth State of Ring in Radial-Axial Stable Rolling for Extremely Large Scale Rings［J］. Journal of Mechanical Engineering， 2023， 59（10）： 85-95.
[6]	单宝德，徐会彩，庞东平，等.辗环机测量装置设计研究［J］.锻压装备与制造技术，2013，48（1）：26-28.
	SHAN Baode， XU Huicai， PANG Dongping， et al. Research on the Design of Ring Rolling Machine Measuring Device［J］. Forging & Stamping Equipment & Manufacturing Technology， 2013， 48（1）： 26-28.
[7]	HUANG K， WANG X， DONG J， et al. The Real-time Vision Measurement of Multi Geometric Information of the Rolled Ring in the Hot Ring Rolling Process Based on Deep Learning［J］. Measurement Science and Technology， 2023， 34（12）： 125048.
[8]	文学，谭建平，刘溯奇，等.大直径回转件圆度检测的测点优化技术研究［J］.兵工学报，2018，39（6）：1205-1214.
	WEN Xue， TAN Jianping， LIU Suqi， et al. Research on the Optimization Technology of Measurement Points for Roundness Detection of Large Diameter Rotating Parts［J］. Acta Armamentarii， 2018， 39（6）： 1205-1214.
[9]	OKUYAMA E， FUKUDA T. Roundness Profile Measurement Using a Combination Method of Three-point Method for Roundness Profile Measurement and Integration Method for Straightness Profile Measurement［J］. International Journal of Automation Technology，2024，18（1）： 77-83.
[10]	IMUNOVI V， BARI G. Evaluating the Spindle Error of the Roundness Measurement Device［J］. Measurement： Sensors，2024，32： 101038.
[11]	WANG C， GEIJSELAERS H J M， OMERSPAHIC E， et al. Influence of Ring Growth Rate on Damage Development in Hot Ring Rolling［J］. Journal of Materials Processing Technology， 2016， 227： 268-280.
[12]	ZHANG Ke， WANG Xiaokai， HUA Lin， et al. Numerical Simulation of Intelligent Fuzzy Closed-loop Control Method for Radial-axial Ring Rolling Process of Super-large Rings［J］. Materials， 2022， 15（14）： 5084.
