大挠度变截面欧拉梁曲率参数化模型

doi:10.3969/j.issn.1004-132X.2025.08.011

摘要/Abstract

摘要：

为了实现结构和性能的优化，变截面梁在柔顺机构中愈来愈受到重视，针对其大挠度分析难以兼顾精度和效率的挑战，提出了一种基于曲率逼近的参数化建模方法。采用Bernstein多项式表示挠曲线曲率，基于最小总势能原理建立静力平衡方程，应用高斯积分和牛顿-拉弗森迭代法进行数值求解。其优点是弯曲应变能及应力的计算简单而精确，且广义刚度矩阵是与截面惯性矩变化相关的常值对称方阵，因而建模精度高、数值计算收敛速度快。同时，基于曲率参数解，结果后处理简便快捷。多个算例的数值仿真结果充分证明了所提方法的有效性和优越性。

关键词: 柔顺机构, 变截面梁, 大挠度, 参数化模型

Abstract:

In order to achieve optimization of structures and performances， variable cross-section beams were increasingly valued in compliant mechanisms. A parametric model was proposed to address the challenge of accuracy and efficiency of large deflection analysis based on curvature approximation. The proposed approach represented the curvature of deflection curve by Bernstein polynomials. Then the static equilibrium equation was established based on the principle of minimum total potential energy， and the numerical solution was obtained via Gaussian quadrature and Newton-Raphson iteration. The advantages are that the expression of bending strain energy and stress are simple and accurate， and the generalized stiffness matrix is a constant symmetric square matrix related to the variation of the cross-sectional moment of inertia. Therefore， both modeling accuracy and computational efficiency are significantly improved. Furthermore， the post-processing is simple and fast based on the solution of curvature parameters. Numerical examples fully demonstrate the effectiveness and superiority of the proposed model.

Key words: compliant mechanism, variable cross-section beam, large deflection, parameterization model

中图分类号:

TH112

黄勇刚, 谢丹. 大挠度变截面欧拉梁曲率参数化模型[J]. 中国机械工程, 2025, 36(8): 1757-1766.

Yonggang HUANG, Dan XIE. Curvature Parameterization Model for Variable Cross-section Euler Beams under Large Deflection[J]. China Mechanical Engineering, 2025, 36(8): 1757-1766.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.cmemo.org.cn/CN/10.3969/j.issn.1004-132X.2025.08.011

https://www.cmemo.org.cn/CN/Y2025/V36/I8/1757

图/表 20

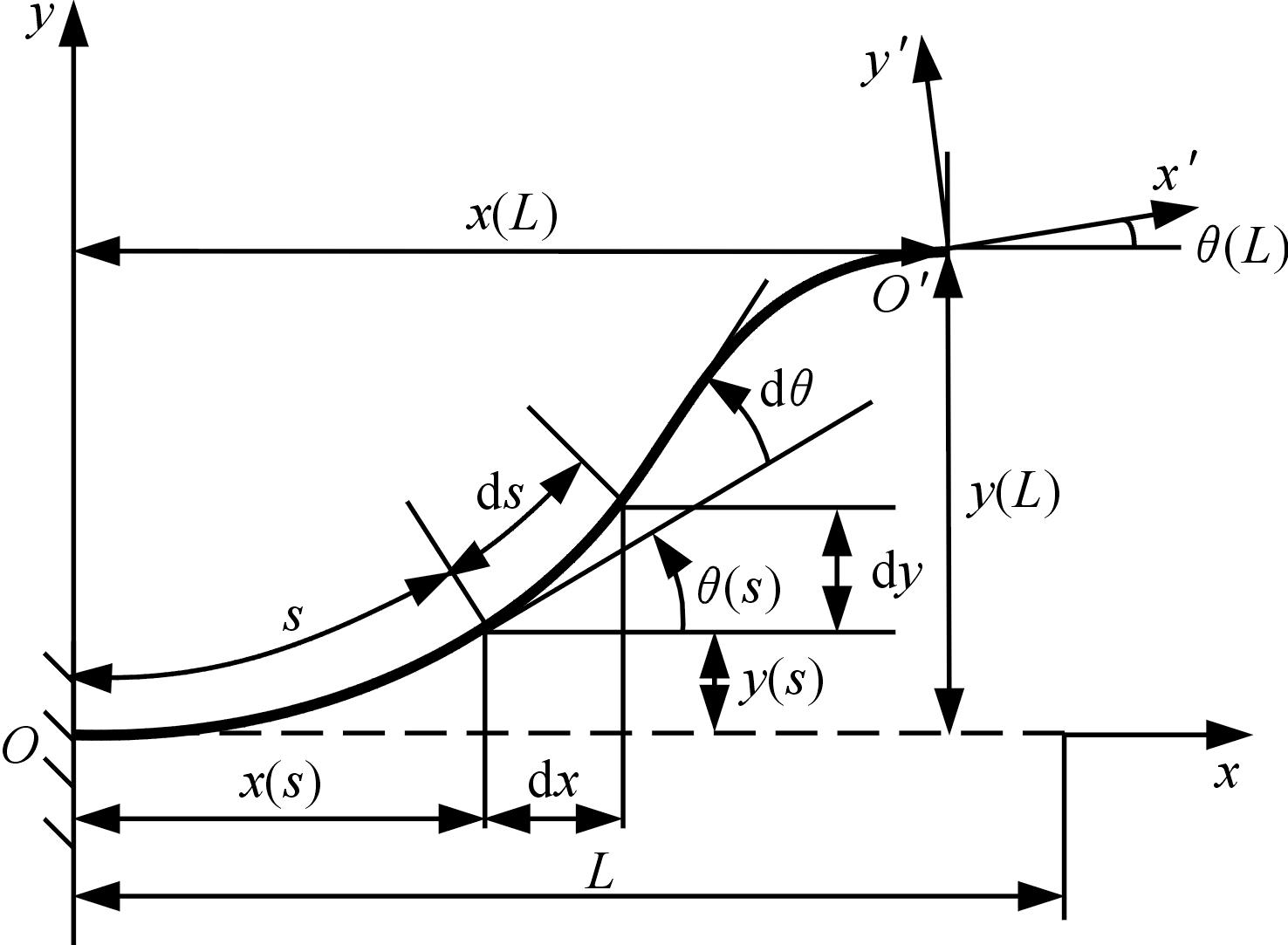

图1 平面曲线及其连体系

Fig.1 Planar curve and body-fixed frame

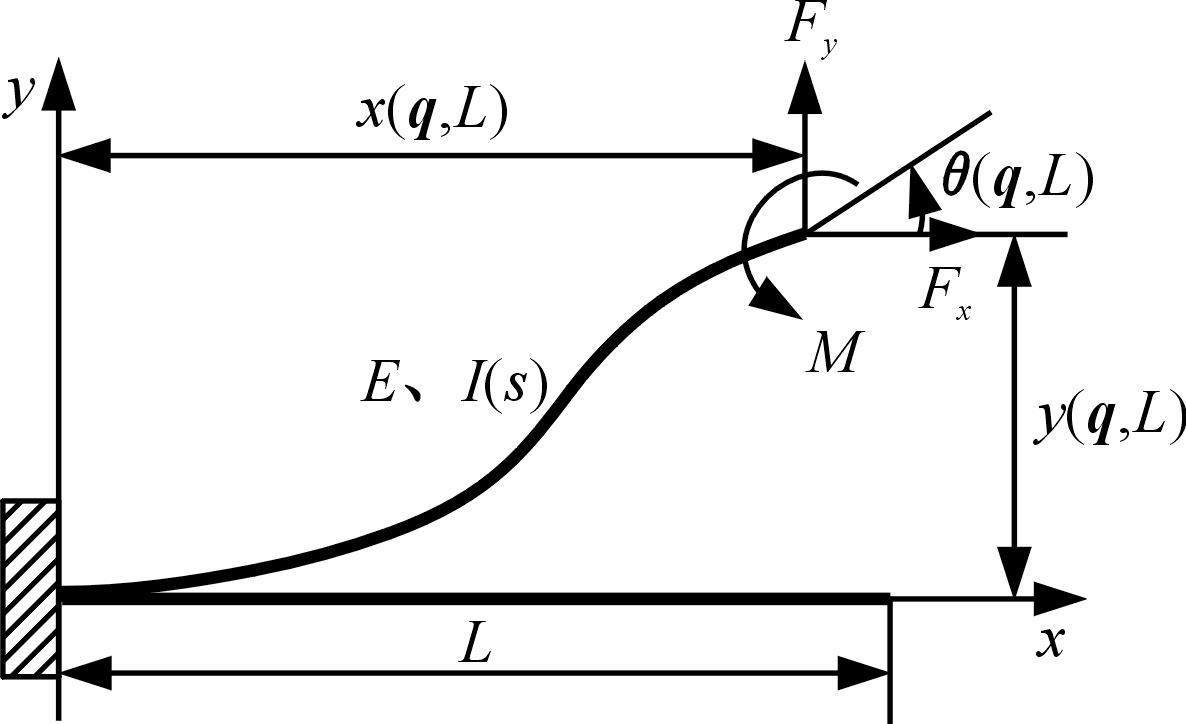

图2 末端载荷悬臂直梁

Fig.2 Straight cantilever beam under tip load

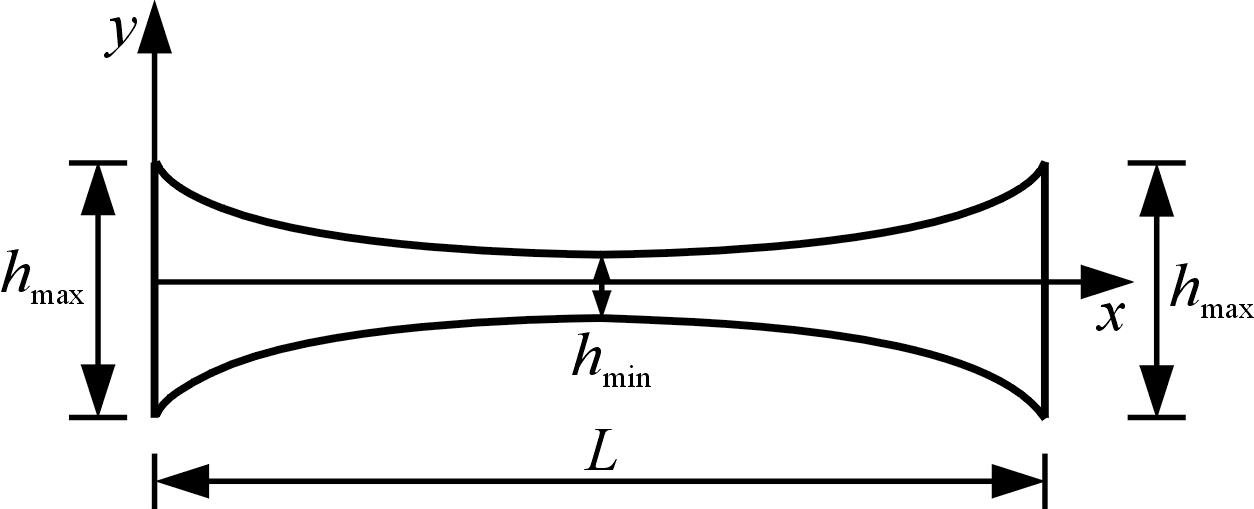

图3 截面厚度抛物线变化悬臂直梁

Fig.3 Straight cantilever beam with parabolic thickness

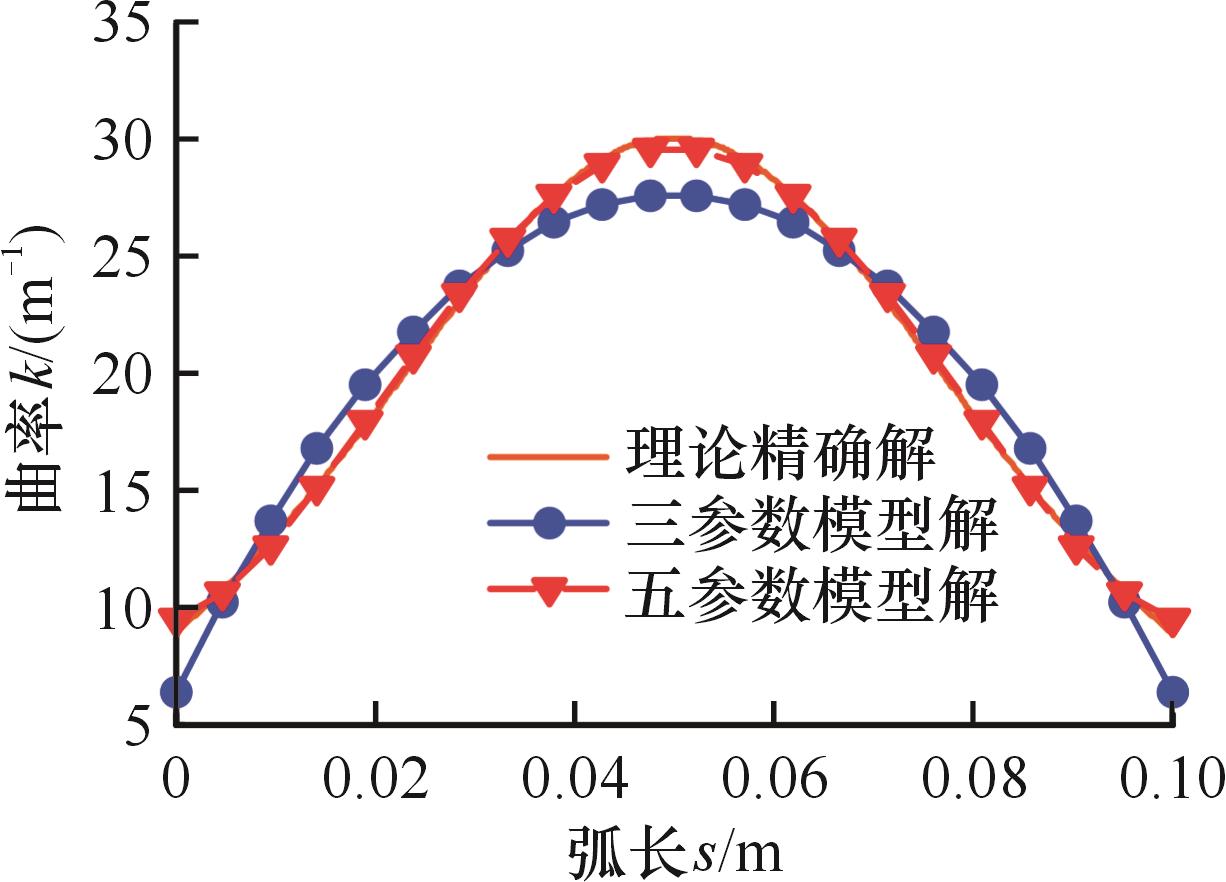

图4 曲率解对比

Fig.4 Comparison of curvature solutions

表1 曲率参数化模型解与理论精确解

Tab.1 The results of curvature model and exact solution

	精确解	3参数模型		5参数模型
	精确解	值	误差/%	值	误差/%
应变能/J	0.041 251	0.041 035	0.52	0.041 245	0.0146
角刚度/（N·m·rad^-1）	0.019 393	0.019 496	0.53	0.019 396	0.0145

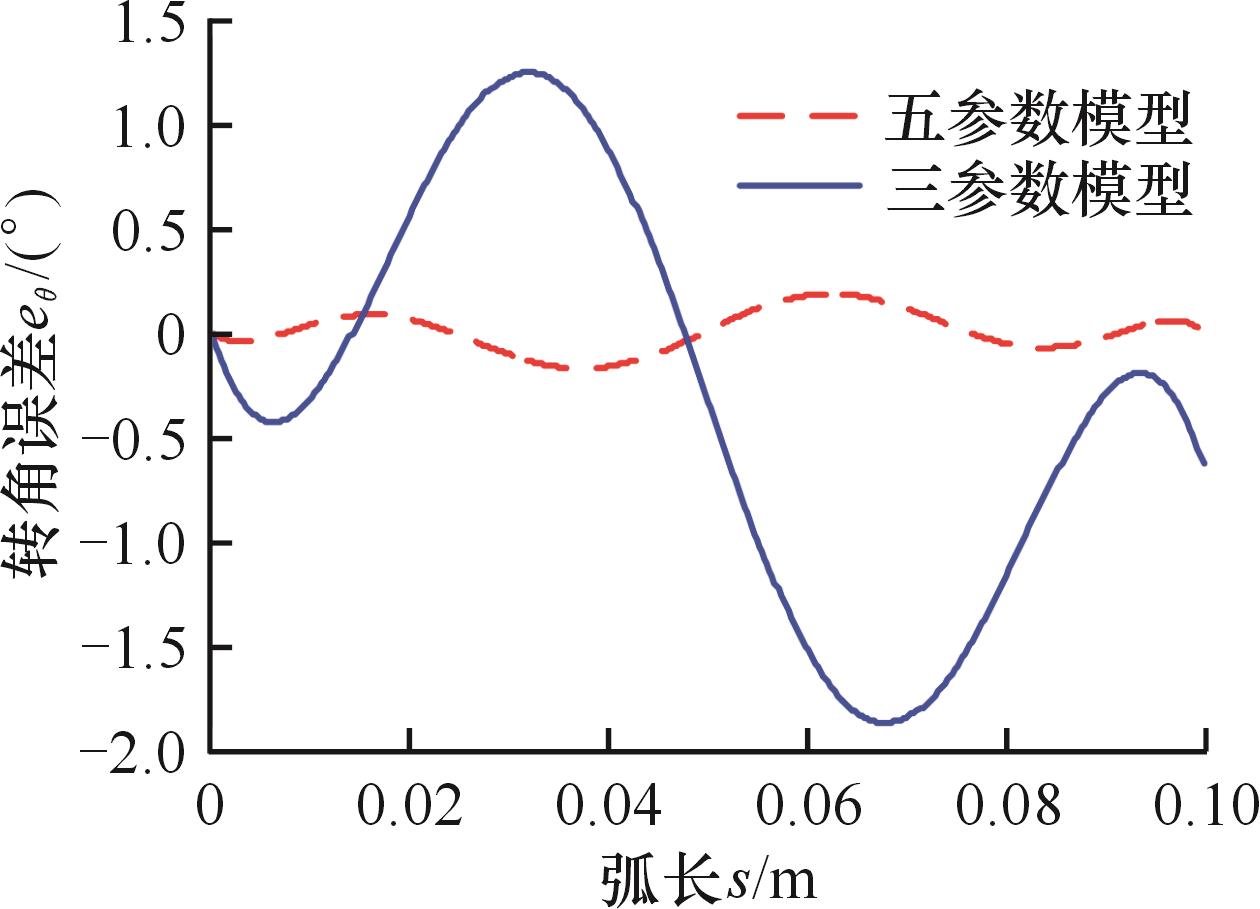

图5 挠曲线转角误差

Fig.5 Angle error of deflection curve

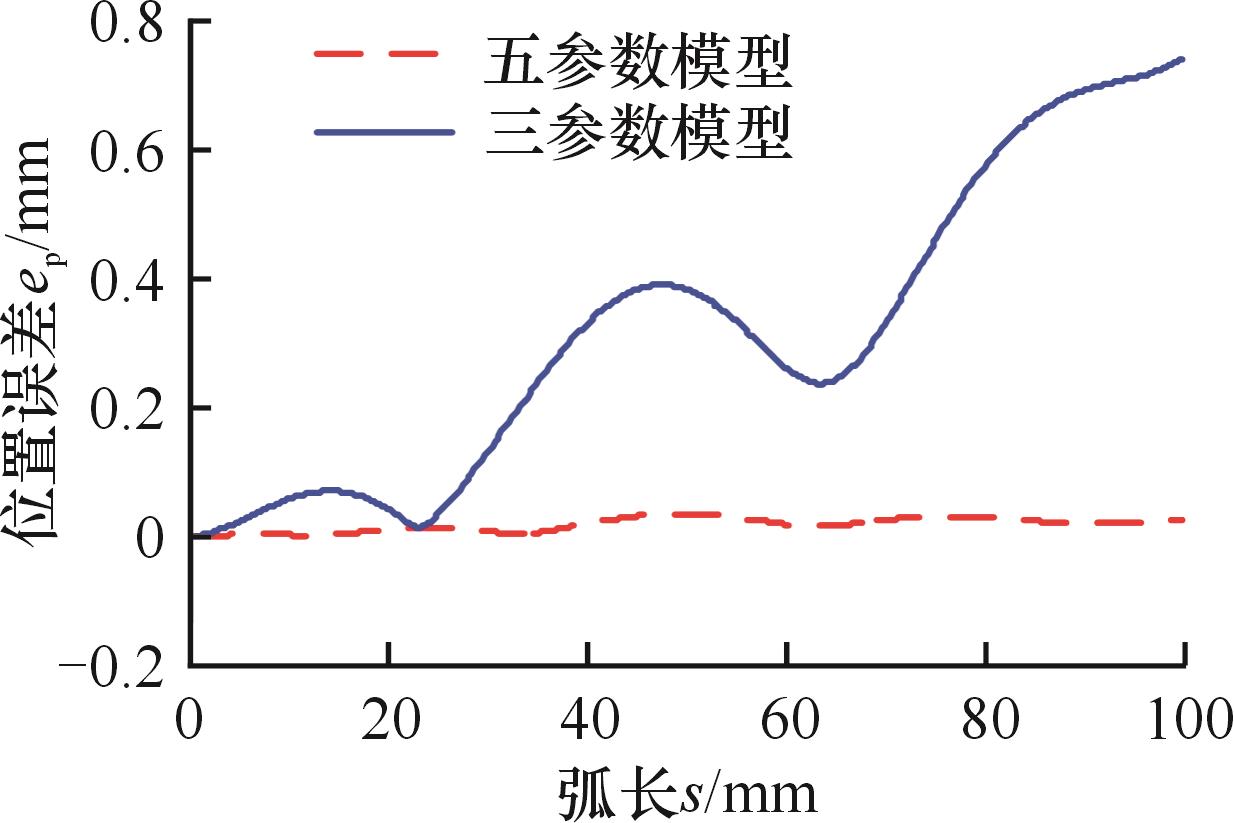

图6 挠曲线位置误差

Fig.6 Position error of deflection curve

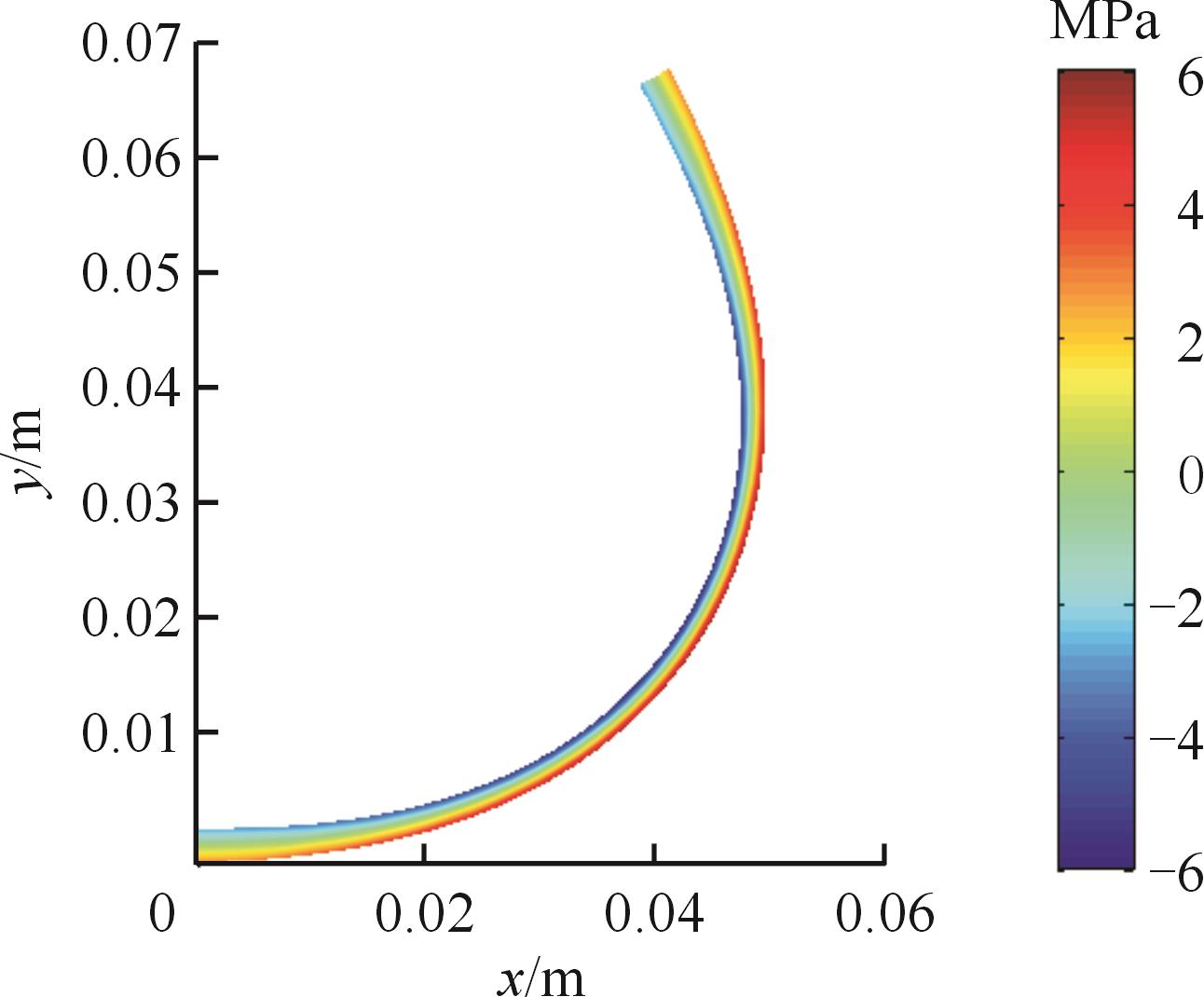

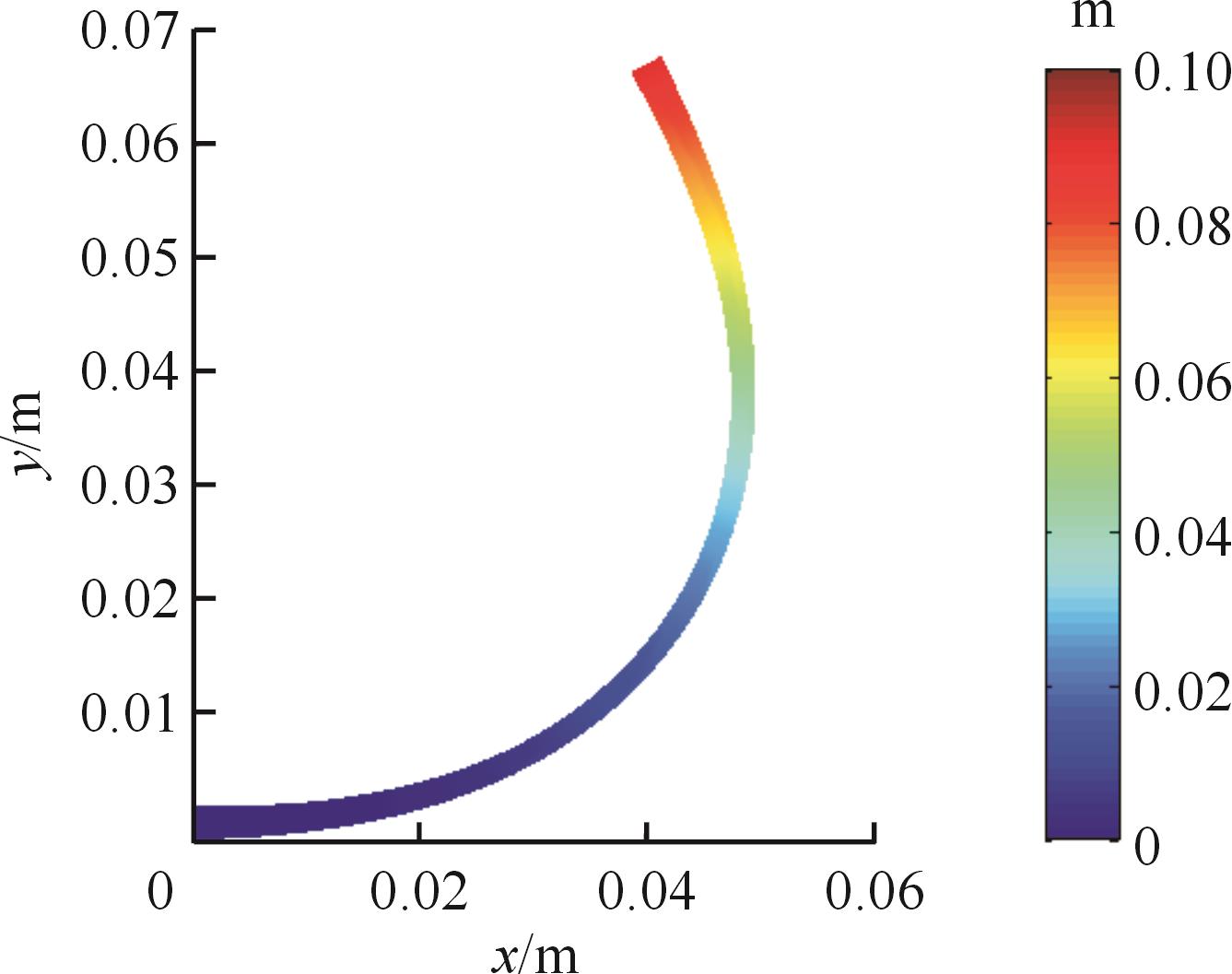

图7 弯曲应力云图

Fig.7 Bending stress nephogram

图8 位移云图

Fig.8 Displacement nephogram

表2 两种载荷下的末端位置和转角

Tab.2 Beam tip coordinates and angle under two load cases

	参数类别	载荷1	载荷2
载荷	F_x /N	-45.0	-22.5
	F_y /N	15.0	7.5
	M（N·m）	2	1
有限元 ^［17］	x（L）/m	0.1599	0.1880
	y（L）/m	0.062 59	0.038 11
	θ（L）/rad	2.5974	1.3492
7参数模型	x（L）/m	0.1597	0.1879
	y（L）/m	0.062 03	0.038 22
	θ（L）/rad	2.6765	1.3737
相对误差/%	x（L）/m	0.15	0.07
	y（L）/m	0.90	0.28
	θ（L）/rad	3.05	1.18

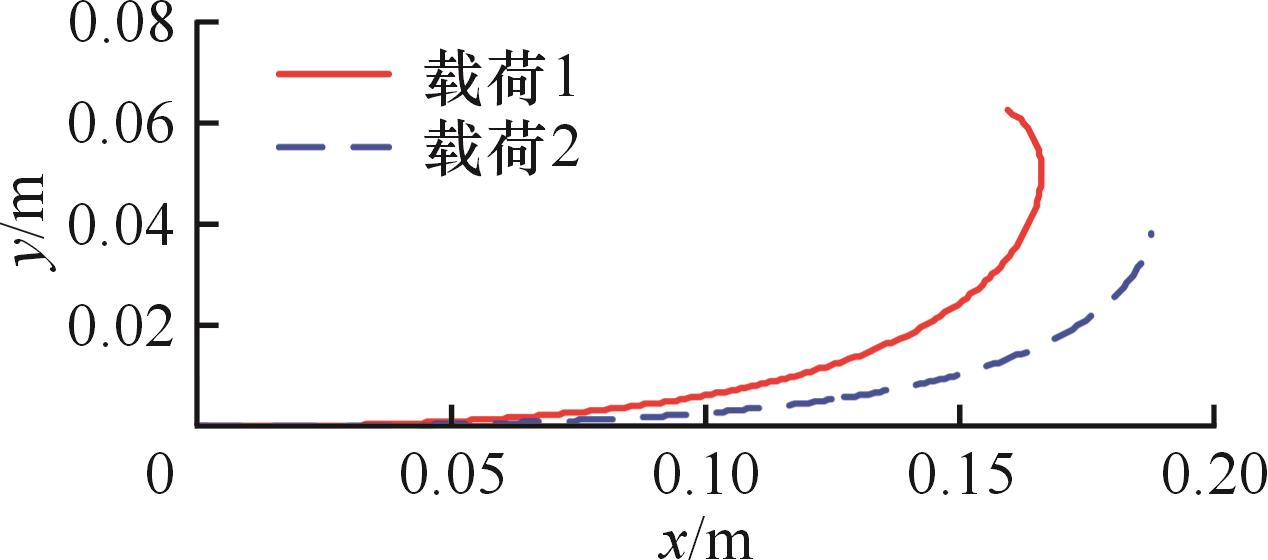

图9 两种载荷下的挠曲线

Fig.9 Deflection curves under two load cases

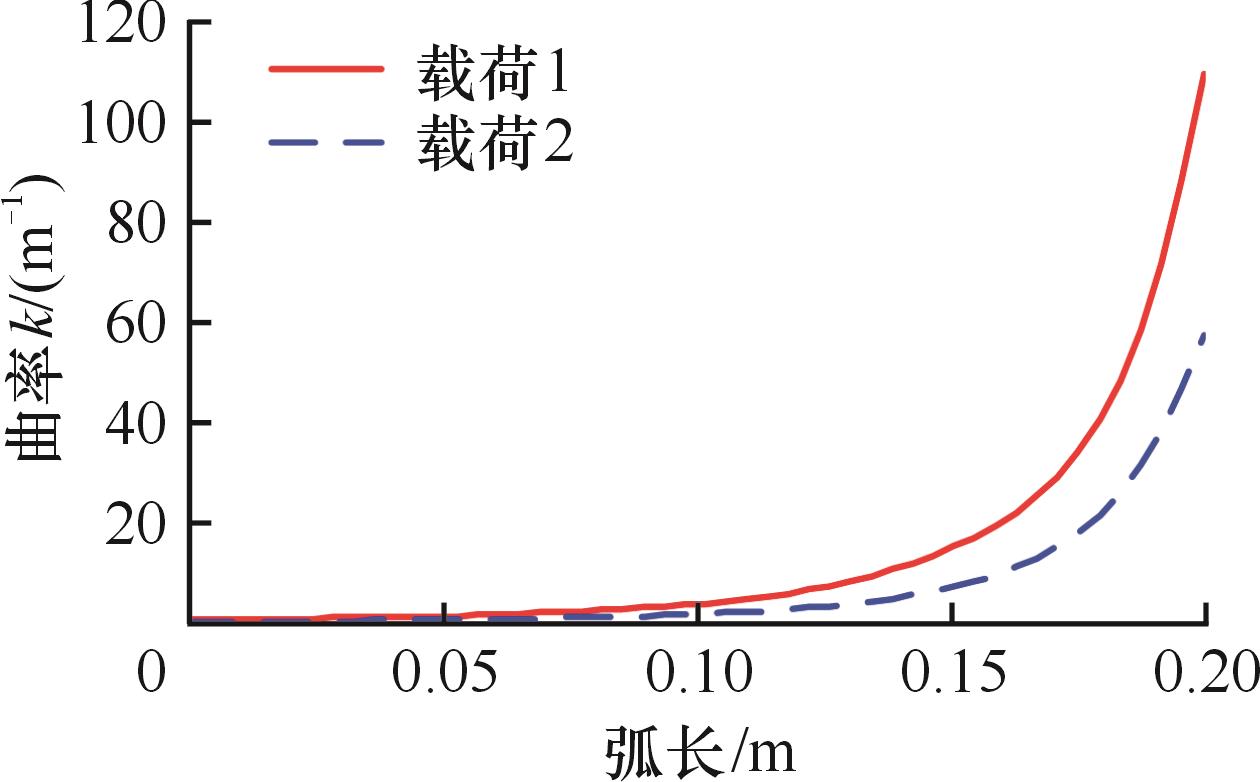

图10 两种载荷下的曲率曲线

Fig.10 Curvature curves under two load cases

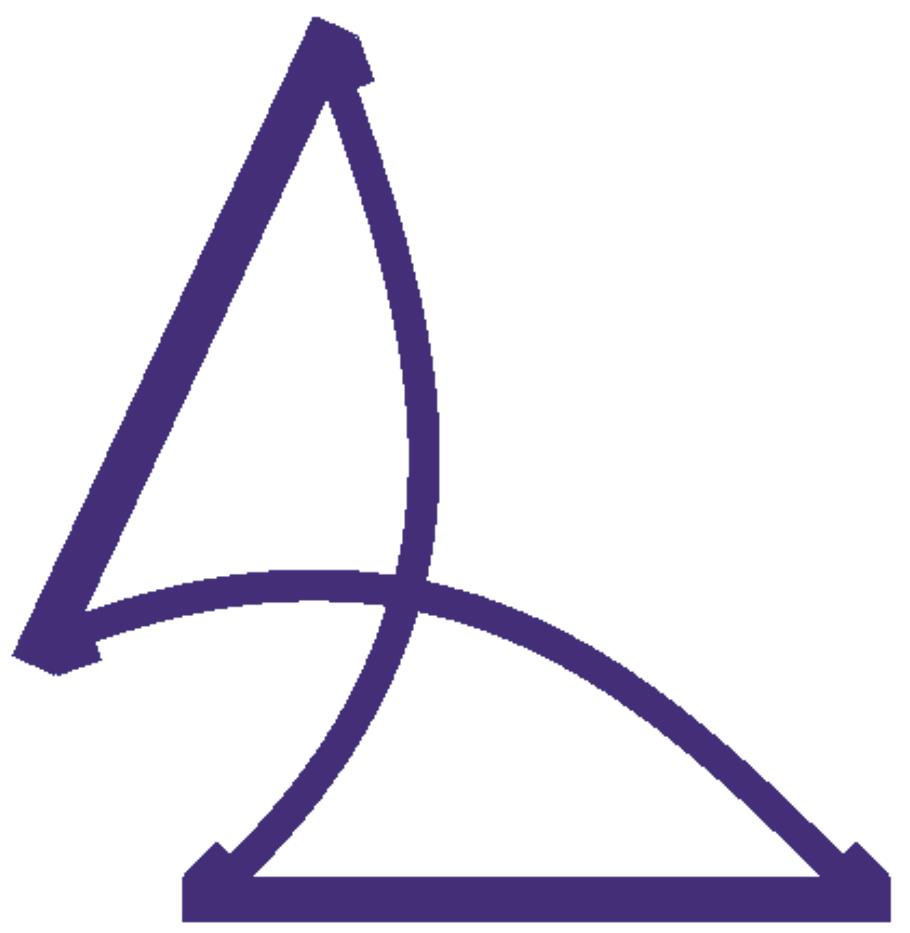

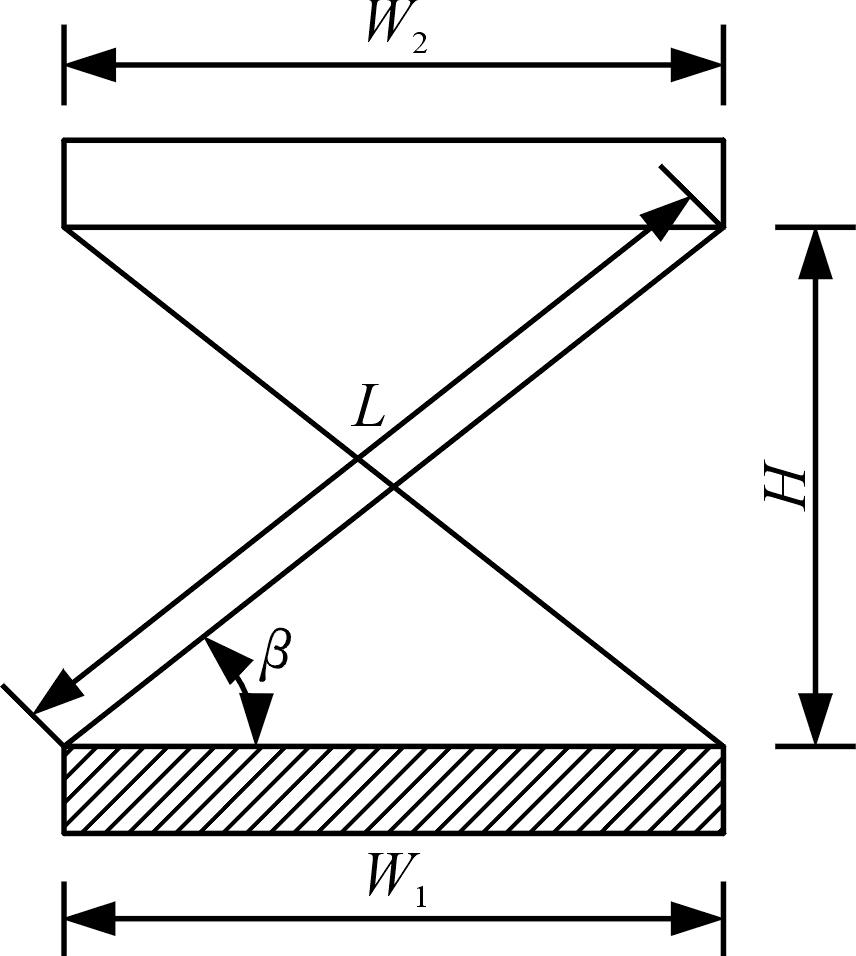

图11 交叉簧片柔性铰链

Fig.11 Geometry of cross-axis flexural pivot

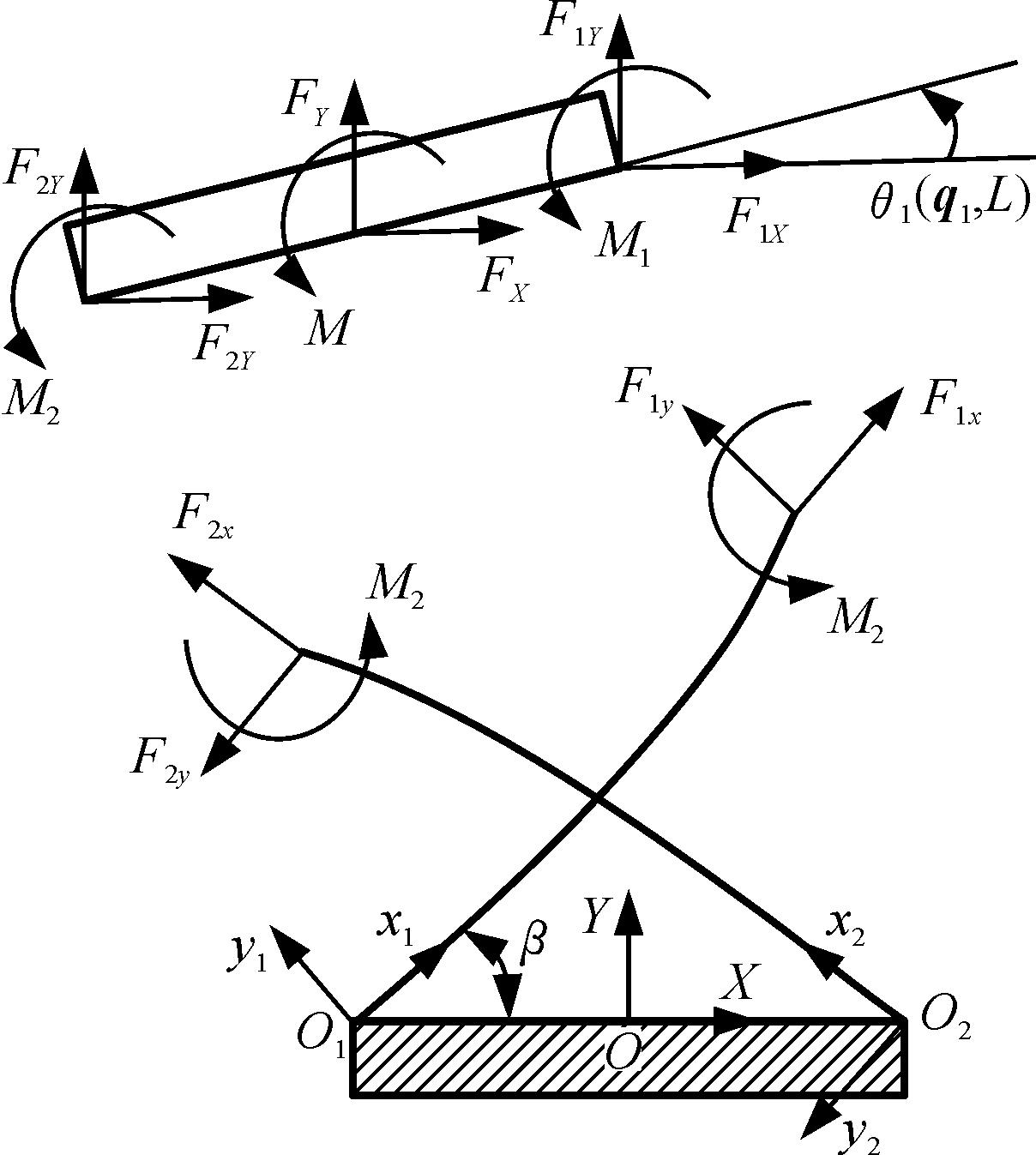

图12 坐标系与构件受力

Fig.12 Coordinates and forces of components

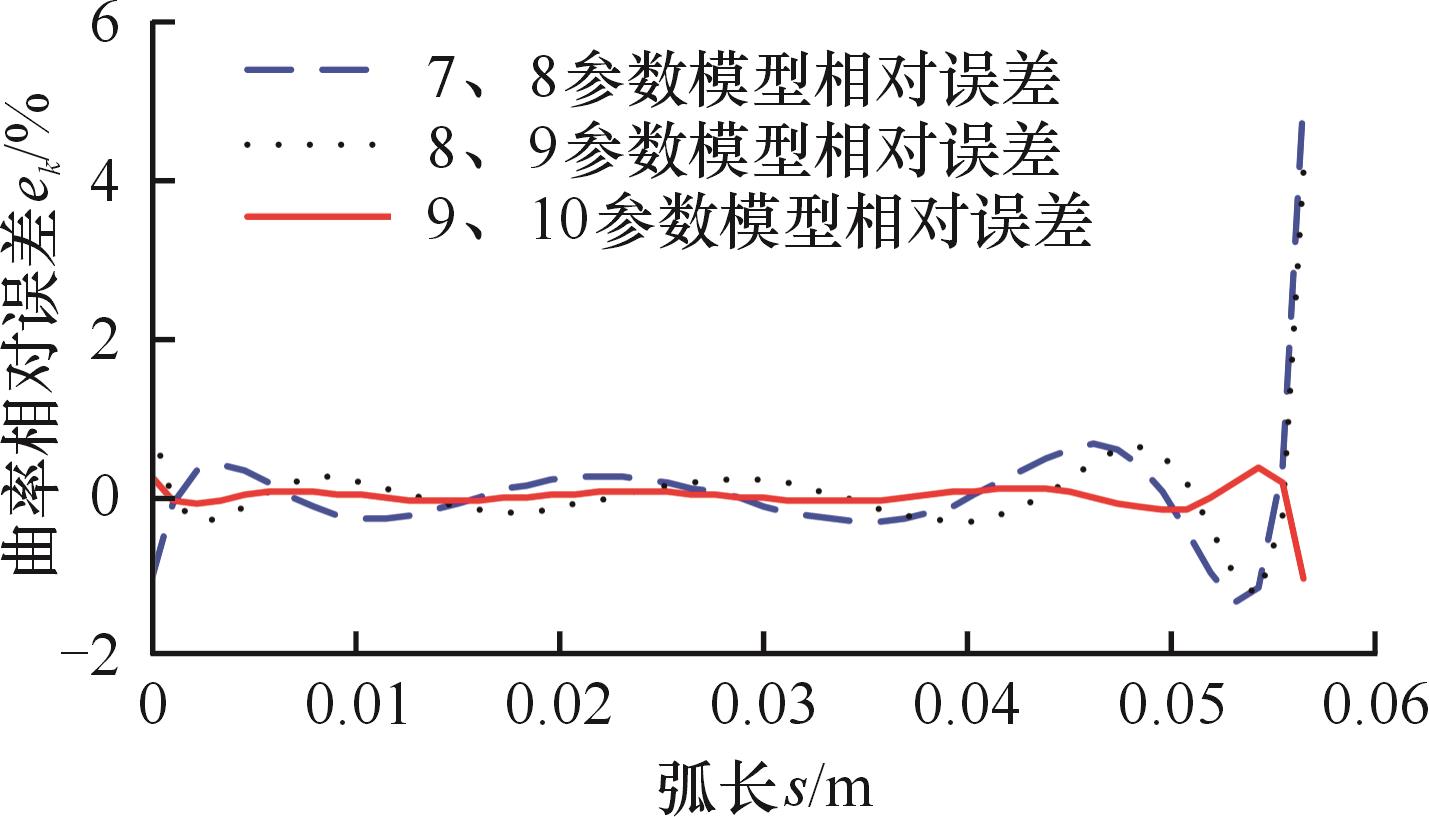

图13 不同维数模型的曲率相对误差

Fig.13 Relative error of curvature of different models

图14 转角1.13 rad时簧片曲率曲线

Fig.14 Curvature curves under 1.13 rad rotation

图15 转角1.13 rad时的铰链构型

Fig.15 Configuration under 1.13 rad rotation

表3 10参数曲率模型与有限元结果对比

Tab.3 The results of curvature model and FEM

	扭转刚度/（N·m·rad^-1）	最大应力/MPa
有限元^［5］	1.220	63.30
10参数模型	1.248	66.27
相对误差/%	2.28	4.70

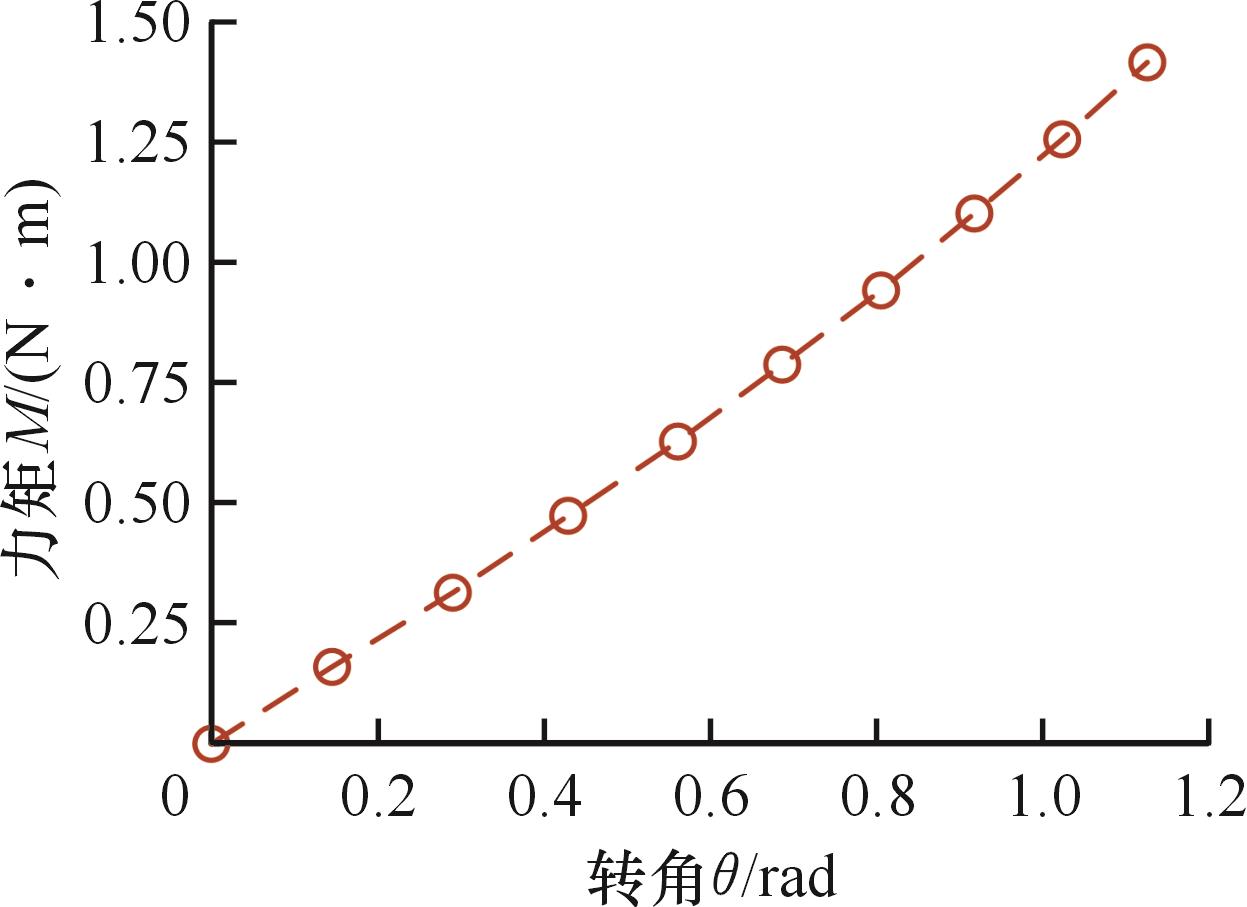

图16 力矩转角关系曲线

Fig.16 Moment-deflection relation

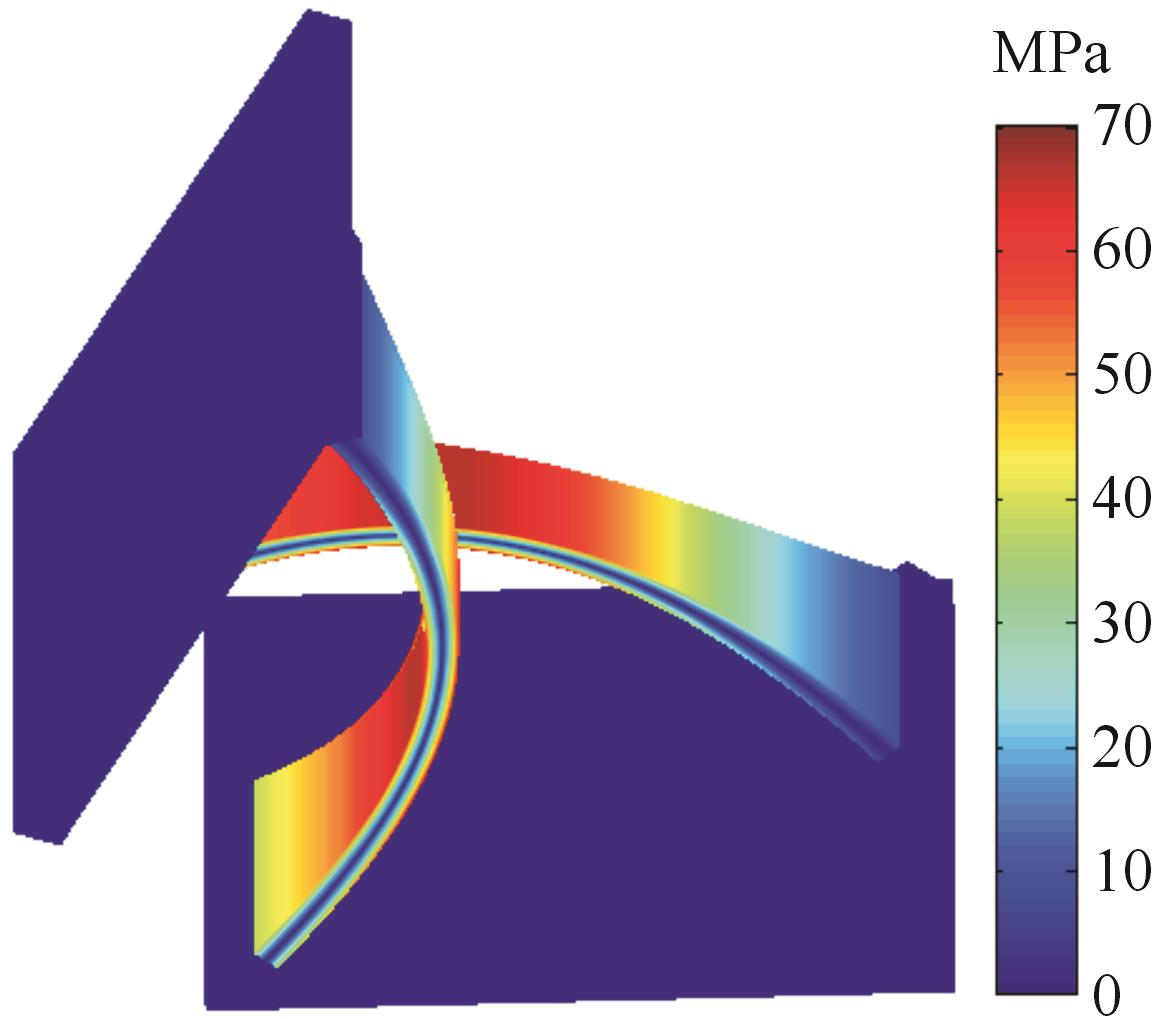

图17 转角1.13 rad时的等效应力云图

Fig.17 Equivalent stress nephogram under 1.13 rad rotation
